Soundking KV18SA KV Series Speaker Cabinet
SPECIFICATION
KV18SA
| Model | KV18SA |
| type | 18inch subwoofer |
| frequence response | 35Hz –150Hz (-10dB) |
| 45Hz –100Hz (-3dB) | |
| Power Handing | 700W |
| crossover | |
| woofer | 18″ subwoofer |
| tweeter | |
| Cossover angle(HxV) | |
| Max SPL | 134dB |
| Mains connections | Balanced XLR |
| Dimension(WxHxD) | 530x681x610 (mm) |
| Weight(net/shopping) | 35.9kg / 42.9kg |
KV12A
| Model | KV12A |
| type | 12inch two way |
| frequence response | 55Hz –20kHz (-10dB) |
| 60Hz –18kHz (-3dB) | |
| Power Handing | 1000W |
| crossover | 1.7kHz |
| woofer | 12″ woofer/ φ63.5mm voice coil |
| tweeter | compression driver / φ34mmmm voice coil |
| Cossover angle(HxV) | 80°x60° |
| Max SPL（peek） | 133dB |
| Connections | Balanced XLR, JACK and RCA Phono |
| Dimension(WxHxD) | 365x608x341(mm) |
| Weight(net/shopping) | 19.14kg / 22.28kg |
KV15A
| Model | KV15A |
| type | 15inch two way |
| frequence response | 45Hz –20kHz (-10dB) |
| 55Hz –18kHz (-3dB) | |
| Power Handing | 1000W |
| crossover | 1.5kHz |
| woofer | 15″ woofer / φ63.5mm voice coil |
| tweeter | compression driver / φ34mmmm voice coil |
| Cossover angle(HxV) | 80°x60° |
| Max SPL | 134dB |
| Connections | Balanced XLR, JACK and RCA Phono |
| Dimension(WxHxD) | 430x704x400(mm) |
| Weight(net/shopping) | 22.76kg / 27.48kg |
SAFETY INSTRUCTIONS
READ THIS BEFORE YOU USE YOUR PRODUCT
- Before connecting the A.C. power cord make sure the Voltage Selector is set for your local A.C. supply voltage.
For supplies between 220 and 240V ensure it is set to 230V.
For supplies between 110 and 120V ensure it is set to 115V. - Only use the A.C. power cord / mains lead supplied with this product. Replace if it becomes damaged in any way.
- Never operate without, or remove the safety ground (earth) from the A.C. Power cord mains lead.
- Do not attempt to remove any screws or panels. There are no user serviceable parts inside.
- Do not operate the unit next to heat sources such as radiators.
- The unit should not be operated or stored near rain or moisture.
- This equipment must not be exposed to dripping or splashing and no objects filled with liquids should be placed on top of it.
- Write the serial number in the box provided in the Warranty section for future reference.
- If the unit gets damaged, has been dropped or appears to have developed a fault refer to the Service Information section for details.
WARNING: THIS APPARATUS MUST BE EARTHED (GROUNDED)
WEEE Mark
If you want to dispose of this product, do not mix with general household waste. There are separate collection systems for used electronic products in accordance with legislation under the WEEE Directive (Directive 2002/96/EC) and is effective only within the European Union.
System feature
KV speaker cabinet series consists of KV12A/KV15A/KV18SA active speaker cabinet and KV12/KV15/KV18S passive speaker cabinet. This speaker cabinet series is specially designed for Horizon 2012 mixer. All the speaker cabinets have 15mm plywood to deliver delicate tone. All the speaker cabinets are light weighted for convenient transportation.
1)Active speaker cabinet: the LF uses symmetrical ferrite magnet and the voice coil uses heat-resisting material for the high power and heat dissipation. The HF uses compression driver and AL diaphragm for delicate tone. The class D power amplifier is powerful but light weighted. The ribbed 15mm plywood cabinet eliminates the resonance inside.
KV12A—12 Two-Way Powered Speaker Cabinet
- φ34mm voice coil，Al diaphragm， compression HF。
- φ63.5mm voice coil，ferrite woofer
- constant directivity horn， coverage 80°×60°。
- Light weighted but powerful class D power amp with low distortion.
- 15mm plywood cabinet with rib inside and black finish on the surface
- 45 degree monitoring
KV15A—15 Two-Way Powered Loudspeaker
- φ34mm voice coil，Al diaphragm， compression HF。
- φ63.5mm voice coil，ferrite woofer。
- constant directivity horn， coverage 80°×60°。
- Light weighted but powerful class D power amp with low distortion.
- 15mm plywood cabinet with rib inside and black finish on the surface
- 45 degree monitoring
KV18SA—18 Powered Subwoofer
- 18 high power woofer with extra low bass extension
- 35H-150Hz frequency response
- 700W Class D power amp with sufficient headroom.
- XLR input. HF output，filtering the frequency below 120Hz; used with full range speaker cabinet for reinforcement;
- 15mm plywood cabinet with rib inside and black finish on the surface
| Model | KV18S |
| Type | 18inch sub |
| Frequence response | 35Hz –200Hz (-10dB) |
| 45Hz –150Hz (-3dB) | |
| Sensitivity (1m1w) | 96 dB |
| Impedance | 4Ω |
| Rated power | Continue 400W, Progam 800W, Peak 1600W |
| Crossover | |
| Woofer | 18″ subwoofer |
| Tweeter | |
| Cossover angle(HxV) | |
| Max SPL | 134dB |
| Connections | 2xspeakon Nl4 |
| Dimension(WxHxD) | 530x681x610(mm) |
| Weight(net/shopping) | 31.9kg / 38.7kg |
| Model | KV12 |
| Type | 12inch two ways |
| Frequence response | 55Hz –20kHz (-10dB) |
| 60Hz –18kHz (-3dB) | |
| Sensitivity (1m1w) | 95 dB |
| Impedance | 4Ω |
| rated power | Continue 400W, Progam 800W, Peak 1600W |
| Crossover | 2.2kHz |
| Woofer | 12″ woofer/ φ75.8mm voice coil |
| Tweeter | compression driver / φ44mmmm voice coil |
| Cossover angle(HxV) | 80°x60° |
| Max SPL | 132dB |
| Mains connections | 2xspeakon Nl4 |
| Dimension(WxHxD) | 365x608x341(mm) |
| Weight(net/shopping) | 18.2kg / 21.2kg |
| Model | KV15 |
| Type | 15inch two ways |
| Frequence response | 45Hz –20kHz (-10dB) |
| 55Hz –18kHz (-3dB) | |
| Sensitivity (1m1w) | 96 dB |
| Impedance | 4Ω |
| rated power | Continue 400W, Progam 800W, Peak 1600W |
| Crossover | 2kHz |
| Woofer | 15″ woofer / φ75.8mm voice coil |
| Tweeter | compression driver / φ44mmmm voice coil |
| Cossover angle(HxV) | 80°x60° |
| Max SPL | 134dB |
| Mains connections | 2xspeakon Nl4 |
| Dimension(WxHxD) | 430x704x400(mm) |
| Weight(net/shopping) | 22.2kg / 26.2kg |
Passive speaker cabinet: NdFeB magnet LF unit; symmetrical magnet design;
heat-resistant voice coil to endure the high temperature at high power.
Compression HF unit; PEEK diaphragm offers excellent frequency response.
15mm plywood cabinet with ribs diminishes resonance; durable black painting;
KV12—12 Two-Way Passive Loudspeaker
- φ44mm voice coil，PEEK diaphragm， compression HF。
- φ75.8mm voice coil， NdFeB woofer
- constant directivity horn， coverage 80°×60°。
- LC crossover with refined components to reproduce the original sound.
- 15mm plywood cabinet with rib inside and black finish on the surface
- 45 degree monitoring
KV15—15 Two-Way Passive Loudspeaker
- φ44mm voice coil，PEEK diaphragm， compression HF。
- φ75.8mm voice coil， NdFeB woofer
- constant directivity horn， coverage 80°×60°。
- LC crossover with refined components to reproduce the original sound.
- 15mm plywood cabinet with rib inside and black finish on the surface
- 45 degree monitoring
KV18S—18 Passive Subwoofer
- 18 high power woofer with extra low bass extension
- 35H-150Hz frequency response
- 15mm plywood cabinet with rib inside and black finish on the surface

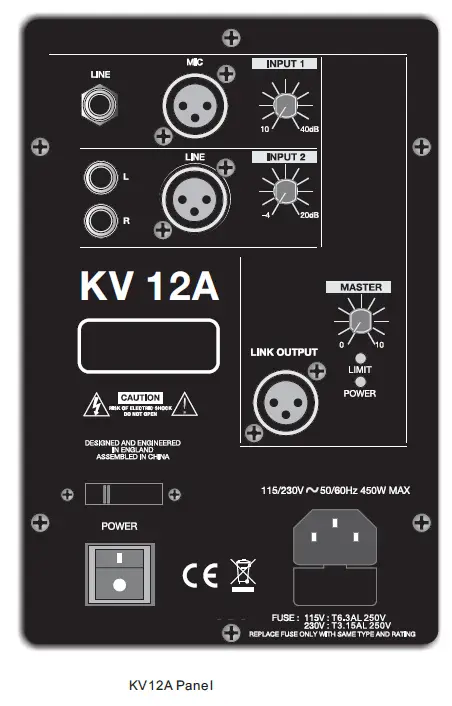

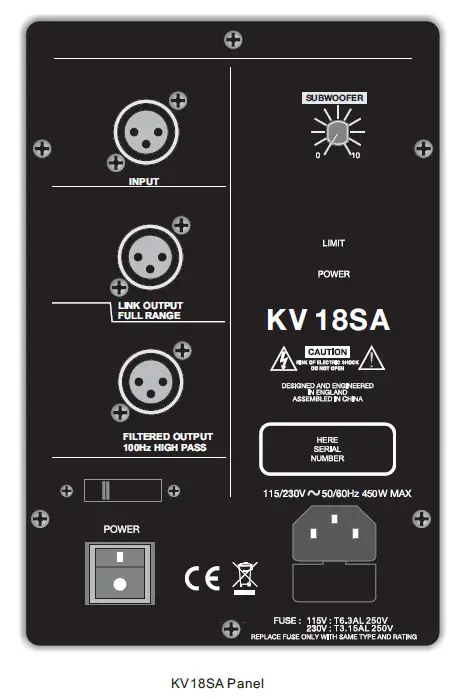

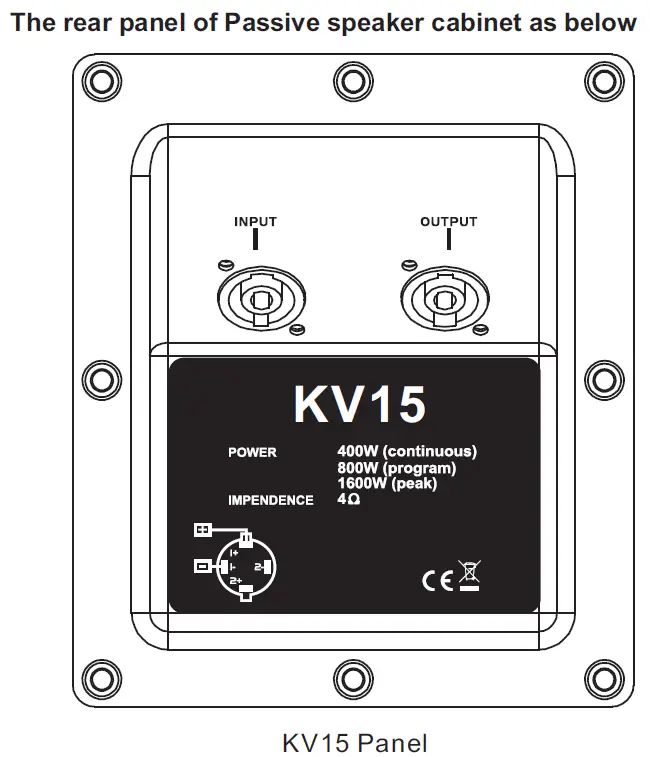

The rear panel of Active speaker cabinet as below
