Digi-Wave 400 Series Wireless Intercom And Interpretation
System Instructions
DIGITAL TECHNOLOGY

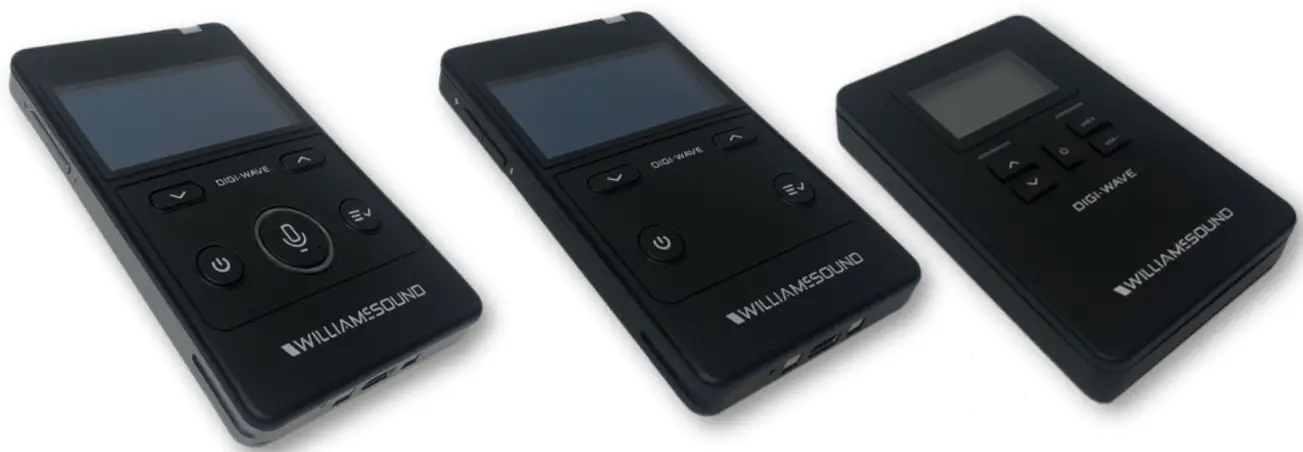

Digi-Wave 400 Series Wireless Intercom And Interpretation System
Digi-Wave™ 400 Series
WIRELESS INTERCOM AND INTERPRETATION SYSTEM
The Digi-Wave 400 system is a digital spreadspectrum (DSS), simultaneous two-way wireless communication system. The system makes hearing easier in everyday situations
by reducing background noise and compensating for poor room acoustics or distance from the sound source. Its frequency-hopping algorithm avoids interference and is a very secure method of communication.
Every Digi-Wave System includes at least one two-way transceiver (DLT 400) and one or more receivers (DLR 400 RCH or DLR 400 ALK), depending upon the application.
The system is commonly used for intercom, with up to six people able to speak simultaneously and even more listening. It’s also ideal as a human interpretation system that supports one floor language and up to 14 translated languages. Digi-Wave systems are also frequently used with guided tours – with one or more tour guides (2-way), with audience participation (2-way) or without audience participation (1-way listen only).
Key Features
- Portable digital transceiver with built-in mic
- Completely portable – no base station or rack-mounted components required
- Crystal-clear digital sound quality
- Use as a two-way wireless intercom or in one-way mode
- Accommodates six simultaneous talkers and an unlimited number of listeners
- Built for security. Optional 128+87 bit encryption, secure key code, lock for settings
Applications
- Intercom
- Language interpretation
- Tours
- Presentations
- Hearing Assistance
- Presentations
Markets
- Government – courtrooms
- Corporate – training, presentation, tours
- Broadcast
- Healthcare – medical centers
- Education – classrooms & lecture halls
View our full digital line at WilliamsAC.com/digital-products

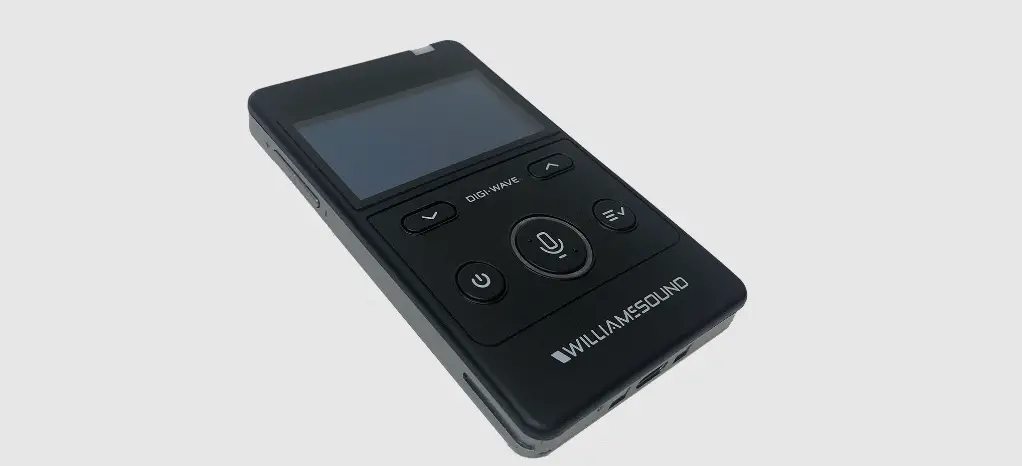

Product Specifications: Digi-Wave 400 Transceiver (DLT 400)
| Dimensions | 422’W x 2.60″H x 0.50″D (107.3 mm x 66 mm x 12.6 mm) |
| Weight | Weight 33 oz (94 g) including battery |
| Color | Black/Silver (Front/Back) |
| Case Material | Black ABS plastic |
| Battery Type | Lithium Polymer with smart charge built into transceiver; 1800 mAH |
| Battery Life | Yp to 16 hrs talk time per charge@ kh Tx and kh Rx |
| Power Save | Auto Sleep Mode after 5 minutes of no PF signal from compatible devices |
| Charge Time | 5 hrs. approx. |
| System Voltages | OLED 14VDC: RF SVDC: Logic 3.3 VDC |
| Operating Frequencies | 24 GHz (194 band): 2402 – 2476 MHz FHSS |
| Audio Frequency Response (-3dB level) | Intercom Mode:100 – 7.200 Hz Other Mode 100 – 11.500 Hz |
| SNR | 73 dB (A-weighted. default Px volume with mic input ) |
| THD | 0.1% (Default Volume. 1kHz) |
| Microphone Input | Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias. adjustable gain with 63dB range. |
| Line Input | USB-C. Adjustable level |
| Headphone Output | 3.5 mm TRRS headphone jack; 25 mW. P 32 ohms |
| Audio Out pu t | Headphone: Max SSPL 90111.8dB (EAR 013).116.8dB 041) Line: USB-C. Adjustable level |
| Range | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Modulation | FSK |
| RF Ouptput | 19 dBm Typical |
| Security | 87 bit encryption (300 Series Compatible). 128.87 bit encryption. encryption PIN. Lock for settings |
| Side Tone | -6dB below volume. tonevariation (Off. Low and High settings available) |
| Indicators | OLED |
| LEOs | Red LED around Talk button when enabled; Bi-color. changing green and red LED at top |
| Charging Connectors | USB-C: Two contacts for use with CHG 412 |
| Compatible Receiver | DLR 400 RCH. DLR 400 ALK DLT 300 with some limitations and DLR 360 with some limitations |
| Operating Temperature Range | 14° to 113°F (-10′ to 45°C) |
| Approvals | FCC. Industry Canada. CE. RoHS I WEEE RCM. ANATEL KC. Giteki |
| Warranty | 2-year warranty against component failure and manufacturing defects (6 months on internal battery). See Full Warranty on the website for details. |
Product Specifications: Digi-Wave 400 Receiver (Rechargeable)
(DLR 400 RCH)
| Dimensions | 4.22″W x 2.60″H x 0.50″D(107.3 mm x 66 mm x 12.6 mm) |
| Weight | 3.3 oz (94 g) including battery |
| Color | Black |
| Battery type | Lithium Polymer with smart charge built into transceiver; 1800 mAH |
| Battery life | Up to 32 hrs per charge © lch Rx |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Charge time | 5 hrs. approx. |
| System Voltage | OLED 14VDC; RF 5VDC; Logic 3.3 VDC |
| Operating frequencies | 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS |
| Audio Frequency response(-3dB Level) | Intercom Mode:100 – 7,200 Hz Other Modes:100 -11,500 Hz |
| SNR | 73 dB (A-weighted) |
| THD | 0.1% (Default Volume, lkHz) |
| Headphone Output | 3.5 mm TRRS headphone jack; 25 mW, R32 Cl |
| Line Audio Output | USB-C, Adjustable Level |
| Range | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Modulation | FSK |
| RF Sensitivity | -92 dBm |
| Security | 87-bit encryption (300 Series Compatible), 128+87 bit Encryption, encryption PIN, Lock for settings |
| Indicators | OLED |
| LEDs | Bi-color, changing green and red LED at top |
| Charging Connectors | USB-C; Two contacts for use with CHG 412 |
| Compatible Units | DLT 400, DLT 300 with some limitations |
| Operating Temperature | 14° to 113°F (-10° to 45°C) |
| Approvals | FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki |
| Warranty | 2-year warranty against component failure and manufacturing defects (6 months on internal battery). See Full Warranty on the website for details. |
Product Specifications: Digi-Wave 400 Receiver (Alkaline Batteries)
(DLR 400 ALK)
| Dimensions | 2.36″ W x 3.54″ H x 0.63″ D(60 mm x 90 mm x 16 mm) |
| Weight | 1.7 oz. (47 g) without batteries. |
| Frequency Band | 2.4 GHz (ISM band) |
| Modulation | FSK |
| Case Material | Black ABS Plastic |
| Battery Type | 2 x AAA Alkaline Batteries |
| Battery Life | Alkaline Disposable (BAT 010-2): Up to 30 hrs |
| Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Audio Frequency Response (-3dB level) | Intercom Mode:100 – 7,300 Hzlnterpretation and other modes: 100-11,200 Hz |
| SNR | 74 dB (A-weighted) |
| THD | 0.1% (typical) |
| Antenna | Internal |
| Range | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Headphone Audio Output | 3.5 mm TRRS jack with mono output for headphones, earphones, or neckloop27 mW maximum ©32 ohms |
| Display | LCD shows status: Battery Level, RSSI, Group/Channel # |
| Temperature Range | 14° -113°F (-10° to 45°C) |
| Compatible Units | DLT 400, DLT 300 |
| Approvals | FCC, Industry Canada, RoHS 3, CE, WEEE, RCM, ANATEL, KC, Giteki |
| Warranty | 2-year warranty against component failure and manufacturing defects. See Full Warranty on the website for details. |
WilliamsAV.com
U.S. | 800.843.3544 [email protected]
INTL | +1.952.943.2252 [email protected]
© 2022, Williams AV SEL DL400-822
