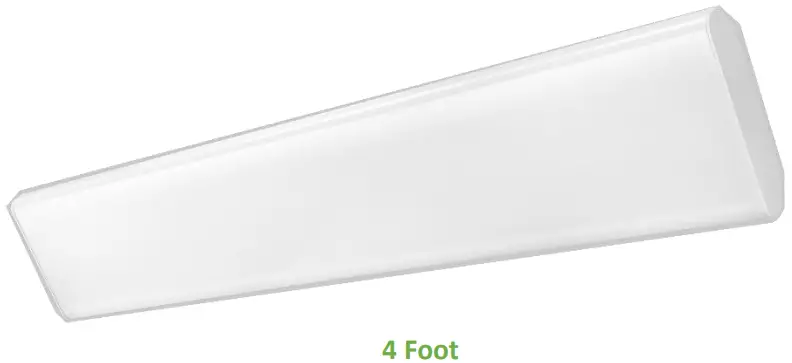

LED Wrap Around Light Series
FEATURES
- IP20 rated
- ABS endcaps design for easy install/removal of lens
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Parking Lots
- Supermarkets
- Corridors
- Retail Spaces
- Warehouses
CONSTRUCTION:
22-gauge metal housing with matte white finish. PMMA cover lens.
OPTICAL SYSTEM:
Samsung 2835 LED chips. Frosted lens. 110° beam angle.
WARRANTY:
5-year limited warranty. Actual performance may differ as a result of the end-user environment and application.
ELECTRICAL:
Available as 120-277V input. -20°C to 50°C, -4°F to 122°F
INSTALLATION & MOUNTING:
Suspension or surface mounting options. Metal joiner bracket:
• 4 foot can link up to 10 pieces
CONTROLS & DIMMING:
0-10V dimming comes standard.
| MODEL NUMBER | WATTAGE | LUMENS | EFFICACY | CRI | POWER FACTOR | THD | REPLACES |
| LWP4-22/28/34/44/D10/U/35-40-50 | 22W | 3,031.6LM | 137.8LM/W | 80 | 0.9 | 20% | |
| LWP4-22/28/34/44/D1O/U/35-40-50 | 28W | 3,858.4LM | 137.8LM/W | 80 | 0.9 | 20% | |
| LWP4-22/28/34/44/D10/U/35-40-50 | 34W | 4,685.2LM | 137.8LM/W | 80 | 0.9 | 20% | |
| LWP4-22/28/34/44/D10/U/35-40-50 | 44W | 6,063.2LM | 137.8LM/W | 80 | 0.9 | 20% |

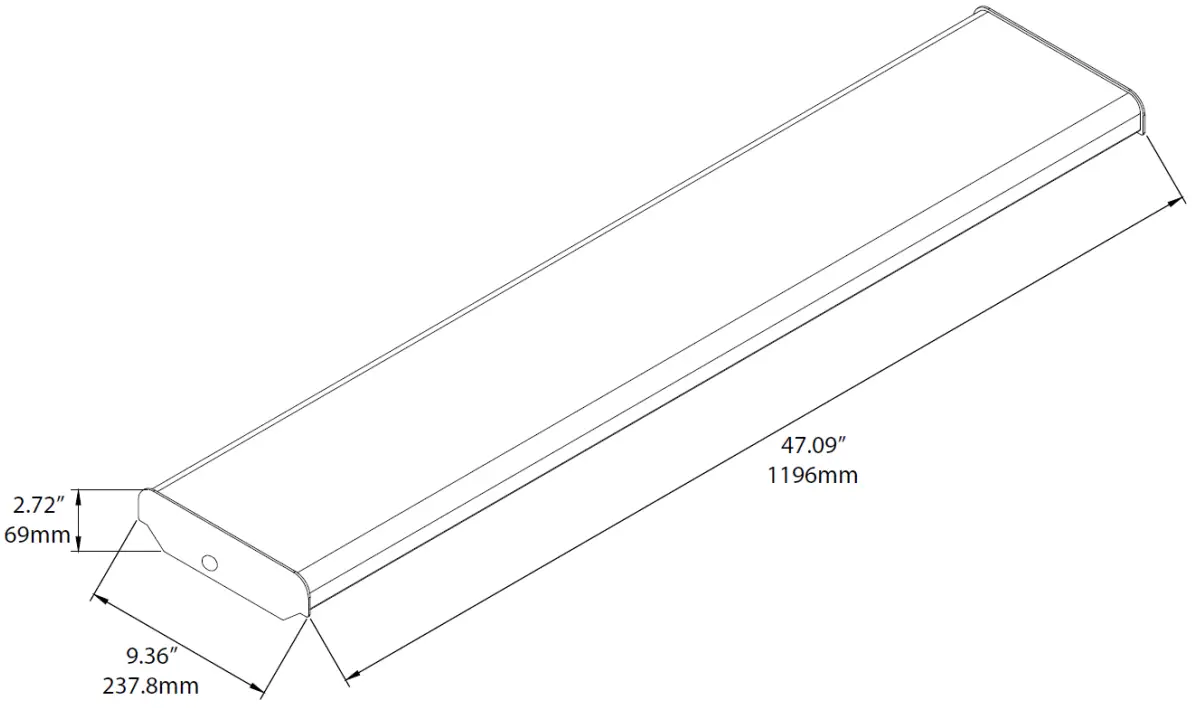

MEASUREMENTS
| MODEL | QUANTITY | WEIGHT |
| LWP4-22/28/34/44/D10/U/35-40-50 | 1 | lbs |

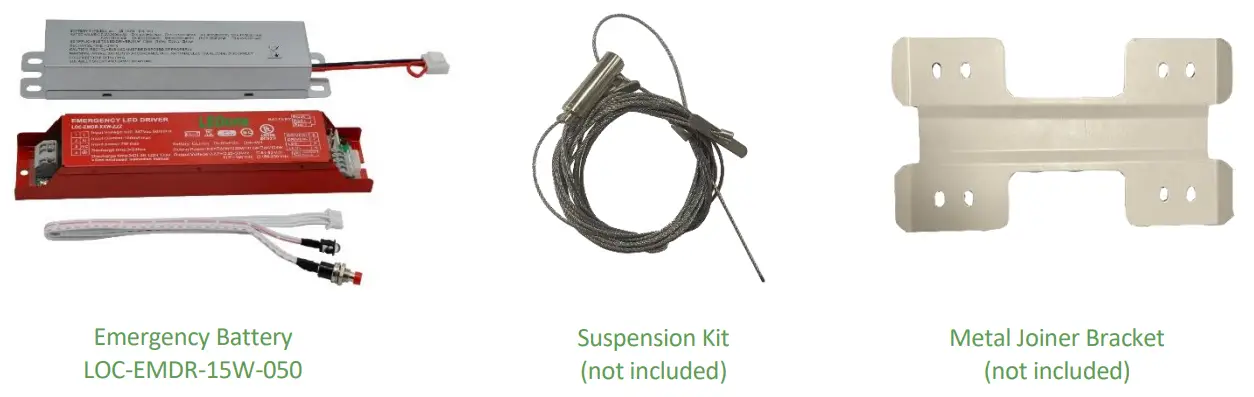

OPTIONAL ACCESSORIES

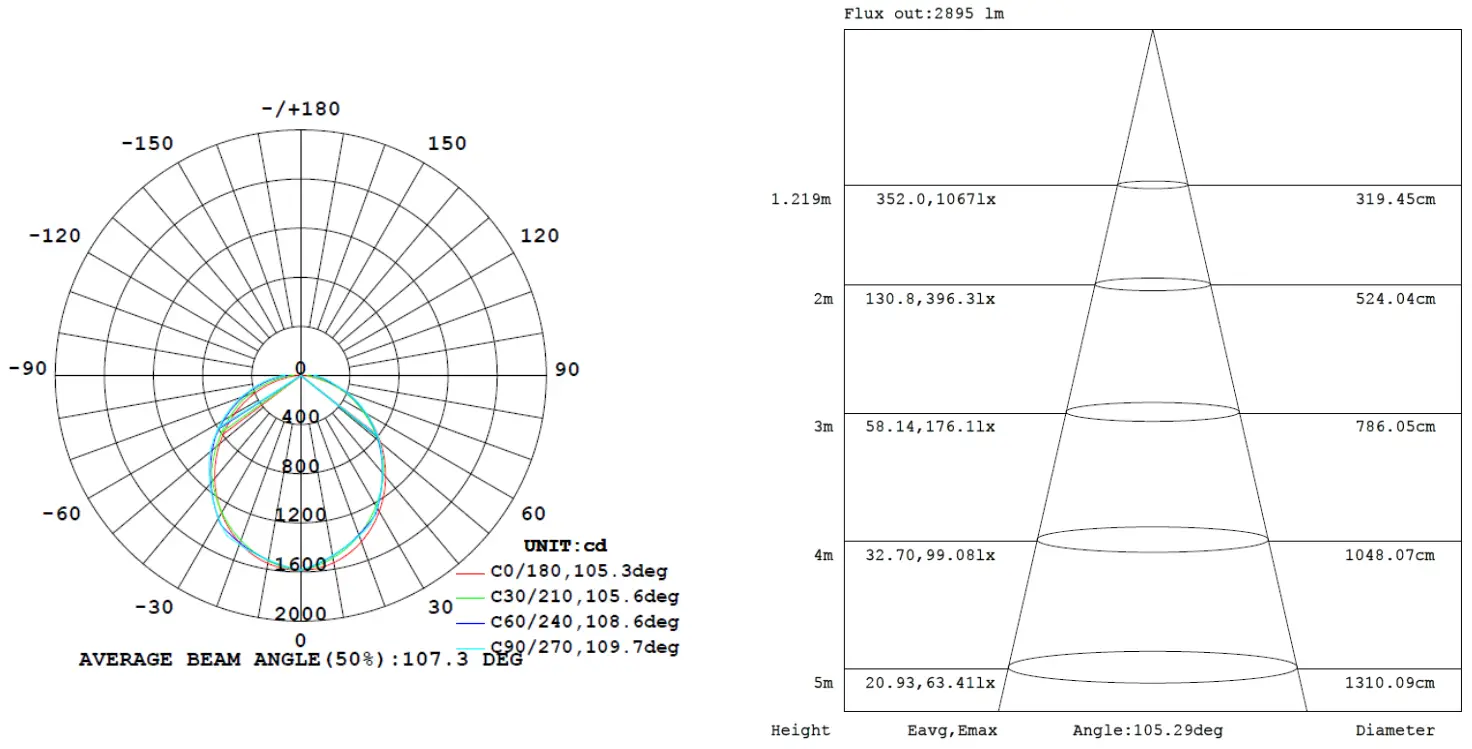

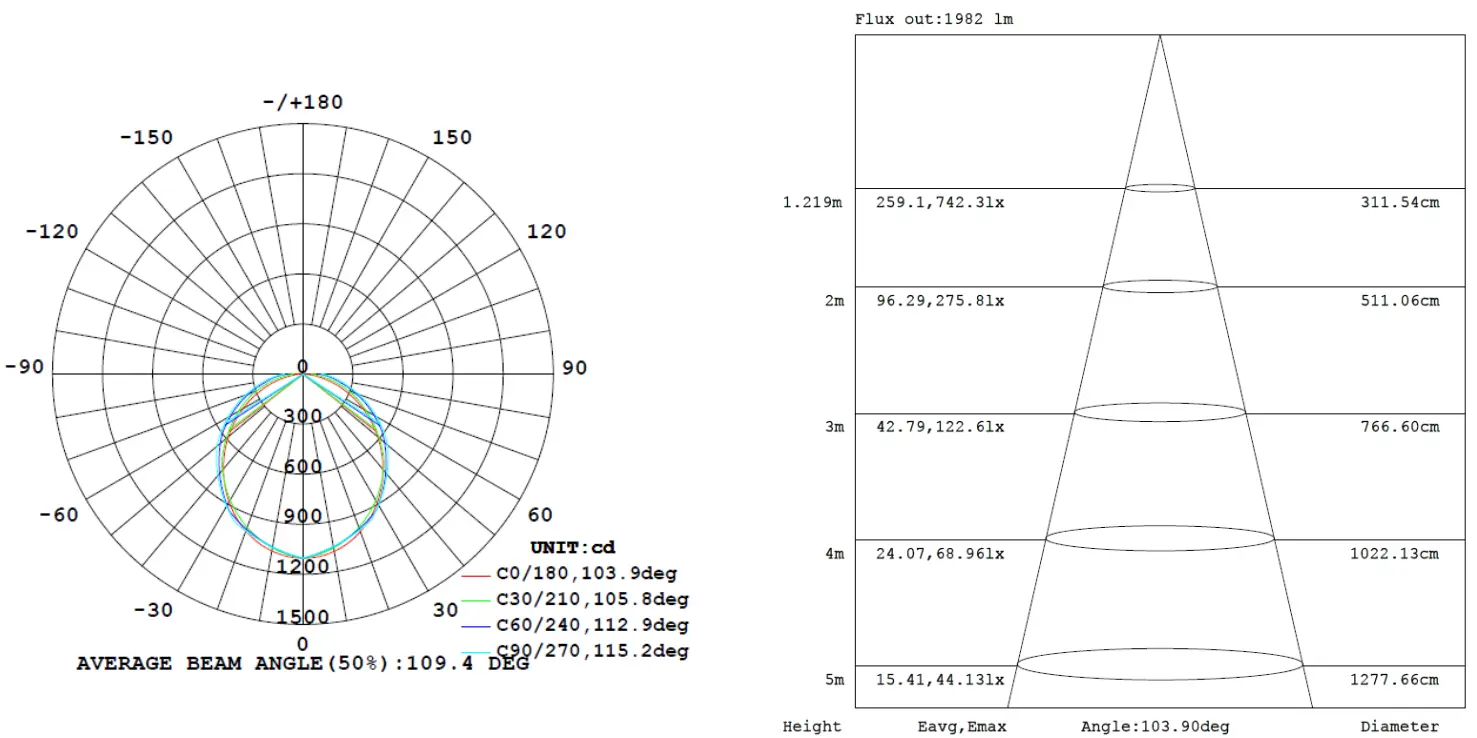

PHOTOMETRIC DATA
4 FOOT 22W
Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance.
4 FOOT 28W
Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance.
4 FOOT 34W
Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance.
4 FOOT 44W
Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at a different distance.
