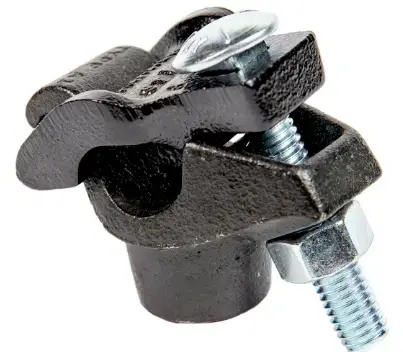

Skinner ST Saddle Tee
SADDLE TEE
The Skinner-Seal Saddle Tee is particularly recommended for installing garden gas lights, gas grills, automatic home laundries and other appliances. It takes the place of a tee, union and nipple in one fixture. No pipe cutting or threading is necessary. Sizes and pressure ratings are as follows:
| Size | Bolt Torque | Max. Working Pressure |
| 1/2” x 1/4” | 60 ft/lb | 200 psi |
| 1/2” x 3/8” | 60 ft/lb | 200 psi |
| 1/2” x 1/2” | 60 ft/lb | 200 psi |
| 3/4” x 1/4” | 60 ft/lb | 200 psi |
| 3/4” x 3/8” | 60 ft/lb | 200 psi |
| 3/4” x 1/2” | 60 ft/lb | 200 psi |
Installation Procedure
| Step #1 | Thoroughly clean the selected area with a wire brush were the Saddle Tee will be installed. Remove all pipe scale, rust, and foreign material. This will help insure a “bubble tight” seal. |
| Step #2 | Place the Saddle in position and then tighten the bolt to the proper torque (see above table). |
| Step #3 | Make the service line connection with the method chosen, eg. Drilling Device, etc. |
| Step #4 | Pressure test the complete installation for leaks. |
| Step #5 | Check for leaks before leaving repair site. |
GASKET Material: Buna-N (Nitrile Rubber) rated at 250 F Max to -20 F Min Temp.
IMPORTANT:
DO NOT EXCEED TEMPERATURE OR PRESSURE RATINGS!
