Mastech Ms5208 Digital Insulation Multimeter User Guide

Quick Start Guide

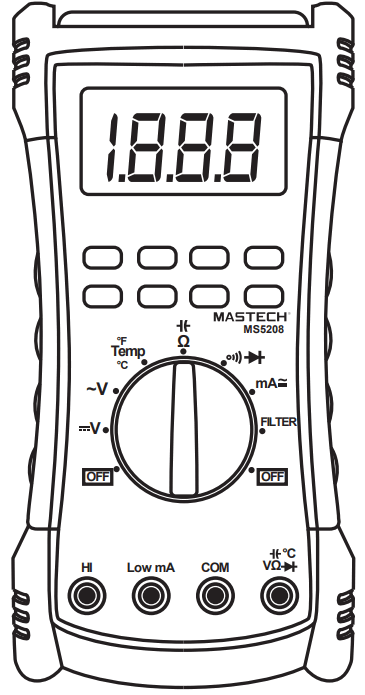

MS5208
Digital Insulation Multimeter

CAT III 1000V

1 YEAR
LIMITED WARRANTY

700019229 June 2021 Rev. 1
Specifications are subject to change without notification.

Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.

• Use proper measurement category (CAT), voltage, and amperage-rated probes, test leads, and adapters for the measurement.
• Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
• When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
• Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
• Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
• Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test

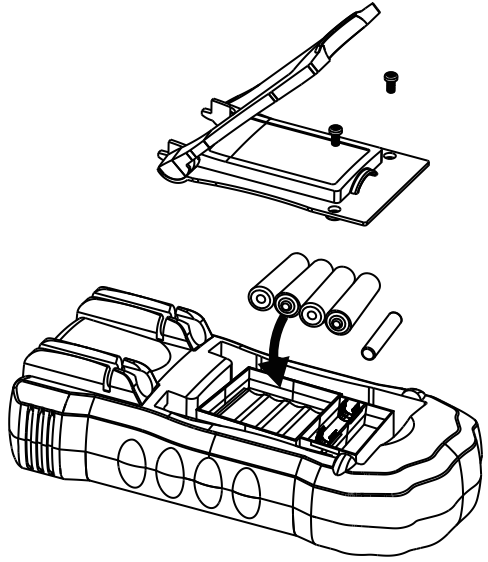

• Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.

Contents

Specifications

	Range	Resolution	Accuracy
V~	660mV/6.6V/66V/660V/750V	0.1mV/1mV/10mV/0.1V/1V	±(1.5%+30)
V	660mV/6.6V/66V/660V/1000V	0.1mV/1mV/10mV/0.1V/1V	±(0.5%+5)
A~	66mA/400mA	10μA/0.1mA	±(1.5%+30)
A	66mA/400mA	10μA/0.1mA	±(1.0%+5)

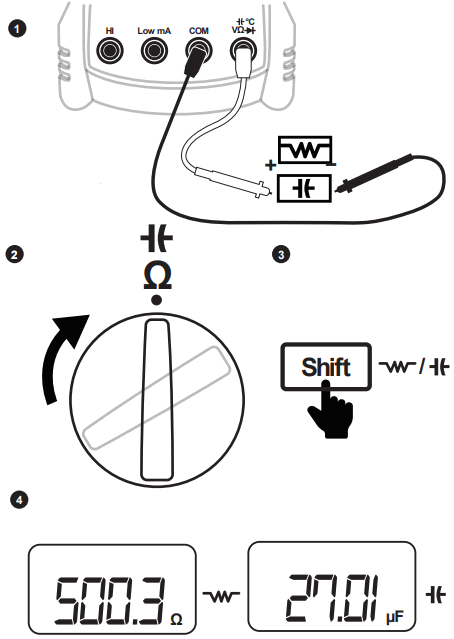

Ω	660Ω/6.6kΩ/66kΩ/660kΩ 6.6MΩ/66MΩ	0.1Ω/1Ω/10Ω/0.1kΩ 1kΩ/10kΩ	±(1.2%+5) ±(2.0%+20)
	66nF/660nF/6.6μF/66μF 660μF/6.6mF/66mF	10pF/0.1nF/1nF/10nF 0.1μF/1μF/10μF	±(5.0%+20) ±(5.0%+20)
Hz%	660.0Hz/6.600kHz/66.00kHz >10kHz	0.1Hz/1Hz/10Hz 10Hz	±(1.5%+5) Reference
°C/°F	-30℃~1300℃ -22℉~2372℉	1℃ 1℉	±(1.0%+2) ±(1.0%+4)

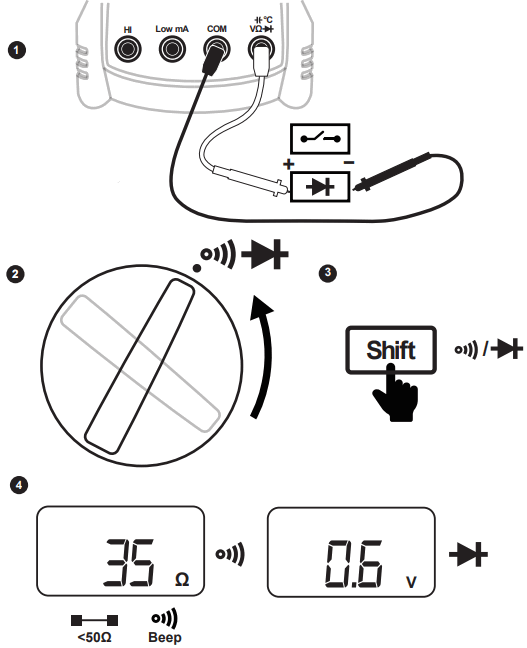

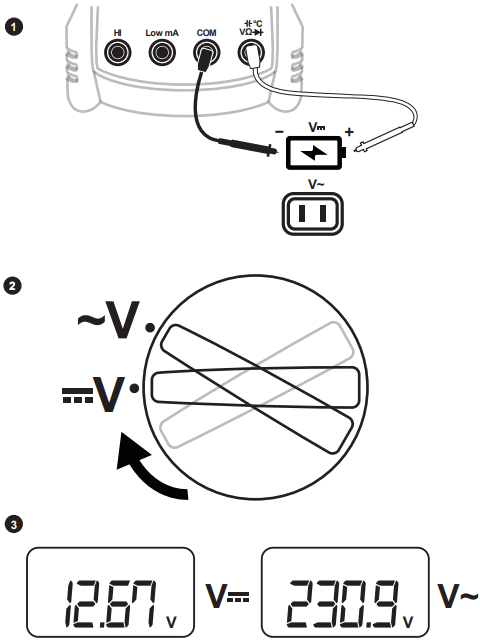

V  V~

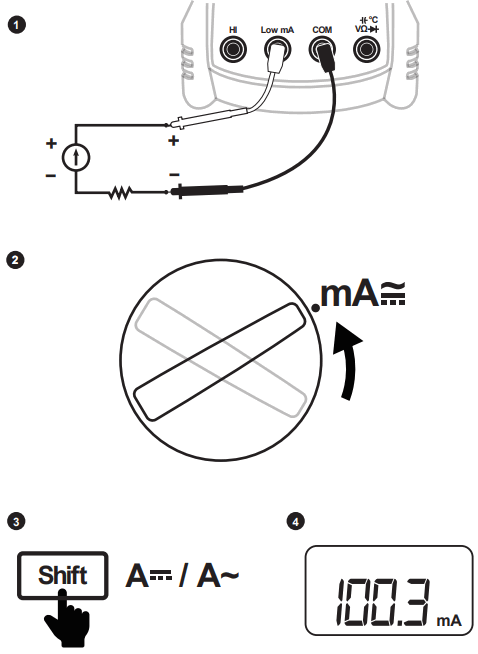

A A~

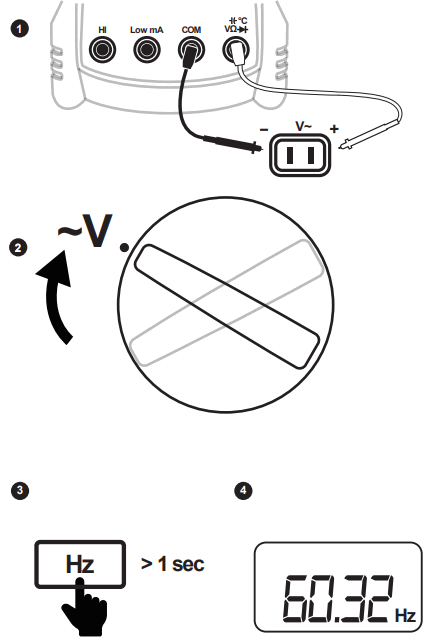

Hz/Duty

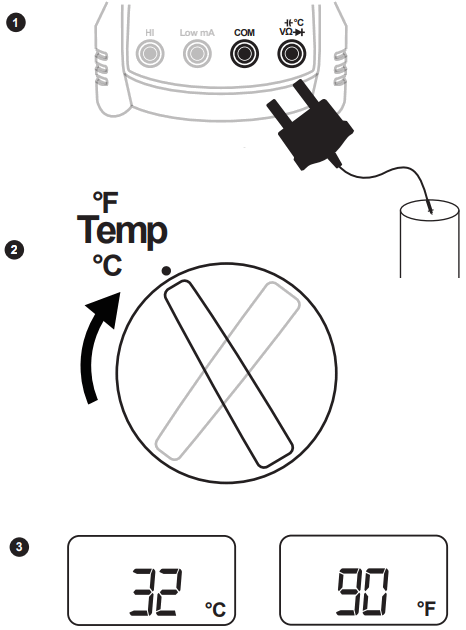

°C/°F

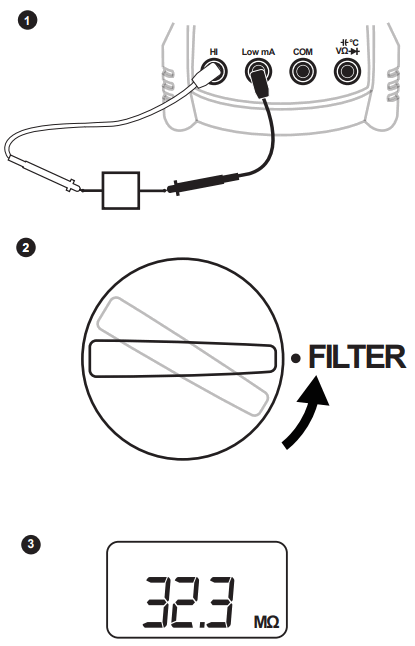

Insulation

SKU Number: MS5208CBGLO

http://www.mastech-group.com/support.php?n=0
