Evolume G2
SE – 566 80 Habo
SE-566 80 Hab Evolume G2 LED Pendant

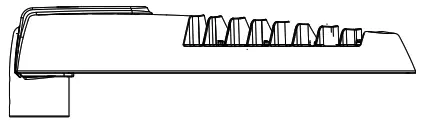

Evolume 75
Max weight: 5 kg
Max projected area:
From below: 0,118 m²
From the side: 0,029 m²

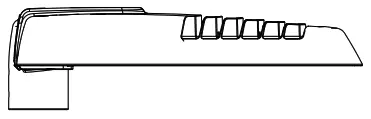

Evolume 1
Max weight: 7 kg
Max projected area:
From below: 0,160 m²
From the side: 0,038 m²

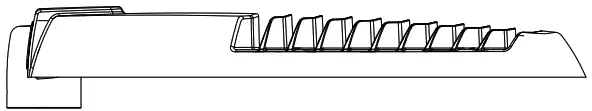

Evolume 2
Max weight:12 kg
Max projected area:
From below: 0,255 m²
From the side: 0,053m²
Manufactured by Fagerhult Sweden.
For UK market importer Fagerhult UK
33-34 Dolben Street, London, SE1 OUQ
The light source and control gear shall onlybe replaced by the manufacturer or its designated person.
It is appropriate that this information is passed on to the users of the installation.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 1 m is not expected.
Class II
If the cord of this luminaire is damaged, it shall exclusively be replaced by the manufacturer, or by the manufacturer designated person.
Basic insulation between mains and control wiring.
Zhaga on pole
From Zhaga
| 24Vdc | Brown |
| DA + | Blue |
| DA | Black |
Grey cable not in use

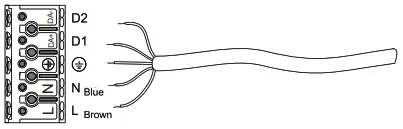

From Luminaire
Class I
| L | 1 |
| N | 2 |
 | Green/Yellow |
| 24Vdc | 3 |
| DA + | 4 |
| DA – | 5 |
Class II
| L | 1 |
| N | 2 |
| 24Vdc | 3 |
| DA + | 4 |
| DA – | 5 |

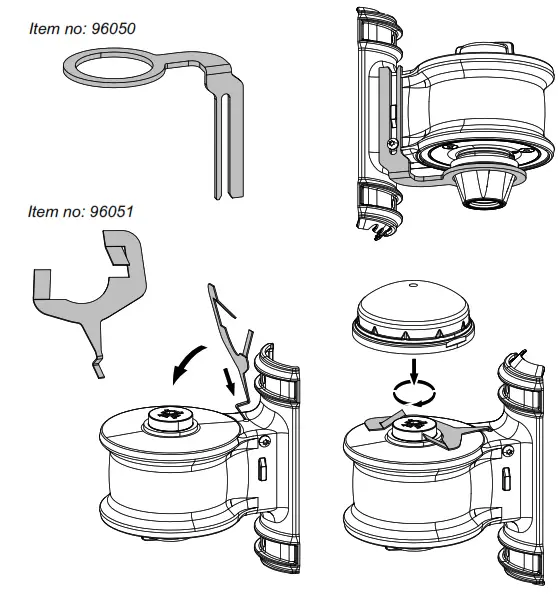

Accessories
It is appropriate that this information is passed on to the users of the installation.
Manufactured by Fagerhult Sweden.
For UK market importer Fagerhult UK
33-34 Dolben Street, London, SE1 OUQ
5444592 Edition 01
