TigerPak TPX-50 Power Pre-Stretch Film Machine TigerPak TPX-50 Power Pre-Stretch Film Machine product

Introduction

  • Stock Code 2820.
  • 300% power pre-stretch (1-meter film pre-stretched to be 4 meters.)
  • Fully automatic machine with remote control available, so you can operate without getting off the forklift.
  • Turntable home position.
  • Slow start and stop.
  • Choices of automatic/manual modes.
  • 180-degree rotating control box.
  • Fully adjustable parameters from the electronic control panel.
  • Adjustable wrapping tension/turntable speed/carriage speed.
  • Troubleshooting showed on screen.
  • Manual reinforcing wrapping.
  • Safety switches to prevent foot pinch.

SPECIFICATIONS

Wrapper Height2M
Turntable Speed12 RPM
Loading Weight2000KG
Turntable Diameter1800MM
Power Supply100V/110V/220V/230V/240V., 50/60HZ., 1-PHASE
Power Consumption1.2KW

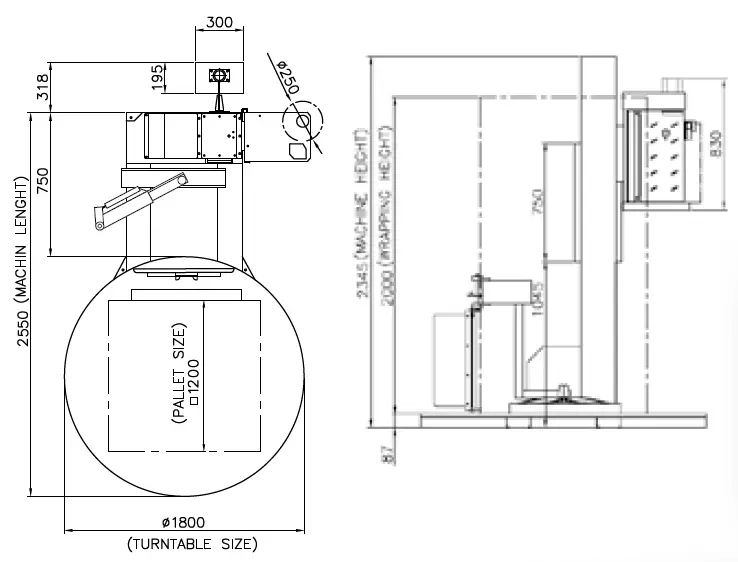

Dimensions

OPTIONS

  • Extended Mast Options
    • 2.5m
    • 3.0 m
  • Ramp for 1.8m.
  • Remote control.
  • Pneumatic film roping.
