Jblt660ncbluam Tune 660nc Noise Canceling Wireless On Ear Headphones User Guide

JBLT660NCBLUAM Tune 660NC Noise Canceling Wireless On-Ear Headphones

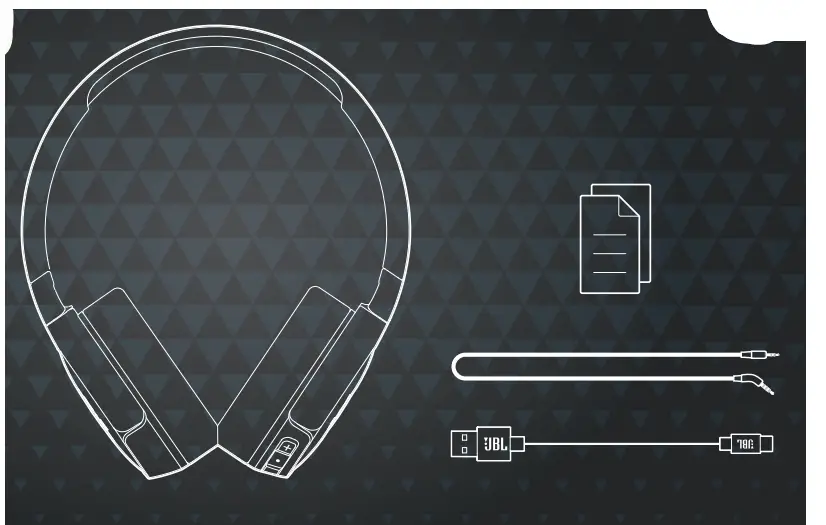

WHAT’S IN THE BOX

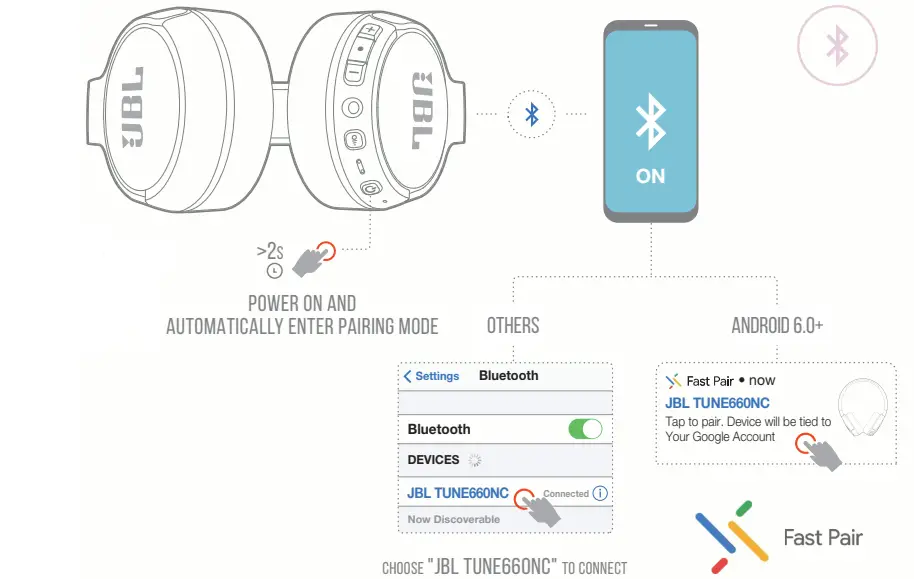

POWER ON & CONNECT

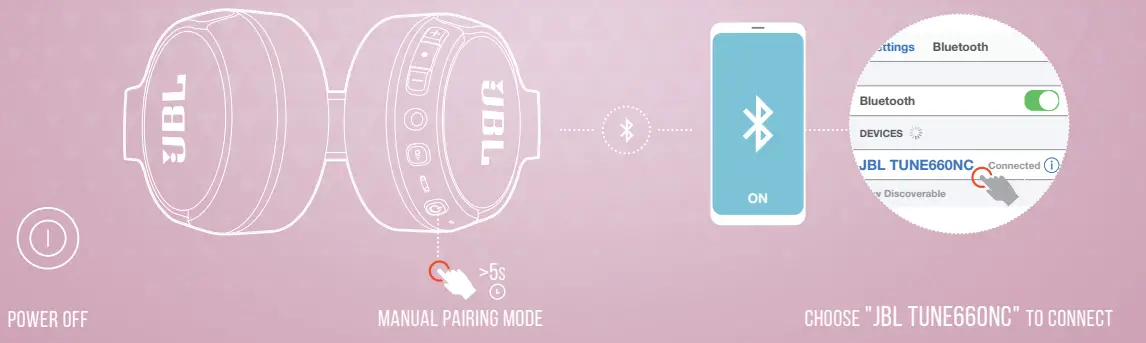

MANUAL PAIRING

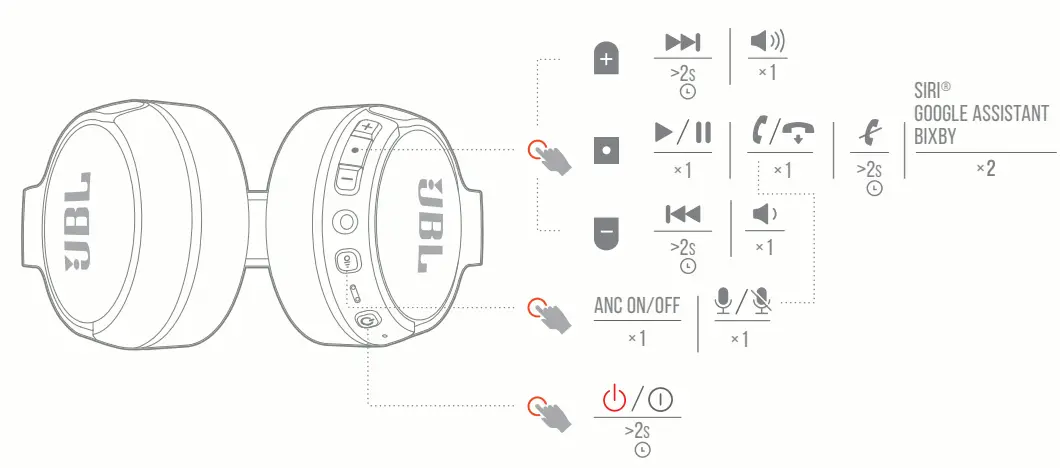

BUTTON COMMAND

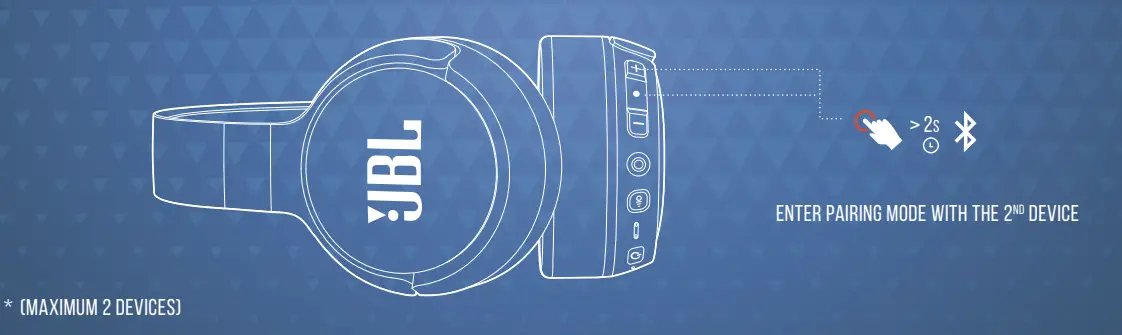

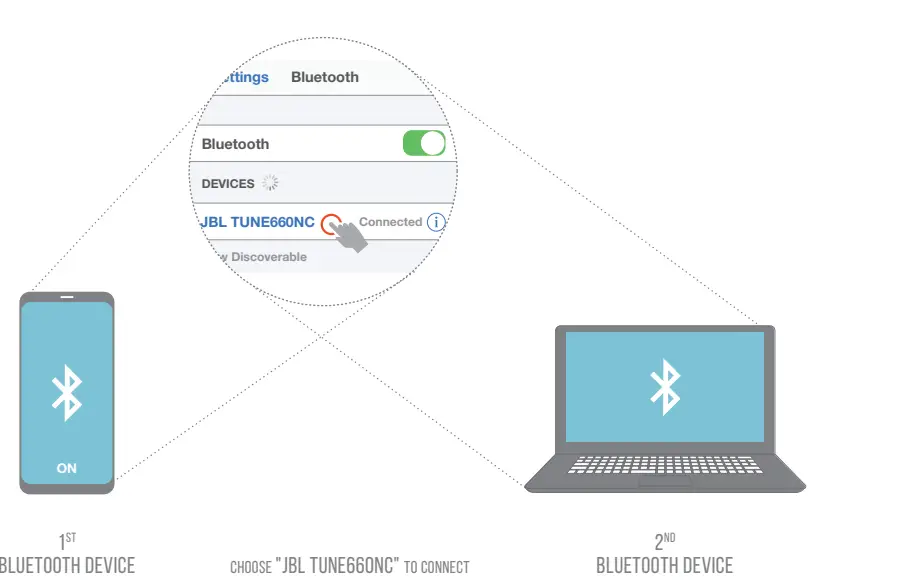

MULTI-POINT CONNECTION

1. TO SWITCH MUSIC SOURCES, PAUSE THE MUSIC ON THE CURRENT DEVICE AND SELECT PLAY ON THE 2N0 DEVICE.
2. PHONE CALLS WILL ALWAYS TAKE PRIORITY.
3. IF ONE DEVICE GOES OUT OF BLUETOOTH RANGE OR POWERS OFF, YOU MAY NEED TO MANUALLY RECONNECT THE REMAINING DEVICE.
4. SELECT “FORGET THIS DEVICE” ON YOUR BLUETOOTH DEVICES TO DISCONNECT MULTI-POINT.

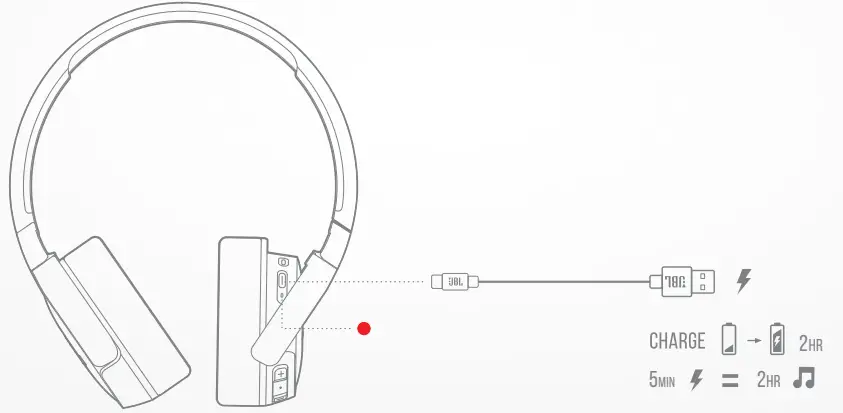

CHARGING

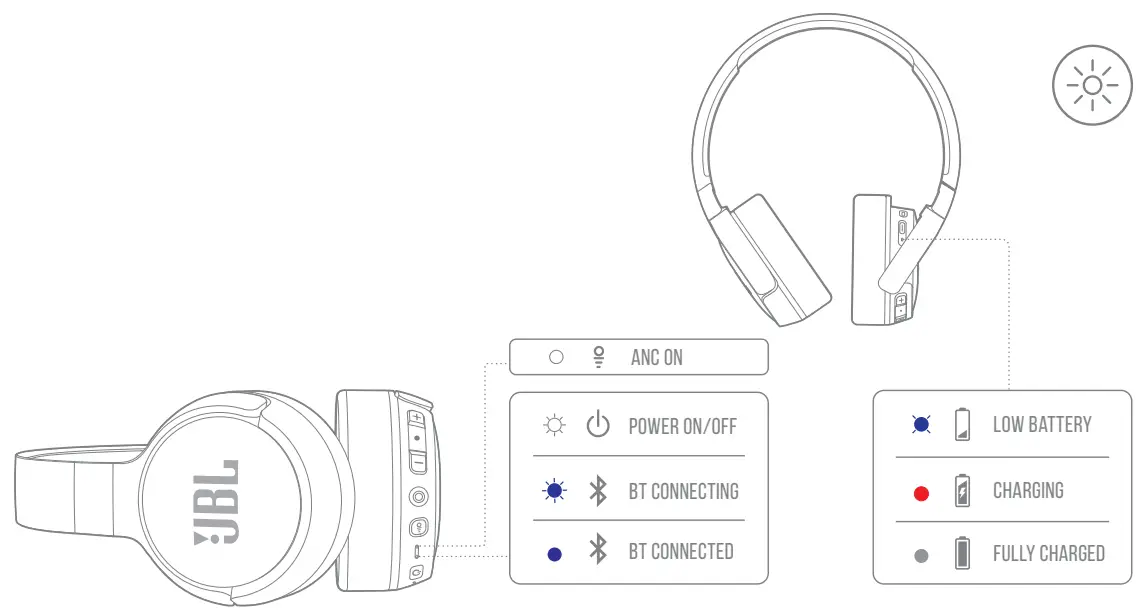

LED BEHAVIORS

TECH SPEC

• Model: TUNE66ONC
• Driver Size: 32 mm/1.26 “Dynamic Driver
• Power supply: 5V1A
• Weight: 166 g/0.366 lbs
• Headset battery type: Polymer lithium-ion battery (610 mA/3.7V)
• Charging time: <2 hrs from empty
• Music playtime with BT on: up to 55 hrs
• Music playtime with BT on and ANC on: 44 hrs
• Music playtime with AUX and ANC on: 35 hrs
• Frequency Response: 20 Hz-20 kHz
• Impedance: 32 ohm
  Sensitivity: 100 dB SPL@1 kHz/1 mW
• Maximum SPL: 96 dB
• Microphone sensitivity: 42 dBV @ 1 kHz /Pa
• Bluetooth version: 5.0
  Bluetooth profle version: A2DP 1.3, AVRCP 1.5, HFP 1.6
• Bluetooth transmitter frequency range: 2.402 GHz-2.480 GHz
• Bluetooth transmitter power: <10 dbm
• Maximum operation temperature: 45°C
