Nvent Raychem E-40 Heat Shrink User Manual

RAYCHEM
End Seal

E-40 Heat Shrink

E-40

XTV	ATEX / UKEX	IECEX
	SGS20ATEX0049X / BAS21UKEX0499X II 2 G Ex 60079-30-1 eb IIC T* Gb II 2 D Ex 60079-30-1 tb IIIC T**°C Db  II 2 G Ex 60079-30-1 eb mb IIC T* Gb II 2 D Ex 60079-30-1 mb tb IIIC T**°C Db Tmin –60°C	IECEx BAS.06.0044X Ex 60079-30-1 eb IIC T* Gb Ex 60079-30-1 tb IIIC T**°C Db Ex 60079-30-1 eb mb IIC T* Gb Ex 60079-30-1 mb tb IIIC T**°C Db Tmin –60°C

KTV	SGS20ATEX0051X / BAS21UKEX0500X II 2 G Ex 60079-30-1 eb IIC T226°C (T2) Gb  II 2 D Ex 60079-30-1 tb IIIC T226°C Db II 2 G Ex 60079-30-1 eb mb IIC T226°C(T2) Gb  II 2 D Ex 60079-30-1 mb tb IIIC T226°C Db Tmin –60°C	IECEx BAS.06.0046X Ex 60079-30-1 eb IIC T226°C *(T2) Gb  Ex 60079-30-1 tb IIIC T226°C Db Ex 60079-30-1 eb mb IIC T226°C(T2) Gb Ex 60079-30-1 mb tb IIIC T226°C Db Tmin –60°C
HTV	PTB 21 ATEX 1003 X / BAS21UKEX0649X II 2 G Ex 60079-30-1 eb IIC T* Gb II 2 D Ex 60079-30-1 tb IIIC T**°C Db II 2 G Ex 60079-30-1 eb mb IIC T* Gb II 2 D Ex 60079-30-1 mb tb IIIC T**°C Db Tmin –60°C	IECEx PTB 21.0007X Ex 60079-30-1 eb IIC T* Gb Ex 60079-30-1 tb IIIC T**°C Db Ex 60079-30-1 eb mb IIC T* Gb Ex 60079-30-1 mb tb IIIC T**°C Db Tmin –60°C
VPL	SGS20ATEX0045X / BAS21UKEX0503X  I 2 G Ex 60079-30-1 eb IIC T* Gb II 2 D Ex 60079-30-1 tb IIIC T**°C Db  II 2 G Ex 60079-30-1 eb mb IIC T* Gb II 2 D Ex 60079-30-1 mb tb IIIC T**°C Db Tmin –60°C	IECEx BAS 06.0048X Ex 60079-30-1 eb IIC T* Gb Ex 60079-30-1 tb IIIC T**°C Db Ex 60079-30-1 eb mb IIC T* Gb Ex 60079-30-1 mb tb IIIC T**°C Db Tmin –60°C

* (**) By design with TraceCalc Pro® Engineering Software and as shown in the approval
58.B.01728/21
1 Ex e IIC T* Gb X Ex tb IIIC T* Db X TЕМП ОКР СРЕДЫ –60 to +56°C

XTV, KTV, H T V, VPL

cCSAus Certificate 1333271 Class I Division 2 Group A, B, C, D; Class II / III Division 2 Group E, F, G Ex 60079-30-1 IIC T* Gb Ex 60079-30-1 IIIC T* Db Class I Zone 1 AEx eb IIC T* Gb Zone 21 AEx tb IIIC T* Db Only for nVent RAYCHEM XTV, KTV, HTV and VPL 1 Um= 277 V (XTV, KTV, HTV) and 480 V max (VPL)

	ATEX / UKEX	IECEX
HTV		CL I DIV 2 GRP ABCD T* CLI ZN 2 GRP IIC CLII/III DIV2 GRP FG T* ZN 22 IIIB T* CL I DIV 2 (ZN 2**) GRP ABCD T*  CLII/III DIV 2 (ZN22**) GRP EFG T*  -WS for CANADA (** PER CE CODE TABLE 18) FM20US0147X FM20CA0073X Um= 277 V max

* (**) By design with TraceCalc Pro® Engineering Software and as shown in the approval
Specific conditions of use:
Maximum voltage: 480 V
Maximum exposure temperature: 260°C (500°F)
Minimum installation temperature: –60°C (–76°F)
Installation instructions for nVent RAYCHEM E-40 end seal kit. For use with all nVent RAYCHEM XTV, KTV, HTV and VPL heat ing cables.

WARNING: To prevent elec tri cal shock, short cir cuit or arc ing, this prod uct must be in stalled cor rect ly and water ingress must be avoided before and during the in stal la tion.
Before installing this product, read the installation instructions completely.

• Earth fault equipment protection is required for each circuit.
• De-energise circuits before installation or servicing.
• Keep ends of Trace heaters and kit components dry before and during installation.
• The electrically conductive covering of this trace heater shall be connected to a suitable earthing terminal.
• The presence of the trace heaters shall be made evident by the posting of caution signs or markings at appropriate locations and/or at frequent intervals along the circuit.
• The insulation resistance of the trace heater shall be measured and recorded after installation and shall not less than 20 Mohm.
• Persons involved in the installation and testing of electric trace heating systems shall be suitably trained in all special techniques required.
• Installation shall be carried out under the supervision of a qualified person.
• Refer to installation manual. A ground fault circuit interrupter shall be used with this device.

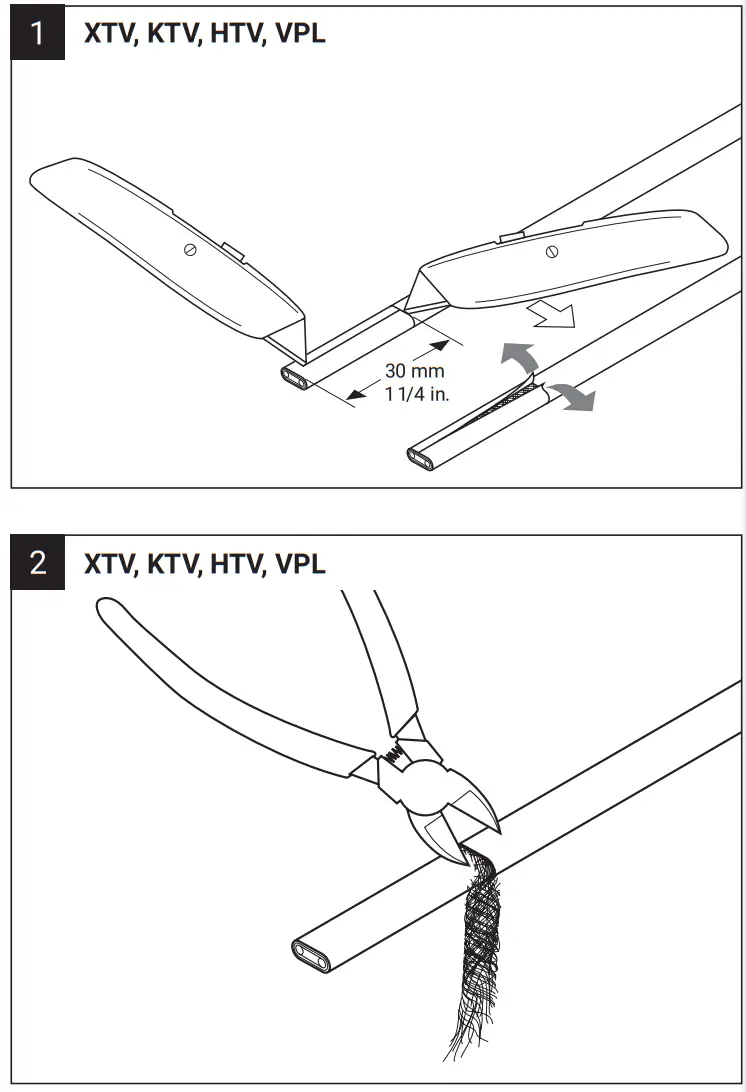

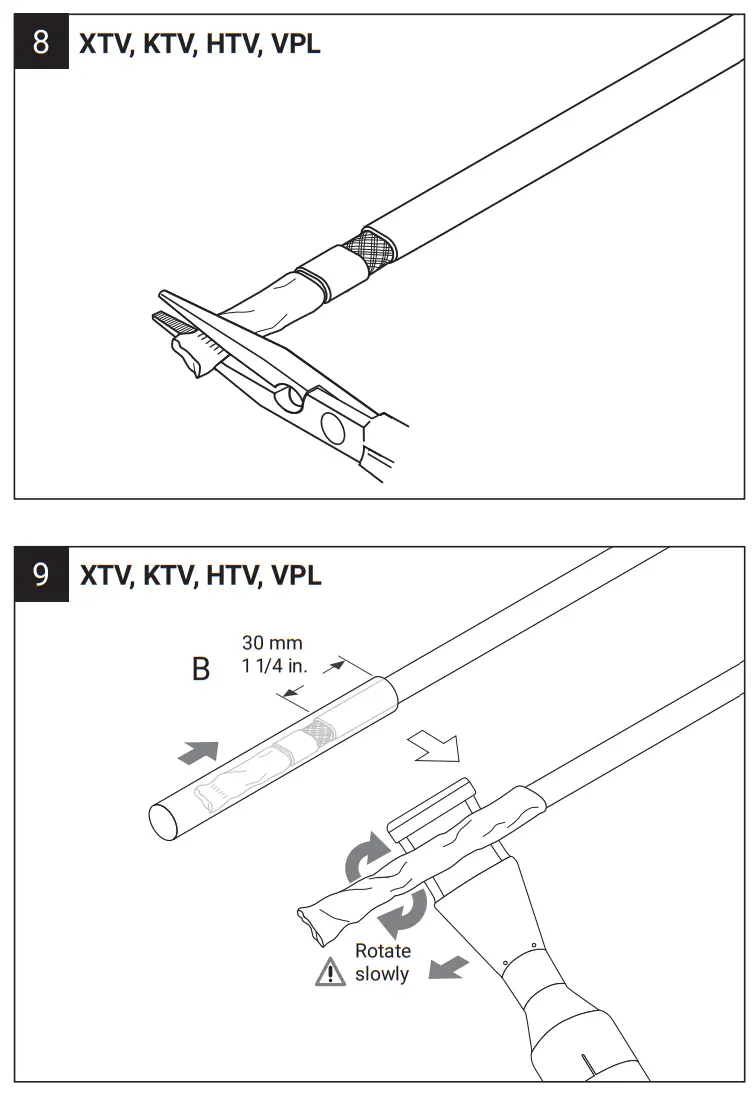

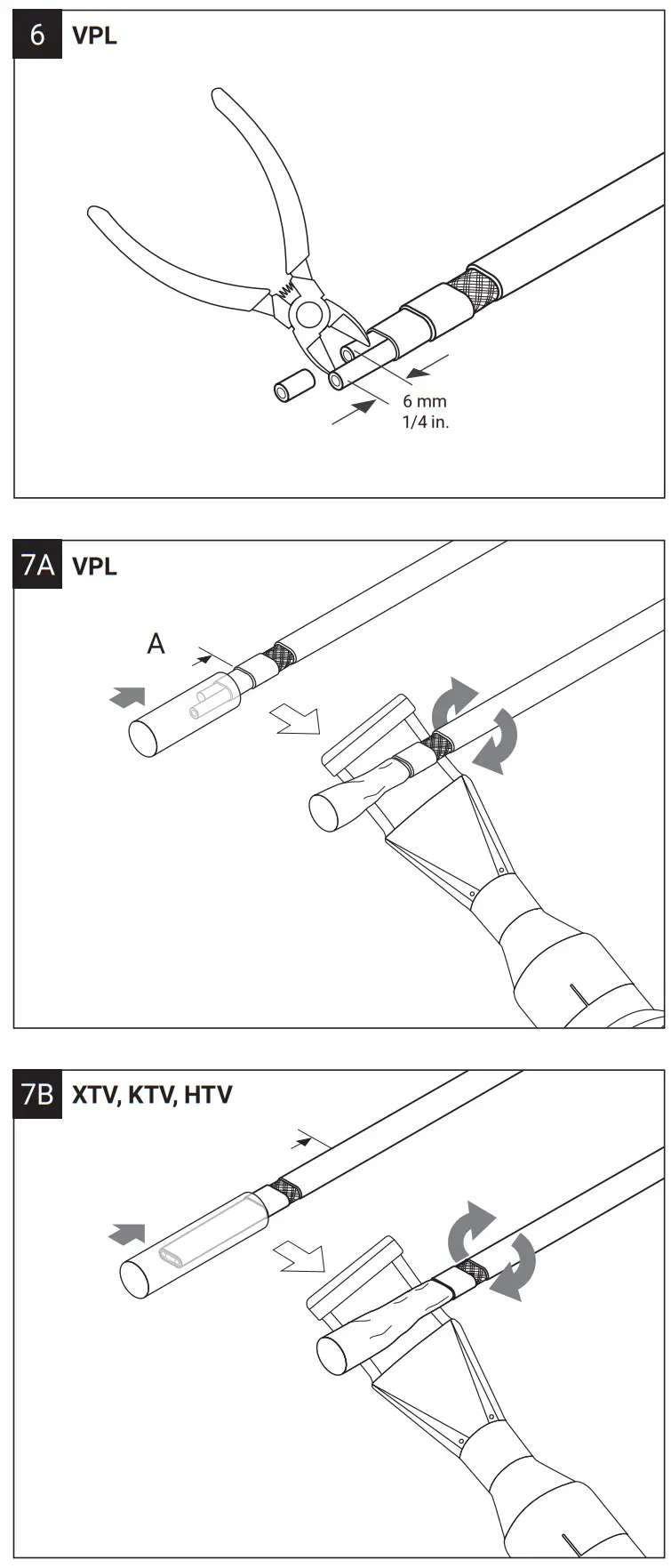

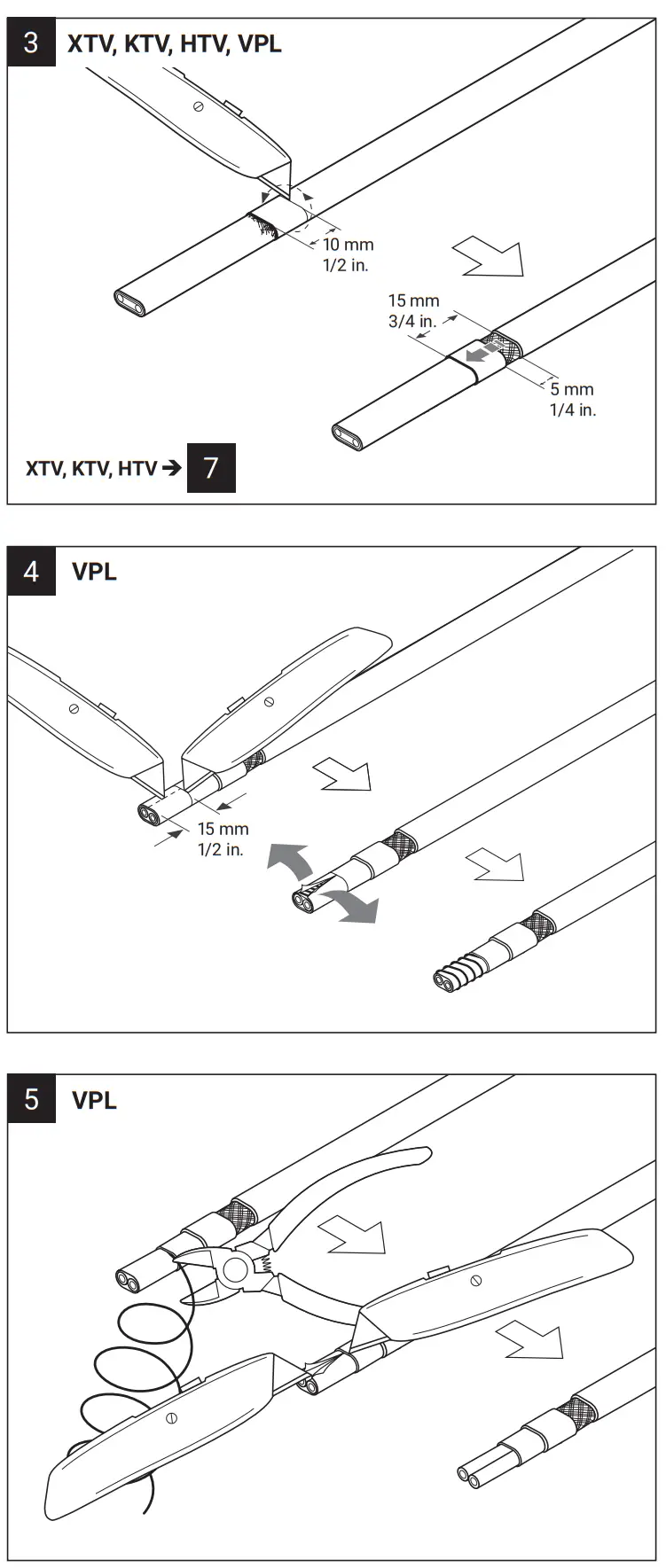

Important note: Heat shrink technique for E-40 kits – Step 9

Heat gun power for optimal shrinking time – 3000 W or greater is recommended. Lower power heat guns may work, but may require more time.
Recommended heat gun temperature: 600-650°C

1. Set heat gun at maximum temperature and maximum air flow.
2. Starting on cable end of heat shrink, hold heat gun in one position over the translucent heat shrink tubing until it turns clear (+/– 1 min). Then slowly move the heat gun around all sides until the heat shrink turns clear in this segment.
3. Slowly move to an adjacent unshrunk translucent position and repeat for this next segment.
4. Slowly continue along the length of heat shrink, rotating the heat gun at each segment until complete. Installation typically takes several minutes.
5. Keep heat gun as close as possible to heat shrink (5 mm) but do not allow it to touch cable or heat shrink (to avoid burning and damaging materials).

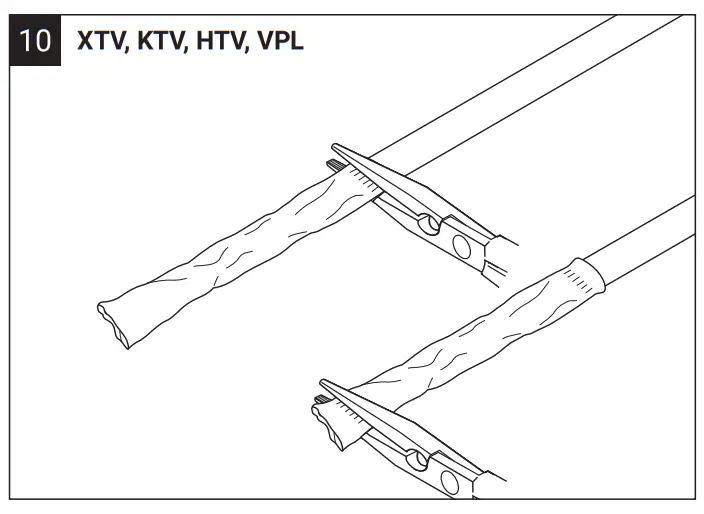

nVent.com/RAYCHEM
©2022 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates.
All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice.
RAYCHEM-IM-EU1603-E40-ML-2205
PCN 1244-022482
