QSC plus Zoom Meeting Room Audio Ceiling Loudspeakers

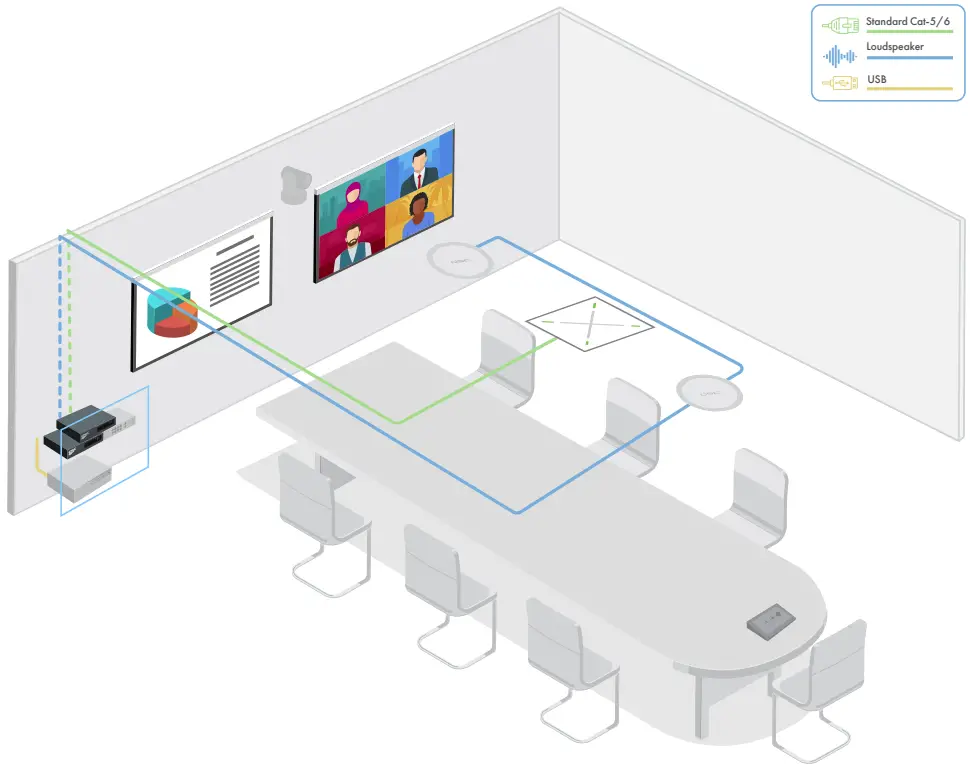

Solutions Overview
Your Zoom Room meeting should provide an amazing experience for every participant, but these high-volume meeting spaces can come in many sizes and may present multiple challenges. QSC Solutions for Zoom Rooms address this by providing the right AV infrastructure (Q-SYS) and the right peripherals (Q-SYS Core 8 Flex, QSC SPA Series amplifiers and the QSC AD-C4T ceiling-mounted loudspeakers, along with the Sennheiser Team Connect 2 ceiling microphone.)
- Fully networked and manageable AV&C infrastructure via single USB connection.
- Advanced AEC (acoustic echo cancelation) delivers echo free far-end audio.
- Noise reduction reduces the level of steady state noises without affecting the desired speech.
- Intrinsic Correction™ loudspeaker processing maximizes sonic performance.
- Automatic dynamic beam-forming microphone technology, adapts to the respective conditions without reconfiguration.

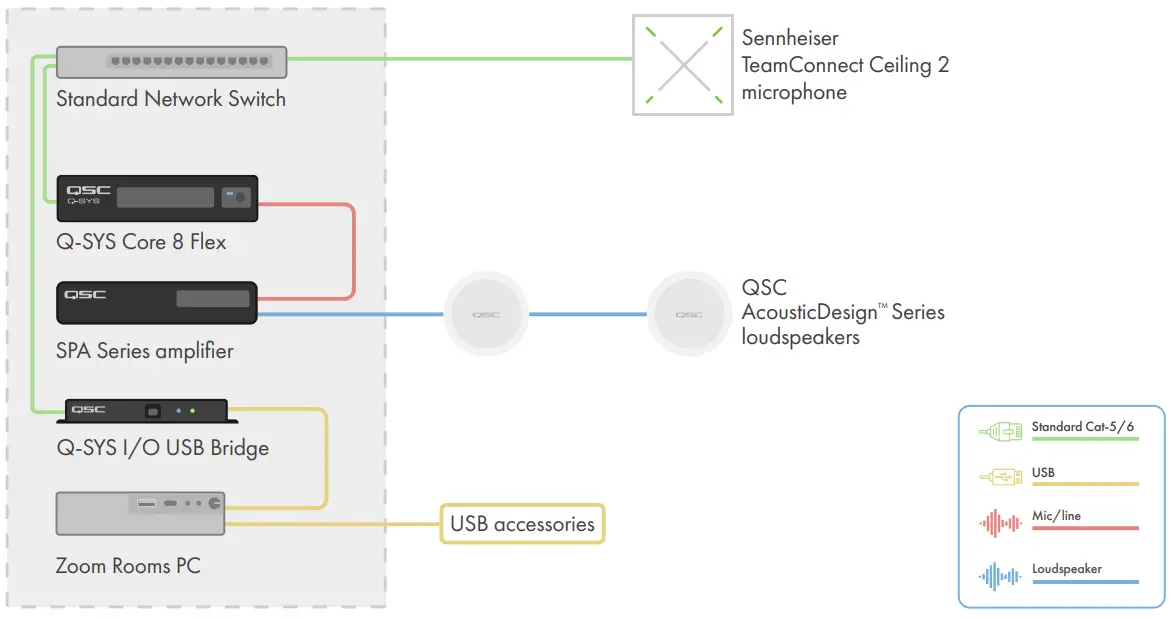

Solutions Overview Guide
Room Audio Accessory: Ceiling Loudspeakers
| Product | Quantity | |

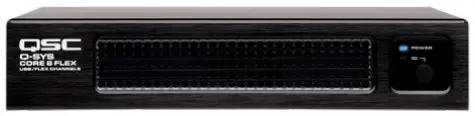

| Q-SYS Core 8 Flex | 1 |  |

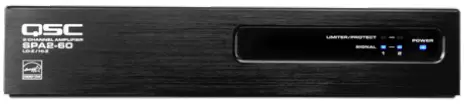

| QSC SPA2-60 power amplifier | 1 |  |
| Q-SYS I/O USB Bridge | 1 |  |

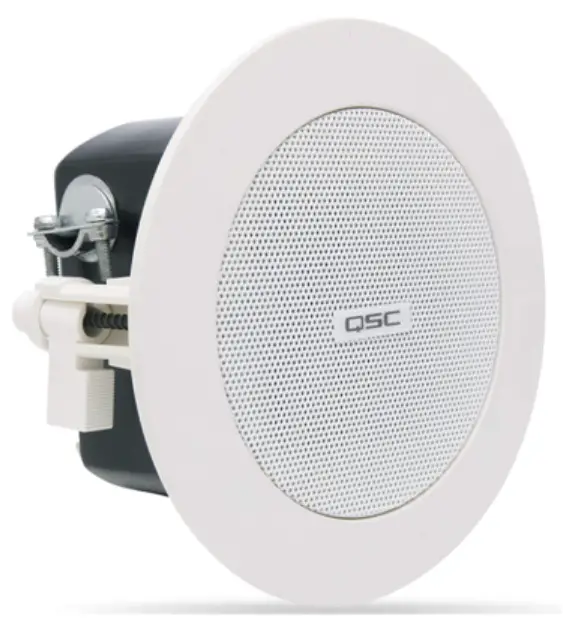

| QSC AcousticDesign™ Series AD-C4T-LP ceiling-mount loudspeaker | 2 |  |

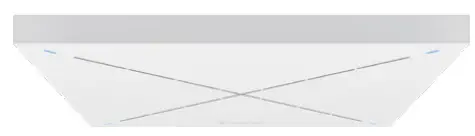

| Sennheiser TeamConnect Ceiling 2 microphone | 1 |  |

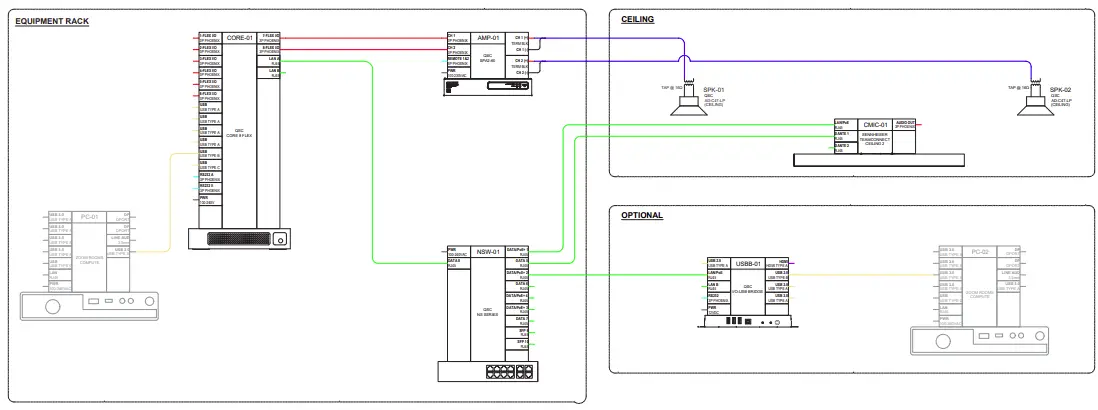

Functional Drawing
Meeting Room Audio: Ceiling Loudspeakers
QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries.
qsc.com/zoom
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
