POS901 Position Stav V1.1
User Manual
Warnings and safety instructions
Read the intended use before using.- The unit must only be connected to a limited power supply of 15 W.
- Avoid direct sunlight.
Read the intended use before using.Intended use

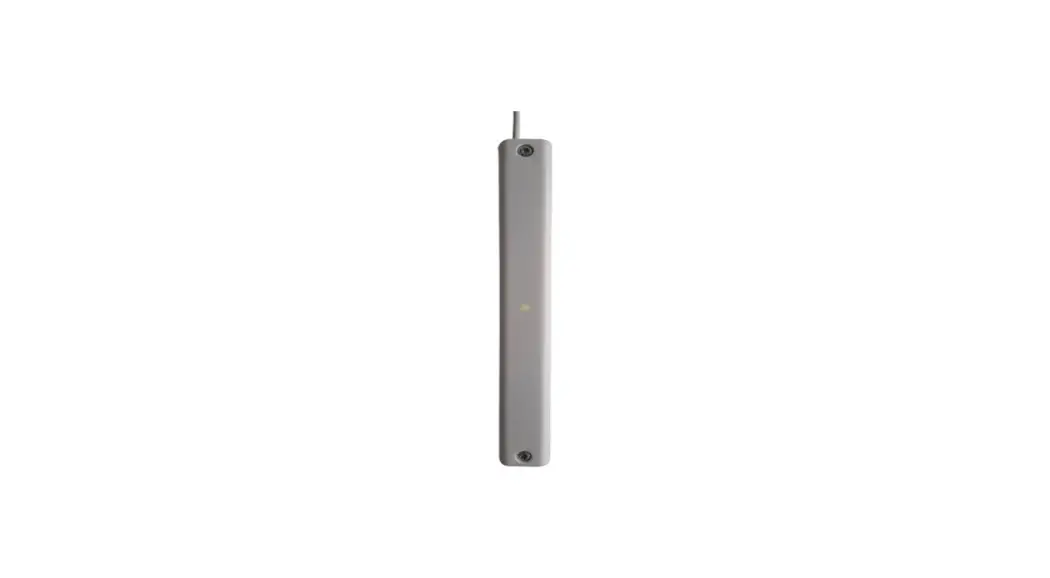

POS901 is a transmitter designed to transmit positions to KNOP 901 series products. These products can be set to different operating modes when a position is received.
The POS901/POS901L requires the advanced settings of the product to be set during installation and commissioning. Please check the Knoptool manual and the POS901/POS901L installation manual.
POS901/POS901L requires no subsequent operation or adjustment.
POS901 has a built-in antenna and POS901L is used for a loop antenna, e.g. outdoors under a pavement.
Indicator
The product’s LED can show the following:
- Lights green when POS901/POS901L is running under normal conditions.
- Flashes green when POS901/POS901L is being calibrated.
- Lights yellow when POS901/POS901L has reduced power, e.g. too hot.
- Flashes red when POS901/POS901L is faulty – contact your retailer or Knop Elektronik.
- Flashes rapidly red when POS901/POS901L is connected to KnopTool.
Note that the indicator can be turned off in advanced settings (see the KnopTool manual), but not in case of error.
Spare parts and accessories
Spare parts and accessories can be ordered from Knop Elektronik A/S at www.knop.dk.
Cleaning
The product can be cleaned with a moist cloth or a wet wipe.
Technical data
| Frequency HF: | 869.2125 MHz |
| Range: | Up to 1500m of unobstructed view for an RX901B. |
| Frequency LF/Loop: | 18kHz +/- 1kHz |
| Range: | Up to 240 cm depending on wall conditions. |
| External power supply: | 10-24VDC (supplied with max. 15W) |
| Power consumption, typical: | 150 mA |
| Surrounding environment: | Indoor use. < 90% humidity without condensation. |
| Ambient temperature: | 0-40° C |
| Cabinet type: | White RAL9010 ABS |
| Cabinet dimensions: | W: 27mm, H: 237mm, D: 21mm. |
| Density: | IP20 |
| Connections: | External floating inputs, outputs, and power supply. External rod or loop. |
| Weight: | POS901: 150g POS901L: 80g |
The right to make changes is reserved.
(¹) Measured outdoors with an unobstructed view between transmitter and receiver. In buildings, the range is reduced.
Explanation of symbols and approvals
 | This product complies with: Directive 2017/745/EU: MDR Directive 1907/2006/EU: REACH Directive 2011/65/EU:RoHS ISO 14971:2019: Risk Management for Medical devices EN 301 498-1 V2.2.3: Electro Magnetic Compatibility EN 301 489-3 V3.1.1: Electro Magnetic Compatibility EN 50130-4:2011 + 2014: Immunity alarm systems EN 300 220-1 V3.1.1: Short Range Devices EN 300 220-2 V3.1.1: Short Range Devices EN 300 220-3 V2.1.1: Short Range Devices EN 60601-1-2:2014 + 2015: Electromagnetic compatibility (Medical) EN 62368-1:2020: Electrical safety EN 50581:2012: Hazardous substances |
 | The product must not be used if the packaging is damaged. |
 | Medical Device Klass 1 |
 | Manufacturer KNOP Elektronik A/S, Fabriksvej 20, DK-7600 Struer, Denmark |
 | Read the manual(s) before installation and commissioning. |
 | Interference may occur in an environment with equipment marked with this symbol. |
 | Can be protected against liquids before installation. |
 | 0 °C to +40 °C, temperature limit for transport/storage and use. |
 | The product must not be disposed of with normal household waste. |
 | Single registration number DK-MF-000025631 |
 | Unique Device Identifier 05744002850441 05744002853442 05744002855446 |
 | Product reference POS901, Position Rod POS901L, Position Loop POS901S, Position Slave |
 | Serial number Placed on the product |
 | Ingress Protection Code IP20 |
