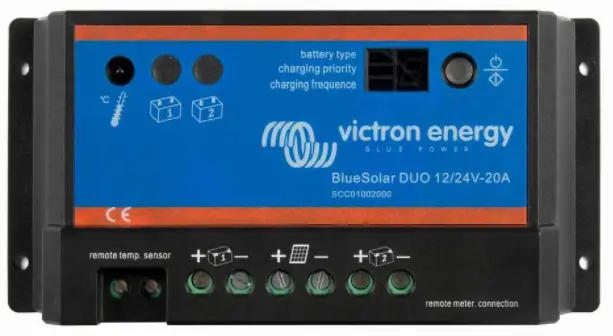

victron energy BlueSolar PWM-DUO Charge Controller
Features
- PWM controller

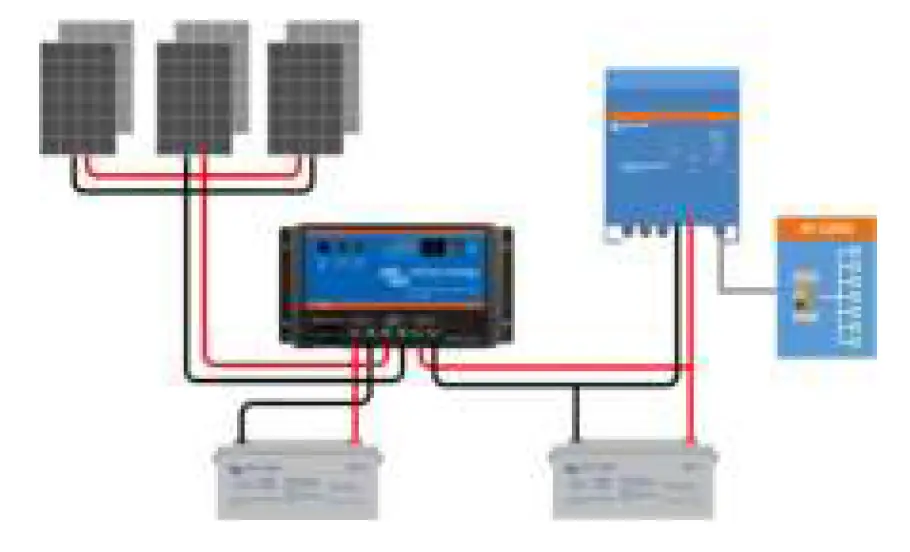

- Charges two separate batteries. For example the starter battery and the service battery of a boat or mobile home
- Programmable charge current ratio (standard setting: equal current to both batteries)
- Charge voltage settings for three battery types (Gel, AGM and Flooded)
- Internal temperature sensor and optional remote temperature sensor
- Protected against over current
- Protected against short circuit
- Protected against reverse polarity connection of the solar panels and/or battery.
Specifications
| BlueSolar PWM-DUO | 12/24-20 | |
| Battery Voltage | 12/24 V with automatic system voltage detection | |
| Rated charge current | 20A | |
| Second battery output | Yes | |
| Automatic load disconnect | n. a. | |
| Maximum solar voltage | 28V / 55V (1) | |
| Self-consumption | 4 mA | |
| Protection | Battery reverse polarity (fuse) Output short circuit Over temperature | |
| Operating temp. range | -35 to +55°C (full load) | |
| Humidity (non-condensing) | Max 95% | |
| DEFAULT SETTINGS | ||
| Charge voltage ‘absorption’ (2) | 14.4V / 28,8V | |
| Charge voltage ‘float’ (2) | 13.7V / 27,4V | |
| Battery temperature sensor | Yes, internal sensor (remote sensor optional) | |
| Temperature compensation | -30mV/ºC / -60mV/ºC | |
| ENCLOSURE | ||
| Protection class | IP20 | |
| Terminal size | 6 mm² / AWG10 | |
| Weight | 0,18kg | |
| Dimensions (h x w x d) | 76 x 153 x 37 mm | |
| STANDARDS | ||
| Safety | IEC 62109-1 | |
| EMC | EN 61000-6-1, EN 61000-6-3, ISO 7637-2 | |
| 1) For 12V use 36 cell solar panels For 24V use 72 cell solar panel or 2x 36 cell in series | 2) See manual for alternative voltage settings | |
