Aivituvin Air 52 Rabbit Hutch Indoor 62 Inch Rabbit Cage Outdoor Chicken Coop Instruction Manual

aivituvin AIR 52 Rabbit Hutch Indoor 62 Inch Rabbit Cage Outdoor Chicken Coop

NOTICE
Please retain these instructions for future

• Firmly secure all bolts,screws and knobs before use.
• Reconfirm that all bolts,screws,and knobs are secure every 90 days.
• Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled.
• Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
• Be aware that some parts are heavy and have sharp edges.
• Be aware that moving parts can injure,crush and cut.
• If any parts are missing,broken,damaged,or worn,stop using this product until repairs are made and/or factory replacement parts are installed.
• Do not use this item in a way inconsistent with the manufacturer’s instructions as this could void the product warranty.

TOOLS REQUIRED

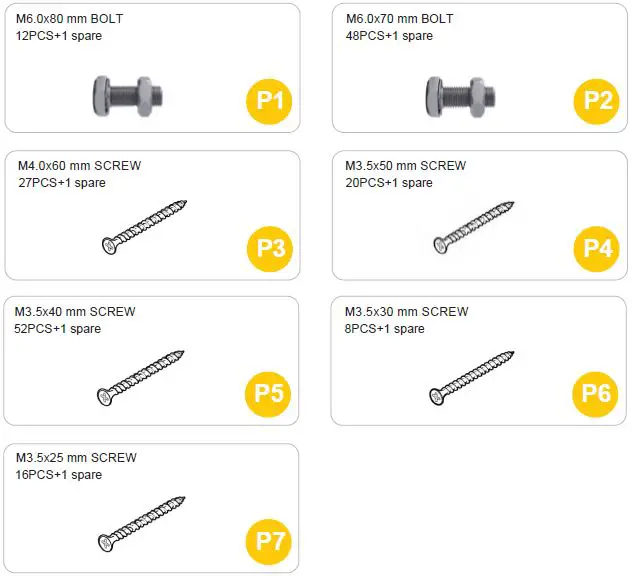

HARDWARE

Overview

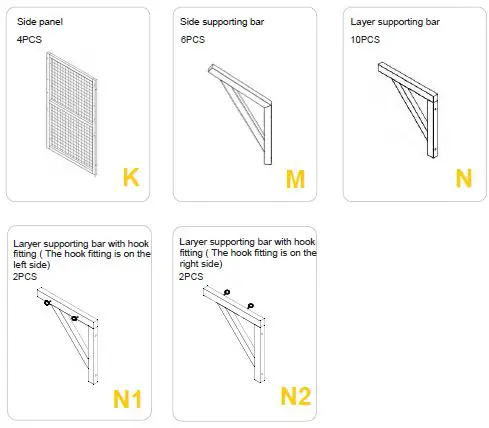

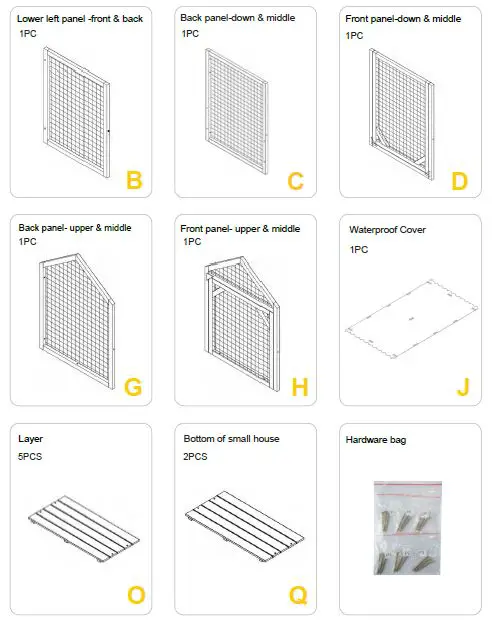

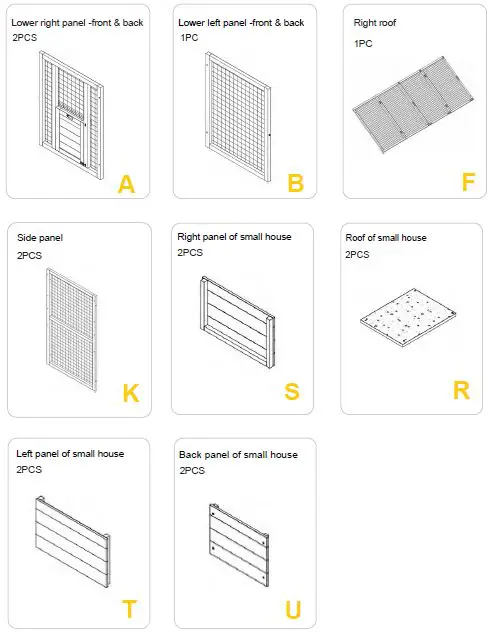

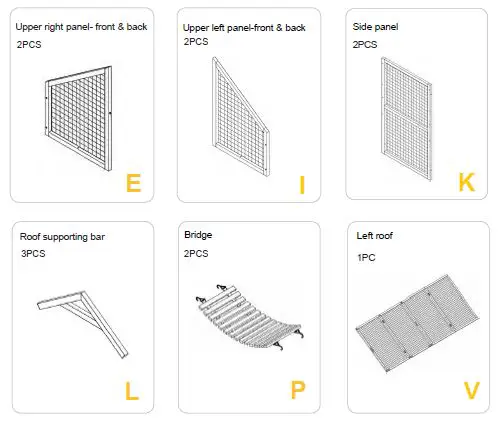

PARTS

CARTON

PRODUCT ASSEMBLY

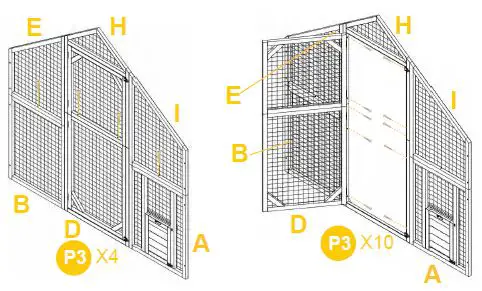

1. Connect the front panels, screw Part A, B, D, E, H, I by 14XP3.

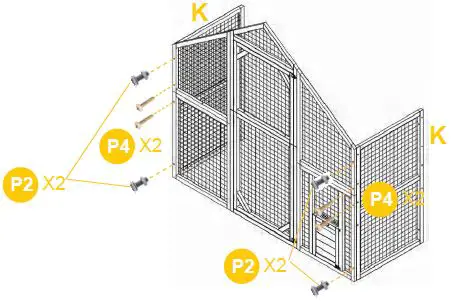

2. Attach side panel Part K to front side by 2XP4 screws in middle position and 2XP2 bolts in side position each side.

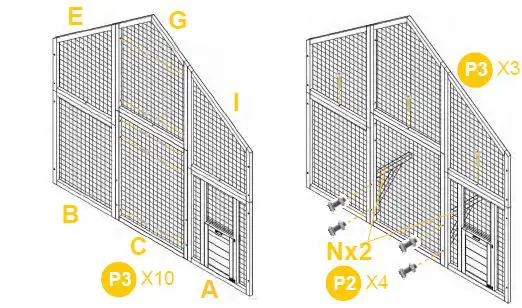

3. Connect the back panels, screw Part A,B,C,E,G,I by 13XP3.
   1. Bolt the layer supporting bar Part N by 4XP2.

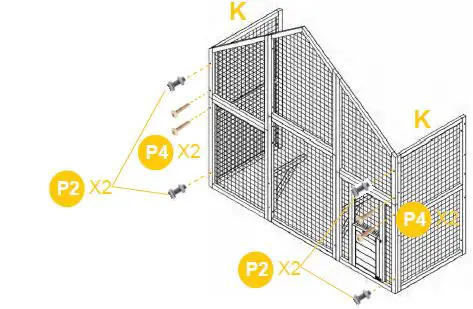

4. Attach side panel Part K to back side by 2XP4 screws in middle position and 2XP2 bolts in side position each side.

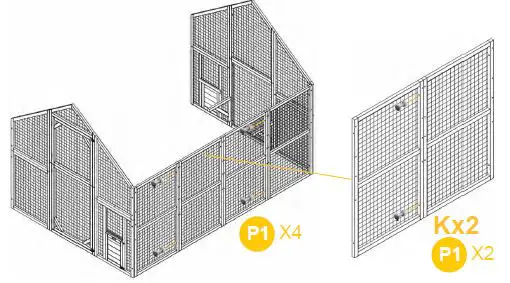

5. Bolt 2 pieces of Part K together by 2XP1, then attach to front and back by 4XP1.

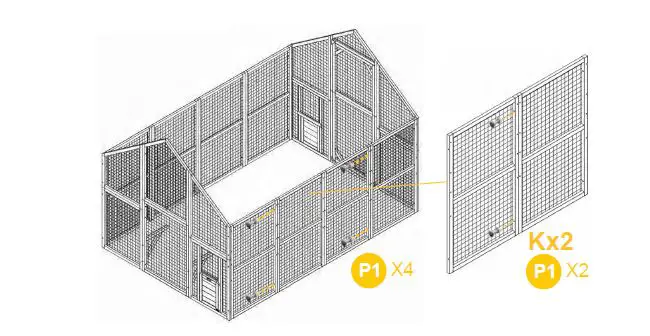

6. Bolt the other side 2 pieces of Part K together by 2XP1, then attach to front and back by 4XP1.

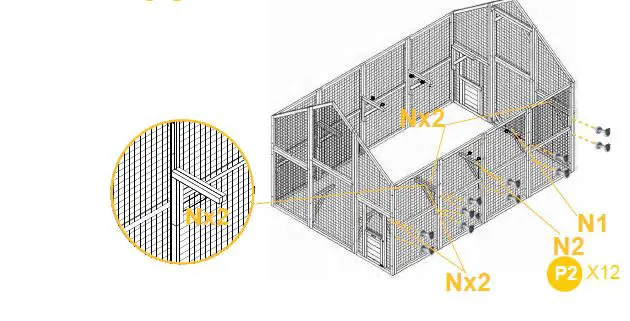

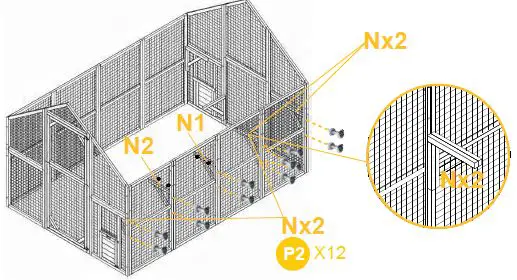

7. Bolt the layer support bars Part N ,N1& N2 by 12XP2.
   (Position as shows in the picture)
8. Bolt the layer support bars Part N ,N1 & N2 to the other side by 12XP2.
   (Position as shows in the picture)

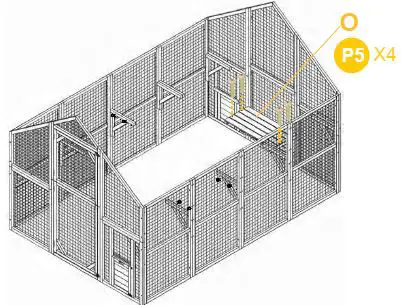

9. Attach layer Part O by 4XP5 screws. (Position as shows in the picture)
10. Attach layer Part O by 8XP5 screws. (Position as shows in the picture)

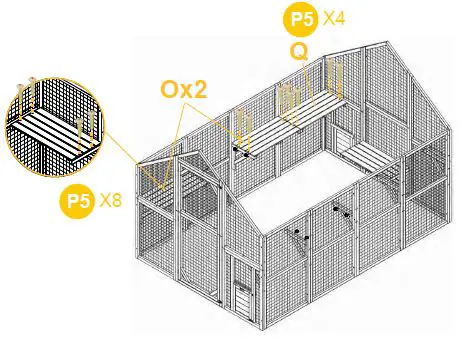

    1. Attach layer Part Q by 4XP5 screws. (Position as shows in the picture)

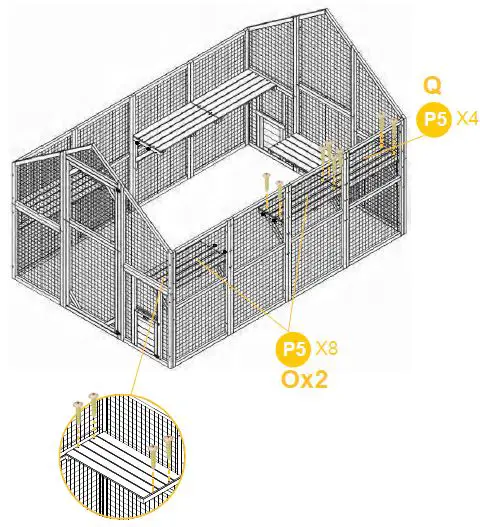

11. Attach layer Part O to the other side by 8XP5 screws. (Position as shows in the picture)
    1. Attach layer Part Q the other side by 4XP5 screws. (Position as shows in the picture)
12.  Attach the 2 small houses, screw back panel Part U to side panel Part S&T by 4XP6, screw roof Part R by 4XP7.
    1. 1. Screw the small house to the layer from the bottom by 4XP7 each.

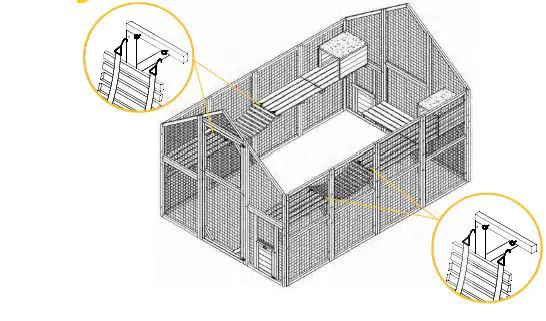

13. Hook the bridge Part P to layers.

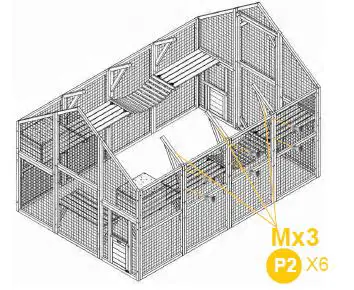

14. Bolt side supporting bar Part M by 6XP2.

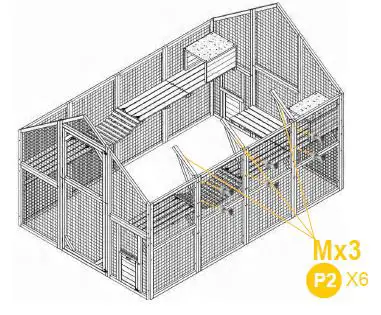

15. Bolt side supporting bar Part M to the other side by 6XP2.

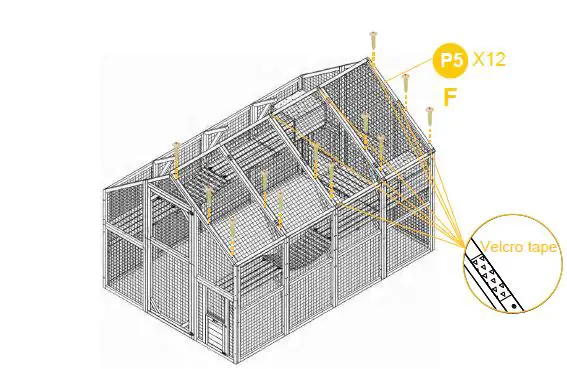

16. Attach roof Part F by 12XP5 screws.
17. Attach roof Part V to the other side by 12XP5 screws.

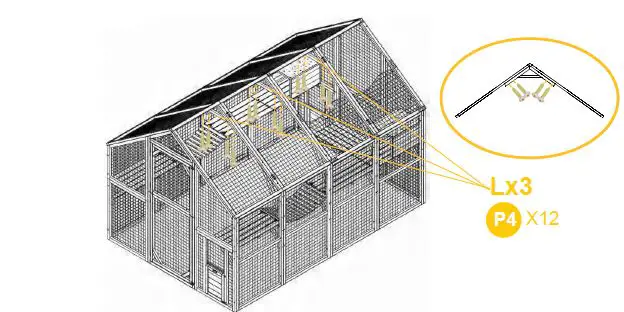

18. Open the door, walk into the cat run, and lock roof supporting bar Part L by 12XP4 screws.
19. Stick the Cover Part J by Velcro.

WARNING
Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss, whether direct, indirect,or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance,or neglect of this

www.aivituvin.com
