Geprc Gep-f411-35a Aio Flight Controller User Manual

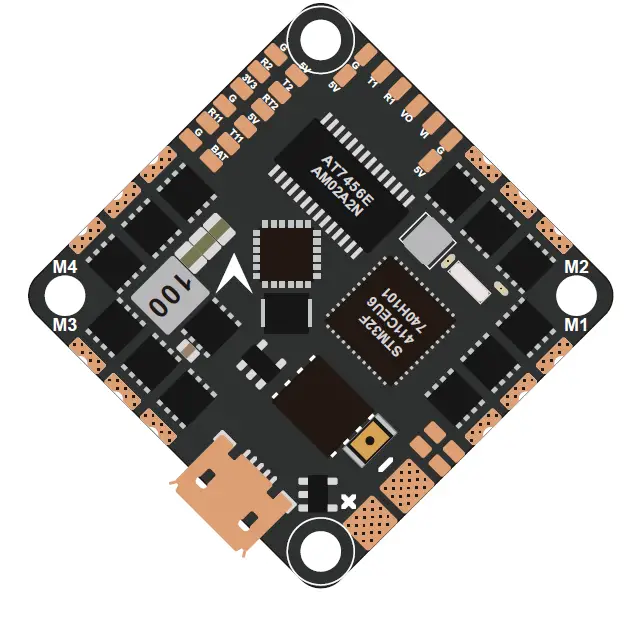

GEPRC GEP-F411-35A AIO Flight Controller

FC:F411
ESC:BLS_35A

Specification:

Model Name: GEP-F411-35A AIO
MCU: STM32F411
Gyro: MPU6000
Firmware target: GEPRC_F411_AIO
OSD: Betaflight OSD w/AT7456Ev
Current: YES
Beeper: YES
LED: YES
Black Box: 16MB
USB: micro USB
BEC output: 5V@1A
ESC MCU: 8BB21F16G
Continuous current: 35A
MAX current: 40A (10s)
Input Voltage: 2-6S LiPo
Supports: Dshot600,Oneshot,Multishot
ESC Traget: G_H_30
Size: 32x32mm
Installing Hole: 26.5×26.5mm(M2)
Weight: 8.3g

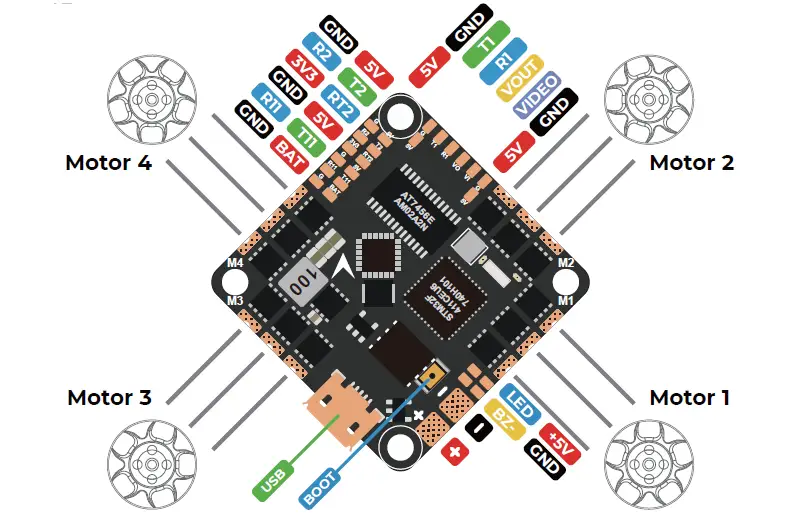

Diagram:

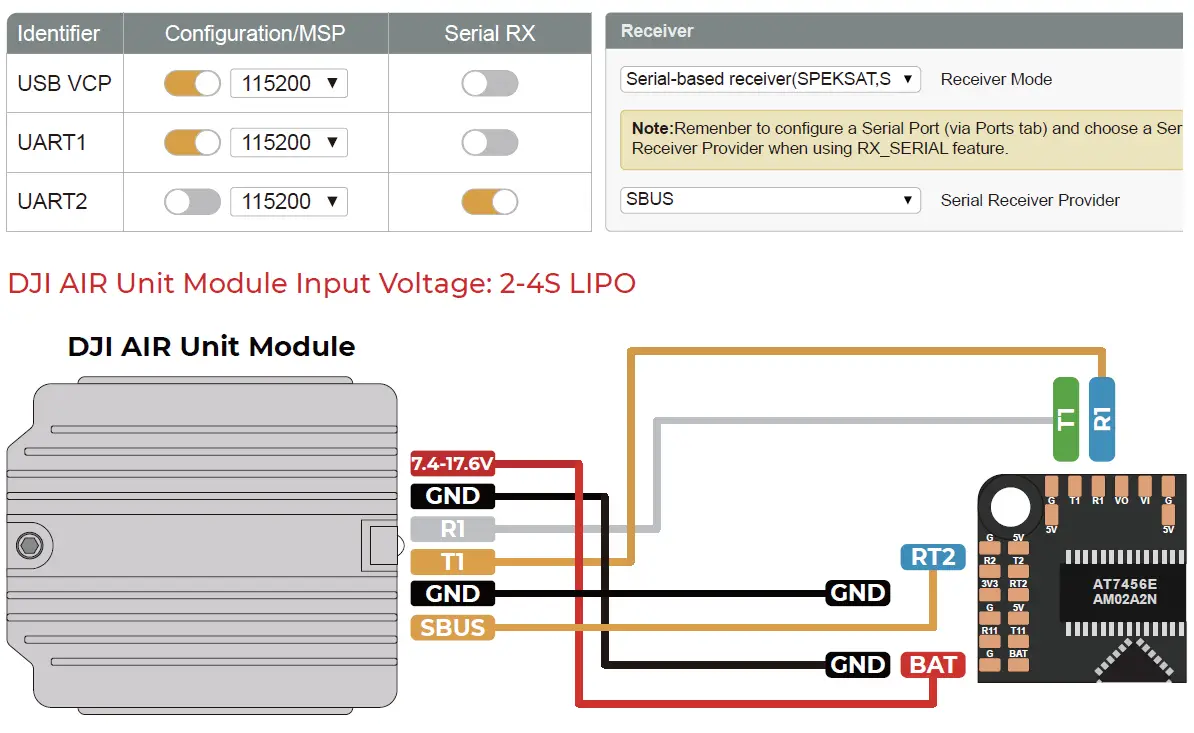

DJI Diagram FPV System:

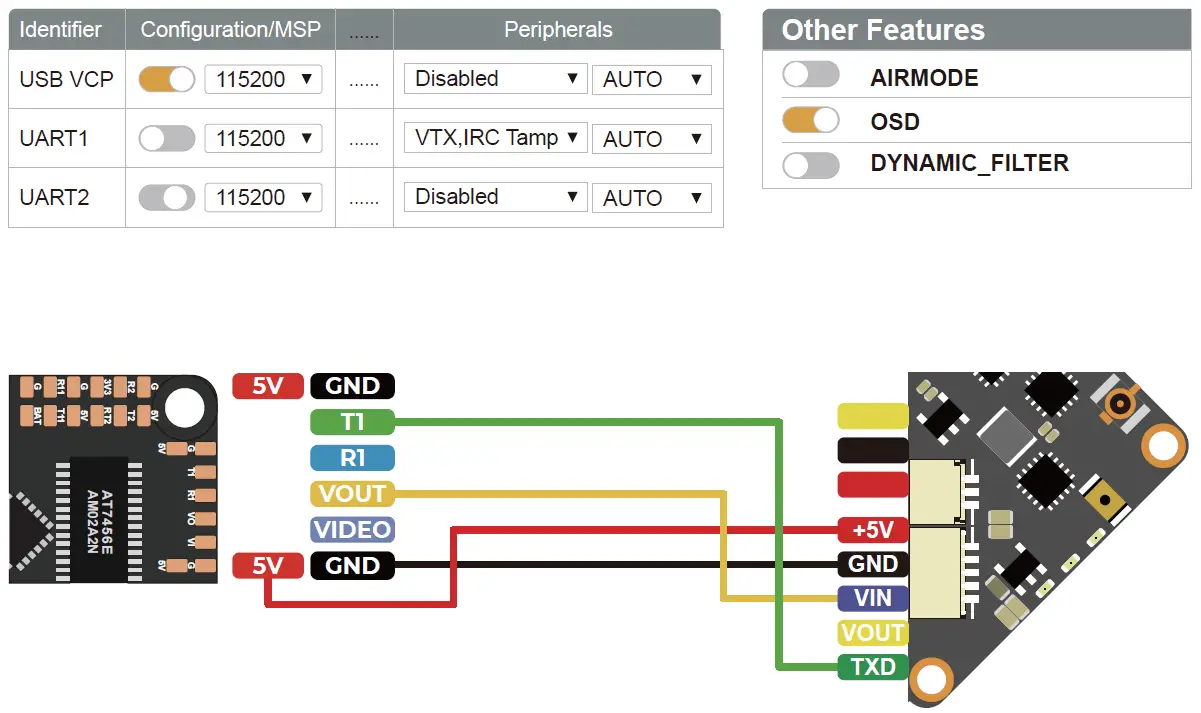

Analog VTX:

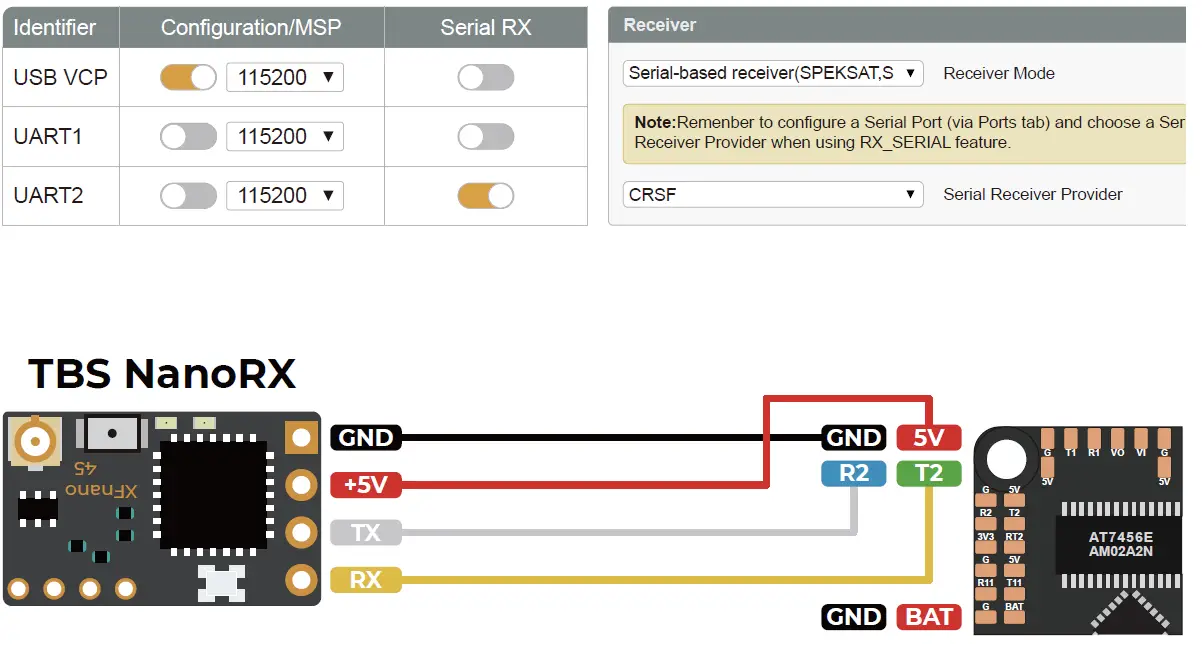

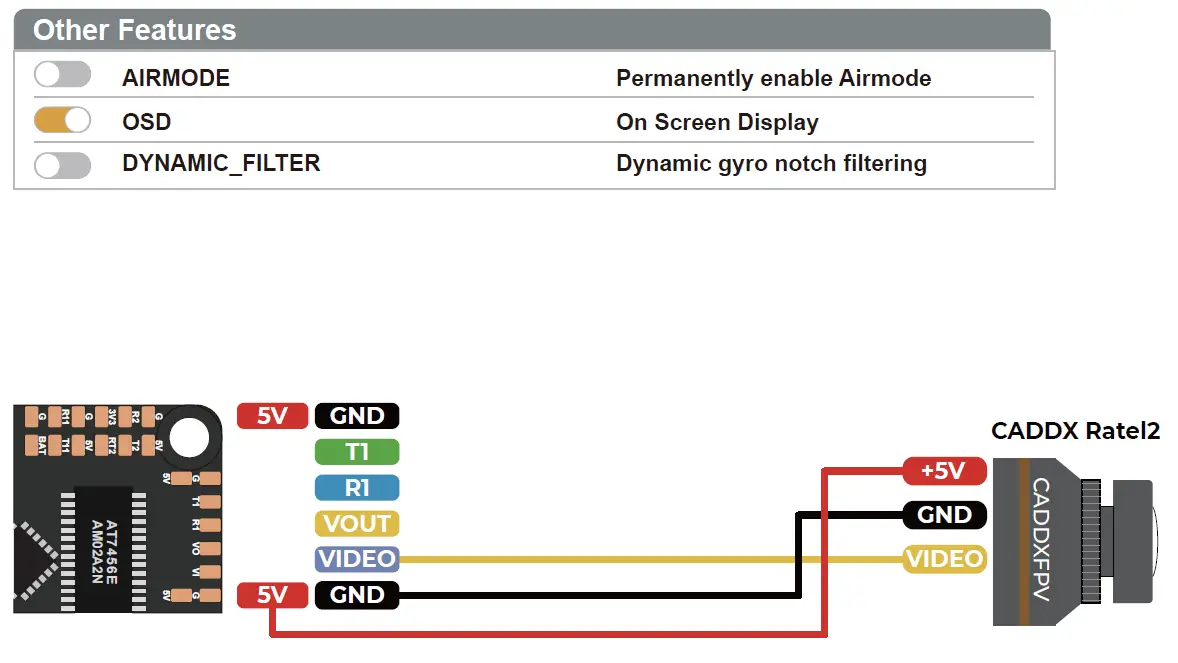

Camera:Receiver:

Buzzer & Led Board:

Include:

• 1 x GEP-F411-35A AIO
• 1 x XT30-7CM-18AWG Power cables
• 1 x 35V220UF capacitor
• 8 x M2*6.5mm Damping rings

Contact:

Website: http://geprc.com
