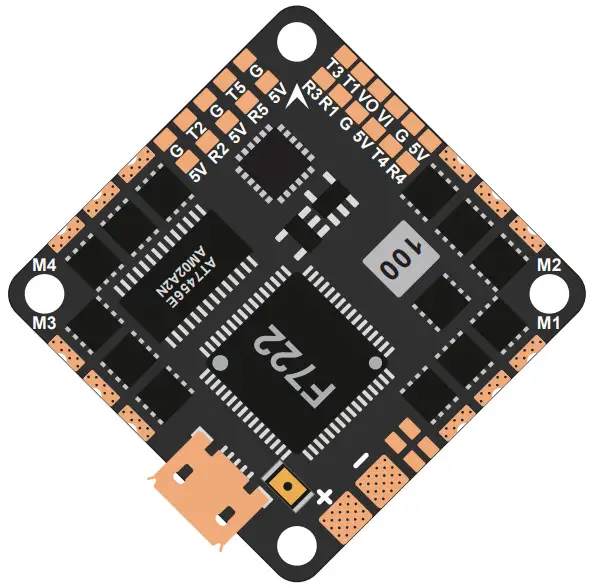

GEP-F722-35A AIO
FC:F722
ESC:BLS_35A
Specification:
| Model Name: | GEP-F722-35A AIO |
| MCU: | STM32F722 |
| Gyro: | MPU6000 |
| Firmware target: | GEPRC_F722_AIO |
| OSD: | Betaflight OSD w/ AT7456Ev |
| Current: | YES |
| Beeper: | YES |
| LED: | YES |
| Black Box: | 16MB |
| USB: | micro USB |
| BEC output: | 5V@1A |
| ESC MCU: | 8BB21F16G |
| Continuous current: | 35A |
| MAX current: | 40A (10s) |
| Input Voltage: | 2-6S LiPo |
| Supports: | Dshot600,Oneshot,Multishot |
| ESC Traget: | G_H_30 |
| Size: | 32x32mm |
| Installing Hole: | 26.5×26.5mm(M2) |
| Weight: | 8.3g |

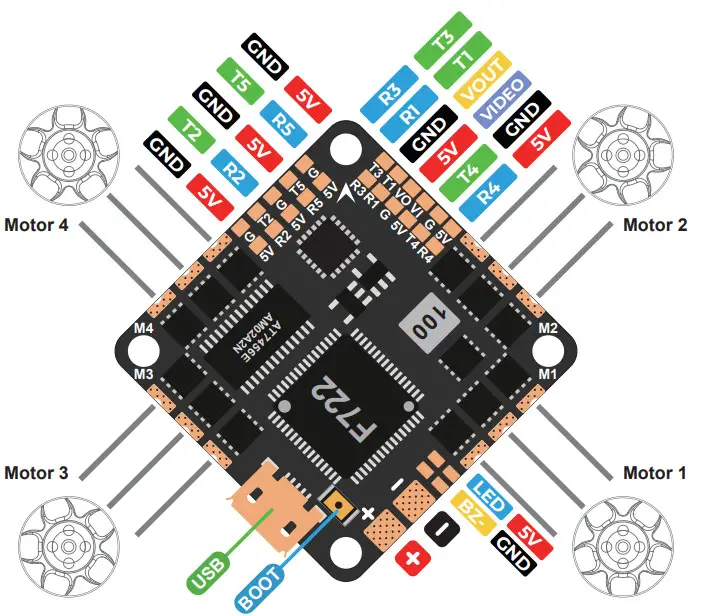

Diagram:

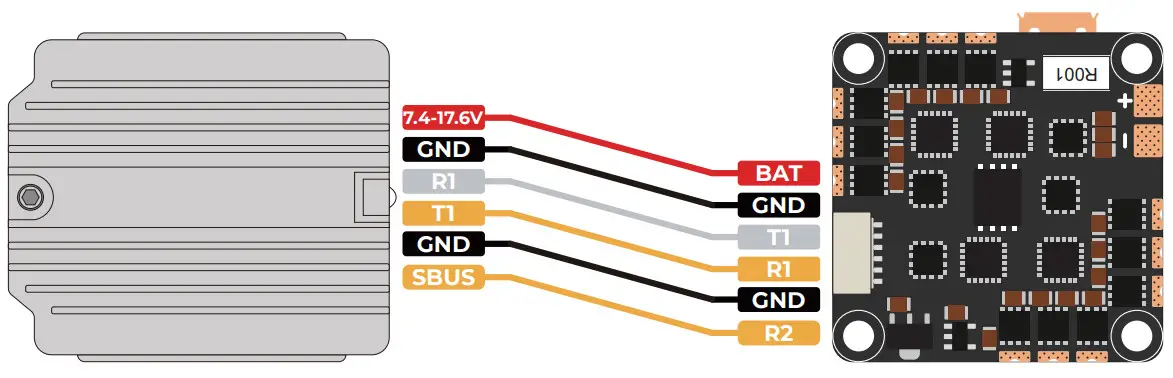

DJI Diagram FPV System:
DJI AIR Unit Module Input Voltage: 2-45 LIPO
DJI AIR Unit Module

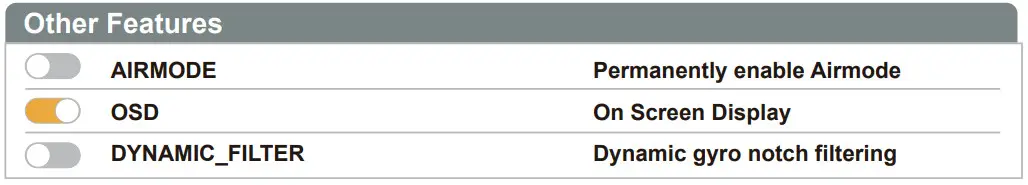

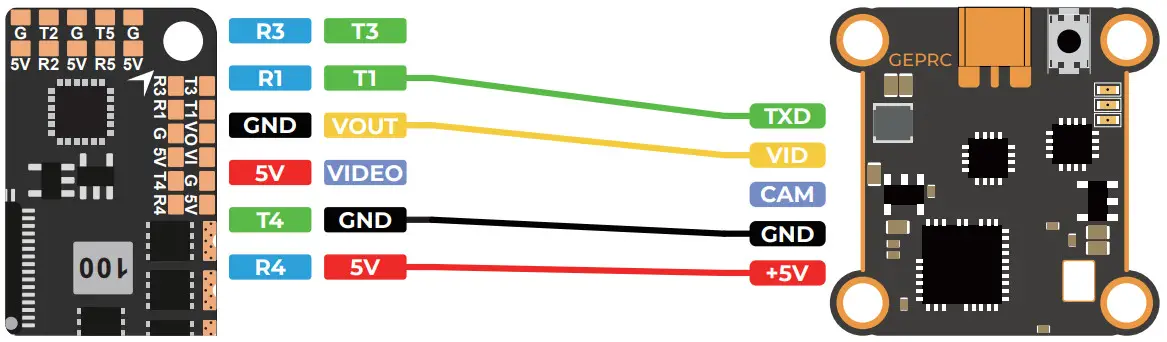

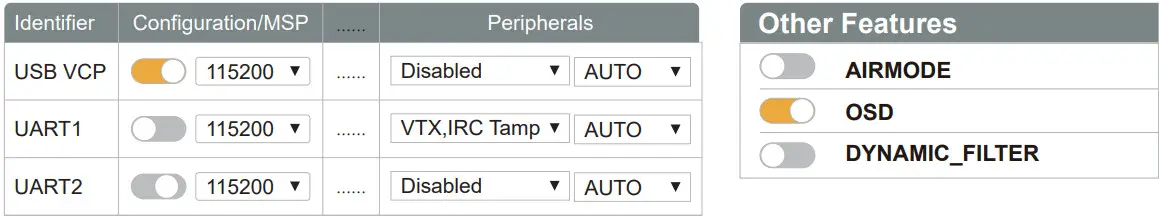

Analog VTX:

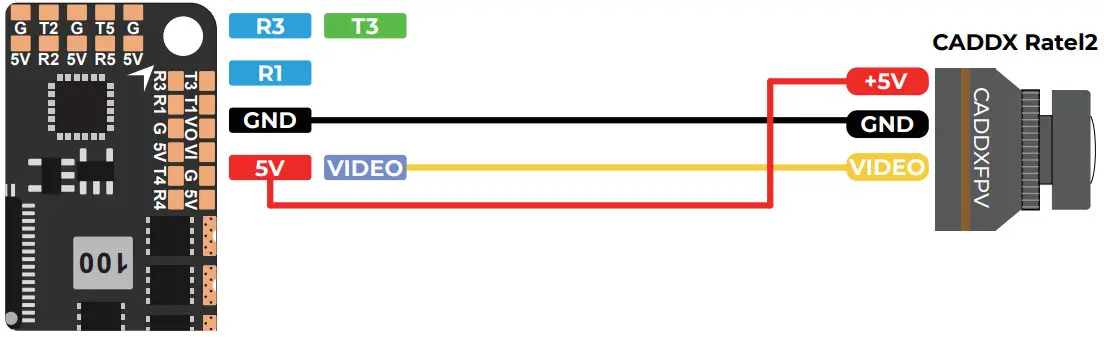

Camera:

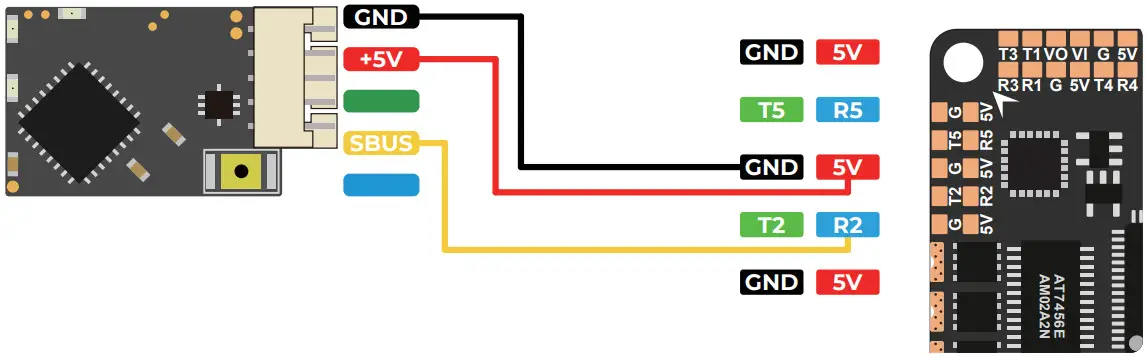

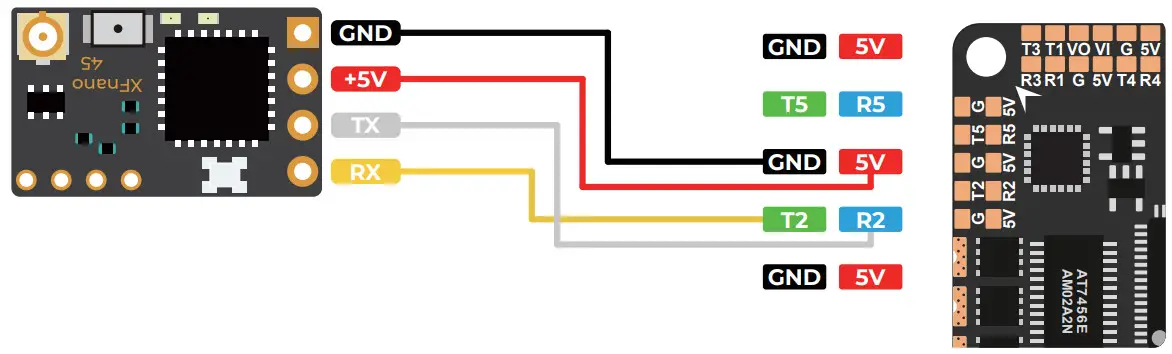

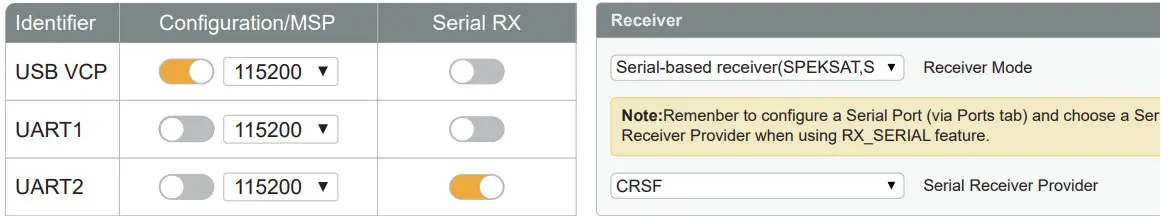

Receiver:
TBS NanoRX

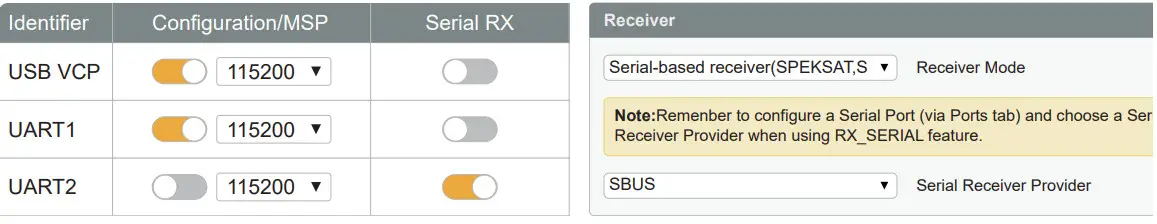

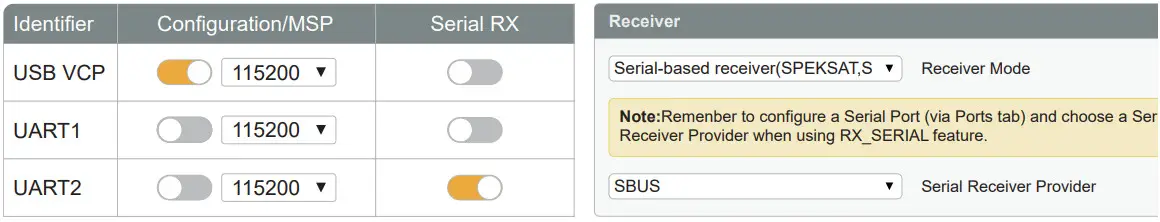

Receiver:
FrSky R-XSR

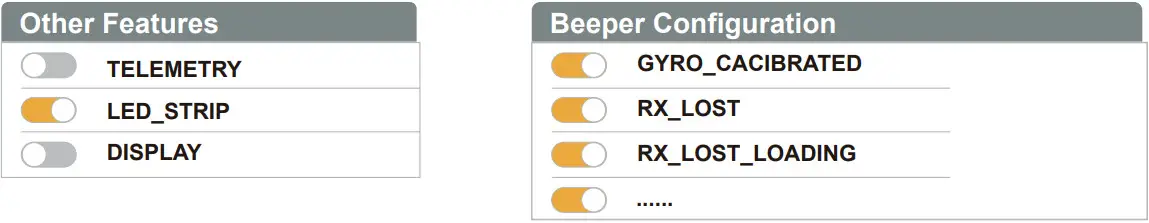

Buzzer & Led Board:

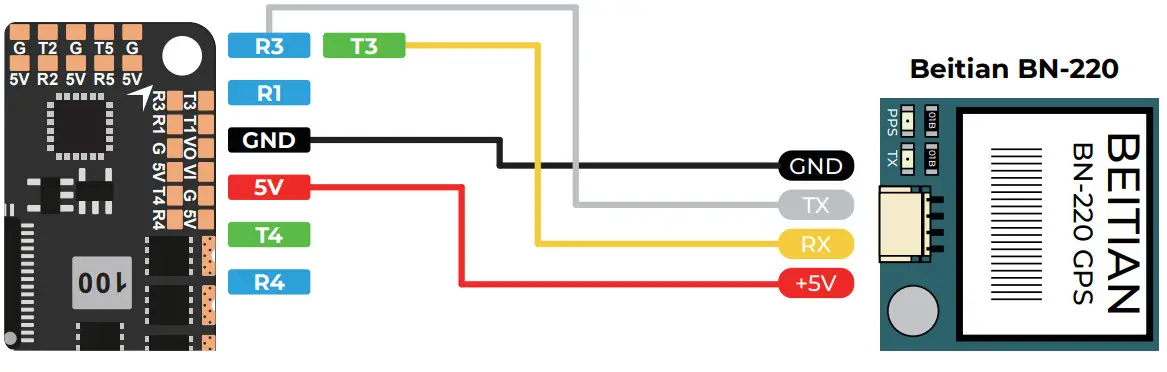

GPS:

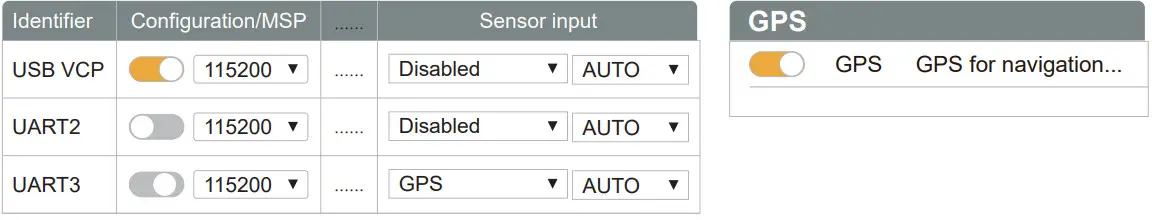

GPS:
Include:
LED 5V
1 x GEP-F722-35A AIO
1 x XT30-7CM-18AWG Power cables
1 x 35V220UF capacitor
1 x SH1.0-6Pin to GH1.25-8Pin cables
1 x SH1.0-6Pin Cables
8 x M2*6.5mm Damping rings
