Yaesu M-90 Ms Microphone Stand Kit User Manual

M-90 MS kit
MICROPHONE STAND KIT

Angle adjustment Screws

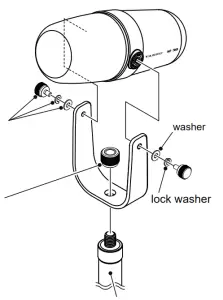

Attach the microphone body at the left and right pivots with the supplied washers, lock washers, and screws. The angle of the microphone may be adjusted by loosening the screws (turn them counterclockwise) on the left and right sides of the microphone yoke. Place the microphone in the desired position and then tighten the screws (turn them clockwise) to secure the microphone.

W3/8 Nut
Use the supplied nut (W3/8 Nut) to attach the yoke to a commercially available desk arm type, or floor type microphone stand*.
This kit requires a Commercially available microphone stand*.
*Microphone stand is not included.
Low-Cut switch
Turns the low-cut filter (cut-off frequency 340Hz, -6dB/octave) ON or OFF. Move the switch in the direction of the arrow to activate the low-cut filter.

PTT switch
When this switch is pressed, the transmit mode is set and held. When the switch is pressed again the transceiver returns to receive mode.

*An optional SCU-53 cable is required when connecting the M-90MS to an HF transceiver furnished with a round 8-pin microphone connector.

Example using the SCU-53 (optional)

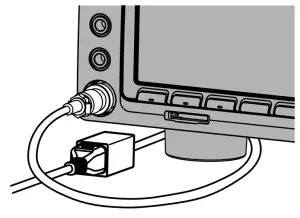

As shown in the figure, route the optional SCU-53 cable behind the transceiver leg to avoid interfering with transceiver operation.

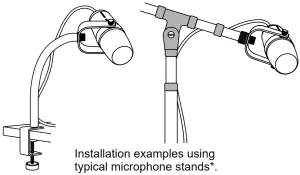

This kit requires a commercially available microphone stand*.
*Microphone stand is not included.

Using the M-90MS with Yaesu Transceivers

The M-90D operates with the below Transceivers.

* Requires Optional “Microphone Power Supply Kit”.
as of June, 2021
