Kensington K67862eu Portable Device Management Cart/cabinet Instruction Guide

Kensington K67862EU Portable Device Management Cart/cabinet

Contents

Components

• Charge and Sync Cabinet
• USB Cable
• Instruction Guide
• Warranty Card
• Safety Information
• Power Cable
• Screws (2X)
• Keys (2X)
• Bolts

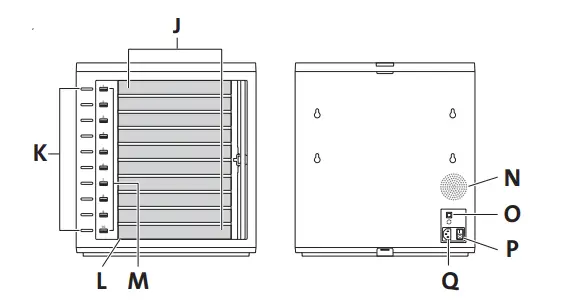

• Slots for tablets
• LED Status Lights
• Sync Button and LED M USB Ports
• Fan
• USB Ports
• Power Switch
• Power Connector

Install Cabinet

Securing
Option 1

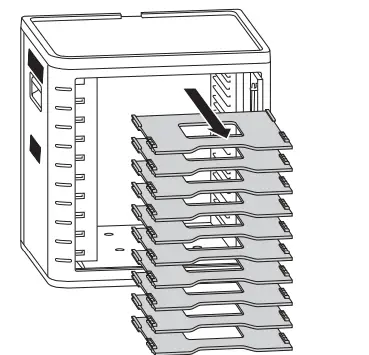

1. Remove all shelves from the cabinet.

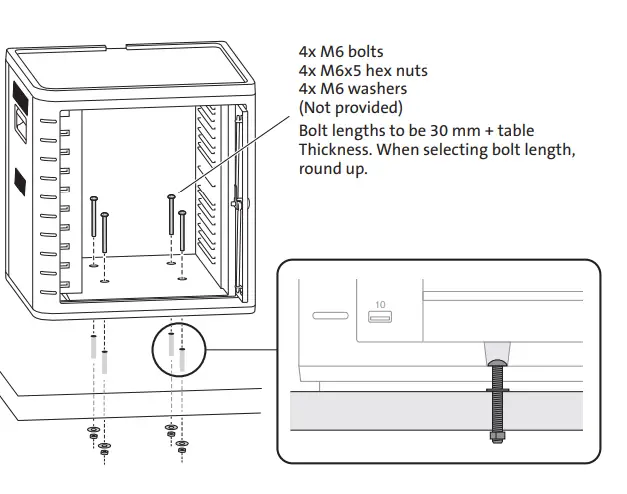

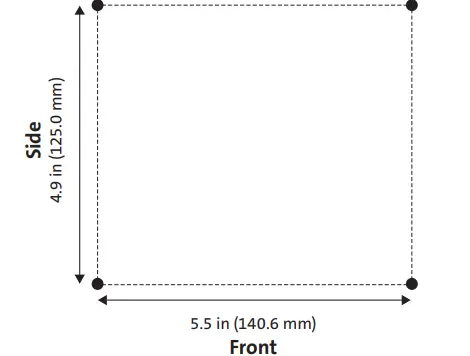

2. Mark holes for drilling onto surface (30mm maximum thickness). Insert four bolts (M6 – not provided) from inside the cabinet and fasten with four hex nuts and washers (not provided).


Option 2

Desktop and Peripherals Locking Kit sold separately. K64615

Option 3

Stacking

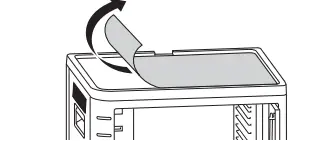

1. Remove the silicone pad from the cabinet.

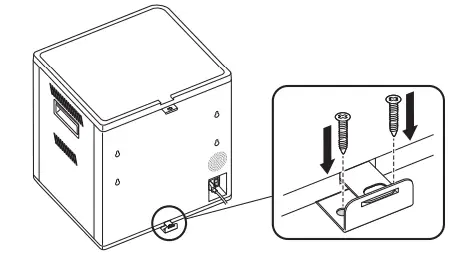

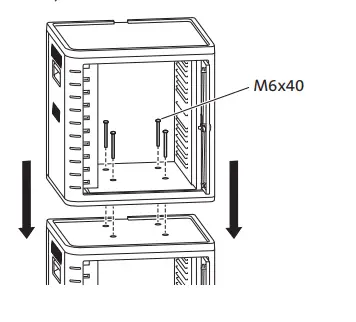

2. Lower the second unit on top of the secured base unit. Fasten the top unit with four screws (M6X40 – provided).

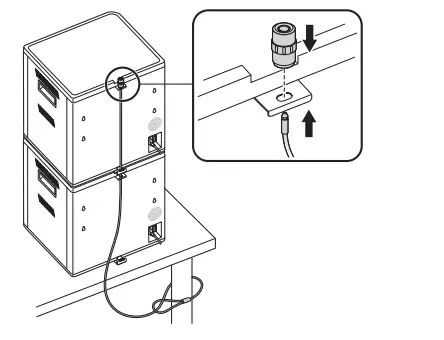

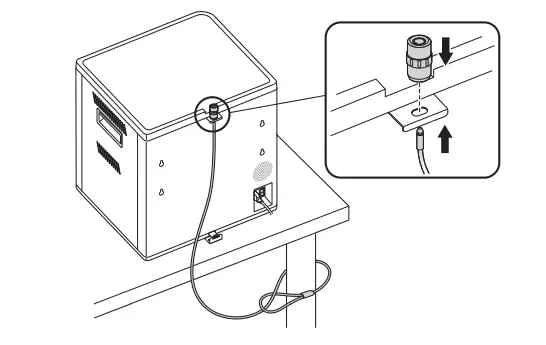

Use a cable lock to lock the units together and tether them to an anchor.

NOTE
Up to two Charge and Sync Cabinets can be stacked together.

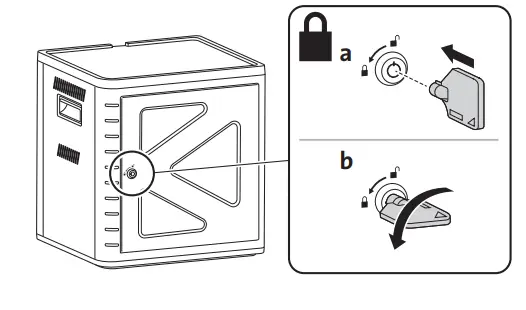

Locking

Set Up the Cabinet for Your Tablets
Power On

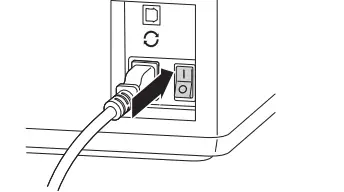

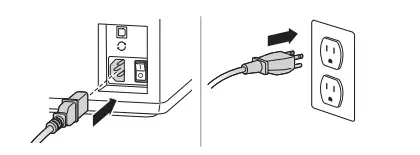

1. Connect the power cable.

2. Turn the power switch On.

Load the Tablets

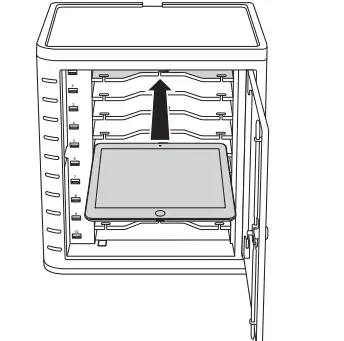

1. Insert one tablet into each slot.

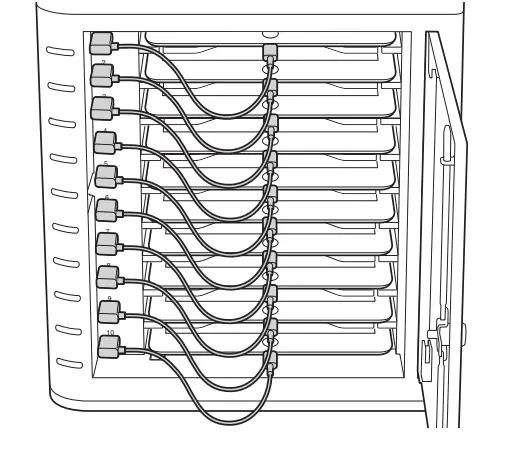

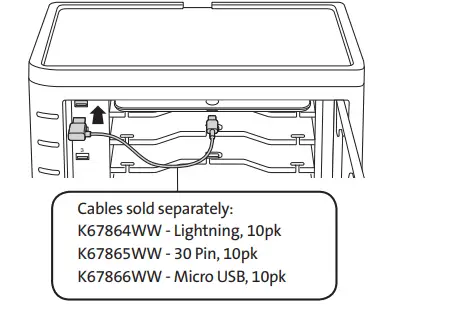

2. Plug the USB end of the dock connector cable into the USB port on the Charge and Sync Cabinet.

3. Plug the other end of the cable into the dock connector on the tablet.

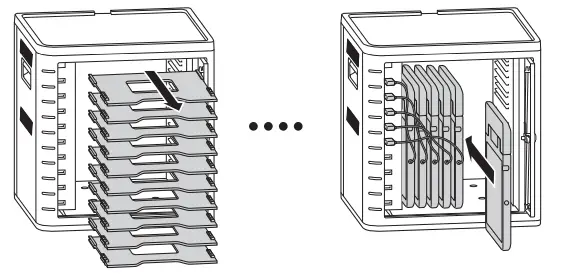

For larger cases, remove shelves and insert vertically

Charge the Tablets

Charging automatically begins when the dock connector is plugged into the iPad.

NOTE: The Charge and Sync Cabinet will not charge and sync the tablets at the same time.

LED Status
Green = Charged
Red = Charging in progress
Red and Green Flashing = Sync in process
Red Flashing = Over current protection

NOTE
Remove the Device and turn off the AC power for over current reset.

Configuring Your Charge & Sync Cabinet for iPads®

If you need to sync the classroom’s iPads using your laptop or desktop, simply visit Apple’s Configuration page at http://help.apple.com/configurator/mac/1.0/?lang=en-
us#cadf1802aed to learn more. The site has all the information you need with easy-to-follow directions.

Sync

iTunes Setup

1. Launch the iTunes application on the host computer.

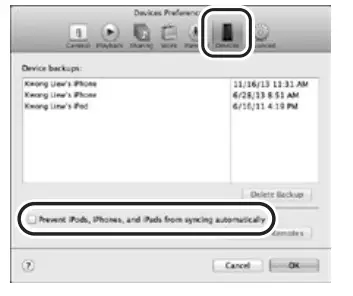

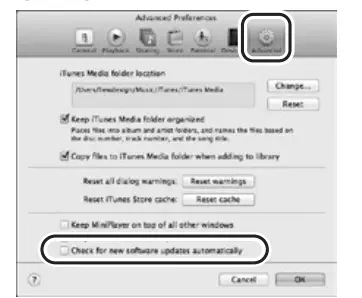

2. Under Preferences, click on the Advanced tab. Uncheck Check for new software updates automatically. This will prevent the automatic update process from interfering with the syncing process.

3. Click on the Device tab, make sure all options are unchecked.

4. Prepare the iTunes library with apps and media that you intend to sync to the iPads.

iPad Setup

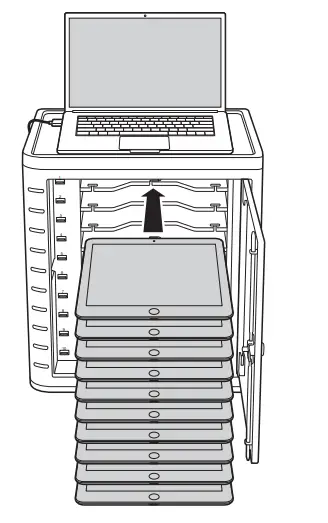

Configure each iPad before starting the syncing process. This can be done by connecting the iPad directly to the host computer or by inserting it into the Charge and Sync Cabinet. If connecting through the cabinet, only one iPad can be configured at a time.

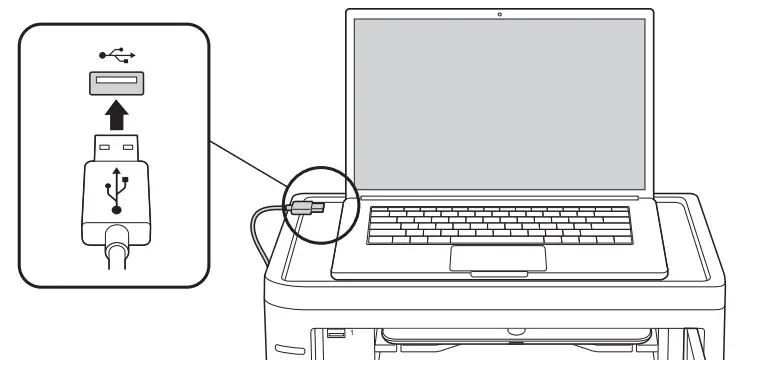

1. Connect the supplied USB cable to the host computer.

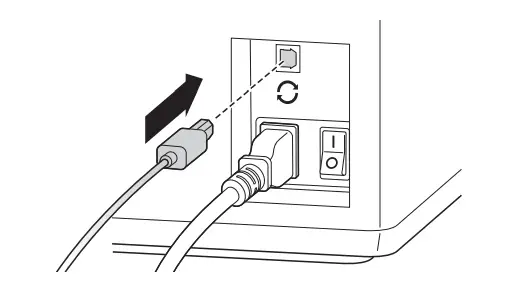

2. Connect the other end of the USB cable to the USB port recycle on the back of the Charge and Sync Cabinet.

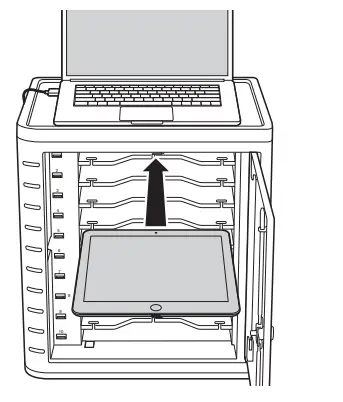

3. Insert one iPad into the Charge and Sync Cabinet.

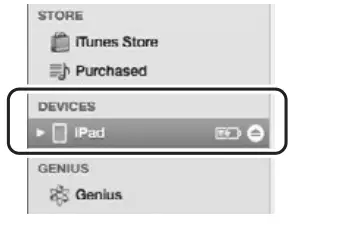

4. In the iTunes sidebar, select the iPad under Devices.

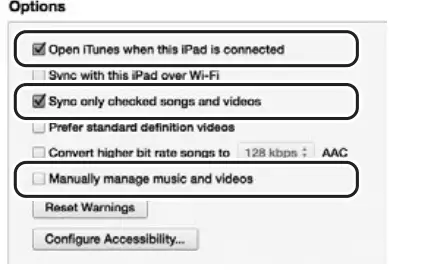

5. Click on the Summary tab, select Open iTunes when this iPad is connected and Sync only checked songs and videos. Verify Manually managed music and videos is not selected (this function would require you to drag and drop your selections to each iPad).

6. Click on each of the tabs at the top (Apps, Music, Movies, TV shows, Books, Photos) and select which type of files you will want to sync on this iPad. Click the Sync or Apply button.

7. Repeat Steps 3 to 6 for each iPad that will be used in the Charge and Sync Cabinet.

Ready to Sync

1. Insert one iPad into each slot.

   NOTE: If the iPads are new, they should be fully charged before attempting to sync.
2. Plug the USB connectors into the Charge and Sync Cabinet and the iPads. All the iPads loaded in the Charge and Sync Cabinet will appear under Devices in iTunes.

3. Press the Sync Button to start the sync process.

4. iTunes will launch and syncing will start automatically.
5. When syncing is completed, an Eject icon will appear next to each device. Click on the Eject icon or close iTunes to safely eject the iPad.
6. Unplug the USB cable from the computer so charging can begin.

IMPORTANT!
Charging will not occur until the USB cable is unplugged from the host computer.

Multi-Cabinet Sync Connection

1. Arrange the units in order on a secure surface.
2. Place configured iPad devices in the slots, connect the dock connector cable to the iPad and USB ports. Push Sync switch button to “ON”, LED light will appear in red.

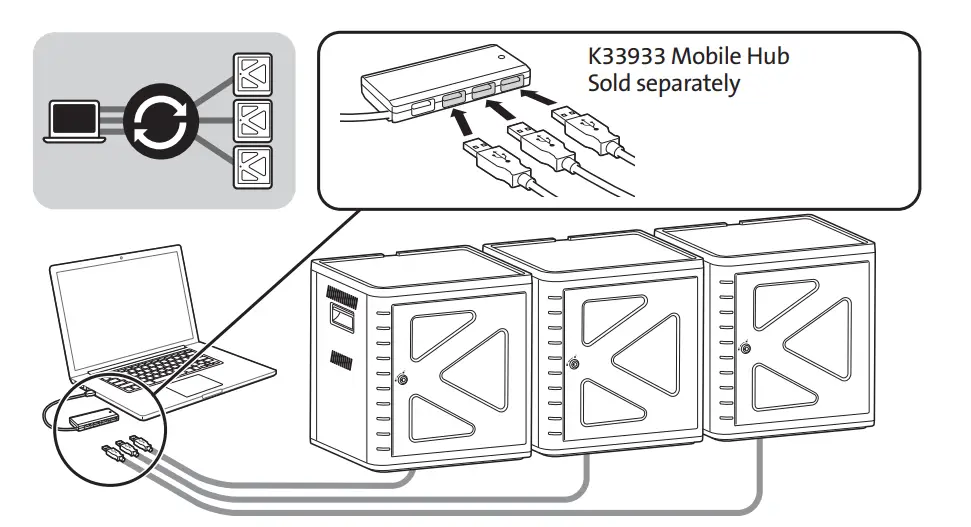

3. Connect all units together using a USB hub (K33933 Mobile Hub, sold separately). iTunes will automatically detect the new searched device name.

NOTE
Adding a new iPad device to the station after the sync button has been activated will require the sync button to be reset. Push the sync button off, and then on again to reset.

Syncing Android Tablets
To sync an Android device, please refer to the manufacturer’s instructions.

Technical Support

Technical support is available to all registered users of Kensington products. Technical Support contact information can be found on the back page of this manual.
