OE-C7034-WR 4MP Mini Dome IP Camera
User Guide

This quick start guide provides only basic information on the camera’s settings and operation for initial installation. Please read the user manual for optimal camera conﬁ gurations.

Contents hide

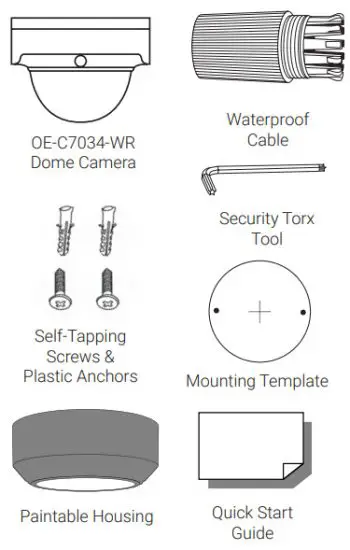

1 CONTENTS

2 INSTALLATION

3 POWER

4 ETHERNET CABLE CONNECTIONS

5 DEFAULT USERNAME AND PASSWORD

6 ASSIGNING AN IP ADDRESS

7 CONNECTING TO THE IP CAMERA

8 PRODUCT FEATURES

9 CONNECTIONS

10 Waterproof Cable

11 Documents / Resources

11.1 References

12 Related Posts

INSTALLATION

Apply template sticker to the desired camera location.
Drill anchor holes using included mounting template.
Remove the mounting template.
Insert anchors.
Mount camera.
Connect network cable with included waterproof cable connector.
Adjust camera view.
Secure Lid/dome

NOTE: If the camera will be exposed to inclement weather, OpenEye recommends sealing around the camera base or connection to the mounting surface with outdoor waterproof caulking.

POWER

This camera is compatible with 12vDC and Power over Ethernet (PoE). If you are connecting 12vDC power, verify the polarity of the power connection.

ETHERNET CABLE CONNECTIONS

Connect a network cable to the camera using the RJ45 input and connect the other end of the cable to your network switch or recorder.

DEFAULT USERNAME AND PASSWORD

NOTE: OpenEye IP cameras ship without a default password.

The admin user password can be set using the following methods:

OpenEye recorders running Apex
2.1 or newer will automatically set a new unique password if:
• Connected to an M-Series recorder with a built-in PoE switch.
• Connected to a network switch through the camera network port and selected then added in setup, if a new password has not already been set.
Connect to the camera directly through a Web Browser and follow the onscreen prompts.
Use the Network Camera Manager (NCM) Utility.

Username: admin

NOTE: The NCM software manual can be found at https://www.openeye.net/ncm-manual

NOTE: Refer to your Apex recorder manual or quick start guide for instruction on adding cameras. Passwords must be 9-32 characters including at least two elements of the following three: digits, letters, and special characters.

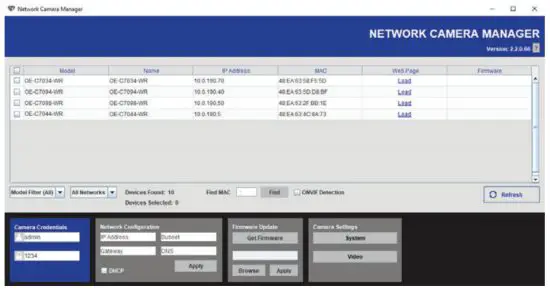

ASSIGNING AN IP ADDRESS

OpenEye IP cameras are set to DHCP by default. If a DHCP server is not detected after 4 minutes, the camera will default to IP address 192.168.51.2.
If you are not using a DHCP server, NCM will allow you to batch configure a static IP address.
The IP address for the camera network on your Apex recorder is 192.168.51.1.

NOTE: To change this IP address please refer to your Apex recorder manual.

Selecting multiple cameras and entering IP address 192.168.51.2 will set an IP address on all selected cameras, starting at 192.168.51.2 and increasing per camera.

Open Network Camera Manager.
Select the applicable camera(s).
Input starting IP address, Subnet Mask, Gateway, DNS.
NOTE: NCM requires an entry in all fields.
Apply changes.
Wait 60 seconds before refreshing NCM.

CONNECTING TO THE IP CAMERA

To access the camera setup menu, you need to open the Network Camera Manager (NCM) utility. NCM is preinstalled on all OpenEye Recorders and is also available for download on the OpenEye website for installation on your personal computer or laptop.

Open Network Camera Manager.
Locate your camera on the Network Camera Manager list.
To open the web browser, select the camera and click LOAD.

PRODUCT FEATURES

Camera
Maximum Resolution	2592×1520
Frame Rate at Maximum Resolution	20FPS @ 4MP H.264/H.265
Total Streams	Dual Streaming
ONVIF	Profile S / G
Day/NigM	True Day / Night
Wide Dynamic Range	True WDR

Environmental and Power
Power Consumption	5.5W Max
Input Voltage	12vDC / PoE
Operating Temperature	-31°~140°F (-35°~60°C )
IP Rating	IP67
Impact Rating	IK10

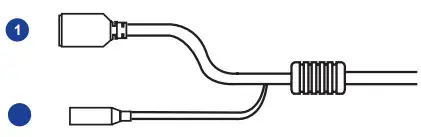

CONNECTIONS

1	RJ-45	For network and PoE connections
2	Power (1 2vDC)	Power connection
	Audio I/O	Green	Audio In L
		Brown	Audio In R
		Gray	Audio Out
		Purple	Ground
	Alarm I/O	Blue	Ground
		Orange	Alarm Input
		White	Alarm Out –
		Yellow	Alarm Out +

Only one audio channel can be active at a time. Please see the manual for more details.

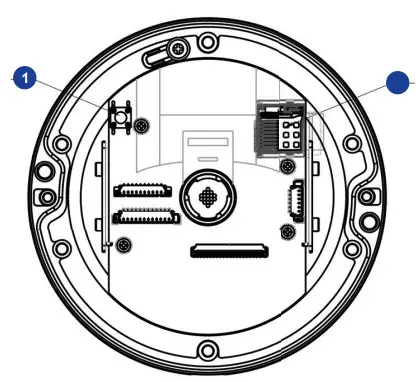

1	Reset Button	To restore the camera to factory defaults: 1. Disconnect power for 30 seconds. 2. Reconnect power and wait 30 seconds. 3. Press and hold the reset button for 20 seconds.
2	MicroSD Card Slot	Supports up to 128GB microSD card for Edge storage. Do not add or remove the microSD card when the camera is powered on.

Waterproof Cable

1	Thread lock cap	4	Rubber ‘0’ ring
2	Rubber plug	5	Camera cable
3	RJ45 enclosure
