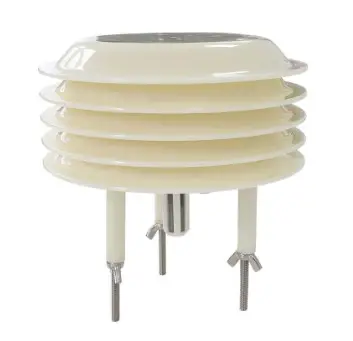

sonbus SM6366B Carbon Dioxide Atmospheric Pressure Sensor User Manual

User Manual File Version: V21.11.15

SM6366B using the standard RS485 bus MODBUS RTU protocol,easy access to PLC DCS and other instruments or systems for monitoring temperature 、 humidity 、 Illuminance state quantities.The
internal use of high precision sensing core and related devices to e nsure high reliability and excellent.

long term stability,can be customized RS232,RS485,CAN ,4 20mA,DC0~5V 10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.

Technical Parameters

Technical parameter	Parameter value
Brand	SONBEST
Temperature measuring range	-50℃~120℃
Temperature measuring accuracy	±0.5℃ @25℃
Humidity measuring range	0~100%RH
Humidity accuracy	±3%RH @25℃
Illuminance measuring range	0~65535Lux
Illuminance allow deviation	±7%
Repeatability test	±5%
Illuminance detection chip	Import digital
Wavelength range	380nm~730nm
Communication Interface	RS485
Default baud rate	9600 8 n 1
Power	DC9~24V 1A
Running temperature	-40~80°C
Working humidity	5%RH~90%RH

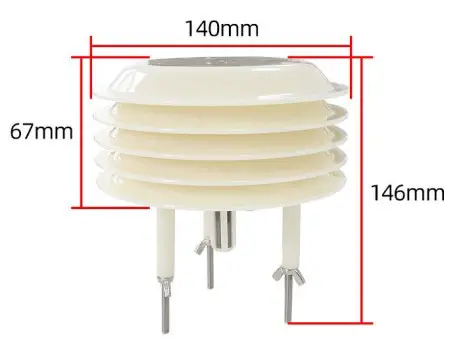

Product Size

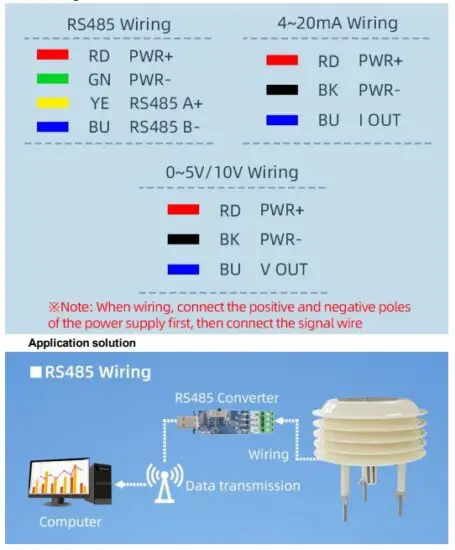

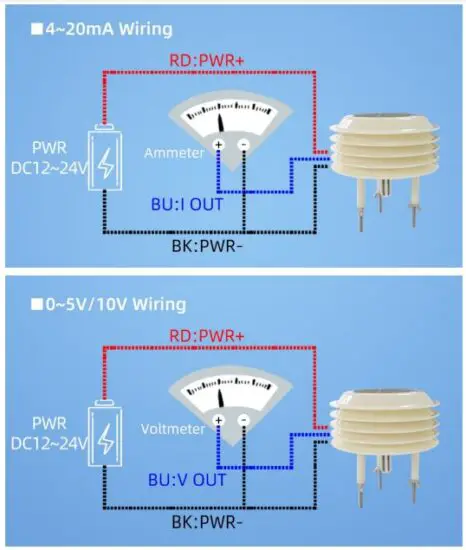

How to wiring?

How to use?

Communication Protocol Disclaimer

This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketabi lity or the infringement liability for any patent, copyright or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
