DamoaTech DT-SMS01B Soil Sensor

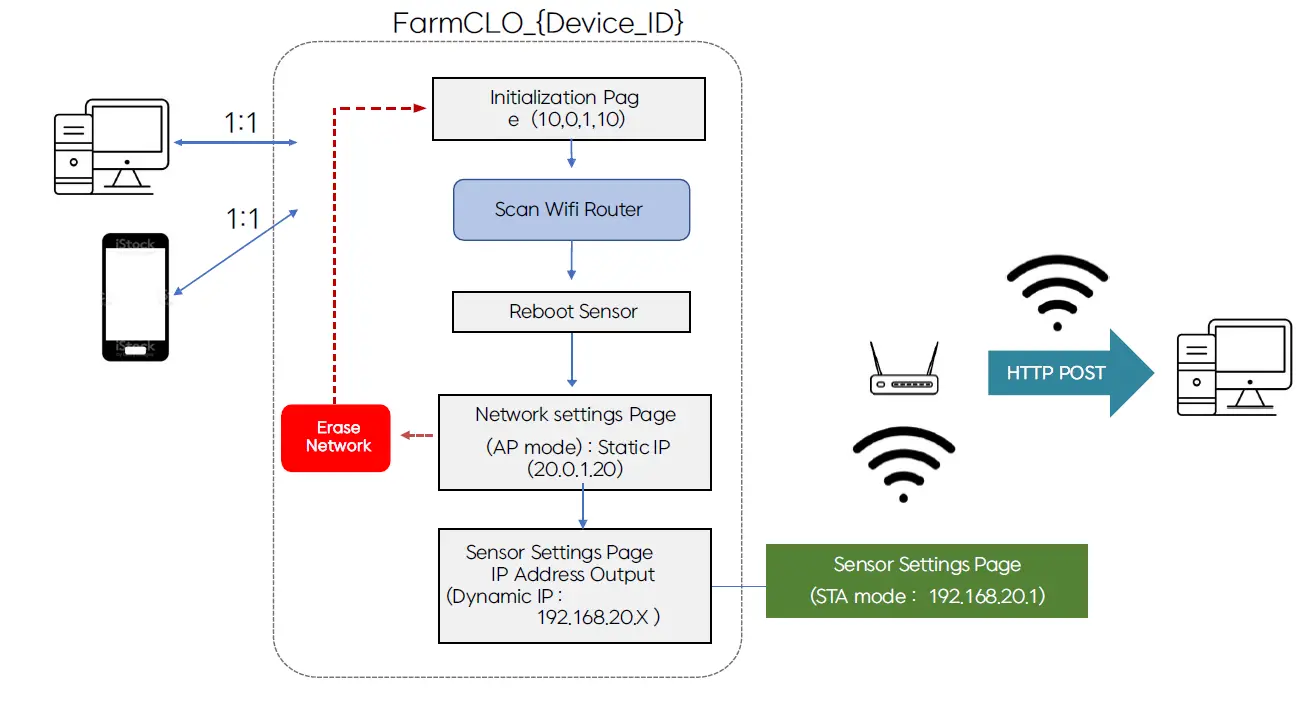

Installation overview

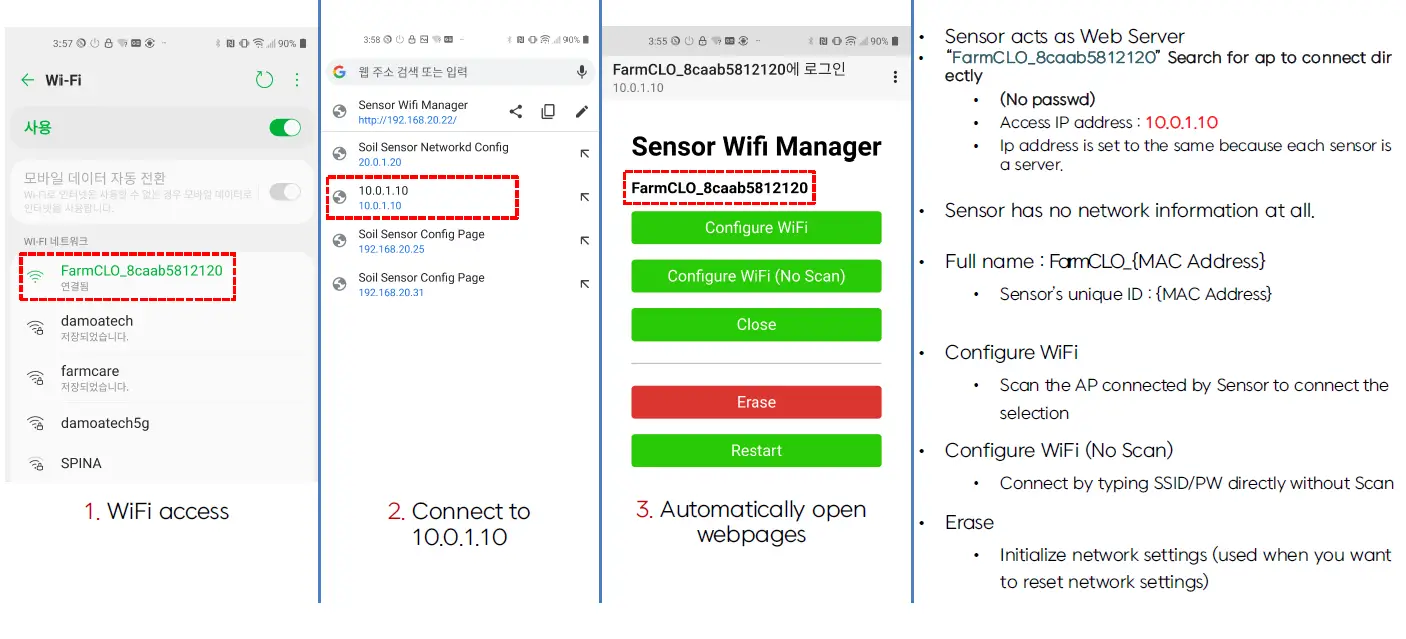

Initial settings

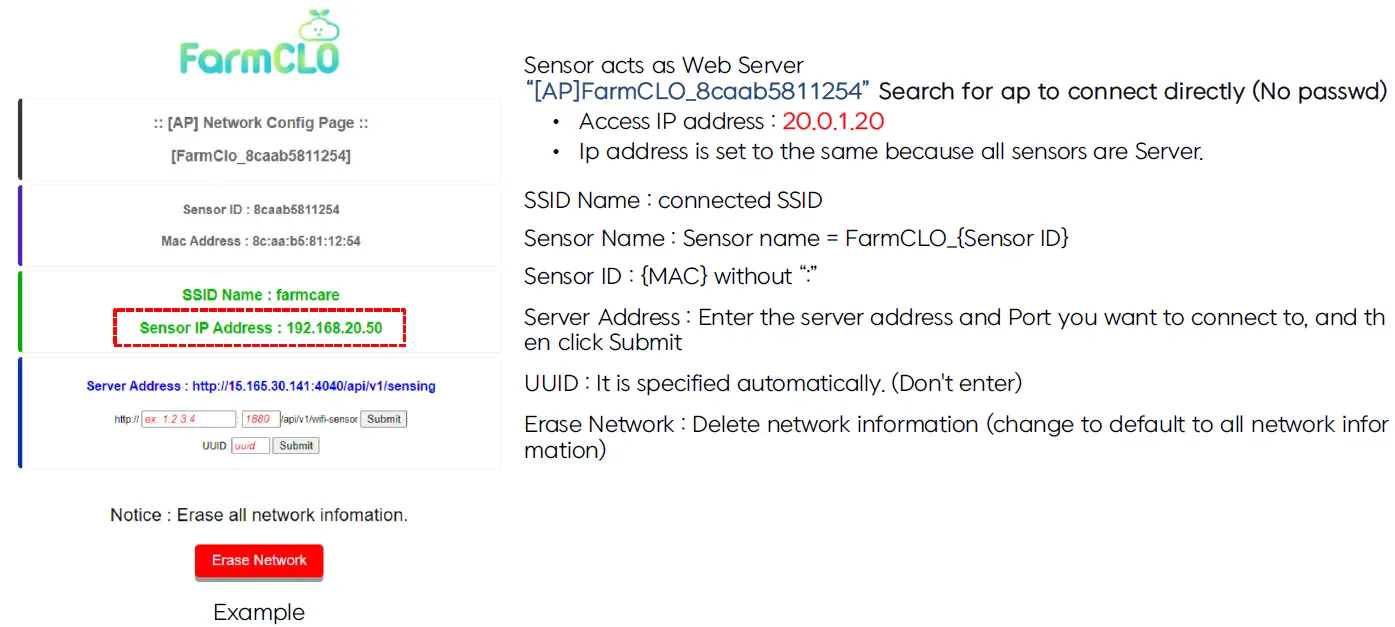

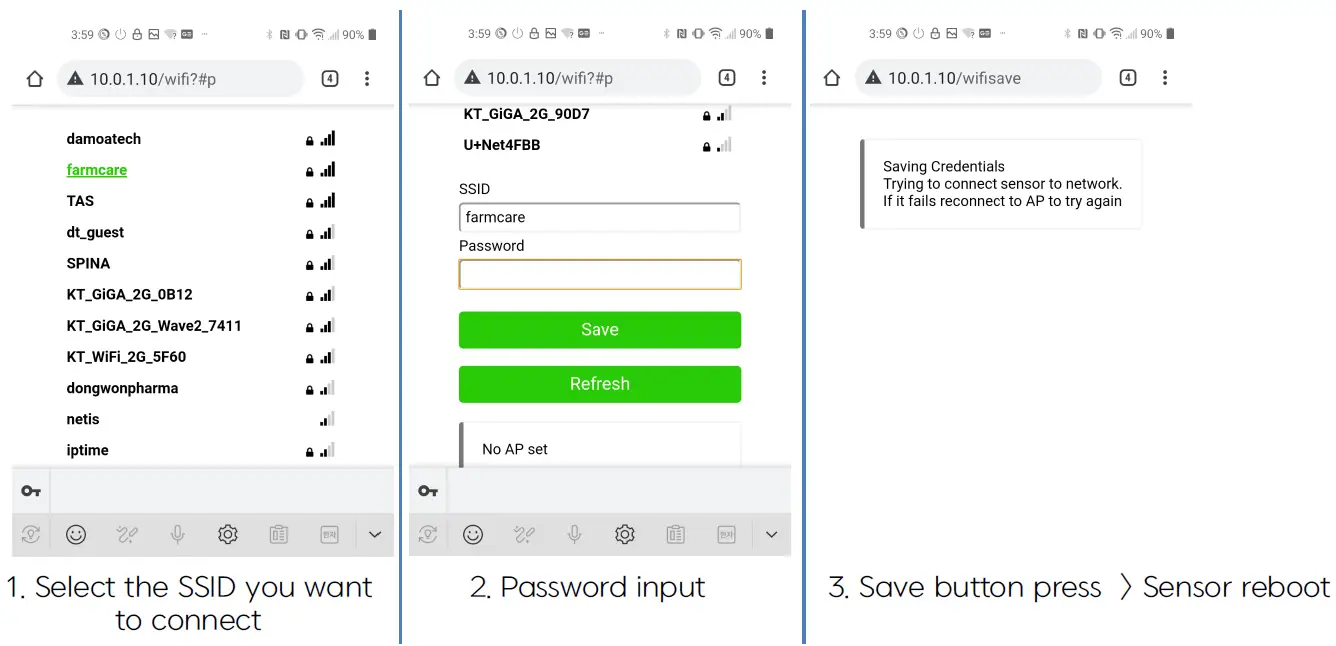

Network settings Page
Separate server users (DamoaTech Server users do not apply)

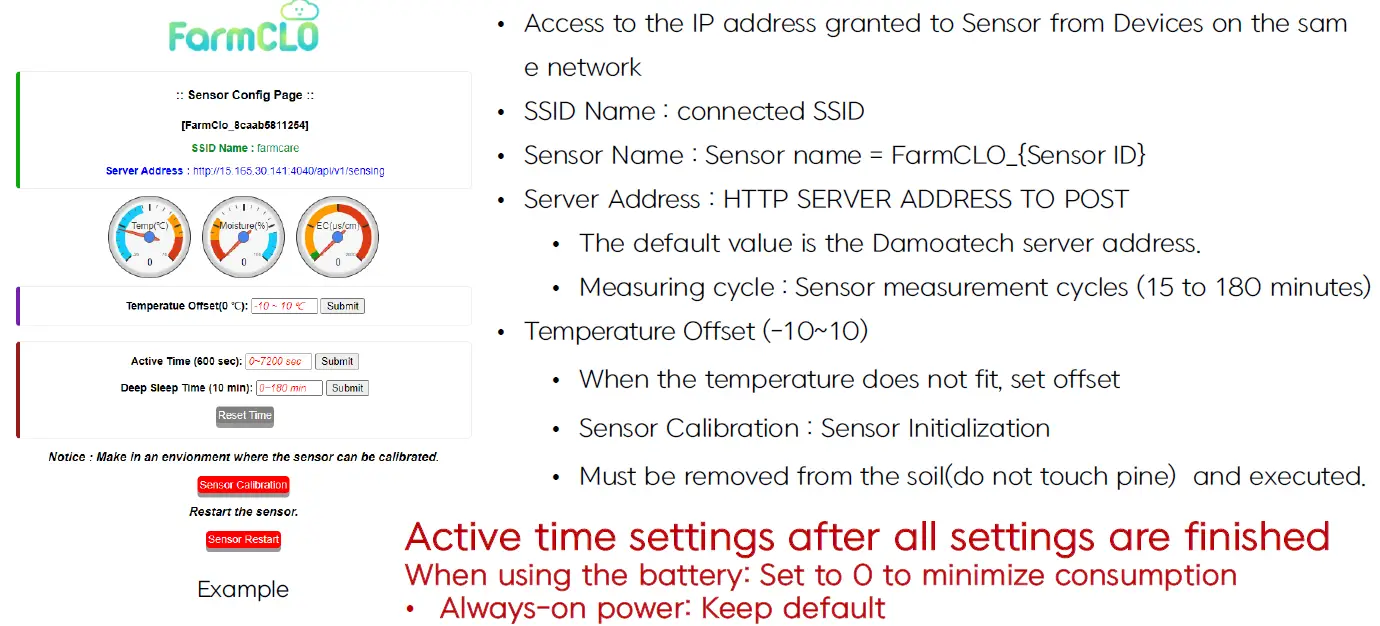

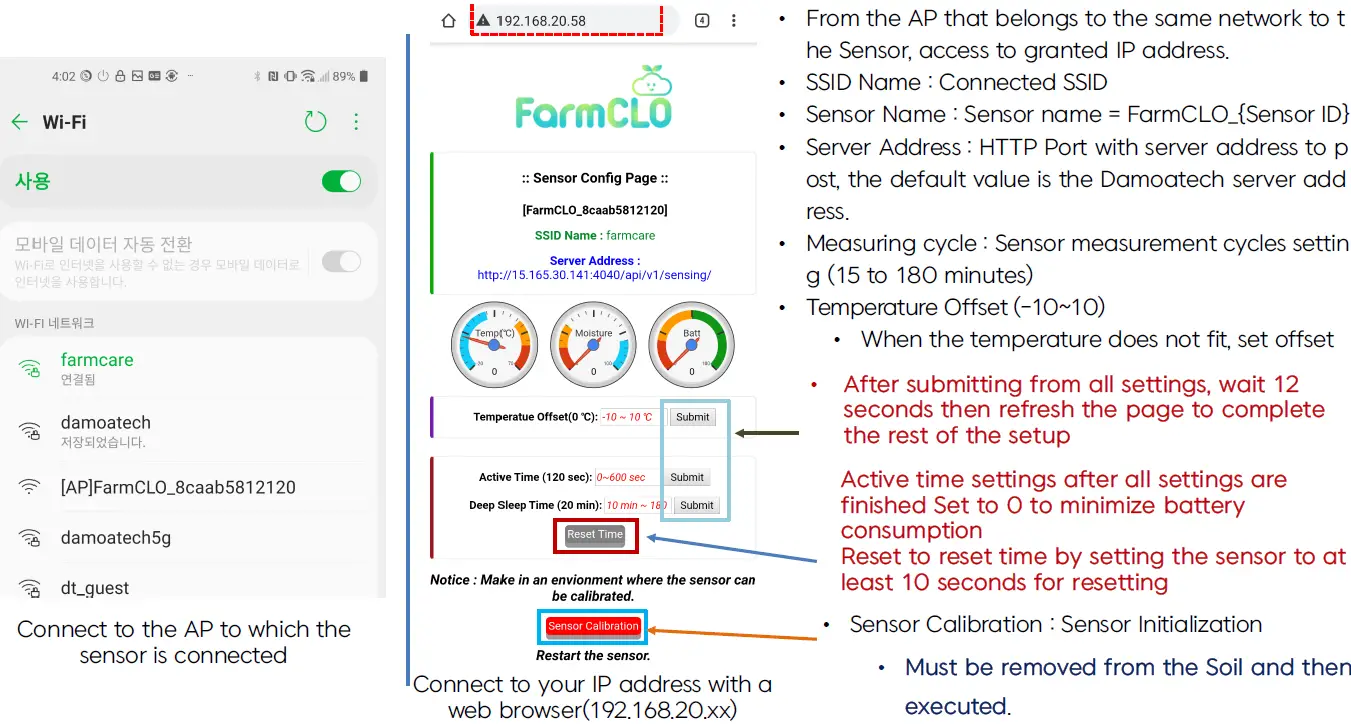

Sensor Settings Page
Server Sensor Registration

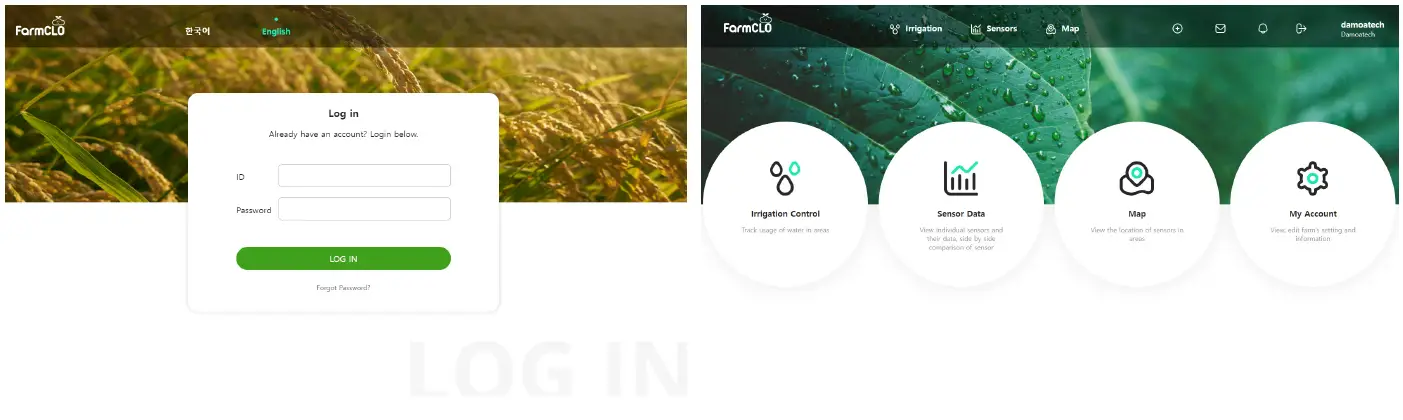

DamoTech Server Users Only
- To use the apps offered by DamoTech, you must register your product.
- The product buyer can inform us of the product warranty or the number affixed to the top.
- Email address: [email protected]
- Please provide the buyer’s name, address, email address and contact information.
- User IDs and passwords will be notified at we will inform you.

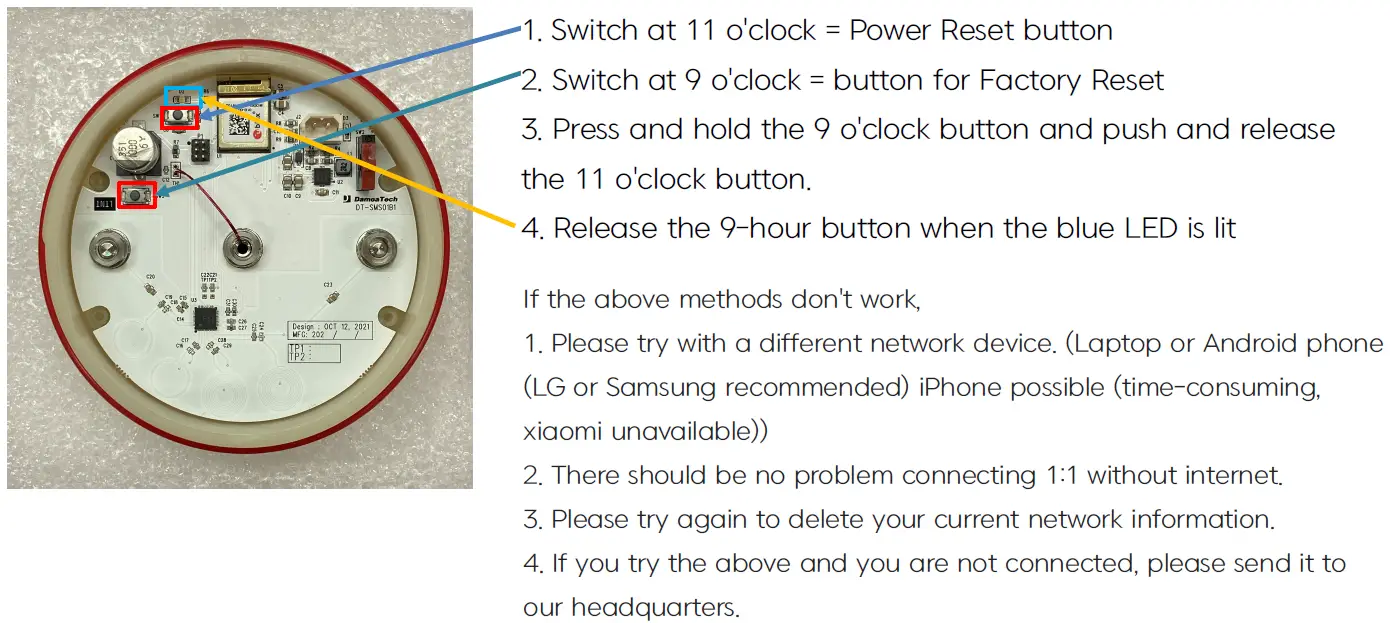

How to factory reset

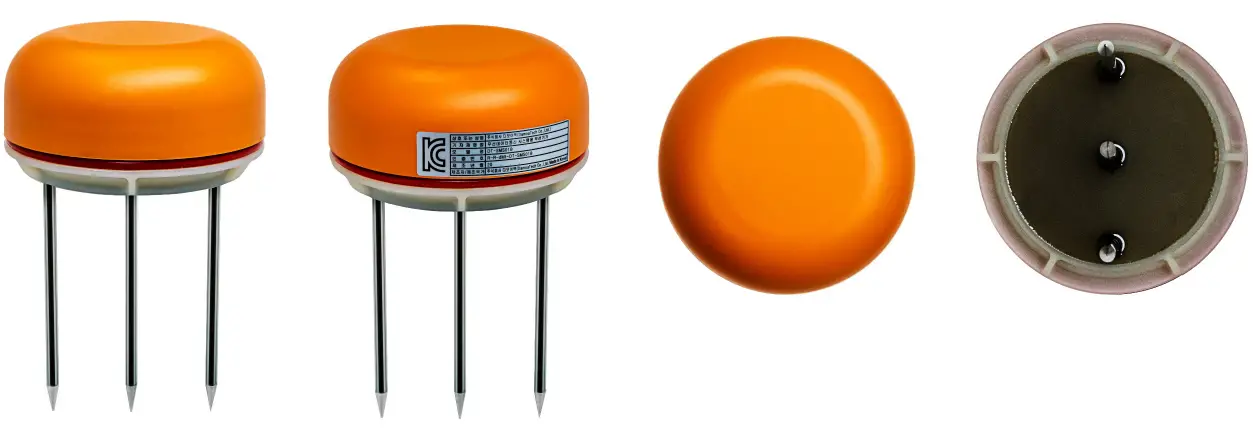

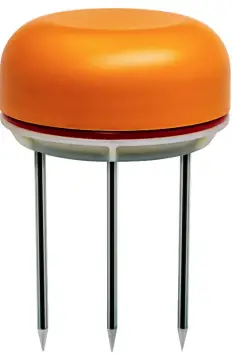

Product Photos
Product Specifications
| Spec | description | Remarks |
| Name | Soil sensor | |
| Model | DT-SMS01B | |
| Power voltage | DC 5V (USB) | |
| Power consumption | 0.1W ~ 0.5W | |
| Size | 80(L) x 120(H) x 80(W) | |
| Weight | 120g | Battery, cable excluded |
| Network interface | WIFI 802.11b/g/n | |
| Frequency of use | 2.4Ghz | |
| WIFI encryption | WEP/WPA/WPA2 | |
| Moisture(VWC) | 0% – 100% | |
| Soil temperature | -40 ℃ – 70℃ | |
| EC | 0 – 5000dS/m | |
| Material | Nylon66 + GF30, SUS304 | |
| Warranty Period | 1year | |
| Operating temperature range | -20℃ – 70℃ | |
| KC Authentication Number | R-R-dMt-DT-SMS01B |
Product Description
- Use Volumetric Water Contents (VWC).
- Represents the ratio of the total volume of the soil, including moisture, to the moisture volume
- Moisture measurement methods are divided into FDR, TDR, and ADR methods. – Reference Decagon YouTube-
- The FDR method is frequency analysis
- TDR method is time analysis
- ADR method is amplitude analysis
- The method used by DamoaTech uses a method of measuring dielectric permittivity like FDR.
- The moisture value of the soil sensor represents the relative value, not the absolute moisture value of the soil.
- The Rural Promotion Agency and the Agricultural Fractalization Foundation (FACT) are also conducting tests by measuring only the amount of change. – Contact FACT
- It means the amount of moisture in the soil.
Warranty
Product: DT- Series
Form: Agricultural instruments
Product Number :
Warranty Period: 1 year from the date of purchase Product Purchase Date :
Address :
Name :
Thank you very much for purchasing DamoaTech’s products. This warranty promises to repair the products used as written in the warranty regulations and specifications, instruction manuals and precautions free of charge in the event of a failure within the warranty period.
Quality Regulations
- If you are requesting a free repair, please provide a warranty. If the warranty period has elapsed, the actual cost will be settled.
- Even within the warranty period, the following cases will be paid and settled for actual expenses in accordance with the company’s service regulations.
- If a foreign object is injected into the product and fails
- If the product is damaged or functionally damaged by dropping or impacting the product.
- Failure occurs due to applied voltage outside the voltage range
- You have not followed the precautions set out in the instruction manual.
- The customer randomly repairs, modifies, or disassembles the product and fails.
- When failure occurs due to natural disasters (lightning, fire, feng shui, earthquake, etc.)
- The part is obsolete and has caused a failure.
- Failure is caused by other negligence of the customer
Manufacturer: Damoatech Co., Ltd.
#604, 723 Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do
South KOREA
TEL : +82-70-4369-0904
Damoatech Co., Ltd.
#604, 723 Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do South KOREA
TEL : +82-70-4369-0904
