Amana Aqc0902lw Chest Freezer Instructions

PRODUCT MODEL NUMBERS
AQC0902LW
AZC5216LW

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

A 110 V-120 V, 60 Hz, AC only, 15 A or 20 A fused (or circuit breaker), grounded electrical supply is required. It is recommended that a separate circuit serving only your freezer be provided. Use an outlet that cannot be turned off by a switch or pull chain. Do not use an extension cord.

LOCATION REQUIREMENTS

WARNING

Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from the refrigerator or freezer. Failure to do so can result in death, explosion, or fire.

Because Whirlpool Corporation’s policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Chest Freezer

Allow at least 2.75″ (7 cm) of air space on both sides of the freezer and 2.75″ (7 cm) between the back of the freezer and the wall.
Leave room above the freezer to open the lid.
Your freezer operates most efficiently when located in an area where the temperature is normally between 32°F (0°C) and 110°F (43°C).
Do not install the freezer near an oven, radiator, or another heat source.
Check the strength of the floor before installing your freezer. It should hold the weight of a freezer fully loaded with food.

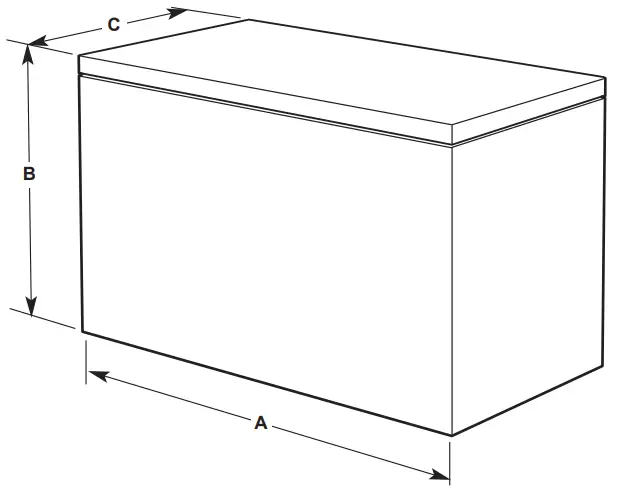

PRODUCT DIMENSIONS

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with the product. Specifications are subject to change without notice.

®/™ ©2022 Amana. All rights reserved. Used under license in Canada.
Tous droits réservés. Utilisé sous licence au Canada.
Todos los derechos reservados. Usado en Canadá bajo licencia.

W11569004B
