Bosch Fontus Outdoor Cleaning Device Instruction Manual (+ PDF)

FONTUS

Original operating instructions

Contents hide

1 Safety Notes

2 Operation

3 Safety Warnings for Battery Chargers

4 Transport and Storage

5 Maintenance

6 Technical Data

7 Mounting and Operation

8 Switching on

9 Troubleshooting

10 Documents / Resources

10.1 References

11 Related Posts

Safety Notes

WARNING! Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Explanation of symbols on the machine
General hazard safety alert.
Read instruction manual.

Never direct the water jet against the face of people and animals, the machine itself or electric components.

Operation

The operator must use the machine in accordance with the regulations. The local conditions must be taken into account. When working, pay attention to other people, especially to children.
Never allow children, persons with physical, sensory or mental limitations or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.
Children should be supervised to ensure that they do not play with the machine.
The operator is responsible for third parties in the work area. Do not accidentally direct the jet against other persons or animals in the area.

Application

All current-conducting components in the work area must be protected against splashed water.
Materials containing asbestos and other materials which contain substances which are hazardous to your health must not be sprayed.
Operate the machine only when the battery compartment is shut. Thisprotects the battery against splashed water.
Before use, check that the machine and operating equipment are in perfect condition and are safe to operate. Do not use if it is not in perfect condition.
The machine must be placed on a stable surface.
Do not use solvent-containing liquids, undiluted acids, acetone or solvents, including petrol, paint thinners, heating oil. The sprayed vapours are highly flammable, explosive and toxic.
Never fill the water tank with the filter removed or if the filter is damaged.
Do not modify the machine. Unauthorized modifications can impair the safety of your machine, lead to increased noise and vibrations, and poor performance.
Do not direct the spray jet against the faces of persons or animals.
Never immerse the machine into water to fill the tank.
High pressure may cause objects to rebound. If necessary wear suitable personnel protective equipment such as safety goggles.
Use only fresh (not saline) water to fill the water tank.

Recommendations for Optimal Handling of the Battery Pack

Do not open the battery. There is a risk of short-circuiting.
Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.
In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
Use the battery only in conjunction with your Bosch product. This is the only way in which you can protect the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
Do not short-circuit the battery. There is a risk of explosion.
Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

Safety Warnings for Battery Chargers

Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
Save all safety warnings and instructions for future reference.
Use the battery charger only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.

Never allow children, persons with physical, sensory or mental limitations or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the battery charger. Local regulations may restrict the age of the operator.
Supervise children at all times. This will ensure that children do not play with the charger.
Charge only Bosch lithium-ion batteries with a capacity above 1,5 Ah (with at least 3 rechargeable battery cells).
The battery voltage must match the battery charging voltage of the charger. Do not charge non-re- chargeable batteries. Otherwise there is a danger of fire and explosion.

Keep the battery charger away from rain or mois- ture.
indoor use only. Penetration of water in the battery charger increases the risk of an electric shock.

Keep the charger clean. Dirt poses a risk of electric shock.
Always check the charger, cable and plug before use. Stop using the charger if you discover any damage.
Do not open the charger yourself, and have it repaired only by a qualified specialist using only original replacement parts.
Damaged chargers, cables and plugs increase the risk of electric shock.
Do not operate the charger on an easily ignited surface (e.g. paper, textiles, etc.) or in a flammable environment.
There is a risk of fire due to the charger heating up during operation.
Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly.
For increased electrical safety, we recommend using a residual current device with a max. tripping current of 30 mA. Before using, always check your residual current device.

Transport and Storage

Switch the machine off and ensure that the extendable handle is locked before transporting.
Care should be taken when lifting and moving the machine, particularly when the water tank is full. Check if the extendable handle is securely locked. Use the extendable handle and the lower front handle to lift the machine. Ensure a healthy back posture when lifting the machine. Keep your back straight and bend the knees.
Use caution when moving the machine over slopes or steps. The machine is heavy when filled with water.
Before storing, drain the water from the tank and the pump system.

Maintenance

Switch the machine off and remove the battery before performing maintenance on the machine.
Repairs may only be carried out by authorised Bosch Service Centres.

Accessories and spare parts

Accessories and spare parts which have been approved by Bosch must be used. Original accessories and spare parts guarantee that the machine can be operated safely and without any breakdowns.

Symbols
The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol	Meaning
	Movement direction
	Reaction direction
	Switching on
	Switching off
	Accessories/Spare Parts

Intended Use
The machine is intended for domestic use to clean vehicles, tools, windows, boots, bicycles, dogs (in low-pressure mode), outdoor toys, greenhouses, garden furniture, etc.
The pressure mode and spray pattern should be correctly adjusted for the respective cleaning task.

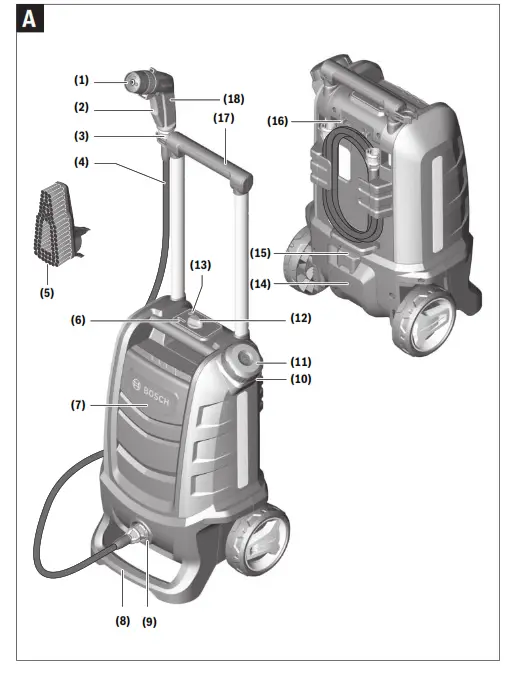

Product features (see figures A and D)
The numbering of the product features refers to the illustration of the machine on the graphics pages.

(1) Nozzle head
(2) Trigger
(3) Hose connector for spray gun
(4) Hose
(5) Brush
(6) Battery charge indicator
(7) Storage compartment
(8) Front handle
(9) Water outlet

(10) Filter (under filler cap)
(11) Filler cap
(12) Pressure selector
(13) On/Off switch
(14) Battery compartment cover
(16) Extendable handle lock
(17) Extendable handle
(18) Spray gun
(19) Battery A)
(20) Battery unlocking button
(21) Charger A)

A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Cordless pressure cleaner		Fontus
Article number		3 600 HB6 0..
Rated voltage	V	18
Rated power	W	180
Protection class		III, IP X4
Max. pressure	MPa	1.5
Rated pressure	MPa	1.2
Max. water temperature	°C	50
Weight according to EPTA‑Procedure 01:2014	kg	9.8
Serial number	See serial number (nameplate) on machine
Permitted ambient temperature
– during charging	°C	0 … +45
– during operation and storage	°C	-20 … +50
Battery		Li-Ion
Article number/Capacity
– 2 607 337 187	Ah	1.5
– 2 607 337 211	Ah	2
– 2 607 337 199	Ah	2.5
– 1 607 A35 07H	Ah	4
– 1 607 A35 01Y	Ah	6
Rated voltage	V	18
Number of battery cells
– 2 607 337 187		5
– 2 607 337 211		5
– 2 607 337 199		5
– 1 607 A35 07H		10
– 1 607 A35 01Y		10

Charger	AL 1815 CV		AL 1830 CV
Article number
2 607 226	EU	… 077	… 965
2 607 226	UK	… 079	… 967
Charging current	A	1.5	3
Charging period (battery discharged)
– Battery with 1.5 Ah	min	63	33
– Battery with 2.0 Ah	min	84	45
– Battery with 2.5 Ah	min	105	60
– Battery with 4.0 Ah	min	160	95
– Battery with 6.0 Ah	min	230	130
Weight according to EPTA‑Procedure 01:2014	kg	0.38	0.4
Protection class		/ II	/ II

Noise/Vibration Information
Noise emission values determined according to EN 60745-2-54.
Typically the A-weighted noise levels of the product are: Sound pressure level 61 dB(A); sound power level 74 dB(A). Uncertainty K = 3 dB.
Overall vibrational values ah vector sum of three directions) and uncertainty K determined according EN 60745-2-54: ah < 2,5 m/s 2 , K = 1.5 m/s 2 .

Mounting and Operation

Representation/Action Objective	Figure	Page
Product features	A	216
Delivery scope	B	217
Filling the water tank	C	217

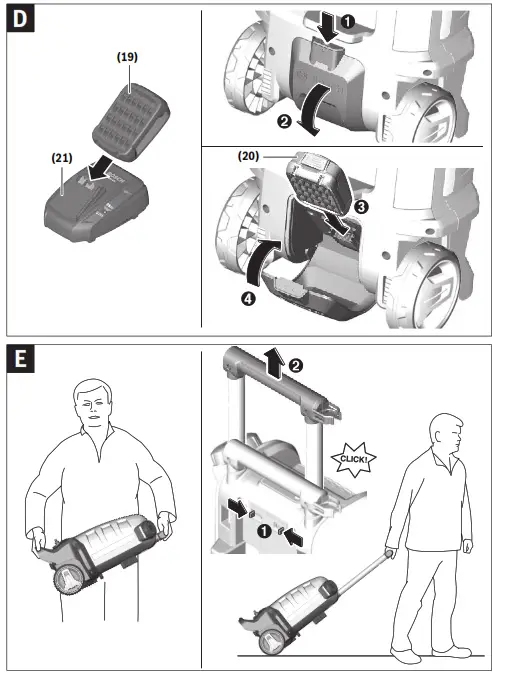

Battery charging and inserting	D	218
Carrying and transporting	E	218

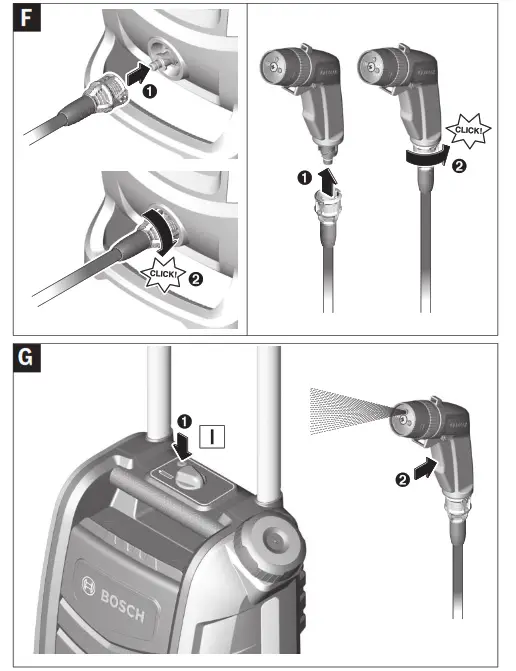

Connecting the hose	F	219
Switching on	G	219

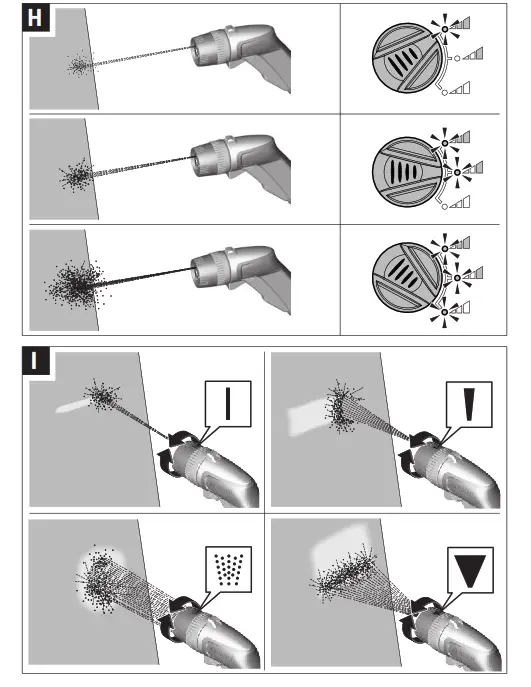

Adjusting the jet strength	H	220
Spray-pattern variants	I	220

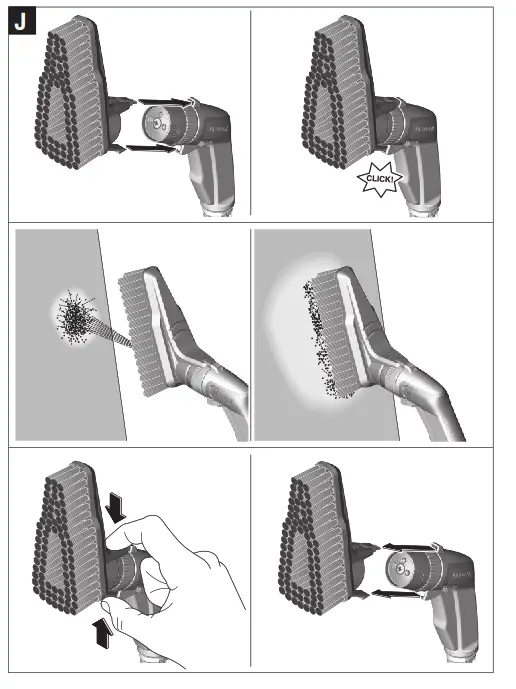

Using the brush	J	221

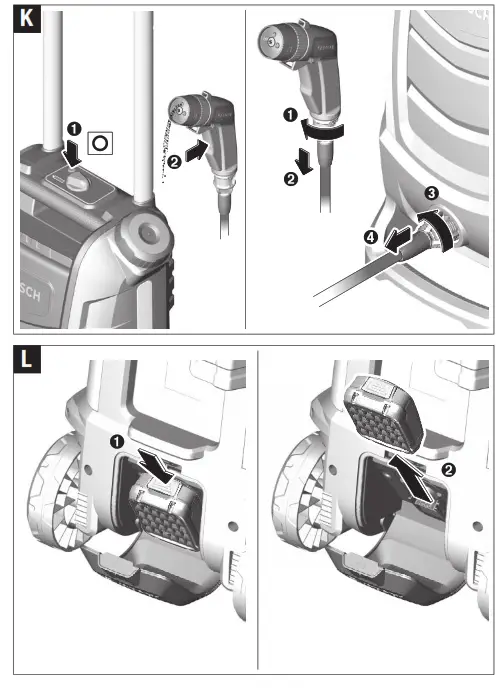

Switching off Disconnecting the hose	K	222
Removing the battery	L	222

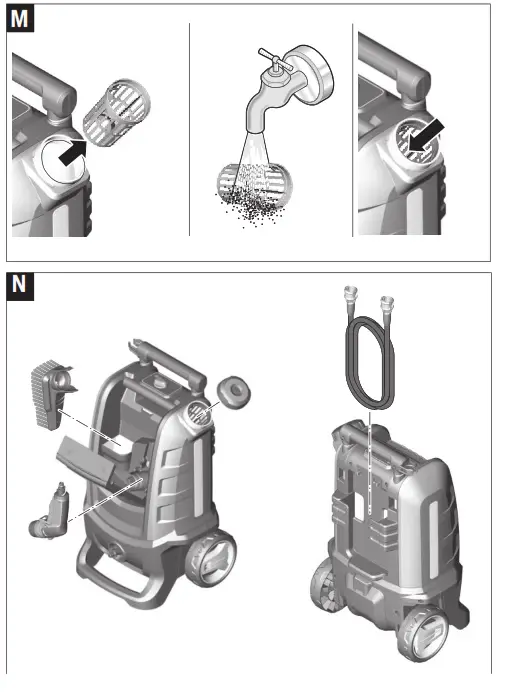

Maintenance	M	223
Storage	N	223
Accessories	O	224

Switching on

Charging the Battery u Observe the correct mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V. The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0 °C and 45 °C. In this manner, a high battery service life is achieved. Note: The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery. The Electronic Cell Protection (ECP) protects the lithium-ion battery against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The pump stops.
Do not continue to press the On/Off switch after an automatic shut-off of the machine.
The battery could become damaged. Observe the notes for disposal of the battery. Inserting/Removing the Battery (see figures D and L)
Note: Using unsuitable batteries can lead to malfunctions or damage the machine.
Press the battery compartment release button (15) to open the battery compartment cover (14). Insert the charged battery (19). Ensure the battery is inserted correctly. Close the battery compartment cover and ensure that the lock of the battery compartment release button (15) has engaged. The battery compartment cover (14) protects the battery against splashed water during operation. Press the battery compartment release button (15) to open the battery compartment cover (14). To remove the battery (19) from the machine, press the battery unlocking button (20) and pull the battery out.
Charging Procedure
The charging procedure starts as soon as the mains plug of the charger is plugged into a socket outlet and the battery (19) is inserted onto the charger (21). Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage.
Meaning of the Indication Elements (AL 1815 CV)
Flashing battery charge indicator
The charging procedure is signalled by flashing of the battery charge indicator .
Continuous lighting of the battery charge indicator
Continuous lighting of the battery charge indicator indicates that the battery is fully charged or that the temperature of the battery is not within the allowable charging temperature range, and cannot be charged for this reason. The battery is charged as soon as the allowable charging temperature range is reached. When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is inserted in the socket outlet and that the battery charger is ready for operation.
Meaning of the Indication Elements (AL 1830 CV)
(Fast) Flashing of the Green Battery Charge Indicator The rapid-charging procedure is indicated by fast flashing of the green battery charge indicator .
Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section “Technical Data”. (Slow) Flashing of the Green Battery Charge Indicator When the charging condition of the battery is 80%, the green battery charge indicator flashes slowly. The battery can be removed for immediate use.
Continuous Lighting of the Green Battery Charge Indicator
Continuous lighting of the battery charge indicator indicates that the battery is fully charged.
When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is inserted in the socket outlet and that the battery charger is ready for operation.
Continuous Lighting of the Red Battery Charge Indicator
Continuous lighting of the red battery charge indicator indicates that the temperature of the battery is not within the allowable charging temperature range, see section “Technical Data”. As soon as the allowable charging temperature range is reached, the battery charger automatically switches to rapid charging.
Flashing Red Battery Charge Indicator
A flashing red battery charge indicator indicates a different malfunction of the charging procedure, see section “Troubleshooting – Causes and Corrective Measures”.

Operation
Starting
Always use fresh water to fill the water tank. Check if the filter (10) is inserted and undamaged (see figure C). Connect the hose (4) to the water outlet (9) and the spray gun (18) (see figure F). Select the desired spray pattern by rotating the nozzle head (1) (see figure I).

Troubleshooting

Cordless pressure cleaner

Problem	Possible Cause	Corrective Action
Motor refuses to start	Battery discharged	Recharge battery
	Battery too hot/cold	Allow to cool/warm
	Machine frozen	Wait until machine has defrosted
Pressure pulsating	Blocked nozzle	Clean nozzle
Pressure pulsating	Air in pump	Operate machine in turbo-pressure mode with nozzle set to shower jet until system is air-free
Motor running but no or limited working pressure	Water tank empty	Refill water tank
Motor running but no or limited working pressure	Pump not vented	Press and hold trigger to vent air
Power indication lights up but pump no longer running	pry-running protection has been activated	Switch machine off, refill water tank and switch machine on again
Machine switches off	Sleep function has been activated	Press On/Off switch for activation
Machine switches off	Battery discharged	Recharge battery
Water leaks from ma- chine	Leaking pump	Slight water leaks are possible; in case of excess- ive leaks, contact Bosch Service Centre
	Leaking connections Filler cap untight	Check if connections are properly mounted Check if filler cap is properly closed
Motor starts in standby mode	Pump, spray gun or hose leaking	If happening continuously contact Bosch Service Centre
Hose cannot be removed	When machine is still switched on, pressure in system increases the required force to remove connectors	Switch machine off, then pull trigger to release the pressure

Battery and charger

Problem	Possible Cause	Corrective Action
Flashing red battery charge indicator No charging procedure possible	Battery not (properly) inserted Battery contacts contaminated Battery defective	Properly insert battery in charger Clean the battery contacts (e. g. by inserting and removing the battery several times) or replace the battery Replace the battery
Battery charge indicators do not light up	Mains plug of battery charger not plugged in (properly) Socket outlet, mains cable or battery charger defective	Insert mains plug (fully) into the socket outlet Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools

Maintenance, Storage and Transportation
Switch the machine off and press the trigger to drain the water from the hose. Disconnect hose from spray gun and water outlet. The spray gun, brush and hose can be stored with the machine. Drain water from the system and remove the battery.
After-sales service and advice on using products
www.bosch-pt.de
In all correspondence and spare parts orders, please alwayinclude the 10‑digit article number given on the nameplate of the product.
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.

Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555

www.bosch-pt.com.au
www.bosch-pt.co.nz
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ At
www.bosch-pt.co.uk
you can order spare parts or arrange
the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109
E-Mail: [email protected]

Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Republic of South Africa

Customer service
Hotline: (011) 6519600
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: [email protected]

www.bosch-pt.com

EU Declaration of Conformity Cordless pressure cleaner Article number
We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.
2000/14/EC: Measured sound power level 74 dB(A), uncertainty K =3 dB, guaranteed sound power level 76 dB(A);Conformity assessment procedure in accordance with annex V. Product category: 27 Technical file at: *
* Bosch Lawn and Garden Ltd., PT-HG/ENS-STW, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering and Manufacturing Helmut Heinzelmann Head of Product Certification
