Instruction Manual
Xbox Series S Innovelis Ledge Wall Mount
Many people first learn about TotalMount products while shopping in Apple Stores. We focus exclusively on designing best-in-class mounts for electronics.
Since our founding in 2007, our passionate team has earned over 40 patents and has consistently delivered premium-quality mounts.
Our Story
– A The trusted leader in electronics mounting.
Find a Mounting Location

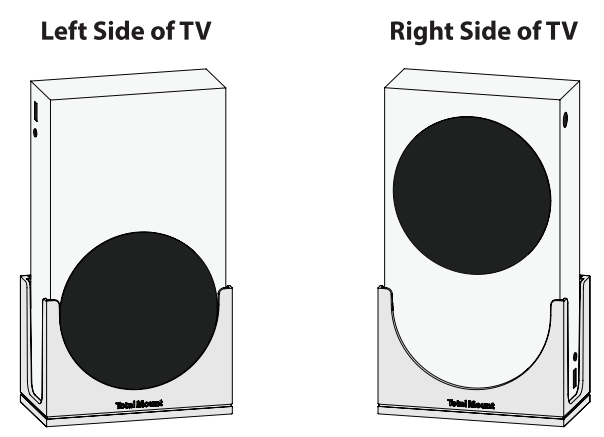

Find a mounting location to the left or right of your TV. (You can also mount the Xbox below your TV but more cable length will be visible.)
The screws can be inserted into drywall without using a drill. If you are mounting into wood or masonry, use the mount as a guide to pre-drill the holes using a 3/16 inch diameter drill bit.
Warnings: Wear proper eye protection when installing. Do not insert screws into a wall unless you are sure there are no pipes or wires in the mounting area (to avoid electrocution, fires, and flooding). Do not insert screws into a TV.
Screw to Wall Near Your TV

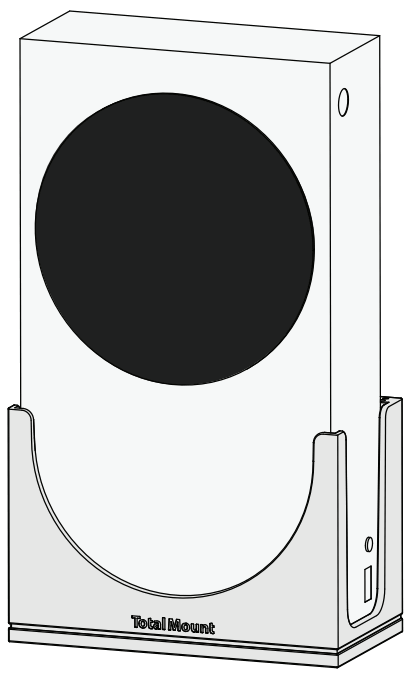

Slide Xbox Into TotalMount
- Plug the power and HDMI cables into the Xbox before inserting the Xbox into the TotalMount.
- Gently slide the Xbox into the TotalMount such that the cables exit the side of the TotalMount toward the TV.
Instructions
Wear eye protection. Find a mounting location to the left or right of your TV.

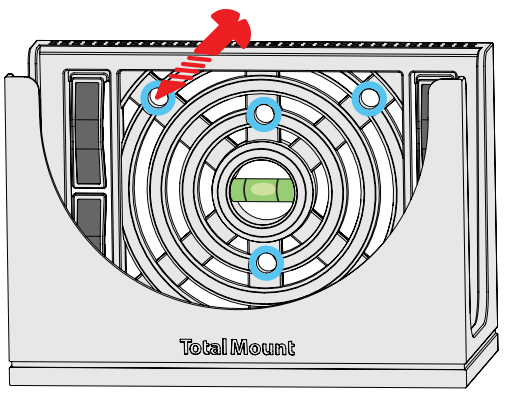

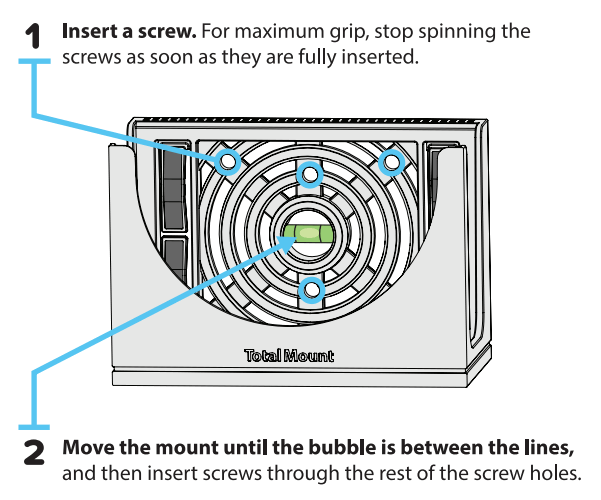

Insert a screw. Move the support until the bubble is between the lines. Insert the screws in the other holes. Place the Xbox on the stand.
Ready to write a review?
We would greatly appreciate if you could take a minute to write a review with your favorite TotalMount retailer.
Questions or concerns?
Please contact us directly at
[email protected]
