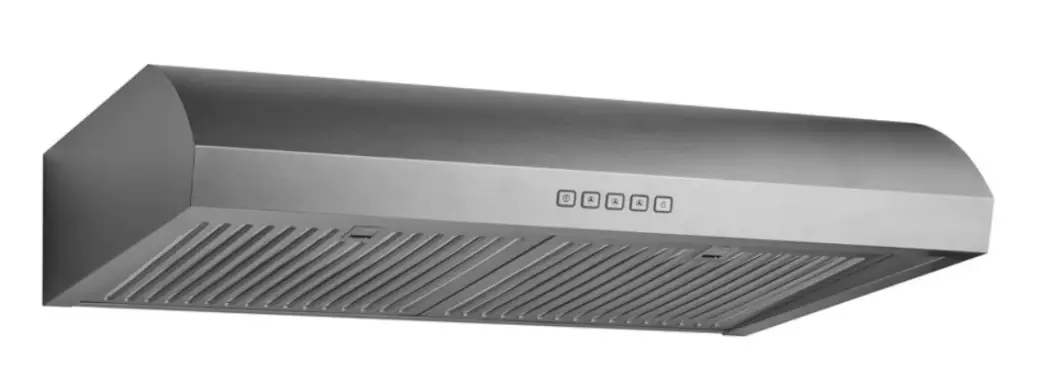

XOE230 Compact Under Cabinet Hood
HOW BEAUTIFUL KITCHENS BREATHE
- 3 Speed Illuminated Touch Control
- 5 Minute Delay Timer
- Brilliant LED Light Bar
- Dishwasher Safe Hybrid Filters
The XOE230_ is part of our Performance collection, designed with the Do-It-Yourselfer and smaller kitchen makeovers in mind. It provides customers the opportunity to employ XO quality and innovation to vent their kitchen without having to re-invent their kitchen.
Available in three finishes for ducted or ductless, recirculating installations.
At XO, We believe that a good design is something everyone can afford
WORLD CLASS SERVICE | COMPREHENSIVE WARRANTIES
O U R L ASTING C OMMIT M ENT TO YO U
DIMENSIONS
FEATURES
Stainless Steel, Black or White
- Brilliant LED Light Bar
- Three speed Illuminated Touch Control
- 3-Prong Cord Set Included
- High Velocity Blower optimally removes Smoke, Grease and Odors
- 5 Minute Delay Timer
- Top or Rear Venting
- Dishwasher Safe Hybrid Filter
PERFORMANCE
| SPEED | 1 | 2 | 3 |
| CFM | 190 | 280 | 400 |
| SONES | 1.0 | 4.5 | 5.5 |
SPECIFICATIONS
ELECTRICAL 120V 60HZ 2.5 AMP

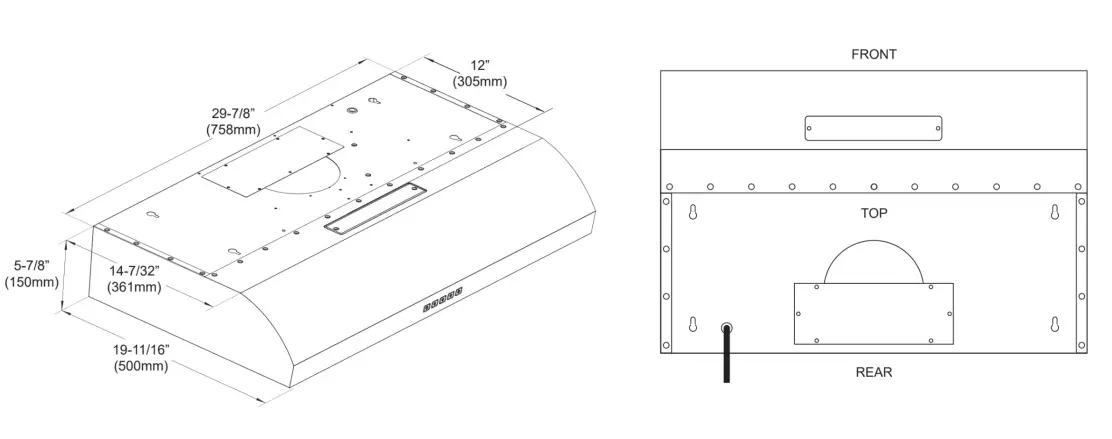

DIMENSIONS
H 5 7/8”
W 29 7/8”
D 19 11/16”

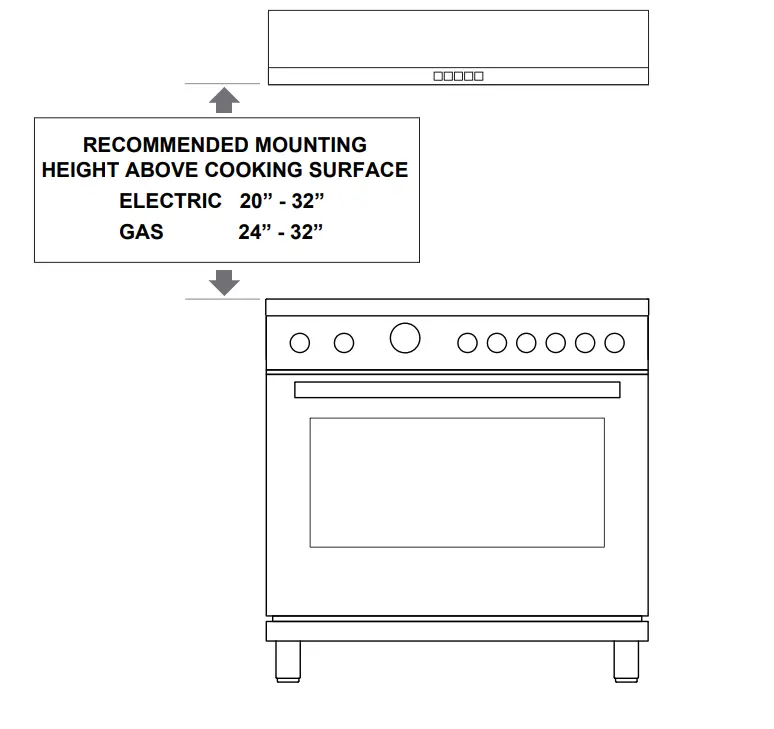

MOUNTING HEIGHT
ABOVE COOKING
Gas 24” – 32”
Electric 20” – 32”
DUCTING SIZES
Top – 7” round or 3 1/4” x 10“
Rear – 3 1/4” x 10”
OPTIONS
Recirculation Kit XORFK10
MOUNTING INSTRUCTIONS
All range hoods have a recommended range of installation height over the cooking surface.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.
