Introduction

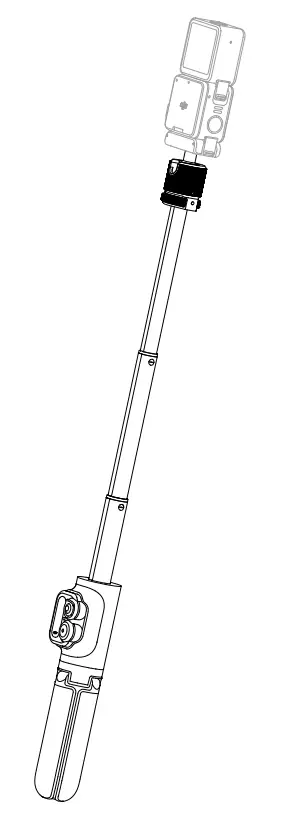

The DJI Action”’^. 2 Remote Control Extension Rod expands users shooting capabilities with an extension rod and a tripod. Users can control the camera remotely and capture self ies with the WI Remote Control Pad.

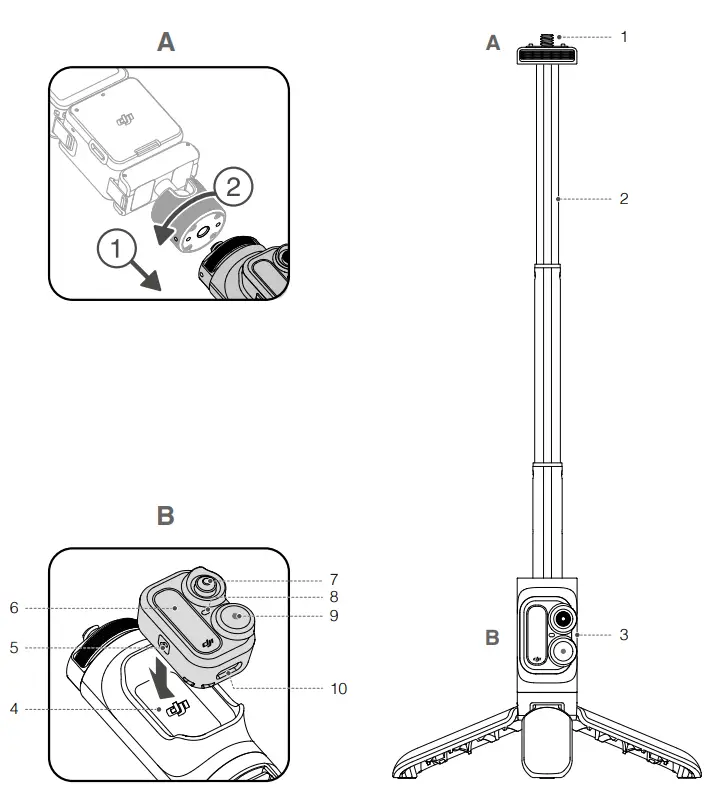

Overview

1. 1/4″ Screw
   Compatible with adapters with 114* threaded
2. Extension Rod
   The length of the extension rod is 16.5 cm when stored and can be extended to up to 37.8 cm. There is also a tripod that can be unfolded for greater stability.
3. WI Remote Control Pad
   Connected to the camera via Bluetooth, the remote control pad supports single-camera control and also multi-camera control mode so that users can shoot with up to eight cameras simultaneously.
4. WI Remote Control Pad Slot
   Used to attach the remote control
5. Link Button
   Press and hold the link button for one second to link the remote control pad and the camera.
   Press and hold the link button and the 50 buttons for tour seconds to forget the Bluetooth connection and start linking. Press and hold the link button and the shutter/record button for four seconds to switch between single-camera control mode and multi-camera control mode and start linking.
   In multi-camera control mode, press the link button to display the number of cameras connected.
6. Screen
   When controlling a single camera, the screen displays the status and battery level of the connected camera. When controlling multiple cameras, the screen displays the number of cameras connected. The display on the screen varies depending on the camera model. The screen will not enter sleep mode while recording or charging.
   The screen will enter sleep mode if there is no operation after 3 minutes and the remote control pad will power off if there is still no operation after a further 10 minutes if there is no camera connected and the remote control pad is not charging. When the screen is off, press any button to exit sleep mode and continue using the remote control pad.
7. 5D Button
   Press the 50 buttons to enter the camera mode switch screen, push the joystick left or right to select a camera mode, and press again to confirm.
8. Status LED
   Refer to the Status LED Descriptions section for more
9. Shutter/Record Button
   Press and hold for one second to power the remote control pad on or off. After powering on, the remote control pad will automatically search for and connect to any OM Action 2 cameras.
   Press once to take a photo or to start or stop recording.
   In multi-camera control mode, press once to take a photo or to start recording and press twice to stop recording.
10. USB-C Port
    Connected to a charger to charge the remote control

    • Installation is shown in Figures A and B. WI Action 2 and the adapters are not included.
    • The description above is for when controlling a single camera unless otherwise specified.
    The built-in battery of the remote control pad may run out of power if it is not used for more than six months and will require charging to use again. Charge or discharge the battery to 40­60% if it will not be used for 10 days or more.

Status LED Descriptions

Specifications

* Measured using a 5V/2A USB adapter in a laboratory environment. Use as a reference only.
**Measured using single-camera control mode, with the remote control pad screen on. Use as a reference only.
