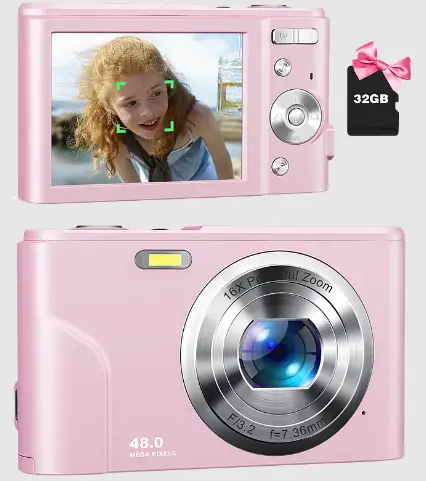

ZOSTUIC DC311 AF Digital Camera
Important Battery Safety Tips
For your better experience with this product, please pay attention to the following safety tips
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns.
Observe the following cautions.
- Do not disassemble.
- Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
- Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
- Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.
- Do not incinerate or dispose of in fire.
- Do not handle damaged or leaking lithium ion batteries.
- Be sure to charge the battery pack using a genuine battery charger or a device that can charge the battery pack.
- Keep the battery pack out of the reach of small children.
- Keep the battery pack dry.
- Replace only with the same or equivalent type recommended by seller.
- Dispose of used battery packs promptly as described in the instructions.

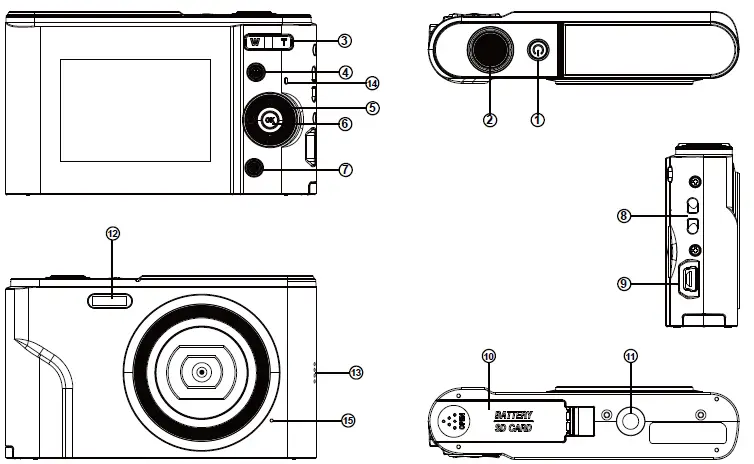

Introduction of camera parts
| NO | Camera Parts | Introduction |
| 1 | Power Button | Power the camera on/ off |
| 2 | Shutter Button |
|
| 3 | T Button | Electronic zoom On/enlarge photo /increase video playback volume |
| W Button | Electronic zoom Off/zoom out photo /decrease video playback volume | |
| 4 | Mode Button | Switch camera modes: Still image mode/video recording mode /playback mode/camera system setting) |
| 5 | Up/Down /Left/Right |
|
| 6 | OK Button | Confirm selection button/pause or resume recording (video recording mode) |
| 7 | Menu Button | Enter or exit menu settings. |
| 8 | Hook | Attachable camera strap |
| 9 | USB | Mini USB |
| 10 | Battery Cover | Install battery and Micro SD card |
| 11 | Tripod Mount | Standard screw port |
| 12 | LED Fill Light | LED fill light |
| 13 | Speaker | Play sound |
| 14 | Indicator Light |
|
| 15 | MIC Port | Recording Voice |
Product Specifications
| Video Resolution | 1080P FULL HD/ 720P HD/ 480P VGA |
| Image Resolution | 48M/44M/36M/24M/20M/16M/12M/10M /7M-Wide/5M/3M/2M-Wide |
| Memory Card | Support Micro SD card (4GB to 128GB Class10 is recommended） |
| File Format | JPG, AVI |
| Taking Photos | Single/Continuous shooting/2s timer /5s timer/10s timer |
| Electronic Zoom | 16X |
| USB Port | Mini USB |
| Display | 2.5inch Screen |
| Battery | Rechargeable Li-Ion Battery |
| Language | Support multi-languauge |
| Focal Length | f=7.36mm |
| Aperture | F/3.2 |
| Power Save | Auto power off in 3Min/5Min/10Min |
| Operating System Requirements | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Mac 10.2 |

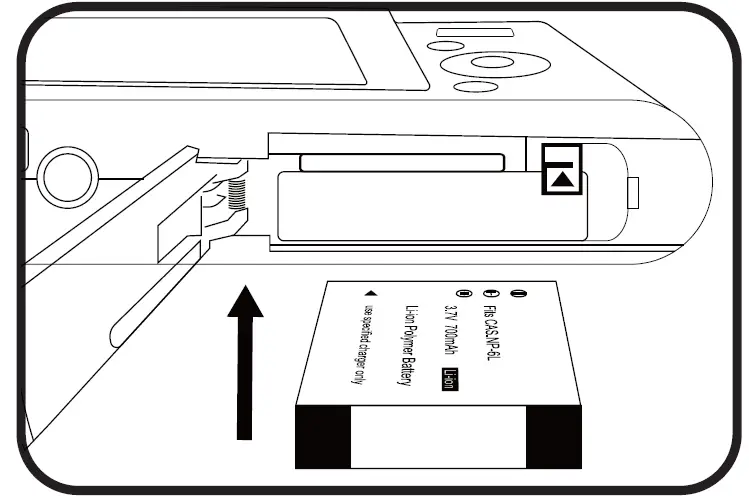

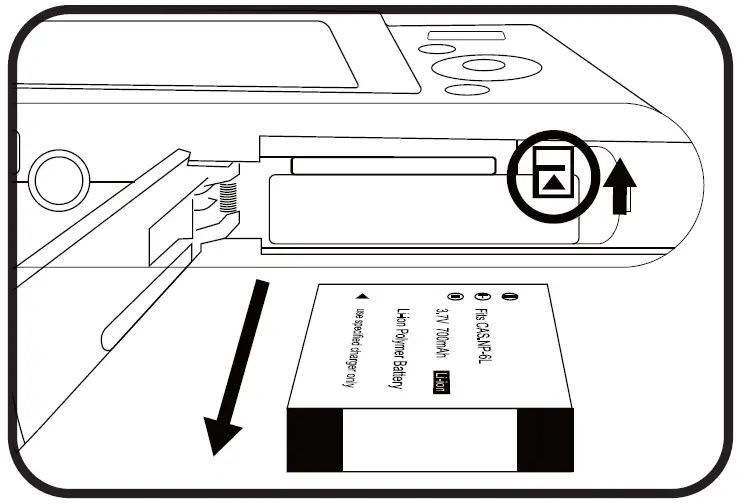

How to insert and remove the battery

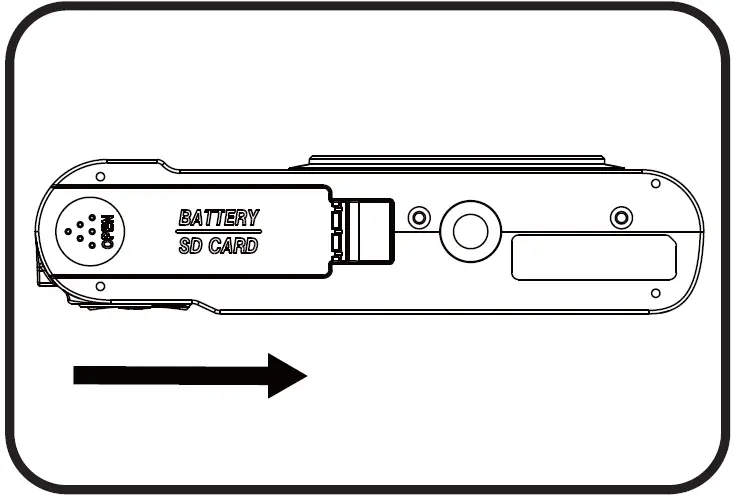

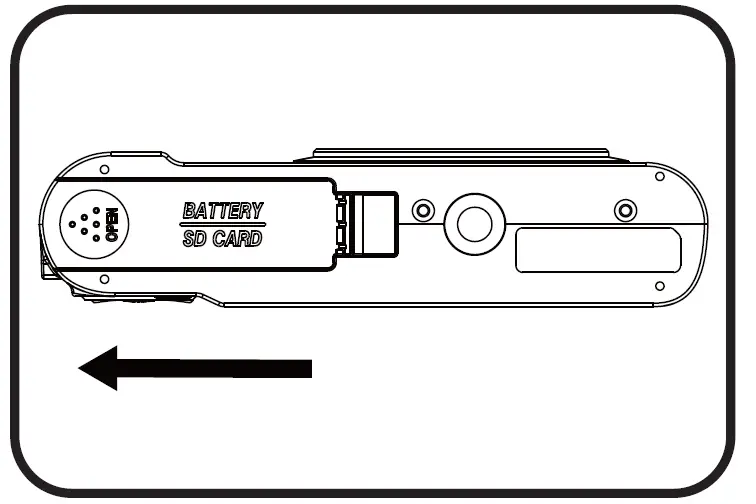

- Open the battery cover
- Insert the end with electrical contacts until it locks into place.
- Close the battery cover
- If you want to remove battery please push the lock lever
How to Charge the Camera

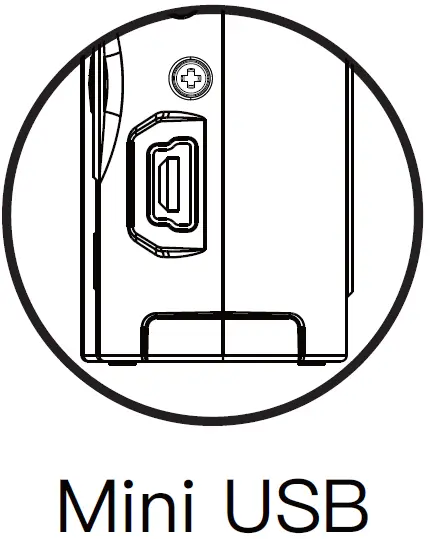

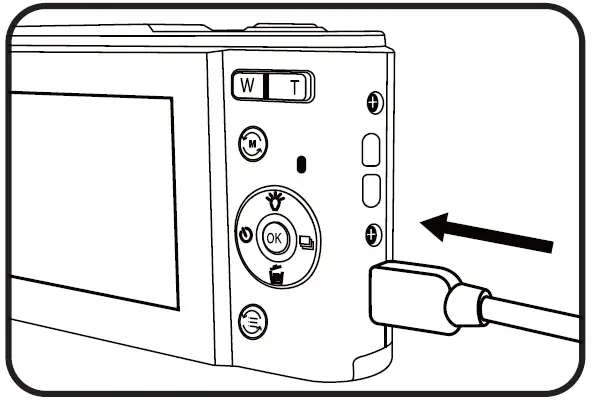

- Please use the mini USB cable and charger included in the package to charge the camera
- When the camera indicator light is red, it means the camera is charging.
- When the camera light goes out, it means the camera is fully charged.
Please note: For the first time, please use the camera after fully charged.

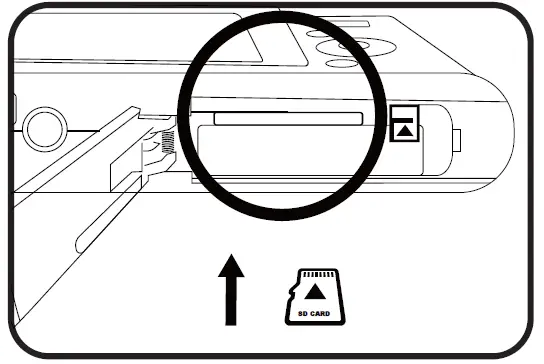

How to Insert and Remove Micro SD Card
- Open the battery cover

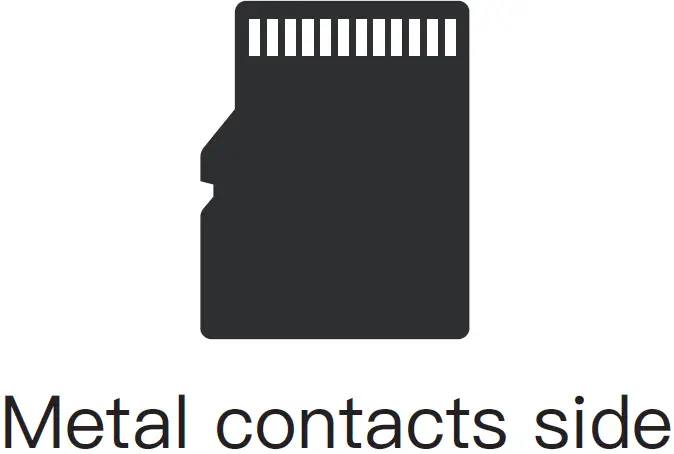

- As shown by the illustration, face the card’s metal contacts side toward you and insert it until it locks in place
- Close the battery cover
Please caution:
- The camera supports 4-128Gb Micro SD card, Class10 is recommended, we do not recommend using U3 level card.
- When the Micro SD card is used for the first time, please format it in the camera
How to format a memory card
- In the still image mode, press the “Mode” button 3 times to enter the system setting interface and select the “Format” option
- Press “OK” button to confirm formatting
- Press the mode button again to exit the system settings page
Introduction to camera system settings
- Press the mode button 3 times in the still image mode to enter the camera system settings
- After the setting is completed, please press the mode button to exit the system setting
| NO | Option | Introduction |
| 1 | Language | 14 languages for your choice |
| 2 | Set Date |
|
| 3 | Power Save | The camera will automatically shut down when there is no operation1Min/ 3Min / 5Min Default is off |
| 4 | Beep | key sound Default is off |
| 5 | Frequency | 60Hz/ 50Hz Default is 60Hz |
| 6 | Format | You can choose whether to format the SD card or not |
| 7 | Default | This function is to reset your camera |
Introduction of still image mode

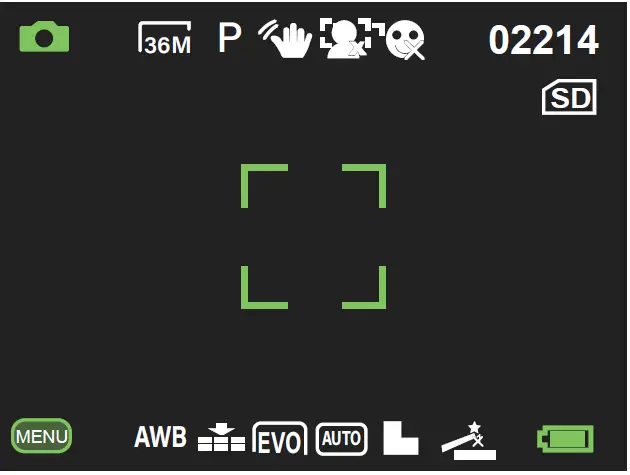

How to Take Still Image
- Please make sure the camera is in still image mode
( The camera defaults to still image mode when turned on) - Press the shutter button halfway down to focus, When the image is in focus, The focus frame in the screen will turn green.
- Press the shutter button fully down to shoot an image
How to Play Back and Delete Still Image
- Press the mode button 2 times in the still image mode to enter the playback mode
- Select the image by pressing left and right keys
- If you want to delete the photo, please press the down button, this is the shortcut delete key
- After viewing the photos, please press the mode button twice to exit the playback mode
- Press the “menu” button in still image mode to enter the image menu settings
- After the setting is completed, please press the “menu” button to exit the image menu setting
| NO | Option | Introduction |
| 1 | Mode Set | 9 shooting scenes for you to choose, the auto mode is the default |
| 2 | Resolution | 48MP/44MP/36MP/24MP/20MP/16MP /12MP/10MP/etc. |
| 3 | Beauty Face | On/ Off Default is off |
| 4 | Self Timer | Set the timer selfie countdown time to 2s,5s or 10 s Default is off |
| 5 | White Balance | Auto mode is recommended Default is Auto |
| 6 | Format | You can choose whether to format the SD card or not |
| 7 | Anti-Shake |
|
Introduction to video recording mode

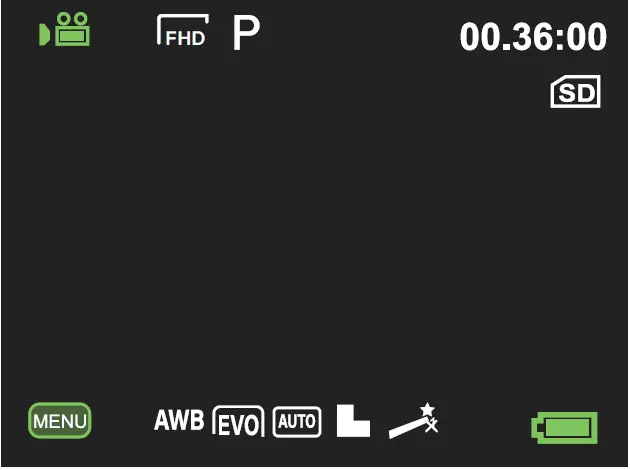

How to shoot video
- Please make sure the camera is in video recording mode
(After turn on camera please press the mode button once to enter video recording mode) - Press the shutter button to start/end video recording
- Press OK button to pause/resume video recording
How to Play Back and Delete Recorded Videos
- Please press the mode button once to enter playback mode
(when the camera is in video recording mode) - Select an video by pressing left and right keys
- If you want to delete the video, please press the down button, this is the shortcut delete key
- After viewing the video, please press the mode button twice to exit the playback mode
- Press the menu button in video recording mode to enter the video menu settings
- After the setting is completed, please press the menu button to exit the video menu setting
| NO | Option | Introduction |
| 1 | Mode Set | 9 shooting scenes for you to choose, the auto mode is the default |
| 2 | Movie Size | Full HD 1080P/HD 720P/VGA 480P etc. |
| 3 | Beauty Face | On/ Off Default is off |
| 4 | Exposure | Default is 0 |
| 5 | White Balance | Auto mode is recommended Default is Auto |
| 6 | Effect | There are 20 shooting effects for you to choose from Normal effect is default |
| 7 | ISO | 1. AUTO/ 100/ 200/ 400 2. Default is AUTO |
How to Download Still Image/ Video Files to Computer
- When the camera is turned on, use the Mini USB cable
(in the package) to connect the computer - Then you can download the files from the camera to your computer
- After downloading, please remove the Mini USB cable
How to Use Camera As Webcam
- Please use the Mini USB cable (in the package) to connect the computer
- Then please press the MODE button and Power Button at the same time
- Then you can use the camera as webcam on the computer
- After using, please remove the Mini USB cable and the camera will exit webcam mode
