JISDA BL-R8723RD2 WiFi and Bluetooth Combo Module
Product Information
The product model is BL-R8723RD2 which uses the REALTEK RTL8723BS chipset. The product has a diagram and specifications that include its product name, major chipset, host interface, standards, frequency range, modulation type, working mode, data transfer rate, spread spectrum, sensitivity @PER, RF power (typical), antenna type, transmit distance, dimension (L*W*H), power supply, power consumption, clock source, working temperature, and storage temperature. Additionally, the product has pin definitions and functions for each pin. These pins include ground, WiFi/Bluetooth antenna not connect, HOST wake up Bluetooth device, Bluetooth device to wake up host, 1.8V-5.5V NC, shared with GPIO9, WLAN to wake-up host, SDIO data line 2-3, SDIO command line, SDIO CLK line, SDIO data line 0-1, VIN_LDO_OUT NC, VDDIO 3.3V, VIN_LDO NC shared with GPIO6. External 32K or RTC clock input with 1.8V ~ 3.3V swing. This clock source is configured by BT and WL FW respectively. PCM data output, PCM clock, PCM data input, PCM sync signal and WL_VDD_TXCO NC.
Product Usage Instructions
1. Connect the WiFi/Bluetooth antenna to the device. 2. If you want to use the Bluetooth function, connect a Bluetooth device to the device and use pin 3 or 7 to wake up the device. 3. If you want to use the WLAN function, connect the device to a host using pins 13 and 16-19. 4. To shutdown the WLAN function externally, pull down pin 12. 5. The device requires a power supply of 1.8V-5.5V. 6. The clock source is configured by BT and WL FW respectively.

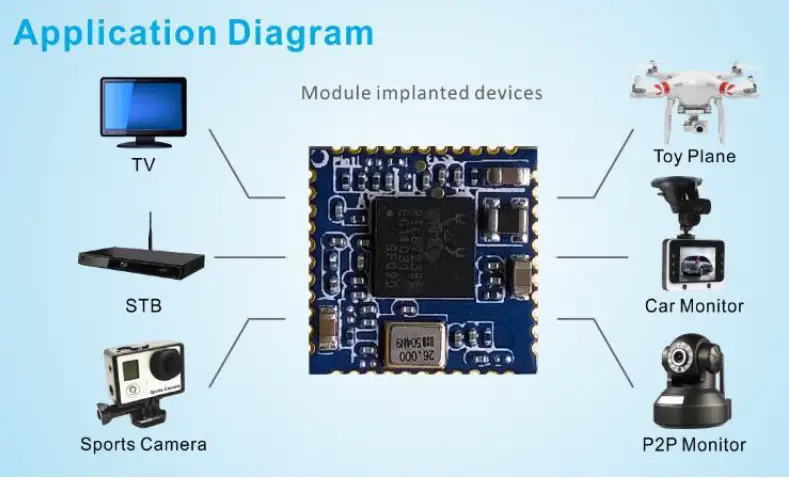

Product Application
- Desk-Top PC, Tablet PC, etc.
- Set-top box, Note-book, etc.
- Consumer electronic device and intelligent appliance such as TV, Blue-ray disk, etc.
Product instruction
BL-R8723RD2 is a small size and low profile of WiFi+BT combo module with LGA(Land-Grid Array)footprint, board size is 12mm*12mm with module height of 1.6mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides GSPI/SDIO interface for WiFi to connect with host processor and high speed UART interface for BT. It also has a PCM interface for audio data transmission with direct link to external audio codec via BT controller. The WiFi throughput can go up to 150Mbps in theory by using 1×1 802.11b/g/g MIMO technology and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.0.

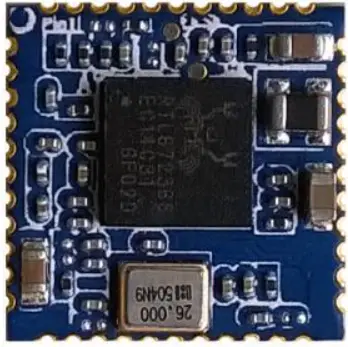

Diagram
Specification
| Item | Description |
| Product Name | BL-R8723RD2 |
| Major Chipset | RTL8723BS |
| Host interface | SODI 1.1/2./3.0 |
| Standards | WiFi: EEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i BT: V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 |
| Frequency Range | 2.4GHz-2.4835GHz |
| Modulation Type | 802.11b: CCK, DQPSK, DBPSK 802.11g: 64 QAM, 16 QAM, QPSK, BPSK 802.11n: 64 QAM, 16 QAM, QPSK, BPSK BT: 8DPSK, π/4 DQPSK, GFSK |
| Working Mode | Infrastructure, Ad-Hoc |
| Data Transfer Rate | 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz ;MCS 0 to 7 for HT40MHz BT: 1 Mbps for Basic Rate 2,3 Mbps for Enhanced Data Rate 6,9,12,18,24,36,48,54 Mbps for High Speed |
| Spread Spectrum | IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE 802.11g/n: OFDM (Orthogonal Frequency Division Multiplexing) |
| Sensitivity @PER | 135M: -68Bm@10%PER 54M: -74Bm@10%PER 11M: -86Bm@10%PER 6M: -89Bm@10%PER 1M: -92Bm@10%PER |
| Rf Power(Typical) | 135M: 13dBm; 54M: 14dBm; 11M: 17dBm; BT: -89dBm@1Mbps, -85dBm@2Mbps, -83dBm@3Mbps |
| Antenna Type | Connect to the external antenna through the half hole |
| Transmit distance | Indoor 100M, Outdoor 300M, according the local environment |
| Dimension(L*W*H) | 12.0*12.0*1.6mm, tolerance: ±0.15mm |
| Power supply | 3.3±0.2V |
| Power Consumption | Standby mode [email protected]. TX mode [email protected] |
| Clock source | 40MHz |
| Working Temperature | 0℃ to 50℃ |
| Storage Temperature | -40℃ to +80℃ |

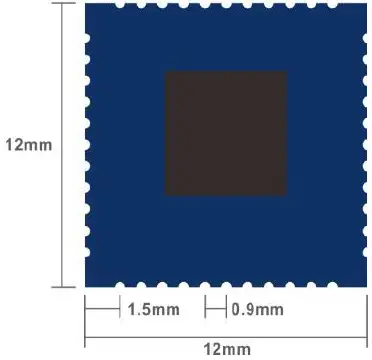

Structure and Size:

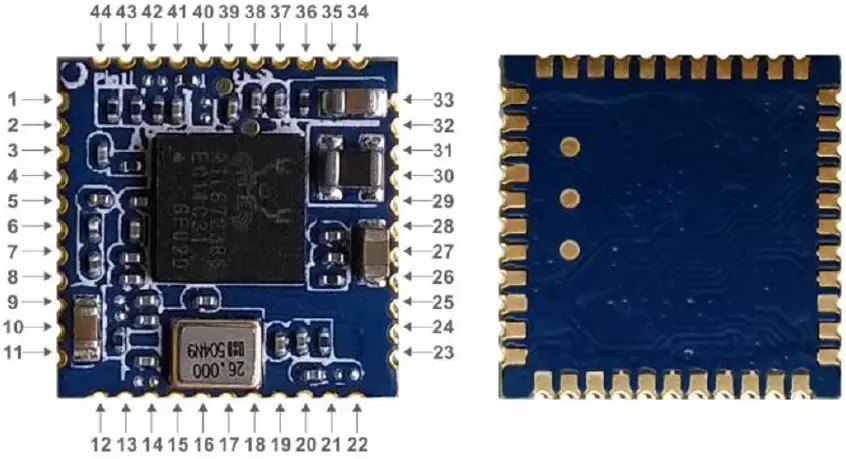

Pin definition
| pin | Function | Description |
| 1, 3, 20, 31, 33, 36 | GND | Ground |
| 2 | WL_BT_ANT | WiFi/Bluetooth antenna |
| 4, 5, 8, 32, 39, 40 | NC | Not connect |
| 6 | BT_WAKE | HOST wake up Bluetooth device |
| 7 | BT_HOST_WAK | Bluetooth device to wake up Host |
| 9 | WBAT | 1.8V-5.5V |
| 10 | WL_XTAL_IN | NC |
| 11 | WL_XTAL_OUT | NC |
| 12 | WL_REG_ON | Shared with GPIO9. This pin can externally shutdown the RTL8723BS WLAN function when BT_DISn is pulled low. When this pin deasserted, SDIO interface will be disabled. This pin can also support the WLAN Ra dio-off function with host |
| interface remaining connected. | ||
| 13 | WL_HOST_WAK | WLAN to wake-up HOST |
| 14 | SDIO_DATA_2 | SDIO data line 2 |
| 15 | SDIO_DATA_3 | SDIO data line 3 |
| 16 | SDIO_DATA_CM | SDIO command line |
| 17 | SDIO_DATA_CL | SDIO CLK line |
| 18 | SDIO_DATA_0 | SDIO data line 0 |
| 19 | SDIO_DATA_1 | SDIO data line 1 |
| 21 | VIN_LDO_OUT | NC |
| 22 | VDDIO | 3.3V |
| 23 | VIN_LDO | NC |
| 24 | LPO | Shared with GPIO6. External 32K or RTC clock input with 1.8V ~ 3.3V swing. This clock source is configured by BT and WL FW, respectively. |
| 25 | PCM_OUT | PCM Data output |
| 26 | PCM_CLK | PCM Clock |
| 27 | PCM_IN | PCM data input |
| 28 | PCM_SYNC | PCM sync signal |
| 29 | WL_VDD_TXCO | NC |
