CW15 Automatic Car Charger Holder
Instruction Manual
Important Safety Instructions
Please refer to the electrical and safety information on the bottom before installing or operating the product.
- Do not squeeze or collisions
- Do not disassemble or throw into fire or water, to avoid causing a short circuit leakage.
- Do not u. wireless charger in severely hot, humid or corrosive environments, to avoid circuit damage and occurs leakage phenomenon.
- Do not place too close with magnetic stripe or chip card (ID card, bank cards, etc.) to avoid magnetic failure.
- Please keep the distance at least 20cm between implantable medical devices(pacemakers, implantable cochlear,etc.) and the wireless charger to avoid potential interference with the medical device.
- To take care of the children, to ensure that they won’t play the wireless charger as a toy to avoid unnecessary accidents
- For the safest and fastest charge, use original or certified cables.
- This product is suitable for moderate clients only.

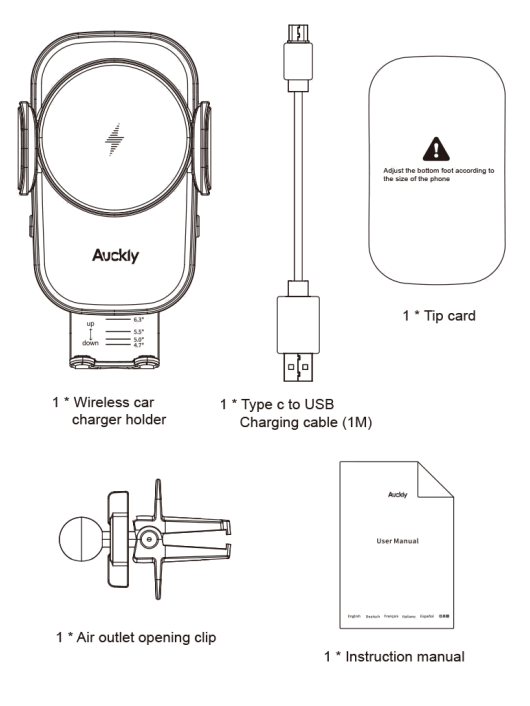

PACKAGE CONTENT

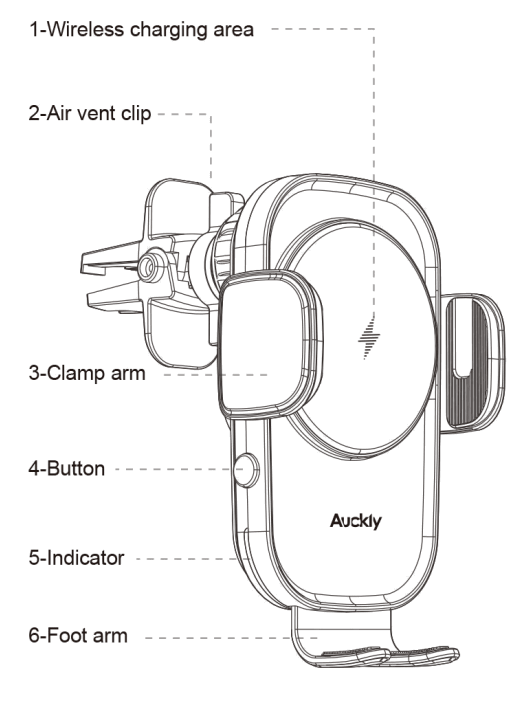

USING YOUR CHARGING MOUNT ASSEMBLY
Using your Charging Mount
- Install Your Charging Mount

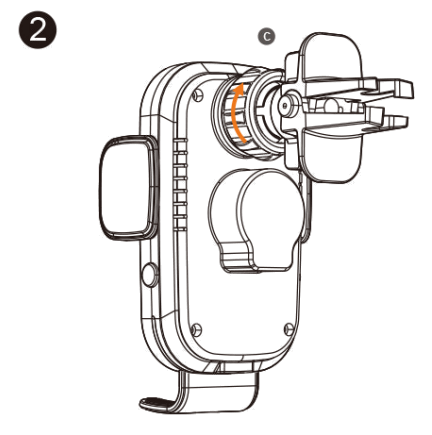

ASSEMBLY
a. Put the nut through the billhead.
b. Push the ball head into the ball head cradle c. Tighten the nut clock wisely.

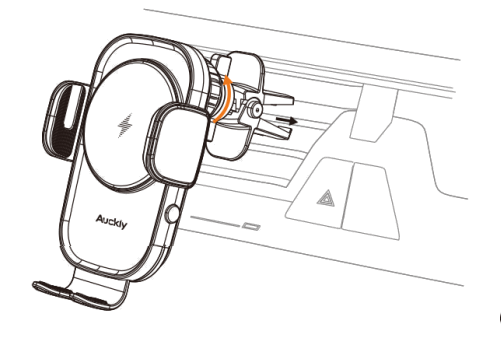

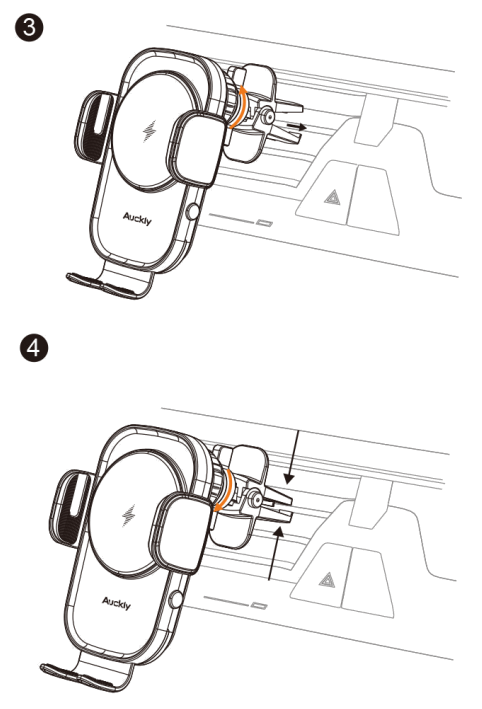

INSTALL

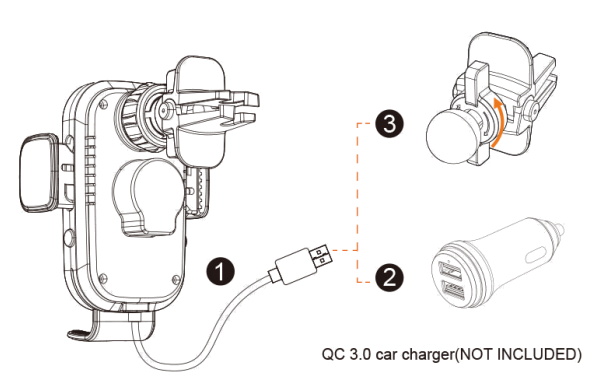

INSTRUCTION
How to make it work well?
- Use the original cable to connect the power supply before use.
- Please use a QC3.0 car charger for fast charging. (NOT INCLUDED)
- Adjustable clip, please ensure to rotating the gear switch to grip the air vent blade firmly.

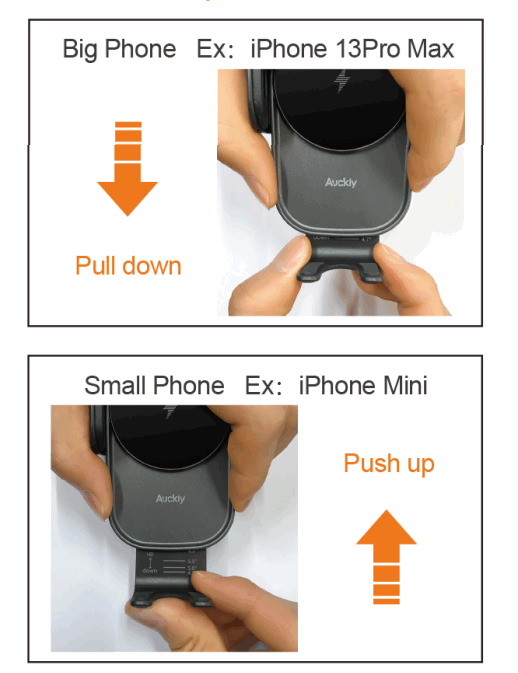

ADJUSTMENT
Adjust the bottom foot according to the size of the phone
SPECIFICATIONS
| Input: | 5V/2A / 9V/2A |
| Output: | 5W/7.5W/10W/15W (Max) |
| Operating Temperature: | -10°C to 60°C |
| Frequency Rrange: | 110.5-205kHz |
INDICATORLIGHT STATUS
| Product status | Indicator light status |
| Switched on | From green to blue |
| Standby mode | Constant blue |
| Charging mode | Constant green |
| Fully recharged | Aus |
| Foreign object detected | Pulsing blue |
| Overheat protection mode | Pulsing blue |
FAQ
– (1) Adjust the bottom foot according to the size of the phone
– (2) If you have used a QC3.0 car charger.
– (3) Use the original cable to connect the power supply before use.
– (4) The thickness of the phone case does not exceed 7mm.
– (5) Make sure there is no metal material, magnetic objects, credit cards or pop holders on the back of your phone between the phone and the phone case.
– (6) Make sure your phone supports wireless charging.
– (7) lf the charger’s indicator does not light Up after connecting the power supply, please contact us directly.
– Please use a QC3.0 car charger for fast charging.
– Our air vent clip is adjustable, please ensure to rotating the gear switch to grip the air vent blade firmly.
Tips:
If you encounter any problems, please contact us. We have an extra long warranty of 60 months (Technical Support: [email protected])
Wireless car charger
Specifications:
Model: CW15
Materia: PC+ABS
Rating: Input 5V/2A/ 9V/2A Output 15W (Max) CAN RSS-216/CNR-216 IC: 27046-CW15
Manufacturer: Shenzhen Meskey Technology co.,ltd Add: Room 732, Fengtian Innovation Science and Technology Industrial Park Longhua Qinghu Xuegang North Road 308, Longhua New District, Shenzhen, China
EVATOST CONSULTING LTD
Suite 11, First Floor, Moy Road Business Centre, Taffs
Well, Cardiff, Wales, CF15 7QR
E-mail: [email protected]
Sea & Mew Consulting GmbH
Mitten Huber Strafe 4, 92318 Newmark
E-mail: [email protected]
Tel: +4915224685061
Lot: 2022401
Made in China
