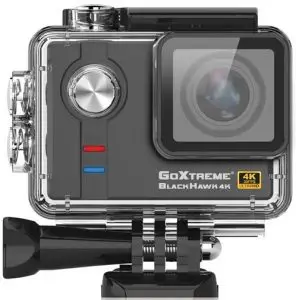

GOXTREME Black Hawk + 4k Camera User Guide

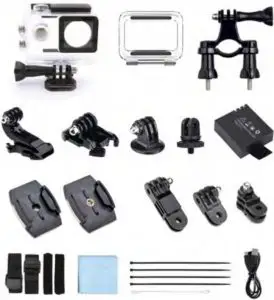

MOUNTS INCLUDED
Waterproof case, hollow back door, bike mount, long/short base, tripod adapter, monopod adapter, battery, helmet base, long/short joint adapters, straps, lens cloth, USB cable, manual
RESOLUTIONS
| RESOLUTIONS | ||
Video | NSTC (fps) | PAL (fps) |
| 4K | 60 / 30 EIS | 50 / 25 EIS |
2.7K | 60 / 30 | 50 / 25 |
1080p | 120 / 60 / 30 EIS | 100 / 50 / 25 EIS |
| 720p | 240 / 120 / 60 / 30 | 200 / 100 / 50 / 25 |
DISPLAY
LCD display: 2.0”/5cm
FEATURES
| Sensor | 12MP |
| Waterproof case | Up to 60m |
| Microphone / speaker | Built-in |
| Wide angle | 170° |
| Low light function | Yes |
| Wind noise reduction | Yes |
| Webcam function | Yes |
| Time lapse video | 1s / 2s / 5s / 10s / 30s / 60s |
| Time lapse photo | 3s / 5s / 10s / 30s / 60s |
| photo intervals Long exposure | 1s / 2s / 5s / 8s / 30s / 60s |
| Burst rate | 3shots/s / 7shots/s / 15shots/s / 30shots/s |
| Self timer | 3s / 5s / 10s / 20s |
| White balance | Auto / Daylight / Shade / Tungsten Light / Fluorescent / Underwater |
| Smooth video | EIS (Enhanced Image Stabilization) For video resolutions: 4K 30fps, 1080p 30fps With the EIS function, the shooting angle is slightly reduced. |
| File format | H.264 MOV, JPG |
| Interface | HDMI, USB 2.0 Micro |
| WiFi frequency | 2.4 GHZ |
| Bluetooth | Bluetooth 4.0 |
| Power source | Exchangable 1050mAh lithium battery |
| Dimensions | 61 x 42 x 23 mm, 78g |
EXTERNAL MEMORY
| EXTERNAL MEMORY | (not included) |
| Requirements | Compatible with microSD cards up to max. 64GB |
| U3 class10 cards required (or faster) |
WIFI CONNECTION
- WiFi function: Built-in
- App: “iSmart DV2” for Android or iOS
Download the app from the App Store or Google Play to control your action cam by your phone or tablet via WiFi.
Please note that it is not possible to wirelessly playback or transfer files exceeding 1080p resolution using the app. Files using any resolution higher than 1080p can only be accessed via computer. Due to certain WiFi restrictions it is not possible to transfer videos of 2.7K or 4K resolution.
- by interpolation
GOXTREME BLACK HAWK+ 4K
ART. NR. 20137
EAN 4260041685406
GoXtreme® is a brand of Easypix GmbH. Technical changes and mistakes reserved.
