BENNING 050263 Testers Installation Guide

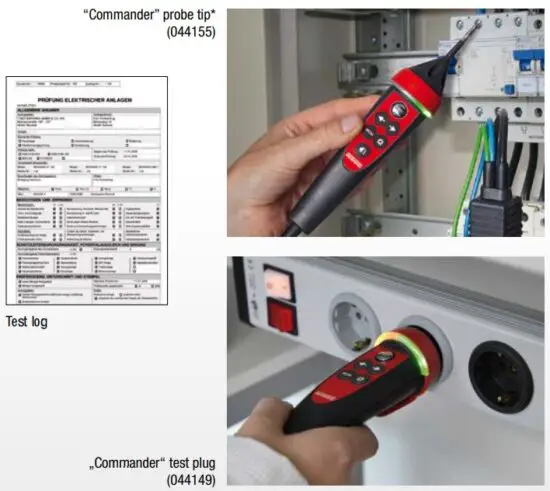

Logging software with test log BENNING PC-Win IT 130
- creation and transmission of installation structures to the BENNING IT 130 for efficient periodic testing
- download of measured values and logging by means of test reports and test certificates
Features IT 130, IT 115
- all measuring functions can be selected directly by means of a rotary switch
- graphic display and help function with connecting diagram
- complete measuring result with measuring parameters, limiting value and symbols for “PASS”/“FAIL”
- current supply by means of 6 NiMH storage batteries (AA) with charger

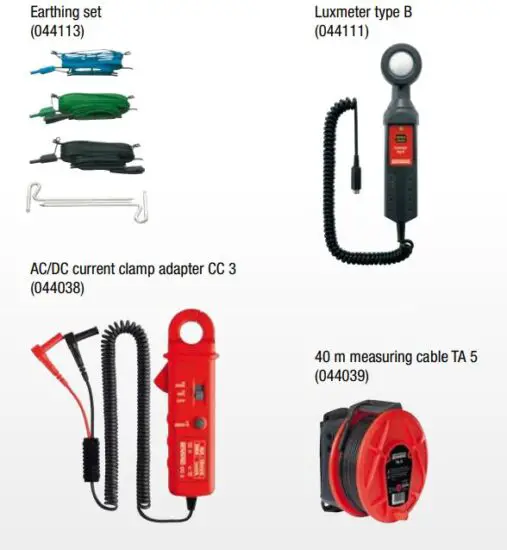

Earthing set
- The earthing kit enables the three-wire measuring method to determine the earth resistance at main earthing systems, lightning arresters and local earth connections.
BENNING Luxmeter type B
- The luxmeter type B allows measurements of the luminous intensity for planning and testing interior and exterior lighting systems (only BENNING IT 130).
BENNING CC 3
- The BENNING CC 3 AC/DC current clamp adapter is intended for measuring
a load current up to 300 A (only BENNING IT 130).
BENNING TA 5
- The BENNING TA 5 is a 40 m cable reel, ideal for low-impedance measurements.

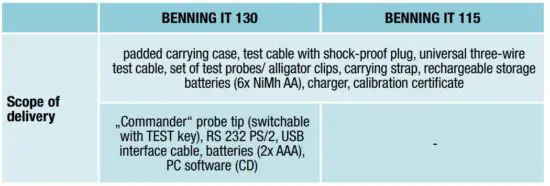

Scope of delivery

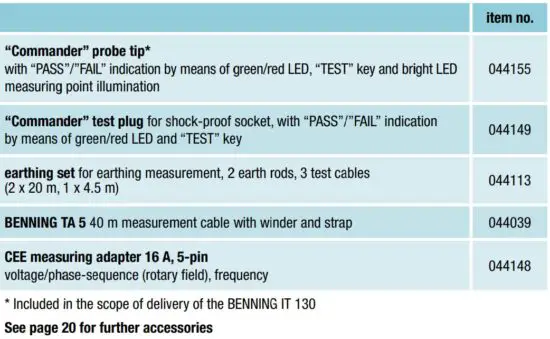

Optional accessories for IT 130 / IT 115
