Henry Hty100p Numatic Hetty Roze User Manual

(HEN.100), (HTY.100)
Numatic Hetty Roze
User Manual

HTY100P Numatic Hetty Roze

Original Instructions
CAUTION, Read instructions before using the machine.
myhenry.com

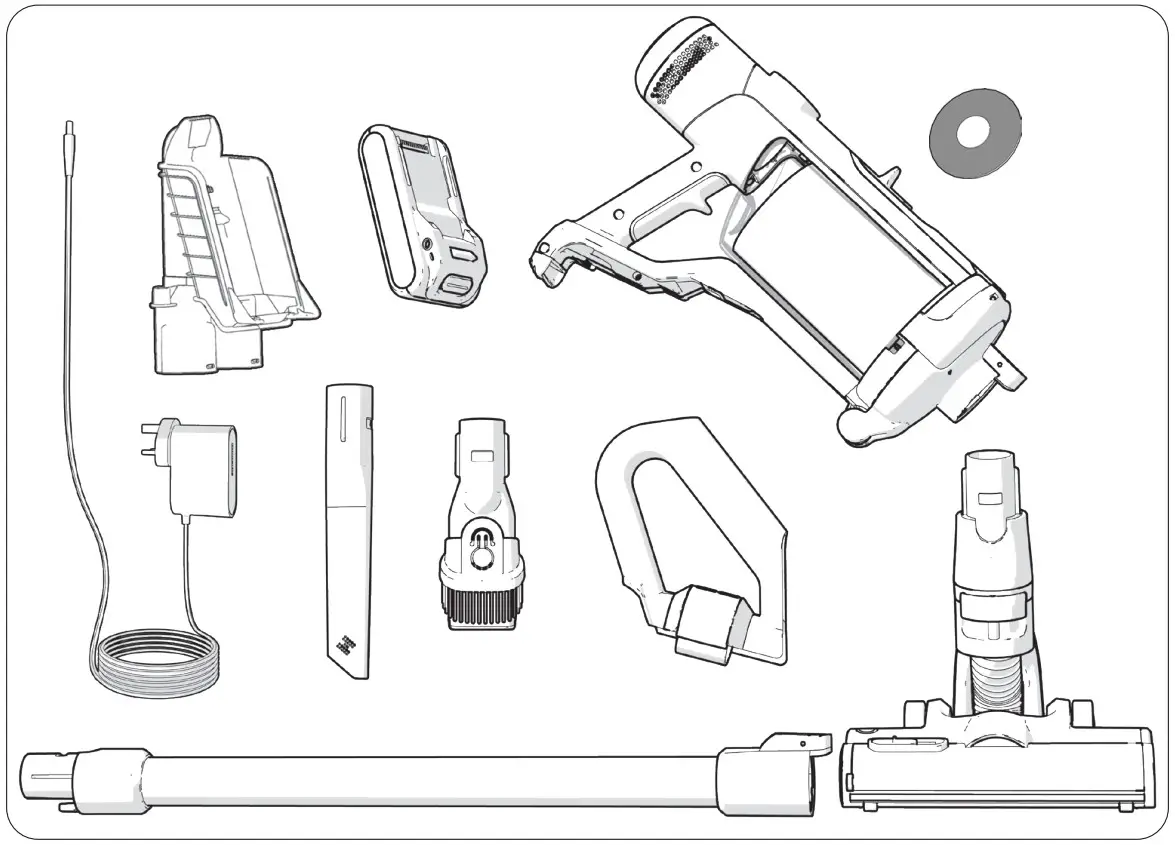

Box Contents

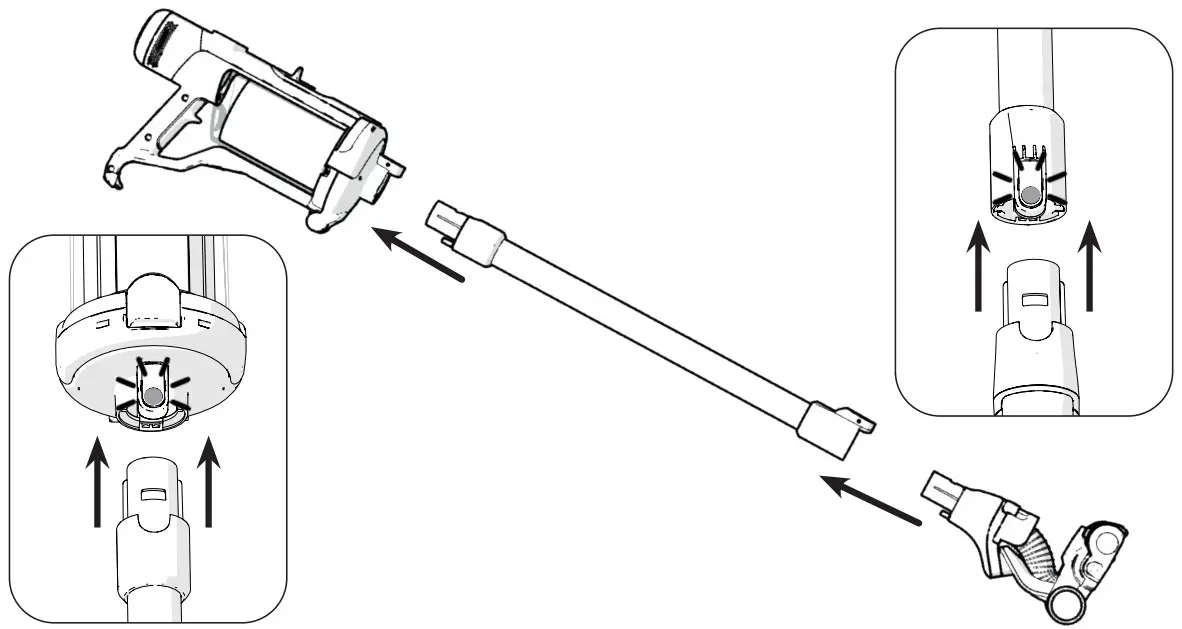

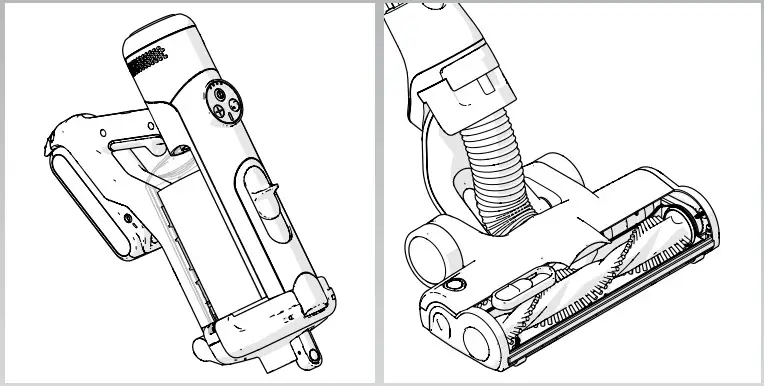

Main Assembly

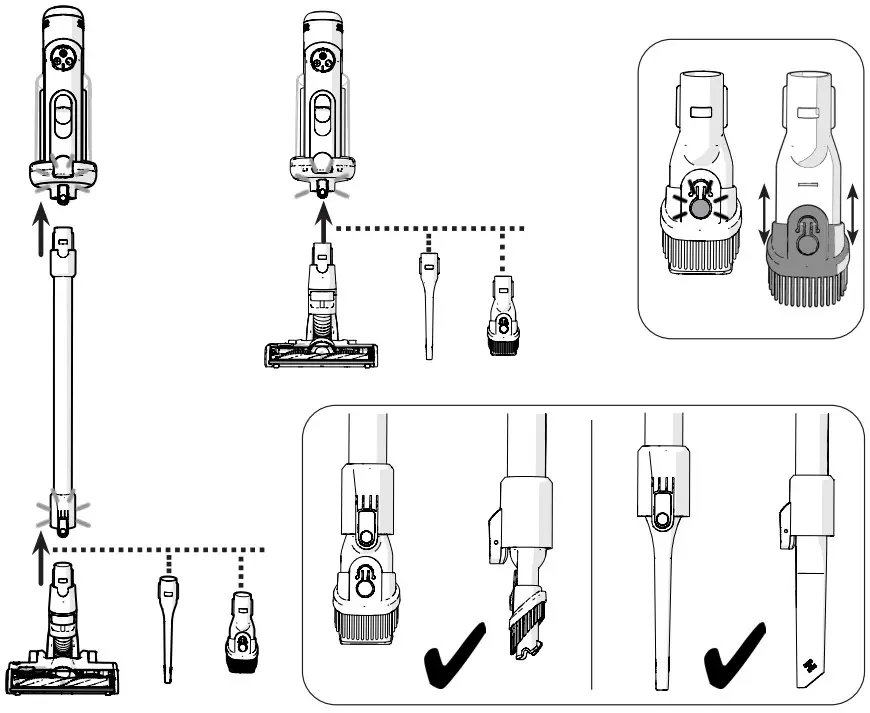

Accessory Fitting

Battery Fitting

Battery Removal

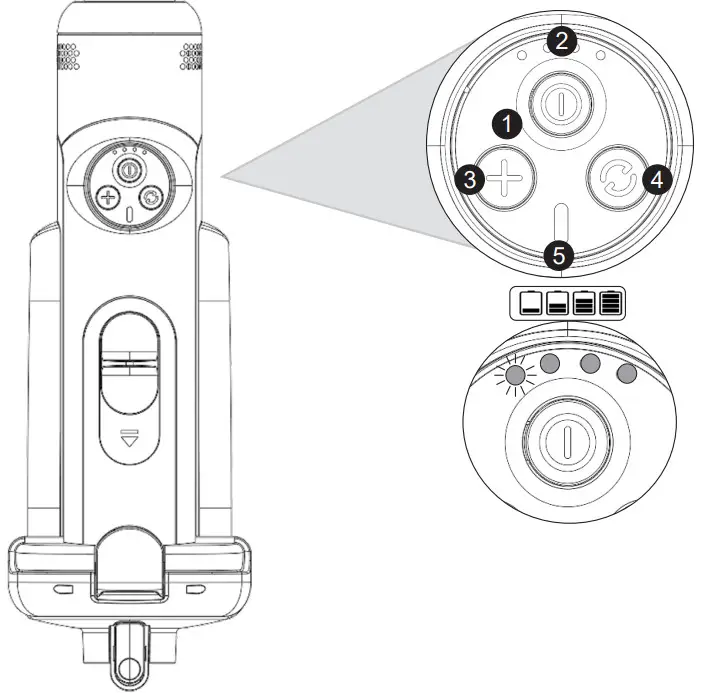

Control Panel

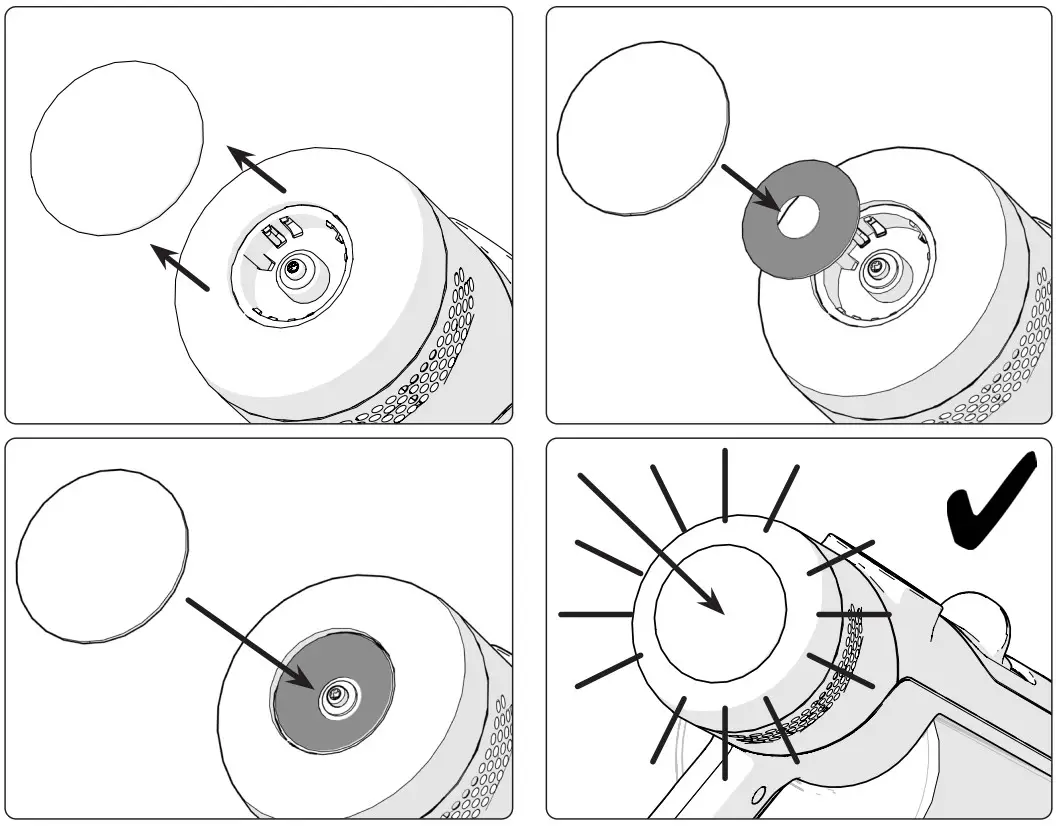

Scent Capsule Fitting

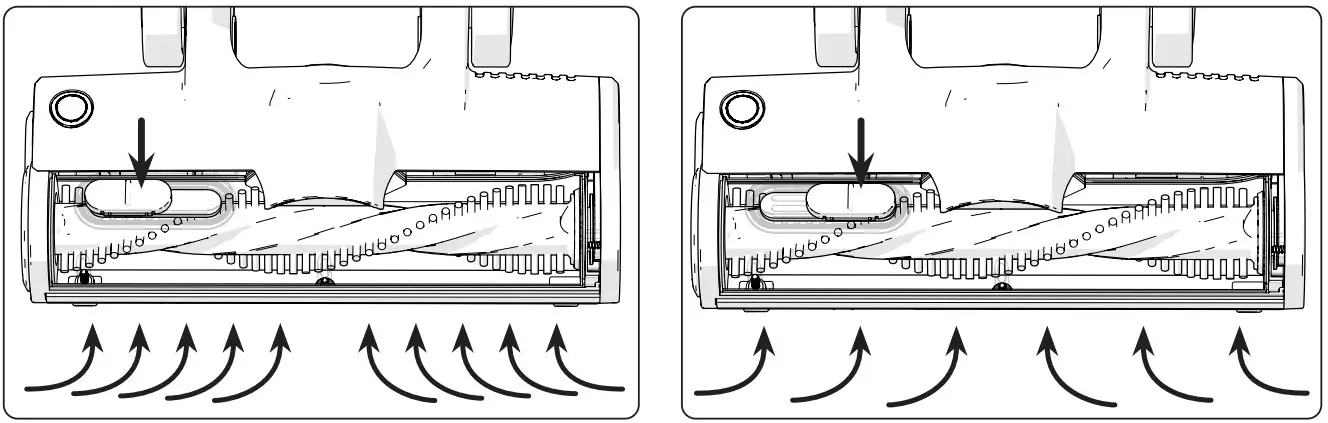

Floor Tool Air Bleed Control

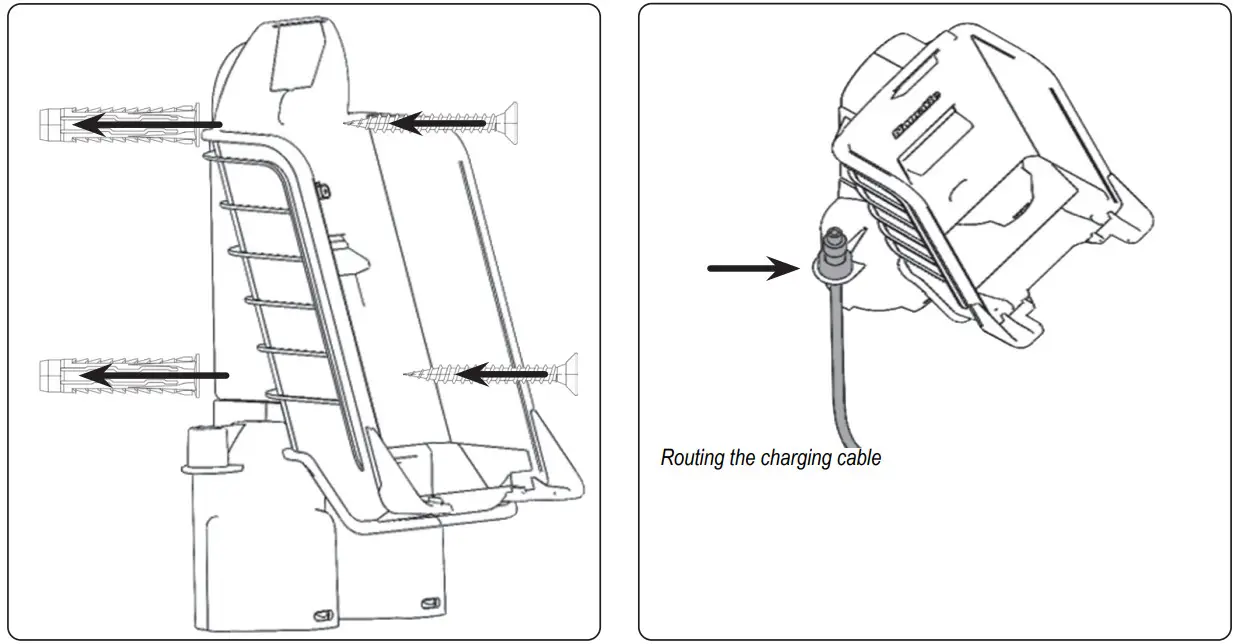

Charger Wall MountingUse correct fixings for your wall type, which is suitable for the weight of the machine (3.2 kg).
The use of adhesives is not considered a reliable means of fixing.

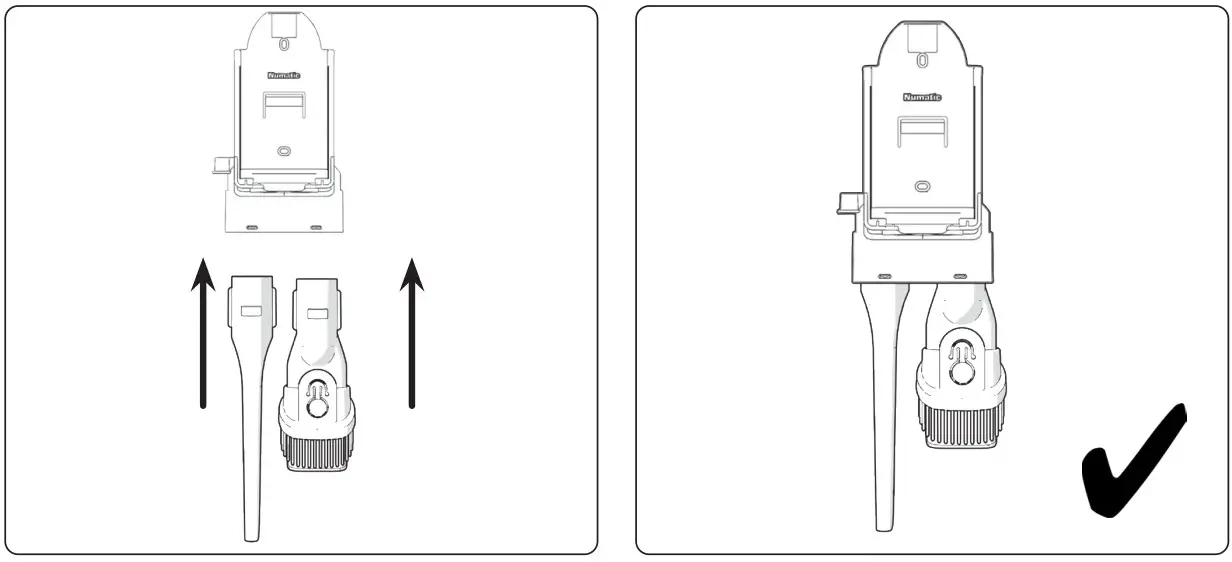

Accessory Storage

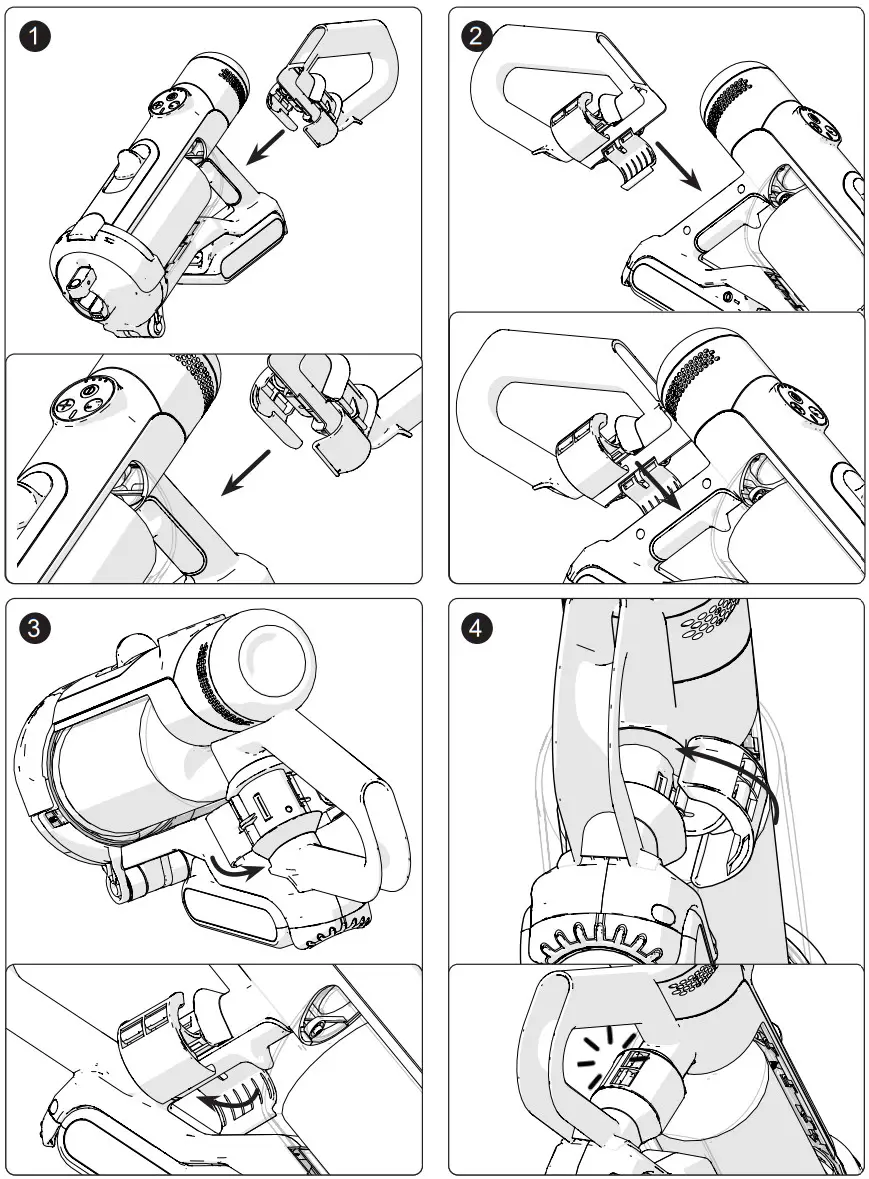

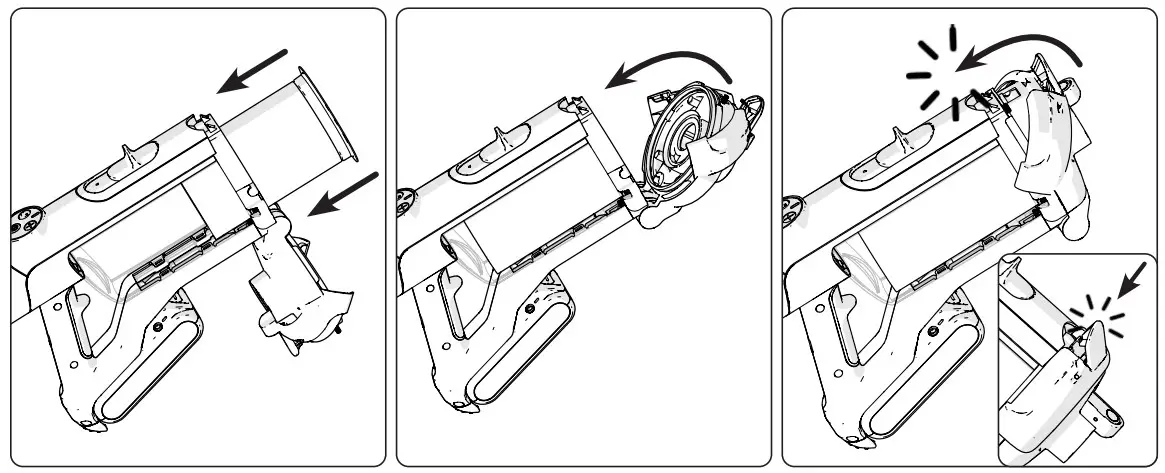

Disposable Pod EmptyingDisposable Pod FittingExtension Handle Fitting

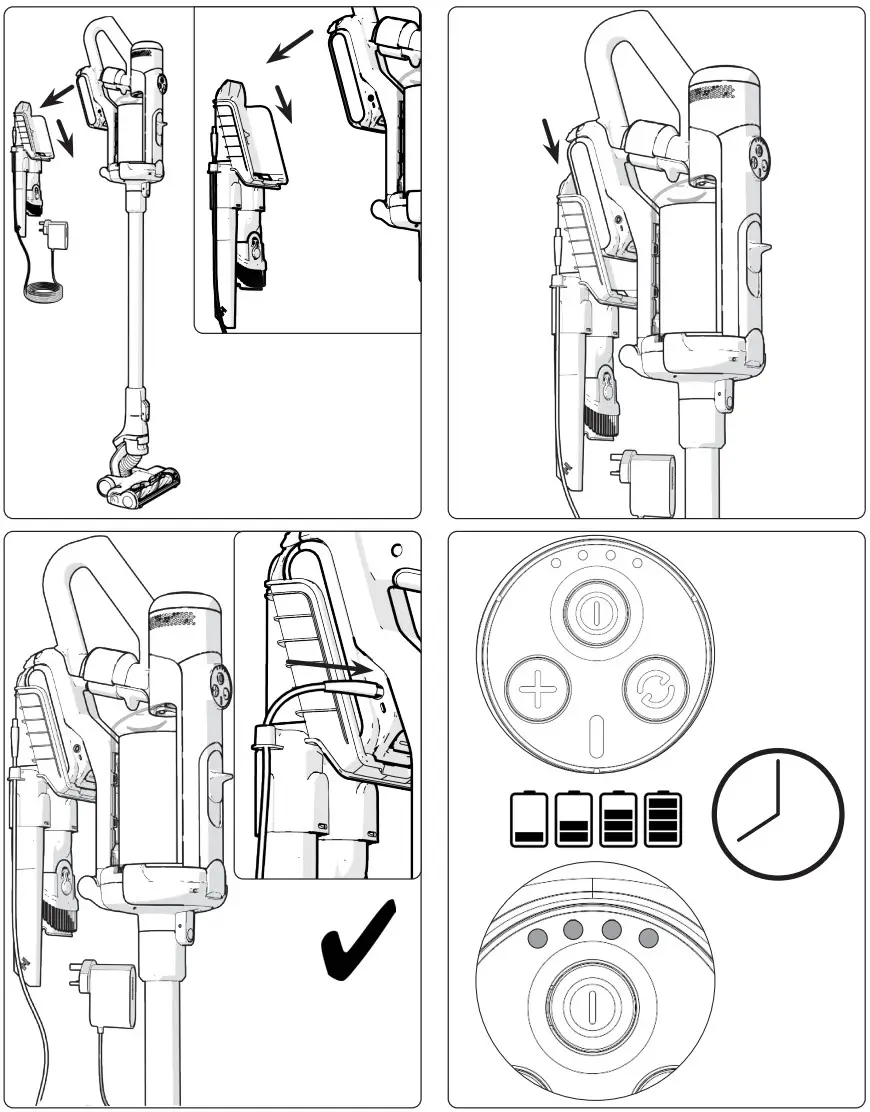

Machine Charging

Recharge time: 150 min = 100%
Ladezeit 150 min. = 100%
Temps de recharge 150 min = 100%
Laadduur 150 min. = 100%

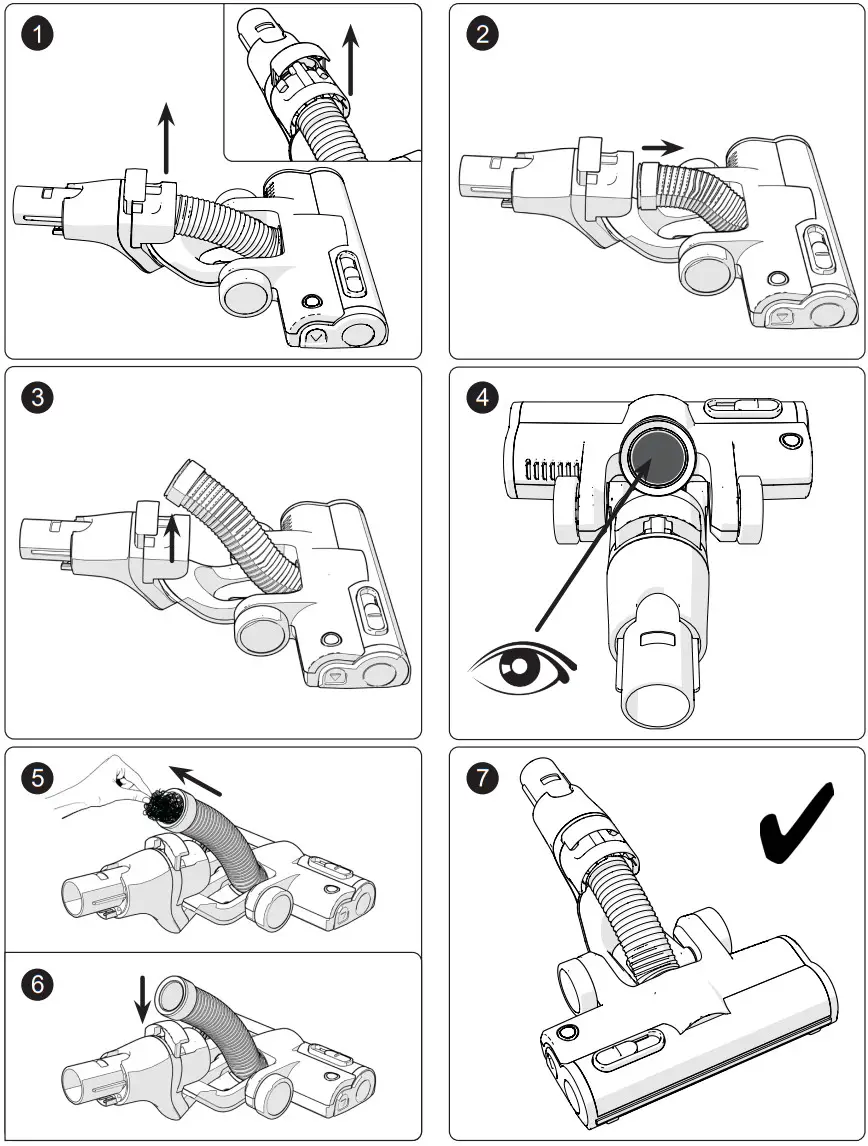

Floortool Hose Cleaning

Brush Roller Removal & Cleaning

Machine data

Trouble Shooting

About your machine

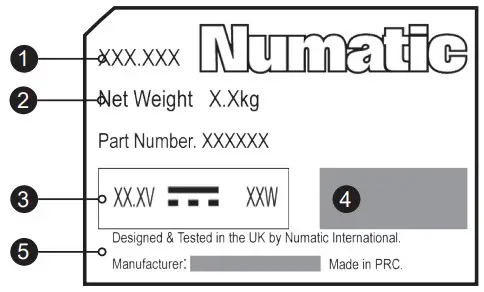

Rating Label

Floor Tool Label

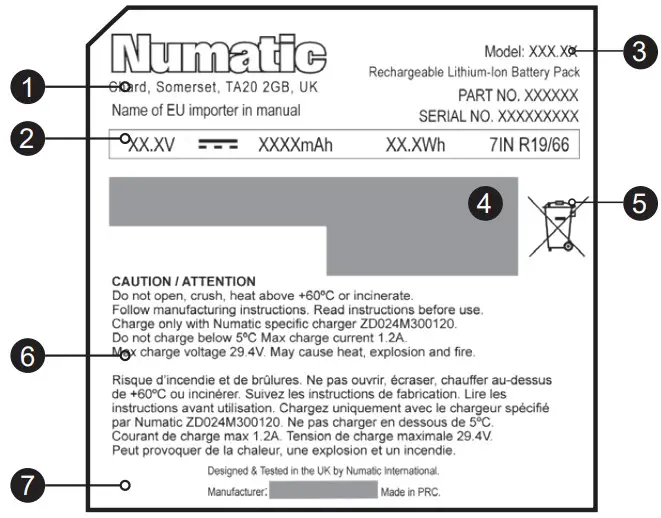

Battery Label

Maintenance

Daily
Keep the machine and all parts clean, including hoses and tubes.
Ensure the fi lter pod is fi tted.
Regularly examine the charger.
Check fi lter pod frequently and renew if required.
Weekly – as daily and:
Check for any worn or damaged parts and replace immediately.
Batteries
Always recharge the batteries after use.
WEEE (Waste, Electrical and Electronic Equipment)
Accessories and packaging should be sorted for environmentally-friendly recycling.
Only for UK/EU countries.
Do not dispose into household waste.
According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law.
Items that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner.
PPE (Personal protective equipment) that may be required for certain operations.
NOTE: A risk assessment should be conducted to determine which PPE should be worn.
Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268

Information for Dry use Battery Vacuum cleaners

Warning
Read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of these machines, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.
This machine is for DRY USE only.
When charging the appliance make sure that the charging lead is safely secured and the jack is properly inserted into the battery.
Keep hair, loose clothing, fi ngers and all parts of body away from openings and moving parts.
You must remove the battery from the machine BEFORE cleaning or maintenance and when replacing parts or converting the machine to another function.
This appliance is intended to be assembled, cleaned and maintained by an adult.
This machine is not suitable for the collection of biological hazards, hazardous or explosive dusts.
Contact your local distributor if you require a machine capable of performing these tasks.
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
Keep scent capsules away from children, as they are harmful if swallowed.
Extra care must be taken when cleaning on stairs.
Children should be supervised to ensure that they do not play with the appliance.
This machine is not a toy; children shall not play with this machine.
Caution
This machine must not be stored outside, or used in wet environments, or to collect wet materials.
The vacuum cleaner should be stored in a dry place and is for indoor use only.
You must ensure that the machine is suitable for the material being collected.
Note:
The primary use for this machine is for domestic, as well as commercial settings, for example in homes, hotels, schools, hospitals, factories, shops and offi ces.
This vacuum cleaner is fi tted with a thermal protection device.
If the vacuum cleaner has a blockage, remove the battery and inspect the fl oor tool, tubes and hose for debris.
If the fl oor tool, tubes and hose are clear, replace the fi lter pod.
The vacuum cleaner should be inspected after use for damage.
When moving from one place to another, consider the weight of the machine.
Do
Keep your machine clean including hoses and tubes.
Change the fi lter pod frequently.
Keep hoses and tubes clear.
Replace any worn or damaged parts immediately.
Use OEM specifi ed Numatic Scent Capsules only as shown in this manual.
Don’t
Use to suck up hot ashes or lighted cigarette ends.
Use steam cleaners or pressure washers to clean the machine or use in the rain.
Immerse in water for cleaning.
Attempt machine maintenance or cleaning unless battery has been removed from the machine.
Under any circumstances place foreign objects i.e. air fresheners, air freshener capsules or scented beads or any other object not originally supplied as part of the machine or OEM accessory pack, into the machine.
Doing so can be dangerous and risks damage to the machine and may also invalidate the machine warranty.
Battery Information
NOTE:- It is recommended that a battery is fully charged before fi rst use.
Important Warnings – Charger
Read all these warnings before using the charger.

• CAUTION! Charge only Numatic Lithium-Ion batteries, other types of batteries may burst causing personal injury and damage.
• Do not charge damaged batteries.
• Do only charge dry batteries.
• Check the charger cable regularly for any sign of damage. If the charger cable is damaged the charger should be replaced, by an original NUMATIC INTERNATIONAL charger available from the manufacturer or service agent.
• Do not use damaged chargers.
• Protect the charger against moisture and store it in a dry place.
• Do not use the charger if it is wet or handle the charger with wet hands.
• The mains voltage available must correspond to the voltage stated on the rating plate of the charger.
• The no load voltage of the charger is 30 V.
• Do not operate charger in explosive environment.
• Do not carry the charger by holding the charger cord.
• Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
• Do not cover the charger whilst charging.
• Do not open the charger. Repairs shall be done only by authorised personnel.

Warning:
The battery included in this product must only be charged by the Numatic Charger supplied with the product under NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fi re could result. Only use genuine Numatic parts.
Instructions for Use – Charging Batteries
The charger is capable of operating at diff erent mains voltages and frequencies without user adjustment.
Ensure the charger jack plug is fully inserted into the the battery.
If the charger is damaged or does not charge anymore, do not use the charger and contact your supplier.
Make sure charger replacements are a genuine Numatic service part.
Health Hazards (Acute & Chronic).
The chemicals used in the battery are in a sealed container.
Risk of exposure only occurs if the battery is abused or damaged.
Contact of electrolyte and lithium with skin and eyes should be avoided.
Signs & Symptoms of Exposure.
A damaged or leaking battery can cause chemical burns upon contact.
Such situation might only occurred when the battery cell is opened or damaged.

Important Warnings – Batteries

Read all the warnings before using the battery.
This cleaner uses Numatic Lithium-Ion batteries. Used batteries should be disposed of safely and placed in a sealed plastic bag and then handled according to all locally approved precautions and environmental regulations.
a) Do not dismantle, open or shred batteries.
b) Do not expose batteries to heat or fi re. Avoid storage in direct sunlight.
c) Do not short-circuit a battery. Do not store batteries haphazardly in a box or drawer where they may short-circuit each other or be short circuited by other metal objects.
d) Do not remove a battery from its original packaging until required for use.
e) Do not subject batteries to mechanical shock.
f) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes and avoid inhaling fumes. If contact has been made, wash the aff ected area with copious amounts of water and seek medical advice.
g) Do not use any charger other than that specifi cally provided for use with the appliance.
h) Do not use any battery which is not designed for use with the appliance.
i) Use only original NUMATIC batteries, when replacement batteries are required.
j) Keep batteries clean and dry.
k) Do not leave a battery on prolonged charge when not in use.
l) After extended periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
m) Retain the original appliance literature for future reference.
n) When possible, remove the battery from the equipment when not in use.
o) Do not immerse in any liquid.
p) Do not charge damaged batteries.
q) If the batteries are leaking, return batteries to a disposal plant or a similar local facility.
r) The batteries must be removed from the appliance before the appliance is scrapped.
s) If the appliance is to be stored unused for a long period, the batteries should be removed.
The battery is equipped with electronic thermal protection, refer to the Temperature and Humidity Range Table below for recommended operating conditions.
Temperature and Humidity Range Table

In case battery is subject to environmental conditions outside the above parameters user must allow at least 3 hours for battery to acclimatise at room temperature before attempting to operate.
If the battery is found to be faulty at any time, contact Numatic International, or World Wide Lithium-Ion Battery Technical Helpline +1-703-741-5970

Care and Disposal of Li Ion Batteries

DEFECTIVE BATTERIES
ATTENTION
Please follow all safety guidelines set out.
A defective battery should not be stored inside buildings on any account.

• If a customer wishes to return a battery to a supplier, then collection of the battery must be arranged by the supplier, however, Faulty batteries must not be returned through the postal system or by courier.
• If on return to a supplier, OR at a customer base, a suspected defective battery shows any signs of impact damage, distortion, blistering, loose parts or leakage then on no account should it be off ered for condition checking. It must be considered defective and the procedures described followed.
• If, on return to a supplier, OR at a customer base, a suspected defective battery, that shows no signs of impact damage, distortion, blistering, loose parts or leakage, may be off ered for condition checking with an appropriate battery condition checking device operated by a competent person.
• If on checking the battery is found to be operational then a single recharge cycle under observation can be attempted with the appropriate Numatic charger.
• If the battery recharges correctly on this single recharge cycle then it can be deemed a good battery.
• If the battery fails to recharge correctly on this single recharge cycle then it must be deemed a defective battery and the procedures followed.
• On no account must any further attempt to recharge be made.
• A defective battery should not be stored inside buildings on any account.
• The defective discharged battery can then be stored in a locked battery waste container which should be plastic or plastic lined and placed away from buildings and clearly signed as a defective battery container with appropriate warnings.

The battery is to be disposed of safely and in accordance with all locally approved precautions and environmental regulations.

First Aid Measures

If exposed to any of the Chemicals mentioned in the Hazards section please follow the procedures below:
Eyes.
Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelid.
Seek medical attention.
Skin.
Remove contaminated clothing and rinse skin with plenty of water or shower for 15 minutes.
Seek medical attention.
Inhalation.
Vacate from site of exposure to fresh air immediately. Use oxygen if available.
Ingestion.
Give at least two glasses of milk or water. Induce vomiting, unless patient is unconscious.
Seek medical attention.
Note:
Inhalation, skin contact and eye contact are possible if the battery is damaged.
Exposure to internal contents, the corrosive fumes will be very irritating to skin, eyes and mucous membranes.
Overexposure can cause symptoms of non-fi broid lung injury and membrane irritation.

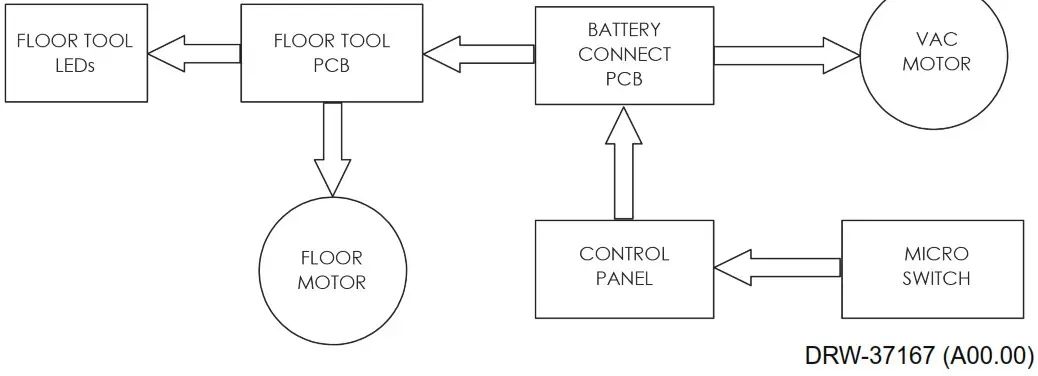

Schematic diagramReplacement parts

UKCA Declaration of Conformity
Manufacturer:	Numatic International Limited Chard Somerset TA20 2GB www.numatic.co.uk
Product:	HEN, HTY, NQ
Description:	Vacuum Cleaner — Commercial — Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.

Authorised Signatory: Mr. Matthew Coles
Position: Head of Technology
Numatic International Limited, Chard, Somerset, TA20 2GB, UK
Signed:
Date: 29th Apr 2022
Declaration of Conformity
Manufacturer:
Numatic International Limited
Chard
Somerset
TA20 2GB
www.numatic.co.uk

Product: HEN, HTY, NQ
Description: Vacuum Cleaner – Commercial – Dry
We, Numatic hereby declare under our sole responsibility, that the abovementioned product(s) is/are in conformity with the following directives and standards.

Authorised Signatory: Mr. Matthew Coles
Position: Head of Technology
Numatic International Limited Chard, Somerset, TA20 2GB, UK
Signed: Date: 29th Apr 2022
DEC-088 V1.0

Numatic International Limited.
Chard, Somerset TA20 2GB ENGLAND
Tel: 01460 68600 www.numatic.co.uk
Specification subject to change without prior notice
www.numatic.co.uk © Numatic International Limited
This Product has been comprehensively inspected and checked during every stage of its manufacture.
Including an in-depth electrical safety and functionality test.
914133 06/22 (A04)
