Puig logoREF 20814 Motorbike Headlight Protector

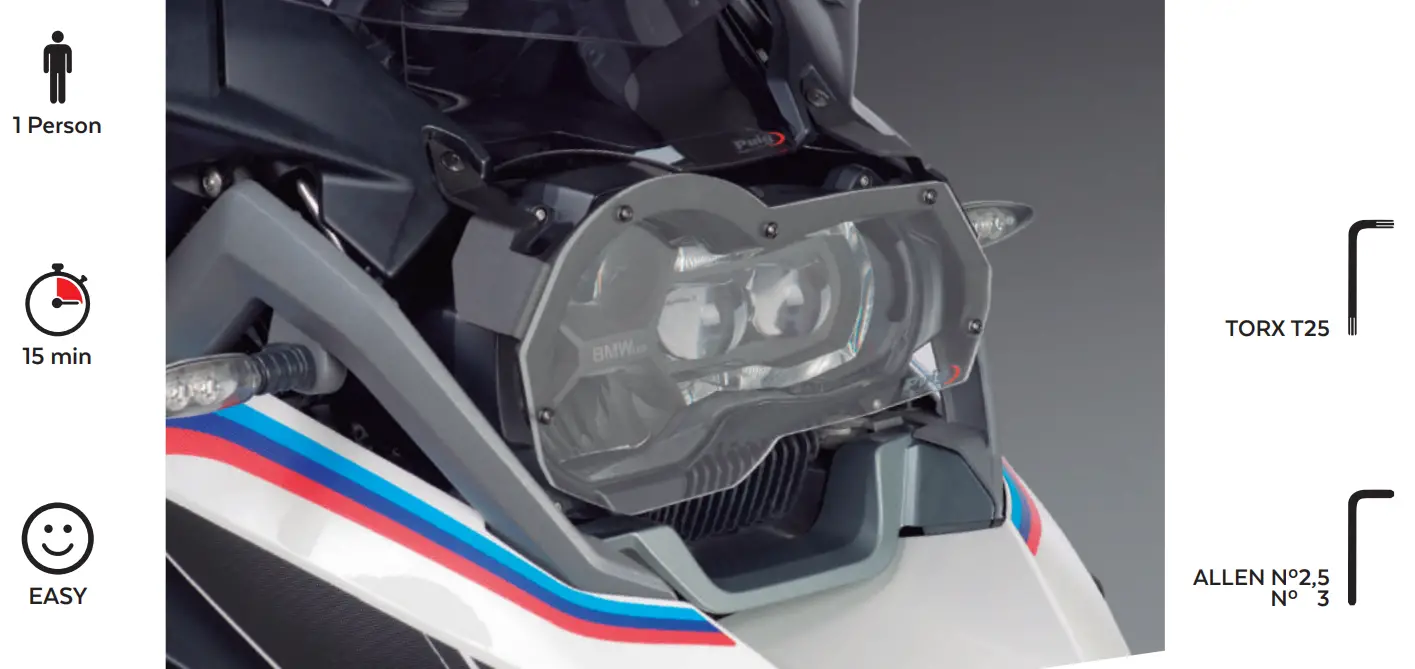

InstructionsPuig REF 20814 Motorbike Headlight Protector 1

REF 20814 Motorbike Headlight Protector

www.puig.tv
www.puigusa.com
[email protected]
[email protected]

BMW R1250GS / R1250GS ADVENTURE
R E F 20814  PROTECTOR – SCHEINWERFERSCHUTZ
Puig REF 20814 Motorbike Headlight Protector

IDPARTDESCRIPTIONQTYREF

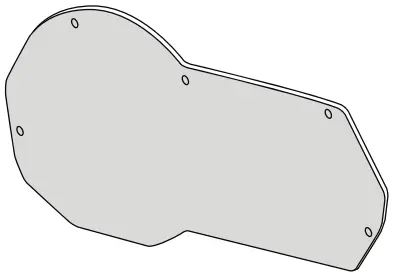

1Puig REF 20814 Motorbike Headlight Protector - screw 4Headlight Protector ( polycarbonate
4mm with scratch resistance treatment)
120814WM3
2Puig REF 20814 Motorbike Headlight Protector - screw 3Metal support1SOPOR-1P-6-7567
3Puig REF 20814 Motorbike Headlight Protector - screw 2M5X20 Ø11 Allen screw2TORNIAI7380-387
4Puig REF 20814 Motorbike Headlight Protector - screw 1M4x10 ISO7380 Allen screw5TORNI-I7380-645
5Puig REF 20814 Motorbike Headlight Protector - screwM4 nylon washer10ARNVOOOOOOOO311
6Puig REF 20814 Motorbike Headlight Protector - iconM5X16 Ø11 ISO7380 Allen screw2TORNI-I7380-493

* Algunos componentes se suministran montados. Some components are supplied and assembled.
BMW  R1250GS / R1250GS ADVENTURE

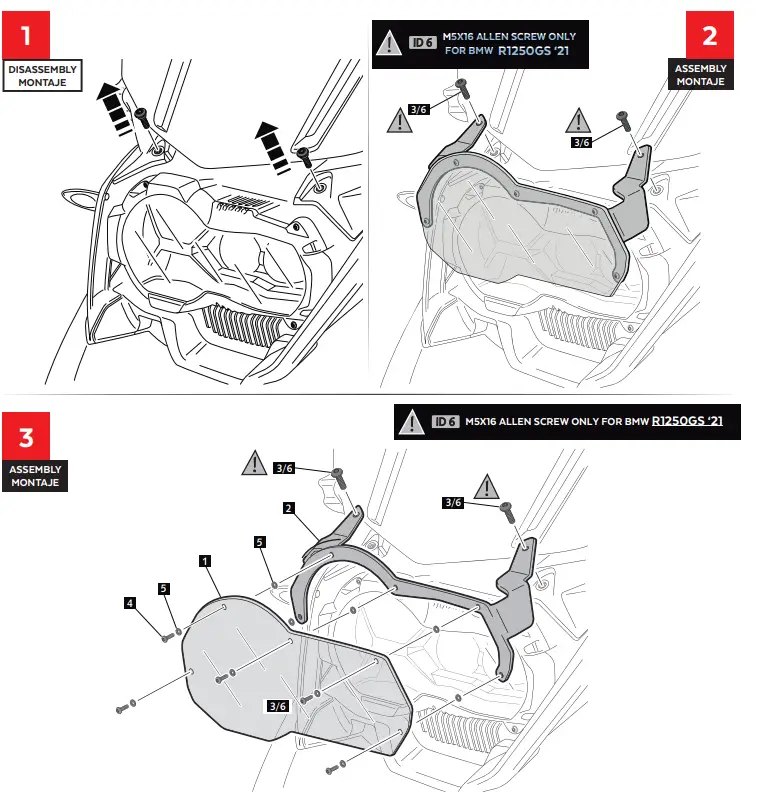

MOUNTING INSTRUCTIONS

Puig REF 20814 Motorbike Headlight Protector - figPuig logo
