ME 2000 e-Bike Headlight
Instruction Manual

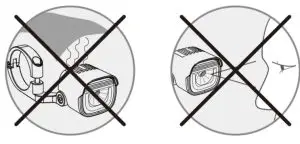

WARNING AVERTISSEMENTNT!

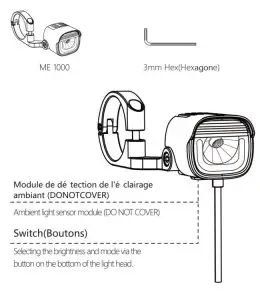

WHAT’S IN Contenudel’emballage

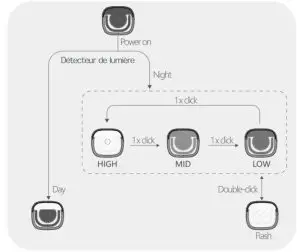

INTELLIGENT OPERATION FONCTIONNEM ENT INTELLIGENT
Mode memory: The light resumes previous mode upon next usage. The brightness sensor is activated by default, it automatically switches between daytime running light and steady/flash mode.

MODE AND BRIGHTNESS MODE ET LUMINOSITY
| MODE | LUMINOSITY | MAX WMENS | ||
| STEADY | HIGH | 100% | 2000 | |
| MID | 50% | 1000 | ||
| LOW | 30% | 600 | ||
| FLASH | \ | 30% | 600 | |
| DRL | LES FEUX DE JOUR SONT TOUJOURS ALLUFAS | 20 | ||
The light can judge the maximum brightness automatically according to the output power of the motor interface.
| MOTOR OUTPUT (W) | HIGH(LM) | MID(LM) | LOW(LM) |
| 7W | 650 | 420 | 320 |
| 9W | 850 | 520 | 360 |
| 12W | 1250 | 630 | 409 |
| 14W | 1460 | 740 | 580 |
| 20W | 1950 | 1000 | 580 |
| 24W | 2000 | 1000 | 580 |
The data above is only reference

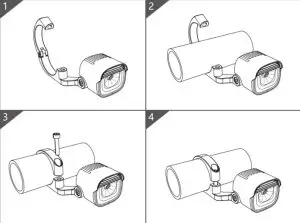

HOW TO INSTALL COMMENT INSTALLER

SPECIFICATION
ANSI FL 1 STANDARD
![]()

Note: Register on Website to Gain 6 Months Extra Warranty Rights.
- Proof of purchase is required when obtaining warranty service
- DO NOT return suspected defective parts directly to MAGICSHINE or the seller.
- De fective parts must only be sent to the seller you purchased your product from. Please contact them beforehand to confirm acceptance.
![]()
