Audio-technica Ath-avc200 Over-ear Headphones User Manual

Audio-Technica ATH-AVC200 Over-Ear Headphones

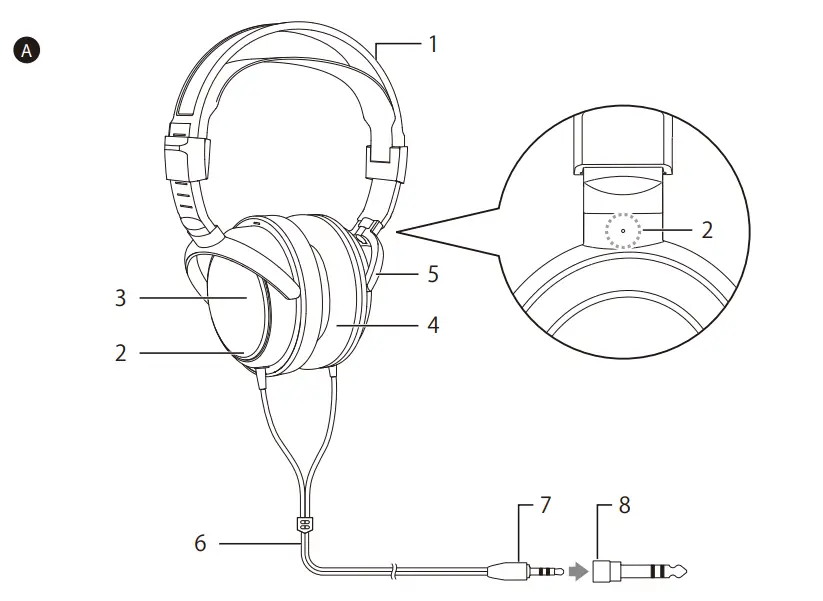

Name of each part

Please confirm each part before using these headphones.

1. Headband
2. L/R
   *A raised nub can be found on the left as you can see by touching it with finger.
3. Housing
4. earpad
5. Arm
6. 3.0 m cable
7. 3.5 mm gold-plated stereo mini plug
8. 6.3 mm adapter

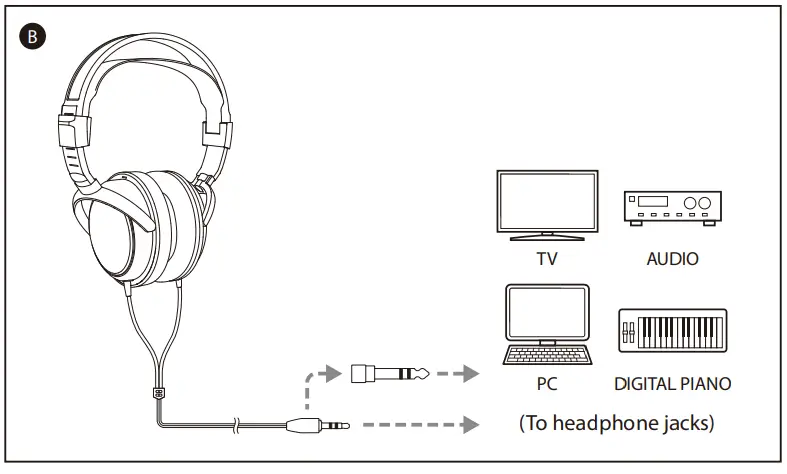

Using headphones

1. Turn the volume of the device to the minimum level, and connect the cable to the headphone jack of the device.
2. Please make sure to position the earpads correctly (Left/Right position and with the earpad covering the whole ear).
3. Play audio on the connected device and adjust the volume to the desired level.

Cleaning

Get into the habit of regularly cleaning your headphones to ensure that they will last for a long time. Do not use alcohol, paint thinners or other solvents for cleaning purposes.

1. Main unit
   Wipe the main unit with a dry cloth.
2. cable
   Wipe your cable with a dry cloth after use if there is sweat or other dirt. Using an uncleaned cable continuously will deteriorate and harden the cable, resulting in headphone malfunction.
3. Plug
   Wipe your plug with a dry cloth if dirty. Using the plug without cleaning it can cause sound skipping or distortion.
4. Earpad
   To clean, wipe with a dry cloth. Earpads may fade if sweat or water dries on them. If the earpads get wet, we recommend wiping them with a dry cloth and allowing them to dry in the shade.

Caution!

• Never use the headphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle.
• Do not use the headphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling).
• To prevent damage to your hearing, do not raise the volume too high. Listening to loud sound for an extended period may cause temporary or permanent hearing loss.
• Discontinue use if skin irritation results from direct contact with the product.
• Do not disassemble, modify or attempt to repair the headphones.
• Be careful to avoid pinching yourself between the housing and arm of the product.
• To ensure compatibility and correct usage, always consult the user manual of any device before connecting the headphones to it.
• Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using this product.
• On public transport systems or in other public places, keep the volume low so as not to disturb other people.
• Please minimize the volume on your audio device before connecting the headphones in order to avoid hearing damage from sudden exposure to excessive volume.
• When using this product in a dry environment, you may feel a tingling sensation in your ears. This is caused by static electricity accumulated on your body, not by a headphone malfunction.
• Do not subject the headphones to strong impact.
• Do not store the headphones under direct sunlight, near heating devices or in a hot, humid or dusty place. Do not allow the headphones to get wet.
• When this product is used for a long time, the headphones may become discolored due to ultraviolet light (especially direct sunlight) or wear.
• Please do not expose the headphones to excessive stress or pressure, which could result in damage or deformation.
• Connect/disconnect the cable by holding the plug. Pulling directly on the cable can result in a broken wire and the risk of electric shock.
• Do not wrap the cable around a rack, furniture, or another object. Do not allow the cable to be pinched.
• Lengthening the headphone cable requires a separate extension cable available from your dealer.
• Be sure to purchase the appropriate conversion plug adaptor when connecting the headphones to equipment with other than a 3.5 mm / 6.3 mm stereo headphone jack.

Specifications

• Driver: Closed-back, dynamic 40 mm
• Output Sound Pressure Level: 100 dB/mW
• Frequency Response: 20 to22,000 Hz
• Maximum Input Power: 500 mW
• Impedance: 40 ohms
• Weight（without cable）: Approx. 210 g
• Cable Length: 3.0 m
• Plug: 6.3 mm/3.5 mm gold-plated stereo plug
• Sold separately: Earpads
  ( For product improvement, this is subject to modification without notice. )
