Titan X-3 Folding Rack Power Manual

OWNER’S MANUAL

MPN(s): X3FLDUP82 – X3FLDSB21, X3FLDUP82 – X3FLDSB41, X3FLDUP91 – X3FLDSB21, X3FLDUP91 -X3FLDSB41
SKU(s): 401394, 401396, 401393, 401395
UPC(s): 840009216961, 840009216985, 840009216954, 840009216978

X3FLDUP82 OR X3FLDUP 91

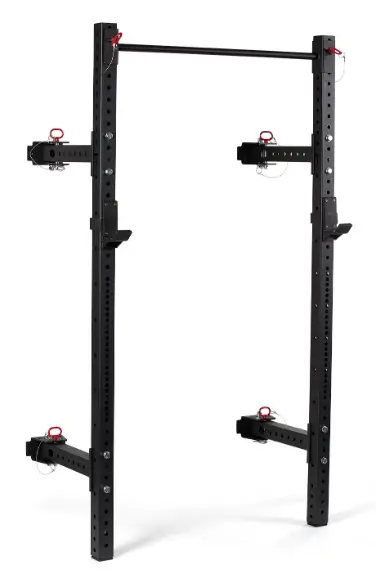

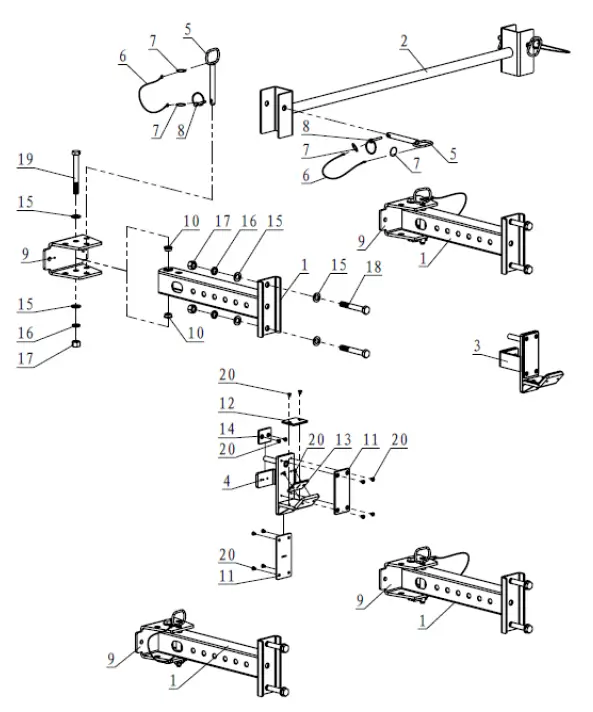

PARTS DIAGRAM

KEY	BOX	DESCRIPTION	QTY

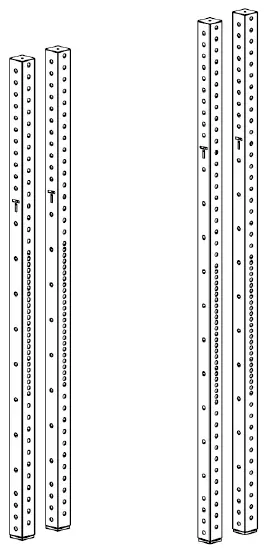

(1)	1	X3FLDUP82 or X3FLDUP91	2

KEY	BOX	DESCRIPTION	QTY	KEY	BOX	DESCRIPTION	QTY
(1)	2	Rear Connecting Frame	4	(11)	2	*Long Plastic Plate 148685*	4
(2)	2	Pull Up Bar	1	(12)	2	*Plastic Plate 68585*	2
(3)	2	J-Hook(L)	1	(13)	2	*Front Plastic Plate 68485*	2
(4)	2	J-Hook(R)	1	(14)	2	*Short Plastic Plate 58485*	2
(5)	2	PIN	6	(15)	2	*Flat Washer Φ17Φ303*	24
(6)	2	*Cable Φ5.5Φ1.6330*	6	(16)	2	Spring Washer Φ16	12
(7)	2	*Pull Ring Φ1.531**	12	(17)	2	Nut M16	12
(8)	2	*Small Pin Φ645**	6	(18)	2	*Hex Bolt M16110**	8
(9)	2	Retaining Bracket	4	(19)	2	*Hex Bolt M16135**	4
(10)	2	Φ16 Bushing	8	(20)	2	*Countersunk head screw M610**	28

ASSEMBLY INSTRUCTIONS

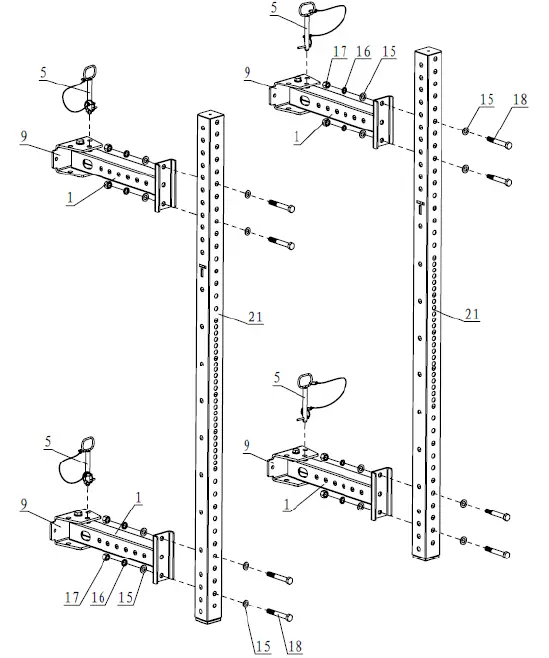

STEP 1
Connect the Rear Connecting Frame (1) and Upright Frame (21), using Flat Washer Ф17*@30*3(15), Spring Washer 16 (16), M16 Nut (17) and Hex Bolt M16*110 (18).

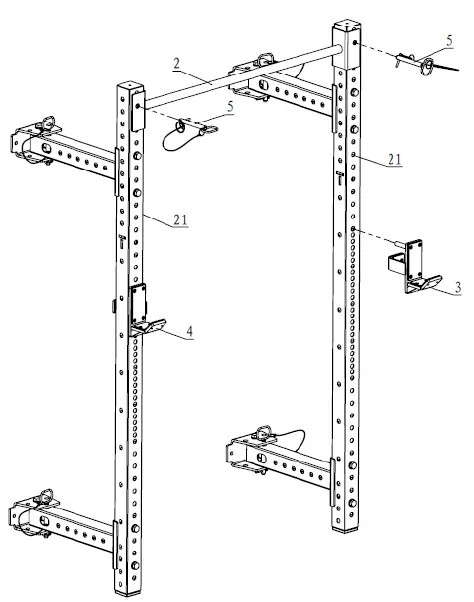

STEP 2

Fixing the Retaining Bracket (4) on the Wall.
Fixing the Pull Up Bar (2) on the Upright Frame (21), using the Pin (5).
Install the Left and Right J-Hook (3 & 4) on the Upright Frame (21).
Insert the Pin (5) on the Retaining Bracket (4).

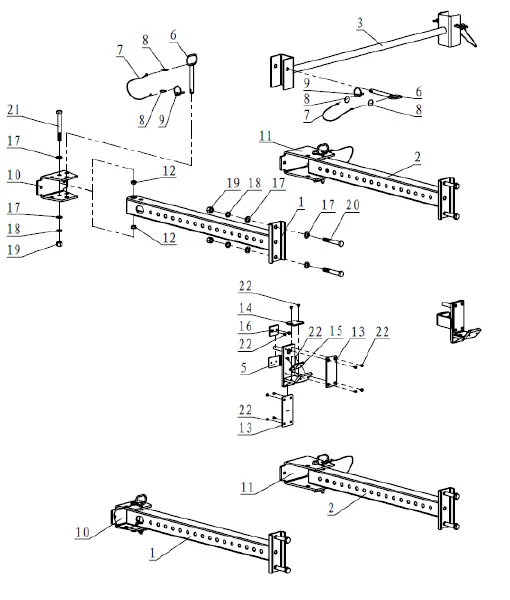

X3FLDSB41 PARTS DIAGRAM

KE	BO	DESCRIPTION	QT	KEY	BOX	DESCRIPTION	QT
(1)	2	Rear Connecting Frame	2	(12)	2	Φ16 Bushing	8
(2)	2	Rear Short Connecting	2	(13)	2	*Long Plastic Plate 148685*	4
(3)	2	Pull Up Bar	1	(14)	2	*Plastic Plate 68585*	2
(4)	2	J-Hook(L)	1	(15)	2	*Front Plastic Plate 68485*	2
(5)	2	J-Hook(R)	1	(16)	2	*Short Plastic Plate 58485*	2
(6)	2	PIN	6	(17)	2	*Flat Washer Φ17Φ303*	24
(7)	2	*Cable Φ5.5Φ1.6330*	6	(18)	2	Spring Washer Φ16	12
(8)	2	*Pull Ring Φ1.531**	12	(19)	2	Nut M16	12
(9)	2	*Small Pin Φ645**	6	(20)	2	*Hex Bolt M16110**	8
(10)	2	Retaining Bracket	2	(21)	2	*Hex Bolt M16135**	4
(11)	2	Long Retaining Bracket	2	(22)	2	*Countersunk head screw M610**	28

ASSEMBLY INSTRUCTIONS

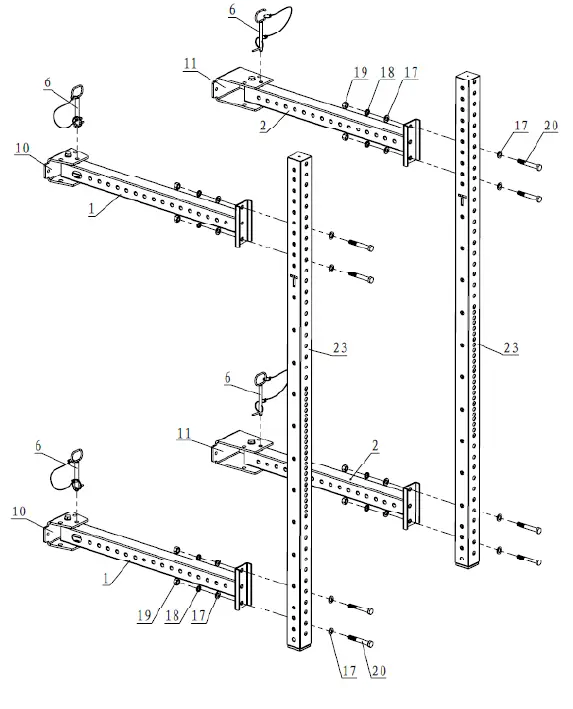

STEP 1
Install the Rear Connecting Frame (1) and Rear Short Connecting Frame (2) on the Upright Frame (23), using Flat Washer Φ17*Φ30*3(17), Spring Washer Φ16 (18), M16 Nut (19) and Hex Bolt M16*110 (20).

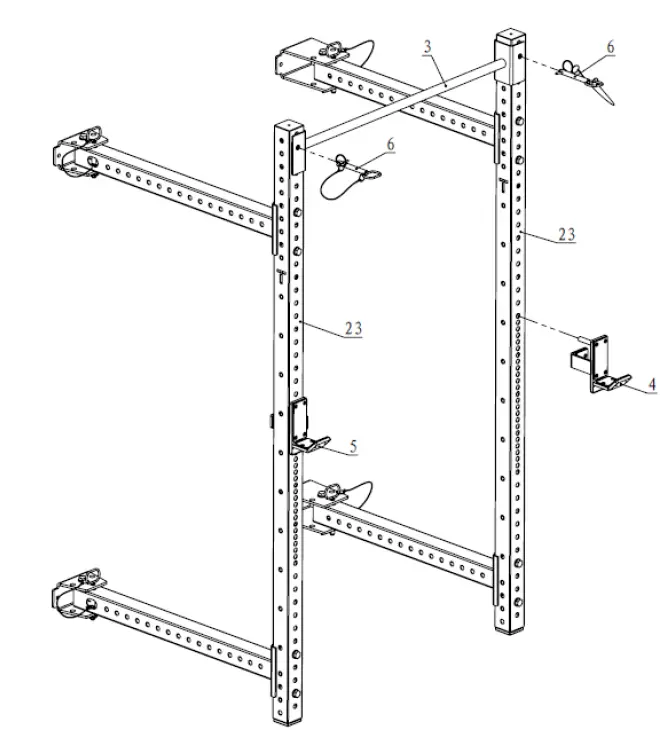

STEP 2

Fixing the Long Retaining Bracket (11) and Retaining Bracket (10) on the Wall.
Fixing the Pull Up Bar (3) on the Upright Frame (23), using the Pin (6).
Install the Left and Right J-Hook (4 & 5) on the Upright Frame (23).
Insert the Pin (6) on the Long Retaining Bracket (11) and Retaining Bracket (10).

This concludes the X3FLDUP VARIATIONS Owner’s Manual.
If applicable to your product, make sure to tighten all nut-and-bolt combinations before use.
Enjoy!

DISCLAIMER

This equipment must be used with care by capable and competent individuals under supervision, if necessary.

The use of any fitness equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated,or unanticipated, resulting from or arising out of the use of said equipment.

TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
