Waterway 419-4201 Crystal Water Bulkhead Gasket User Manual

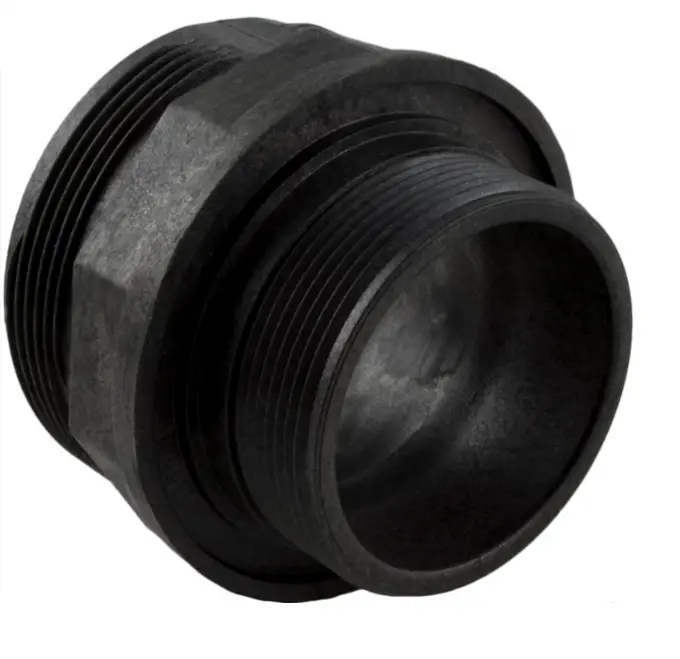

waterway 419-4201 Crystal Water Bulkhead Gasket

INSTALLATION INSTRUCTIONS

419-4201
Bulkhead Fitting

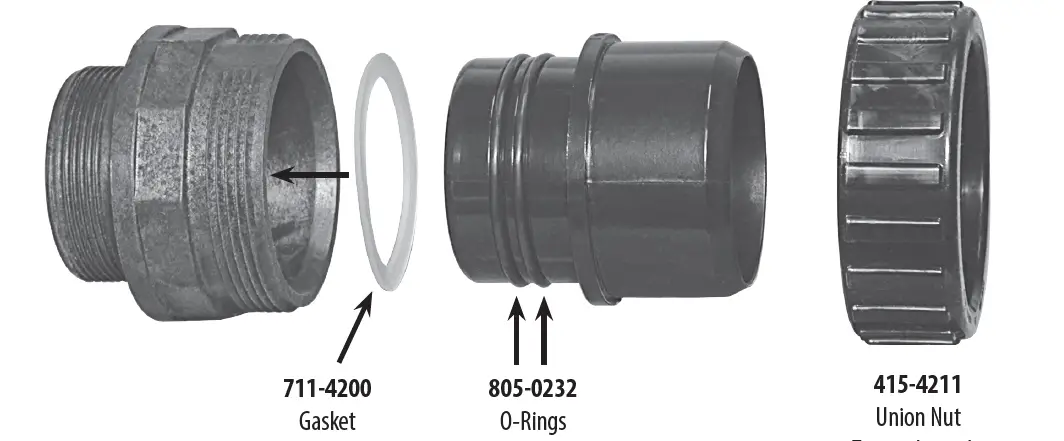

1. Insert the Gasket (711-4200) with a beveled edge facing in, inside each Bulkhead Fitting (2) (419-4201).
2.  Apply a non-petroleum lubricant to O-Rings (805-0232) on Tailpiece (417-2201).
3. With Gasket (711-4200) in place, push Tailpiece (417-2201) into Bulkhead Fitting (419-4201).
4. Tighten Union Nut (415-4211) onto Bulkhead Fitting (419-4201).
   HAND TIGHT ONLY.

WARRANTY

For product registration visit: www.waterwayplastics.com. For Warranty questions or claims please contact the point of purchase.

2200 East Sturgis Road, Oxnard CA 93030

Phone 805.981.0262
Fax 805.981.9403
www.waterwayplastics.com
[email protected]
