48-22-8332-6 PACKOUT Large Hook
Product Information
The product is a wall plate installation system designed to
securely mount various accessories to drywall, wood stud, and
concrete walls. It comes in different sizes, including Large Wall
Plates and Compact Wall Plates.
The installation system includes the necessary hardware and
tools, such as drywall anchors, screws, drill bits, driver bits,
level, stud finder, drill driver, impact driver, safety glasses,
gloves, lag bolts, wood screws, plywood, concrete anchors, masonry
bit, nut driver, hammer drill, N95 respirator.
For detailed installation instructions and additional resources,
you can visit the following links:
- Drywall Wall Plate
Installation Video - Wood Stud Wall Plate
Installation Video - Concrete Wall Plate
Installation Video
Product Usage Instructions
Drywall Wall Plate Installation:
- Locate and mark studs behind the drywall with a pencil.
- Hold the Wall Plate in the desired location and ensure it is

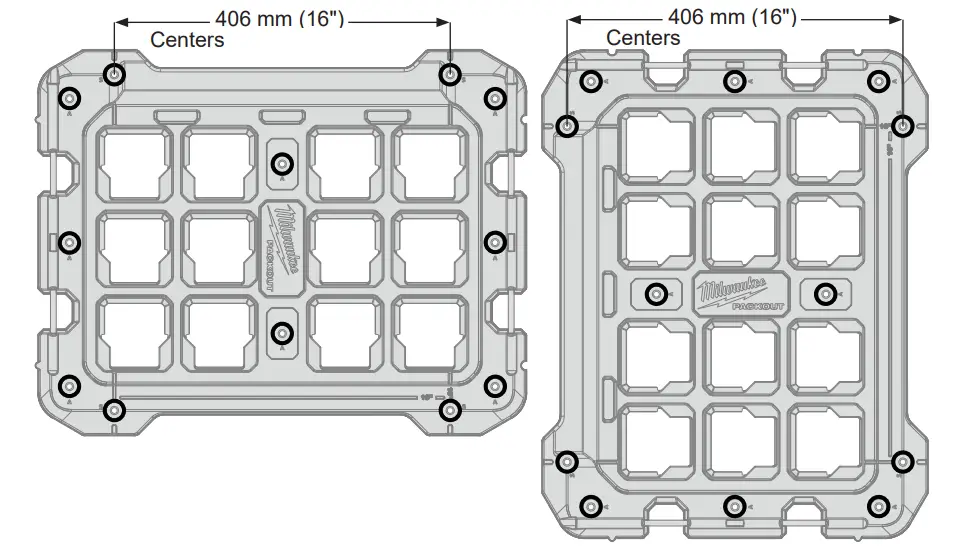

level. - If using a Large Wall Plate, mark the 10 identified fastening
points with a pencil. If using a Compact Wall Plate, mark the 5
identified fastening points. - Follow the drywall anchor manufacturer’s instructions to
install anchors. For any markings that fall on studs, pre-drill
holes with a 3/32 drill bit. - Fasten the drywall anchor manufacturer’s recommended fasteners
into the drywall anchors and #12 x 2 screws into the 3/32 pilot
holes. - Slide additional Wall Plates into place by guiding the new
plate’s Quick Alignment Tabs on the top, bottom, or sides into
place on the first Wall Mounted plate. - Repeat the process to add additional plates and fully customize
your shop.
Wood Stud Wall Plate Installation:
- Have a partner hold up the plywood backer in the desired
location and align it so it is in the center of a stud. Ensure the
plywood is level. - Attach the plywood to studs with a minimum of 9 wood
screws. - Hold the Wall Plate in the desired location and ensure it is
level. - Large Wall Plates require the 10 identified fastening points,
and Compact Wall Plates require the 5 identified points. Mark these
holes with a pencil. - Pre-drill all mounting holes with a 3/32 bit.
- Hold up the plate and fasten it with 1/4 x 1-1/4 lag
bolts. - Slide additional Wall Plates into place by guiding the new
plate’s Quick Adjustment Tabs on the top, bottom, or sides into
place on the first Wall Mounted Plate. - Repeat the process to add additional plates and fully customize
your shop.
Concrete Wall Plate Installation:
- Hold the Wall Plate in the desired location and ensure it is
level. - If using a Large Wall Plate, mark the 10 identified fastening
points with a pencil. If using a Compact Wall Plate, mark the 5
identified fastening points. - Pre-drill holes with a 3/16 masonry bit.
- Using 1/4 x 1-1/4 concrete anchors, fasten the plate to the
wall. Note: Certain concrete materials may require longer
anchors. - Slide additional Wall Plates into place by guiding the new
plate’s Quick Alignment Tabs on the top, bottom, or sides into
place on the first Wall Mounted Plate. - Repeat the process to add additional plates and fully customize
your shop.
Remember to refer to the installation videos provided for a
visual demonstration of the installation process.
INSTALLATION GUIDE
DRYWALL WOOD STUD CONCRETE
BUILD YOUR SYSTEM
SCAN
DRYWALL
WALL PLATE INSTALLATION
WATCH
INSTALLATION VIDEO
MATERIALS NEEDED:
n #12 Drywall Anchors n 3/32″
with 2″ Screws
Drill Bit
n Phillips #2 Driver Bit
n Level
n Stud Finder
n Drill Driver
n Impact Driver
or visit https://qr.mke.tl/2w9dv
n Safety Glasses
n Gloves
SCAN
1
2
3
Locate & mark studs behind drywall with a pencil.
4
Hold Wall Plate in desired location. Ensure plate is level.
5
If using a Large Wall Plate, mark the 10 identified fastening points with a pencil. If using a Compact Wall Plate, mark the 5 identified fastening points.
6
Follow drywall anchor manufacturer’s instructions to install anchors. For any markings that fall on studs pre-drill holes with a 3/32″ drill bit.
7
Fasten drywall anchor manufacturer’s recommended fasteners into the drywall anchors and #12 x 2″ screws into 3/32″ pilot holes.
Slide additional Wall Plates into place by guiding the new plate’s Quick Alignment Tabs on the top, bottom or sides into place on the first Wall Mounted plate.
Repeat process to add additional plates and fully customize your shop.
SCAN
WOOD STUD
WALL PLATE INSTALLATION
WATCH
INSTALLATION VIDEO
MATERIALS NEEDED:
n 1/4″ x 1-1/4″ n #8 x 2-1/2″
Lag Bolts
Flat Head
Wood Screws
n 3/32″ Drill Bit
n 7/16″ Nut Driver
n Level
n Drill Driver
n Impact Driver
n 1/4″ x 2′ x 4′ Plywood
or visit https://qr.mke.tl/23m82
n Safety n Gloves Glasses
SCAN
1
2
3
Have a partner hold up plywood backer in desired location and align it so it is in the center of a stud. Ensure plywood is level.
Attach plywood to studs with a minimum of 9 wood screws.
4
5
Hold Wall Plate in desired location. Ensure plate is level.
6
Large Wall Plates require the 10 identified fastening points and Compact Wall Plates require the 5 identified points. Mark these holes with a pencil.
7
Pre-drill all mounting holes with a 3/32″ bit.
8
Hold up plate and fasten with 1/4″ x 1-1/4″ lag bolts.
Slide additional Wall Plates into place by guiding the new plate’s Quick Adjustment Tabs on the top, bottom, or sides into place on the first Wall Mounted Plate.
Repeat process to add additional plates and fully customize your shop.
SCAN
CONCRETE
WALL PLATE INSTALLATION
MATERIALS NEEDED:
n 1/4″ x 1-1/4″
n 3/16″
n 5/16″
n Level
Concrete Anchors* Masonry Bit
Nut Driver
n Hammer Drill
WATCH
INSTALLATION VIDEO
or visit https://qr.mke.tl/26sgs
SCAN
n Impact Driver
n Safety n Gloves Glasses
n N95 Respirator
1
2
3
Hold Wall Plate in desired location. Ensure plate is level.
4
If using a Large Wall Plate, mark the 10 identified fastening points with a pencil. If using a Compact Wall Plate, mark the 5 identified fastening points.
5
Pre-drill holes with 3/16″ masonry bit.
6
Using 1/4″ x 1-1/4″ concrete anchors, fasten the plate to the wall.
*Certain concrete materials may require longer anchors
Slide additional Wall Plates into place by guiding the new plate’s Quick Alignment Tabs on the top, bottom or sides into place on the first Wall Mounted Plate.
Repeat process to add additional plates and fully customize your shop.
BUILD YOUR SYSTEM
