Headsets
BH-M97
Bluetooth Headset
User Manual

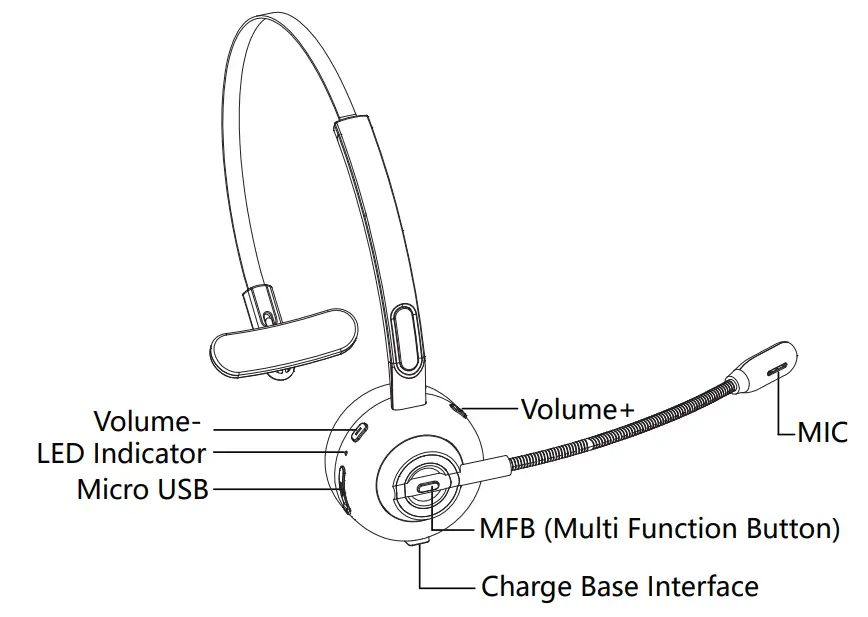

Product Overview

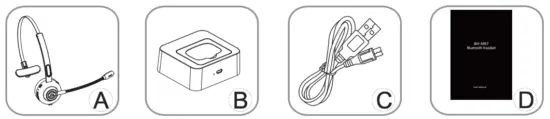

Package Contents:
A. Bluetooth Headset BH-M97 x 1
B. Charge Base x 1
C. Micro USB charging cable x 1
D. User manual x 1
Basic Operation
| Button | Function | Operation |
| MFB | Power On | In off status, Long press 1-3 seconds MFB to power on. |
| Power Off | In on status, Long press 5 seconds to power off | |
| Enter into Pairing Mode | In off status, Long press 5-8 seconds to enter into pairing mode. Or under unconnected standby mode, double press the MFB to enter into pairing mode. | |
| Play / Pause | Short press when playing music. | |
| Redial a call | Double press MFB to dial the last call. | |
| Reconnect | When there is a pairing record, power on and enter into reconnect state or short press MFB to reconnect under pairing mode. | |
| Voice Dialing | Long press 1-second MFB then release | |
| Audio Switch | Long press 1-second MFB to switch the audio between the phone and Bluetooth headset. | |
| Answer a call | Short press (when call coming) | |
| Hang up a call | Short press ( during a call ) | |
| Reject a call | Long press 1 second (when call coming) | |
| Volume + | Volume Up | Short press |
| Next Song | Long press for 1 second | |
| Volume | Volume Down | Short press |
| Previous Song | Long press for 1 second |
Bluetooth Pairing and Connection:

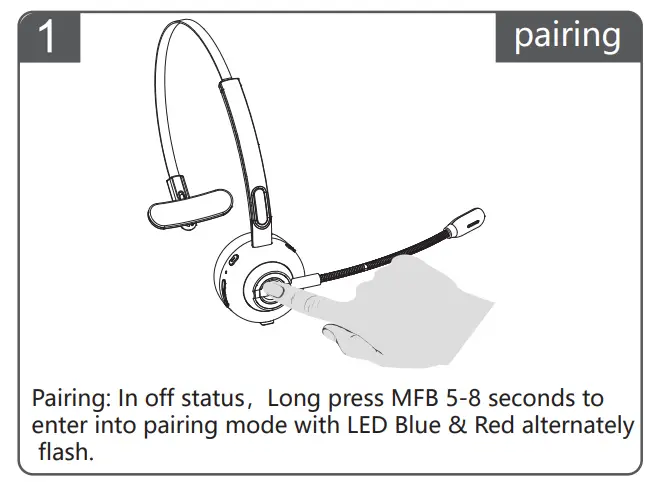

A. In off status, Long press 5-8 seconds to enter into pairing mode with LED Blue & Red flash alternately.

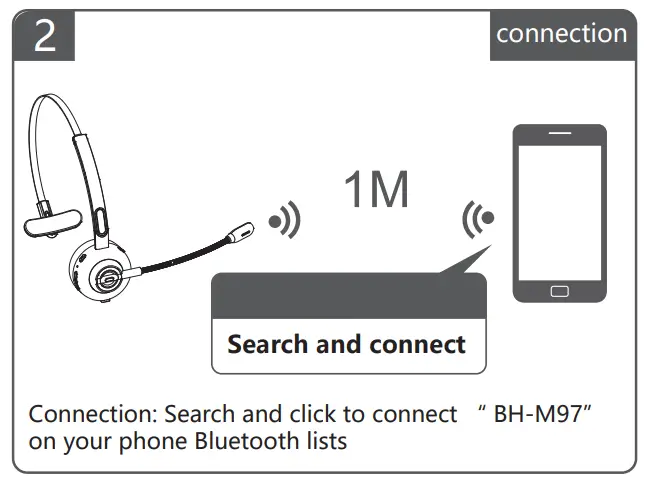

B. Search and click to connect “ BH-M97” on your phone Bluetooth lists, LED change to LED Blue to flash after connection, now you can play music from your phone to headphones.
C. You can press MFB/ volume+ / volume- on the Bluetooth headset to control the answer/hang up a call and play/pause of the music, next and previous songs, volume up and down.

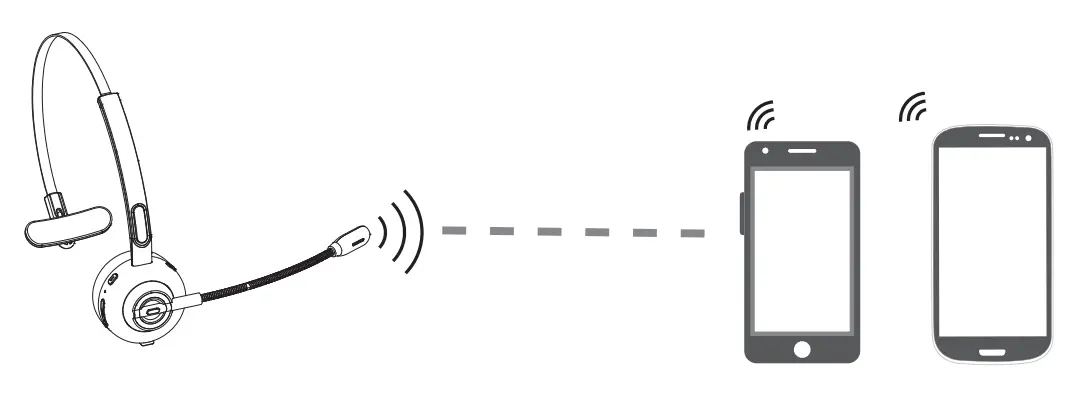

Connection with Two devices:
A. Follow part 3 to connect with the first phone, then turn off the Bluetooth function of the first phone.
B. Double press MFB to pairing mode again with Red & Blue LED flash alternately.
C. Search and click to connect “BH-M97” on your second phone Bluetooth lists, LED change to Blue LED low flash after connected.
D. Turn on the Bluetooth function of the first phone, and click to reconnect “BH-M97” on Bluetooth lists. Headset connected with two phones now.
Notes：
Music only can be played from one phone under two connections, when you want to play music from another phone, you need to pause or close the music of the previous phone. The same operation during talking status.
LED Indicator
| Mode | LED Indicator |
| Power on | LED Blue flashes 1 second |
| Power off | LED Red flashes 1 second |
| Pairing mode | LED Red & Blue flashes alternately |
| Unconnected standby mode | LED Blue flashes once every 2 seconds |
| Connected standby mode | LED Blue flashes once every 5 seconds |
| Playing Music | LED Blue flashes once every 5 seconds。 |
| Talking | LED Blue flashes once every 5 seconds |
| Delete paired record | Blue and Red LED flashes once at the same time |
| Charging | Solid LED Red |
| Full charged | Solid LED Blue |
| Low battery | Red LED flash |
Charging
Please charge the BH-M97 at once when the Red LED flashes.
The charging time is about 2 hours. Solid LED Red change to Solid LED
Blue when fully charged.

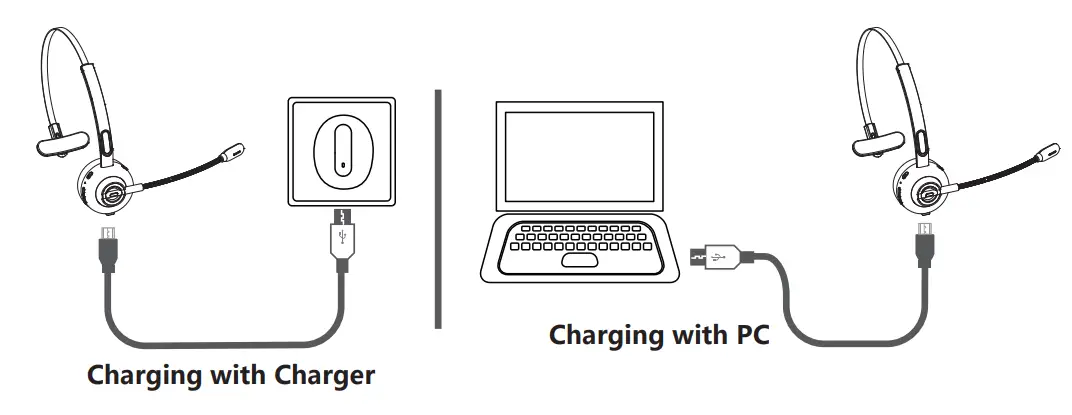

Charge Connections
Please connect to the BH-M97 charging port through the Micro
USB charging cable, the charger can be used as a car charger, travel charger, computer USB, etc.

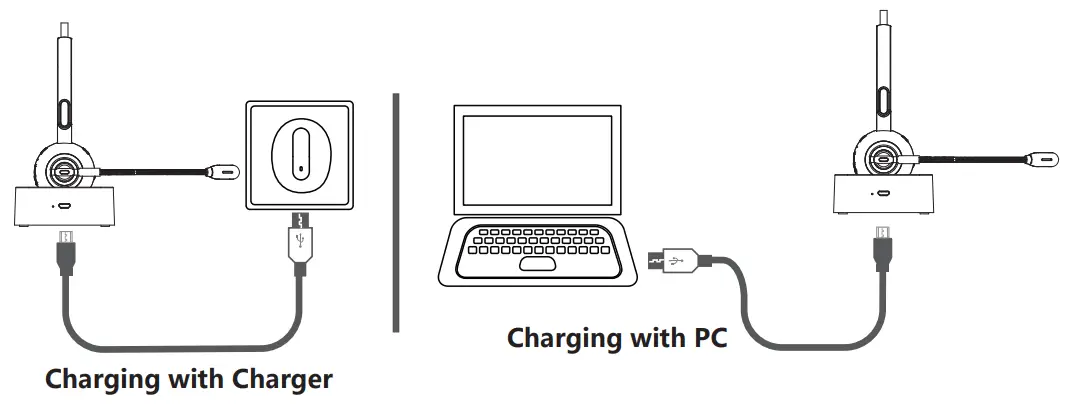

Use of charge Base
Please place the BH-M97 on the charging base, then connect the charging base to the USB charger through the Micro USB port for charging.
Notes：
- Pls, charge the BH-M97 at least one time every 2 months when don’t use it.
Product Specification:
| Bluetooth Version | Bluetooth V5.0 |
| Bluetooth Chipset | CSR 8615 |
| Operation Range | 10M |
| Bluetooth Protocols | HSP HFP A2DP AVRCP |
| CODEC Code | SBC |
| Battery Capacity | 180maH/3.7V |
| Charging Time | 2H |
| Stand-by Time | 200H |
| Working Time | About 17H (50% Volume) |
| Headset Net Weight | About 51g |
| Charge Base Net Weight | About 242g |
| Headset Dimension | 163.21*142.27*48.5mm |
| Charge Base Dimension | 79*73*31mm |
Notes：*Actual use time will differ from environment and music
Attentions and Q & A :
A. How to reconnect and operation when failed to reconnect?
When BH-M97 connected with your mobile phone successfully at the first time, it will search and reconnect the paired device automatically when power is on, If failed, please pair and connect again.
B. How to Delete paired records?
In Power on state, long-press the volume+ and the volume-button for 5 seconds to clear the pairing record. The indicator Blue and Red LED flashes once at the same time which means the pairing record has been cleared, and the BH-M97 will not connect back to the connected device. When there is various connection problems, try clearing the pairing record first.
C. What’s the password for the pairing?
Some connection devices require a password for pairing, pls try 0000 or 8888 or 1111 or 1234.
D. What devices could charge for the headphone?
Any car charger, power bank, PC, etc which meets DC 5V, charging current more than 500mA could be charged for this item.
E. Three-way calling function operation
Call coming during the call, short press the MFB to answer the new call and hang up the current call;
Call coming during the call, double press the MFB to answer the new call and keep the current call;
Call with a new call coming, long-press the MFB for 1 second rejecting a new call.
When you are on a three-party call, double press the MFB to switch audio between the current call and they keep calling.
