Nebo Sl100 Luxtreme Spotlight Instruction Manual

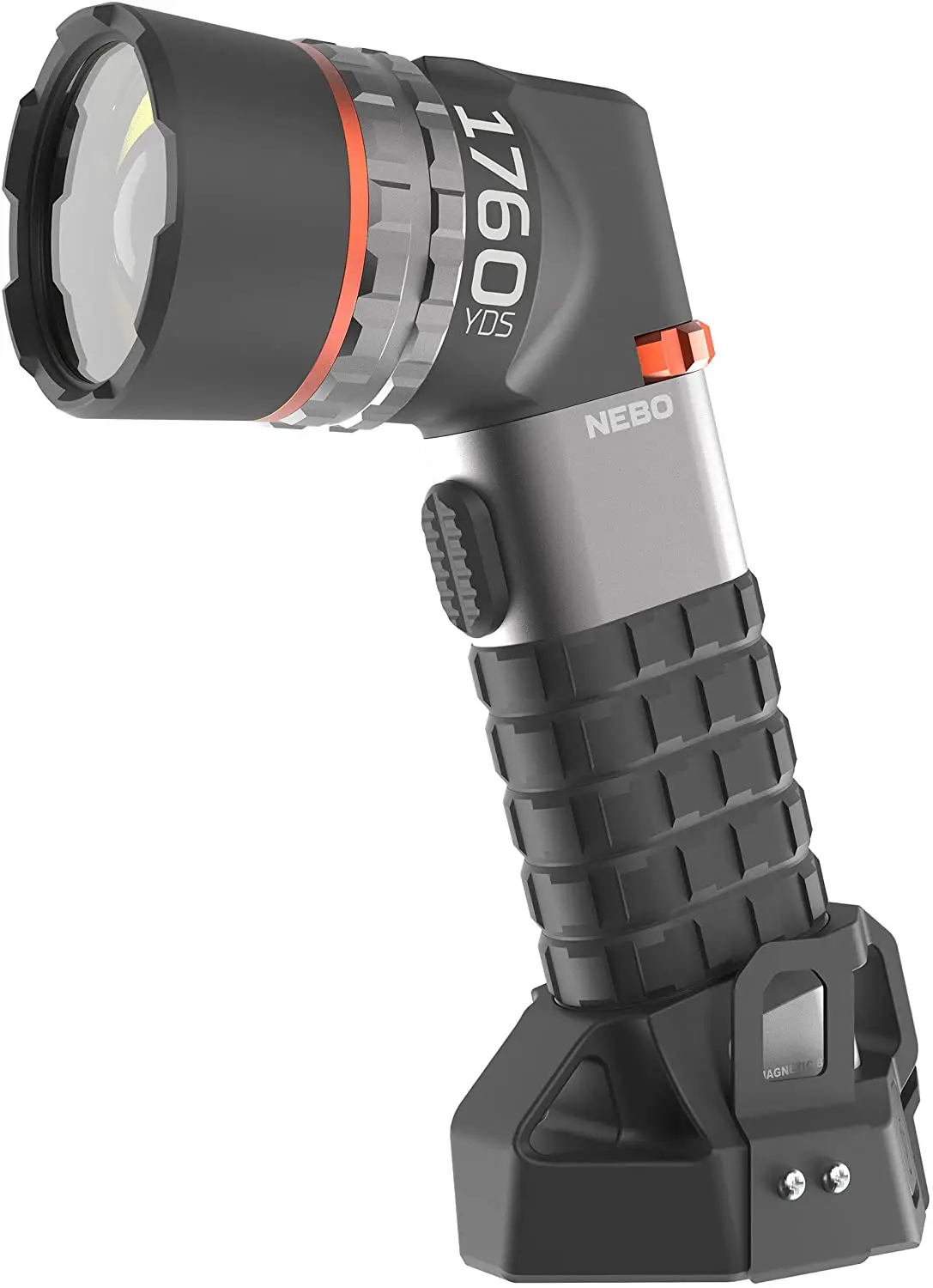

NEBO SL100 Luxtreme Spotlight

LUXTREME SLlOO

Our Luxtreme SL line of spotlights offer extraordinary beam distance and close-range flood pattern in an ergonomic and rugged design.

One Mile Beam Distance

• Mode Select Dial
• USB Rechargeable
• Smart Power Control
• Magnetic Base
• Belt Clip
• 12V Adapter
• Tripod Mount
• IP67 Waterproof

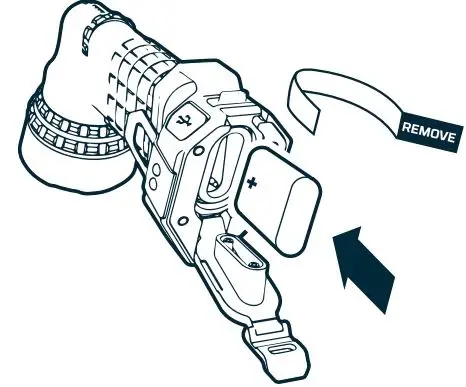

REMOVE BATTERY SPACER BEFORE OPERATION!  This unit uses a battery spacer during shipping. Remove before operation. To remove the battery, unlatch the Battery Cover. After removing the spacer, insert the battery positive ( +) side first.  This device is a photobiological safety Risk Group 1 (RGl) product. The Maximum Permissible Viewing Exposure (MPE) is SO seconds.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure

OPERATION

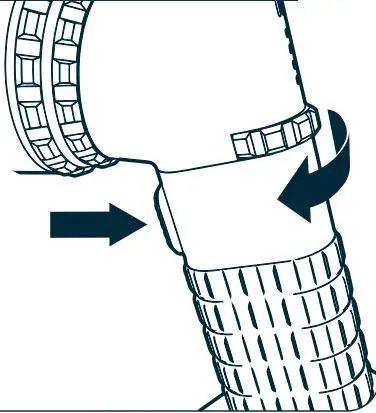

Rotate the Mode Select Dial to cycle through light modes: Off > White COB > LEP White COB + LEP

• Press the Trigger Button to turn the unit on.
• Press again to turn Off.
• Press and hold the Trigger Button to activate Red COB.
• Smart Power Control (SPC) seamlessly transitions through light modes.

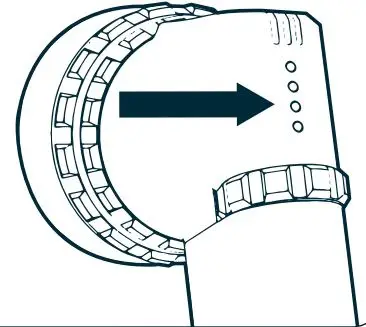

POWER INDICATOR

This product uses 4 LED lights just above the Mode Select Dial.

• 100% battery: 3 green, 1 red
• 75% battery: 2 green, 1 red
• 5O% battery: 1 green, 1 red
• 25% battery: 1 red

Press the trigger button while Mode Select Dial is in the Off position to show battery life.

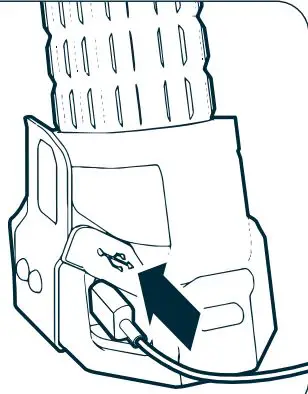

CHARGING

Use the included charging cable to recharge the Luxtreme SL. The last indicator light will flash when the unit is charging. When charging is complete, all indicators will light continuously.

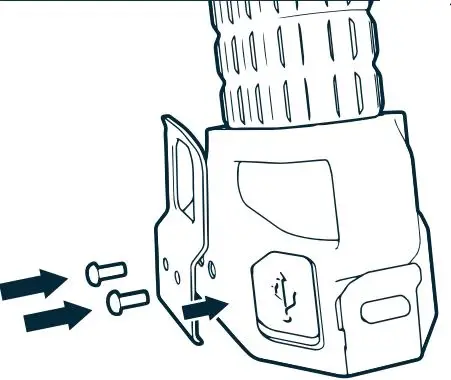

BELT CLIP

The Belt Clip is designed so that it can be mounted on either side of the base. Simply screw the Belt Clip in the desired position.
