Hugo2
User Manual
Digital To Analog
Converter and
Headphone
Amplifier

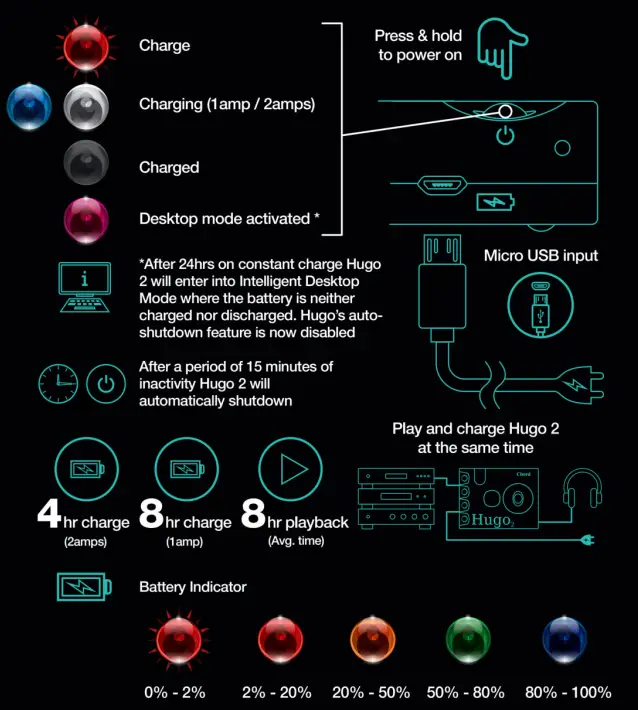

How to charge and connect to power

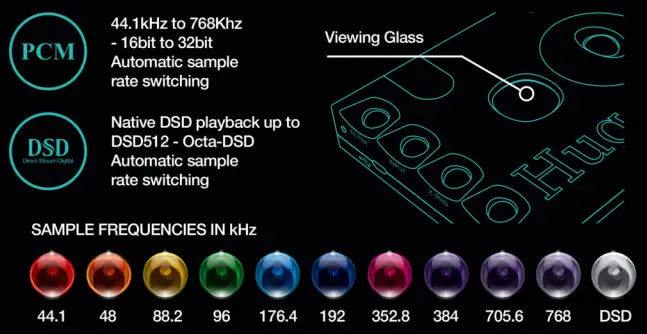

Sample rate indicator – how to read sample rate

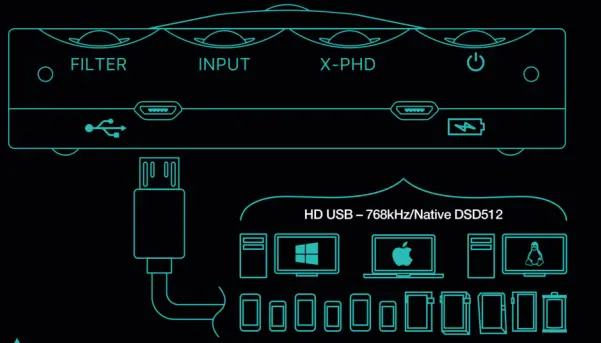

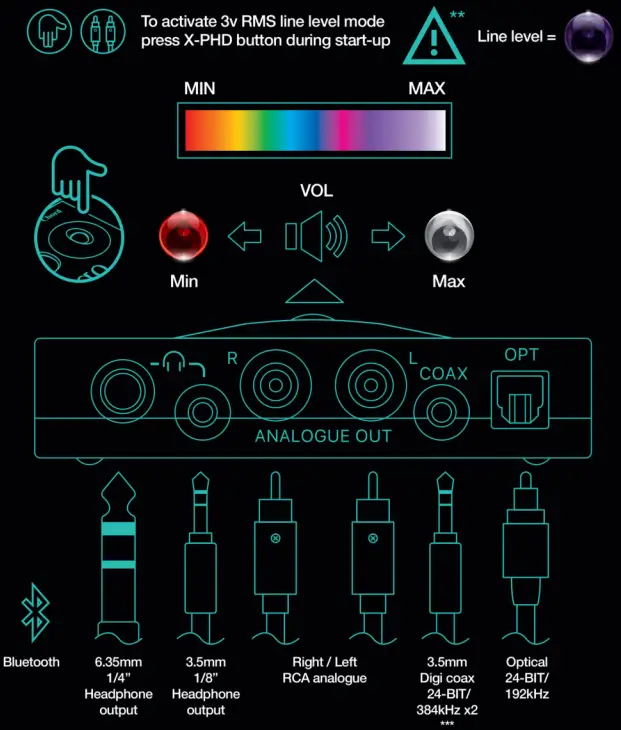

Connectivity
Coax 1 configuration Tip and sleeve. Coax 2 configuration. Ring and sleeve. The 3.5mm dig4a1 coaxial jack input supports dual data mode’. where 768kHz files can be input as two separate 3848. Hz data streams, should devises support this capability.
WARNING – Do not activate line-level whilst operating headphones. you risk damage to your °pupil-mot and your hearing.

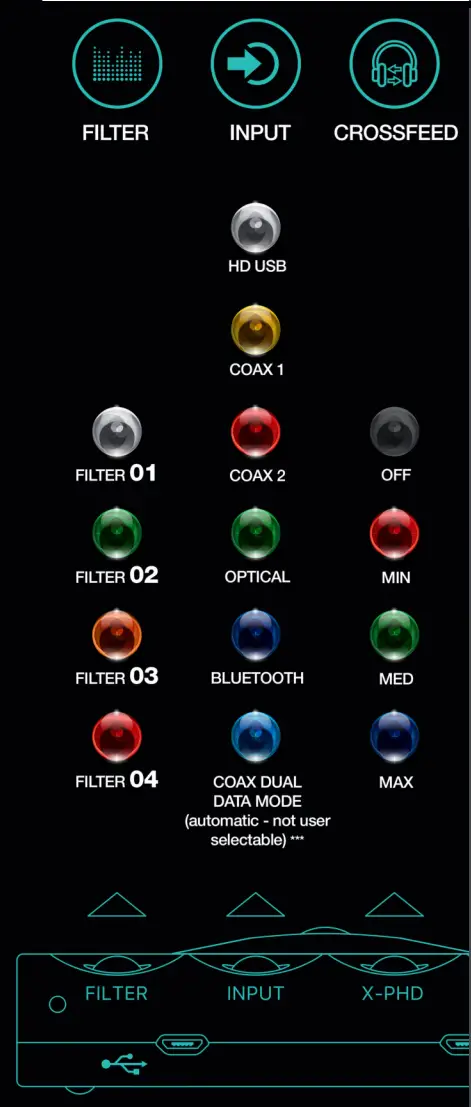

Control options
To suit your ambient Ilabilirtiriftifat 1105 settings – High and Low. To cycle between simultaneously press the ALTER and X-P

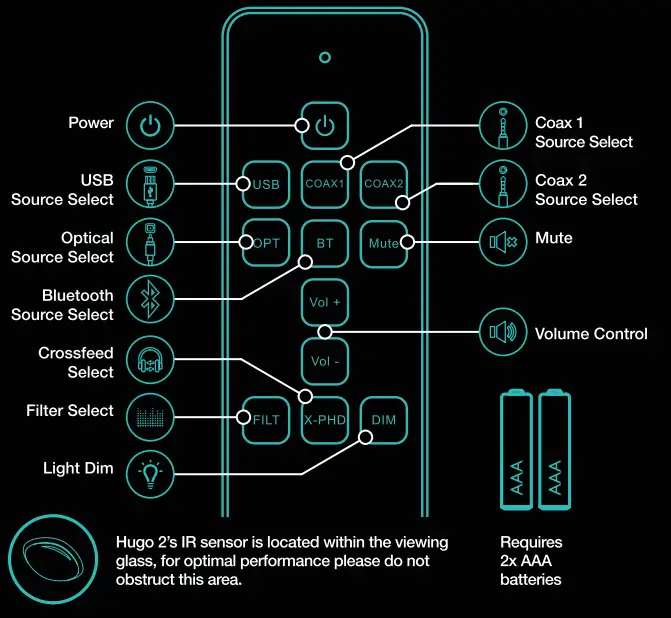

Remote control function
Care instructions
Please only use a dry cloth to clean Hugo 2
Never directly spray liquids, including cleaners, onto Hugo 2
Do not allow Hugo 2 to come into contact with liquid
Never poke objects into the exposed connectors apart from the designated connectors
Never drop or expose Hugo 2 to mechanical shock
No user-serviceable parts, do not disassemble Hugo 2. Doing so will void your warranty. Please contact your original dealer in the event of a fault
Only operate within the specified temperatures
3-year limited warranty on hardware
18-month limited warranty on internal batteries
Important information
USB Compatibility:
Windows PC (Driver available online), Mac OS X, Linux, iOS devices, and Android. Micro USB input
Bluetooth:
Select Bluetooth Input (Blue) and pair with device using (Pairing code: 0000)
Crossfeed:
Gives a more-speaker-like presentation with a three-stage DSP spatial effect
Line-level mode:WARNING! The line-level mode will set the maximum volume on all outputs including headphones. Please disconnect before continuing.
To activate, press and hold the Crossfeed (X-PHD) button when turning the unit on.
To deactivate, switch the unit off and confirm that the volume has reduced using the color chart supplied within this manual
Charging:
A 5V 2-amp charger is required to charge Hugo 2 at maximum speed. Chargers between 1-2 amps will charge Hugo 2 in half-charge mode and will decrease play/charge length. Chargers below 1 amp will fail to charge Hugo 2. WARNING! If the batteries are fully depleted the unit will not switch on. Please connect to a charger and wait 30mins
Specifications
To activate your warranty you must register your product at: chord electronics.co.uk/ register-product
Frequency response: 20Hz – 20kHz +/- 0.2dB
Total Harmonic Distortion: <0.0001% 1 kHz 3V RMS 300 ohms
THD and noise at 3V RMS Ref 5.3V: 120dB @ 1kHz 300 ohms A Wt
Noise 2.6 uV A Wt: no measurable noise floor modulation Signal to noise ratio: 126dB A-weighted Channel separation: 135dB @ 1 kHz 300 ohms
Maximum output level (to clipping at 1 % distor-tion): 94 mW 300 ohms; 740 mW 33 ohms; 1050 mW (8)
Output impedance: 25 milliohms (0.025 ohms)
