Wearable Safety Beacon Front Light
Instruction Manual
Assembly instructions

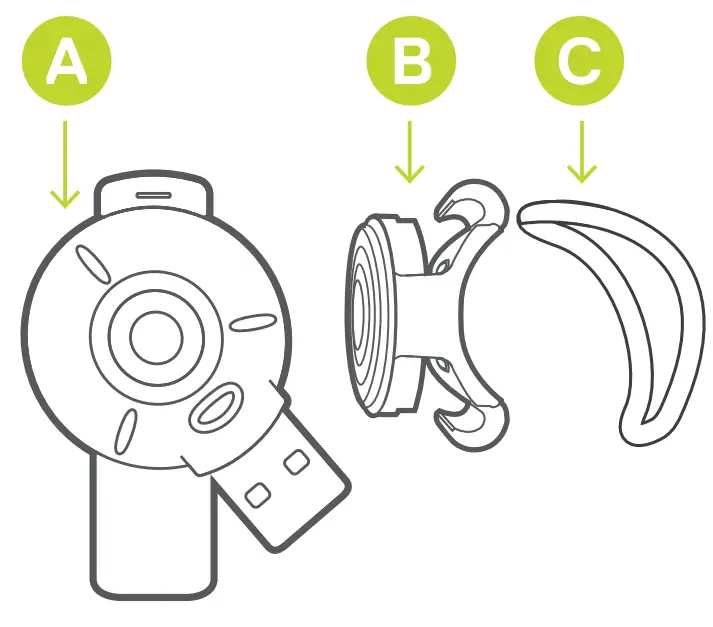

Parts
- x1 — Beacon (Front & Rear)
- x1 — Mount
- x1 — Mount Band

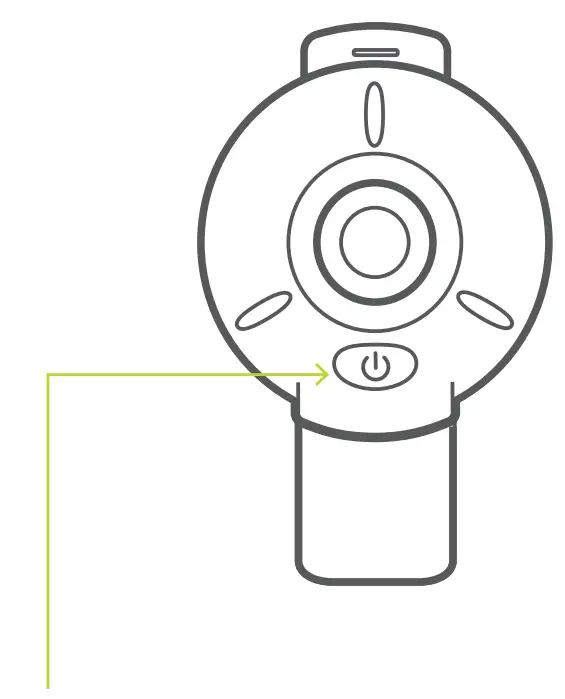

Operation modes:
| ACTION | LIGHT MODE | EST. RUN TIME |
| Press once (1) | Pulsing | 10 Hours |
| Press again (2) | Constant Beam | 3.5 Hours |
| Press again (3) | Movement Detection* | 20 Hours |
*3 quick flashes indicate movement mode activated. Light will stop flashing if no movement is detected for 7 seconds.

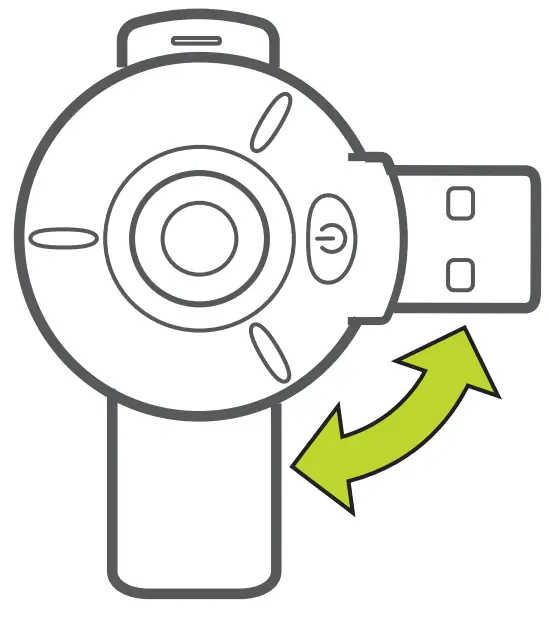

USB Charging
Charge periodically in any USB port or when light appears dimmer.
Charge Time: approx 50 mins Slow pulse while charging. Constant light when fully charged.
IMPORTANT NOTE
Failure to charge after extensive use may affect battery life.

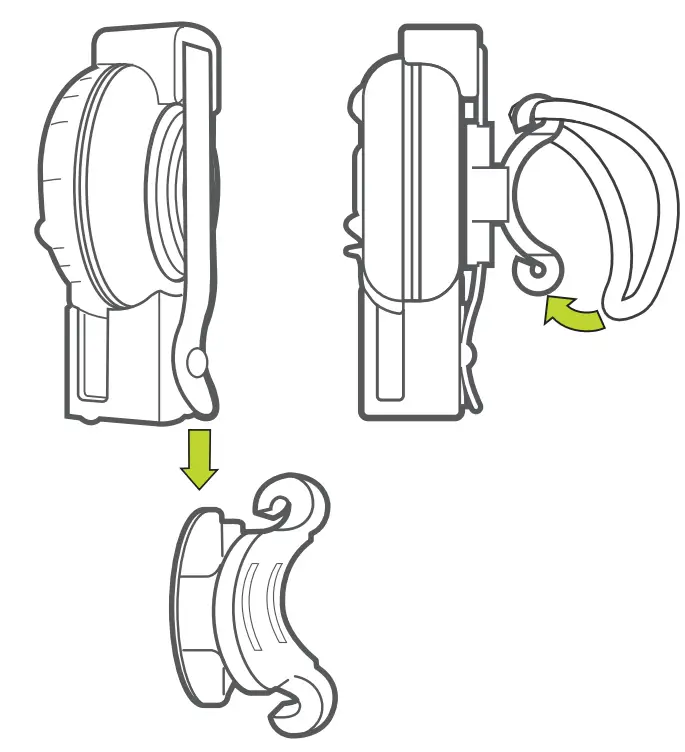

Attach to Mount
- Slide the beacon into the mount, be sure it is lined up securely.
- Attach band, wrap-around bar secure another side to bottom hook.

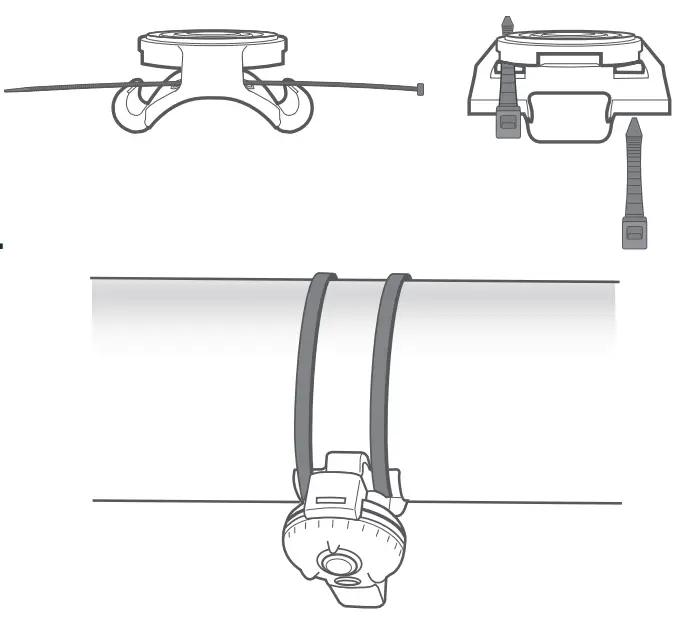

Attachment Option
Zip Ties (not included) can be used for the permanent attachment of mount and to secure to larger size bars.
IMPORTANT NOTE
Max width of Zip Ties is 5mm, (3/16″) WARNING
Do not look directly into this light. May cause temporary blindness.
CHOKING HAZARD! Not to be used by children under 5 years old.

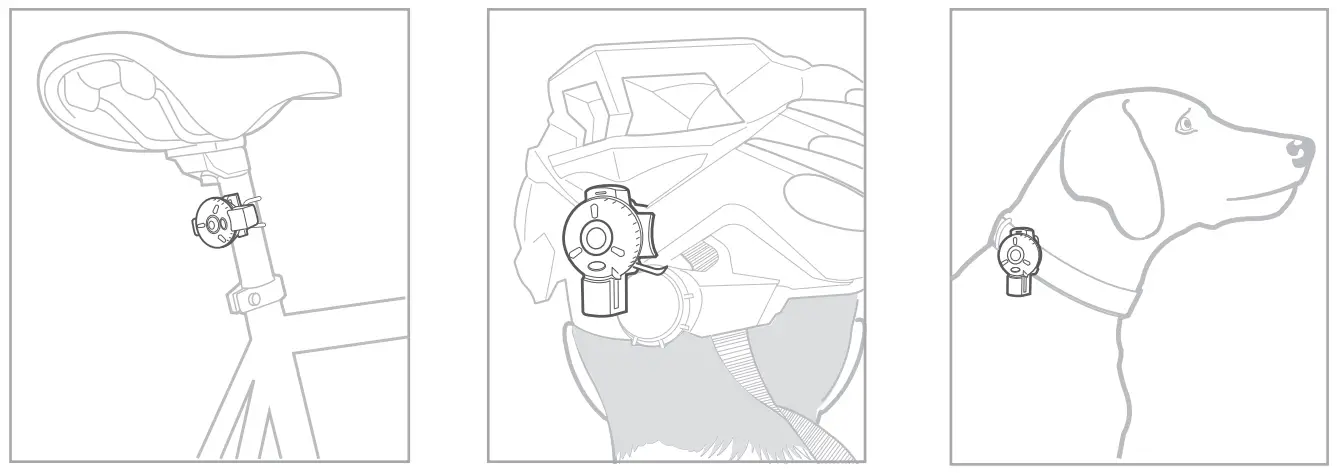

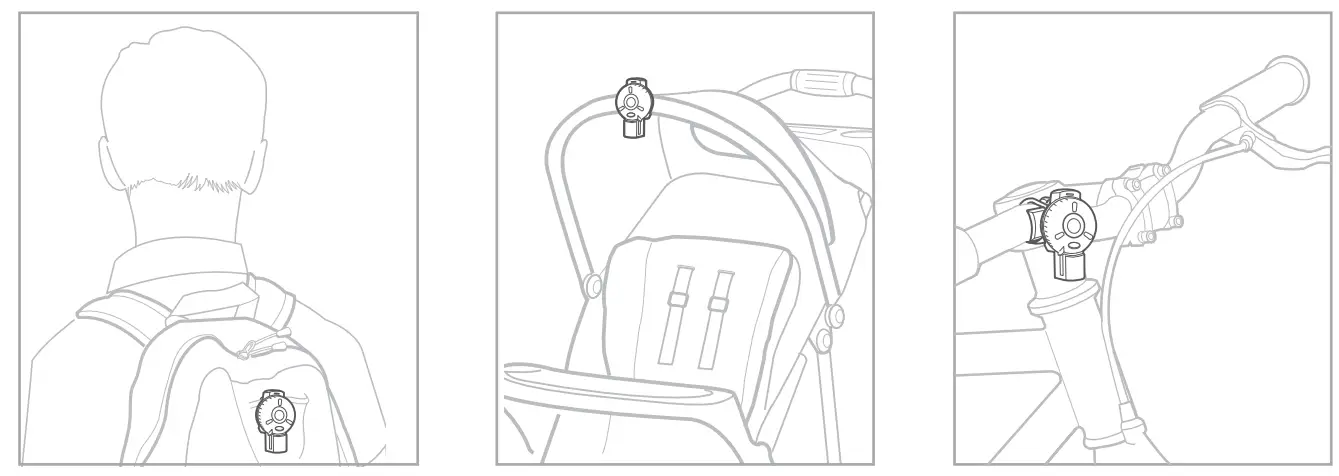

Easy Attachment Anywhere
Assembly video
