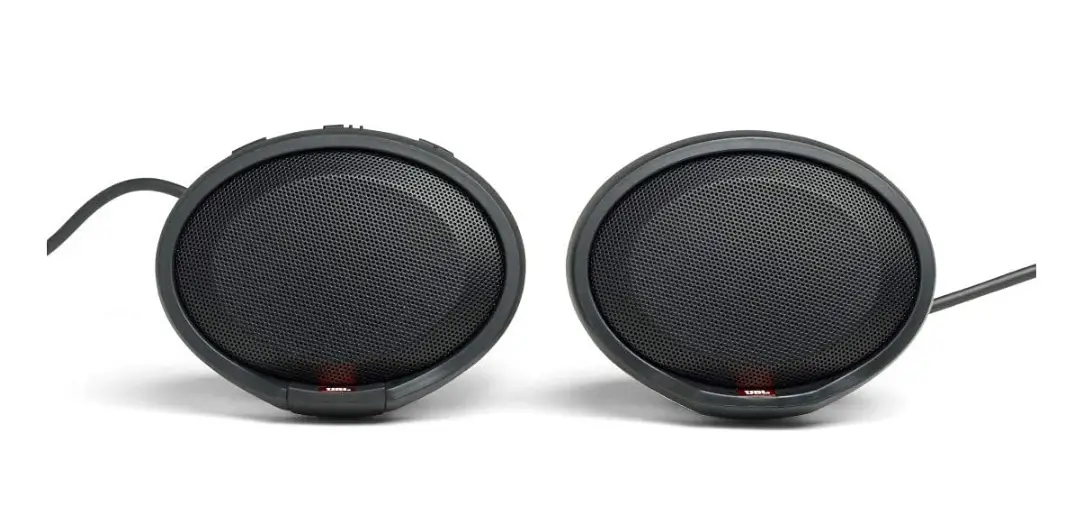

JBL Cruise Handlebar Mounted Bluetooth
Specifications
- DIMENSIONS: 10 x 60.9 x 16
- WEIGHT:77 lbs.
- BLUETOOTH VERSION:0
- OUTPUT POWER (W): 2 x 20
- TRANSDUCER: 2 x 65mm
- RATED POWER: 2 x 5W
- FREQUENCY RESPONSE: 90Hz to 15kHz
- SIGNAL-TO-NOISE RATIO: >80dB
Introduction
JBL Cruise is a specially designed audio system created to meet the requirements of motorcycle and scooter applications. Cruise will produce more smiles per gallon and is far safer than in-ear headphones. Stream music effortlessly from any Bluetooth-enabled device and kit it was charged using the built-in USB connection. two 65mm transducers that are powered by a built-in digital amplifier creates a unique concert experience. With this entire tech glove-friendly, IPX5-rated packaging that mounts to practically any surface, and performance any motorbike or scooter that uses the mount for mirror integration JBL has filed for a patent for. Additionally, the Cruise is simply painted to reflect the rider’s personal style.

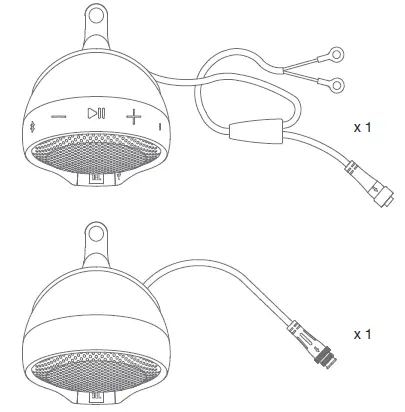

What’s in the box
Screw bags as accessories are not included in the box, please order it separately per specific needs
- Check the screw type of both side of the motorcyle mirrors
- Determine what type of screw bag to be ordered and also whether left-handed screw bolts , nuts and adjust screw are required or not
- Order and select bolts , nuts and adjust screw accordingly before starting installation
Design for M10 PE bag

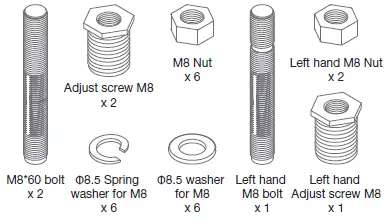

Design for M8 PE bag
Design for Design for Harley Davidson 1200 custom PE bag

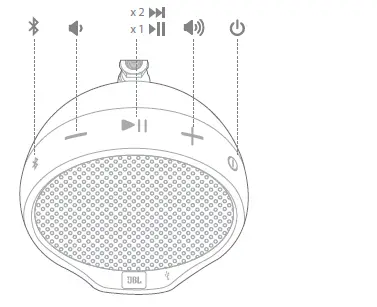

Buttons

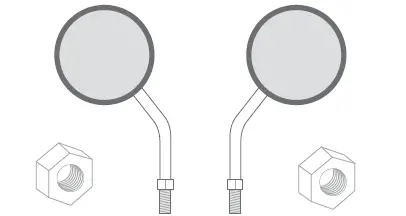

Design for motorcycles’ mirror screw type M8, M10 and Harley Davidson 1200 custom
Installation of speaker for M10 screw type

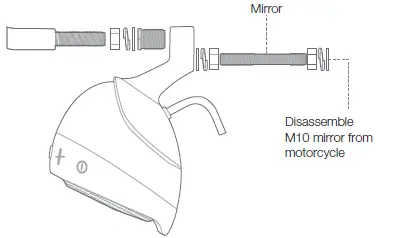

- Disassemble left M10 mirror from motorcycle
- Take the M10 bolt with M10 nut 2pcs, Φ10.5 washer 2pcs and Φ10.5 spring washer 2pcs from M10 PE bag

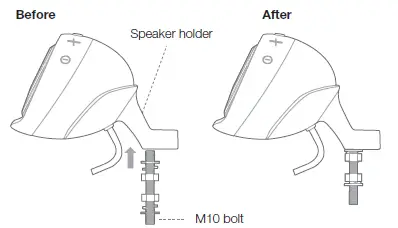

- Screw M10 bolt into the left speaker holder

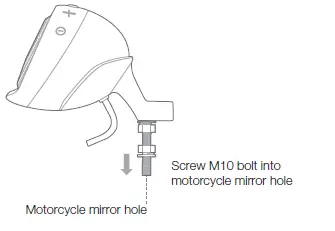

- Screw M10 bolt into left motorcycle mirror hole

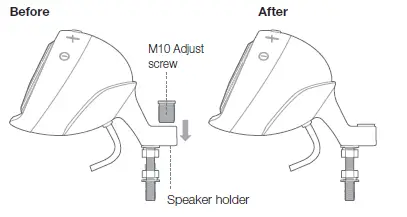

- Screw M10 Adjust screw into left speaker holder hole

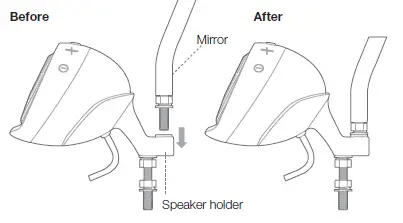

- Screw the M10 mirror into left speaker holder
Installation of speaker for M8 screw type

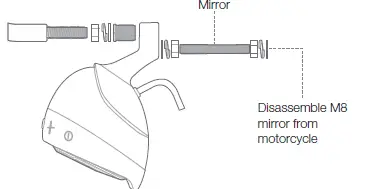

- Disassemble M8 mirror from motorcycle

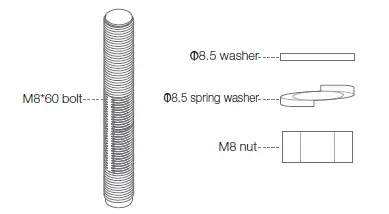

- Take the M8*60 bolt from M8 PE bag and take M8 nut 2pcs, Φ8.5 washer 2pcs and Φ8.5 spring washer 2pcs from share part PE bag
- Screw M8 nut, Φ8.5 washer and Φ8.5 spring washer onto M8*60 bolt

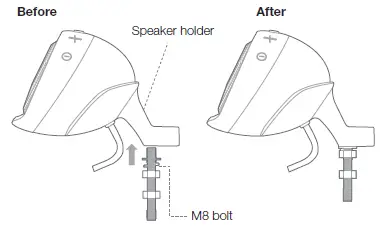

- Screw M8*60 bolt into the Left speaker holder
- Screw M8*60 bolt into left mirror hole after assembled Φ8.5 spring washer, Φ8.5 washer on it.

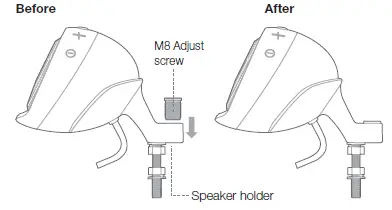

- Screw M8 Adjust screw into hole of the left speaker holder

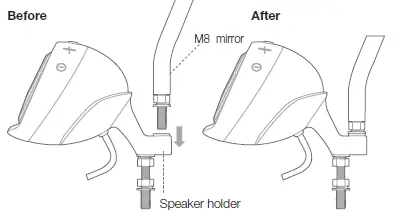

- Screw M8 Left mirror into speaker holder hole
Speaker for Harley Davidson 1200 custom installation

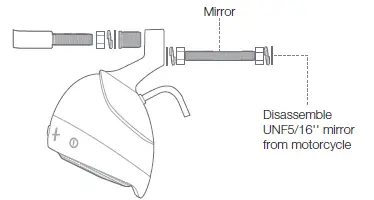

- Disassemble UNF5/16’’ left mirror from motorcycle

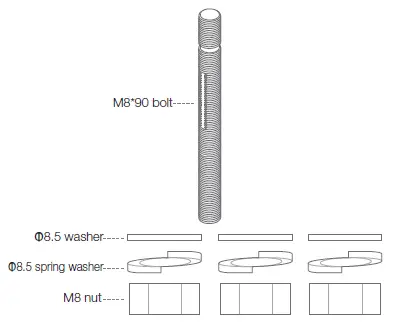

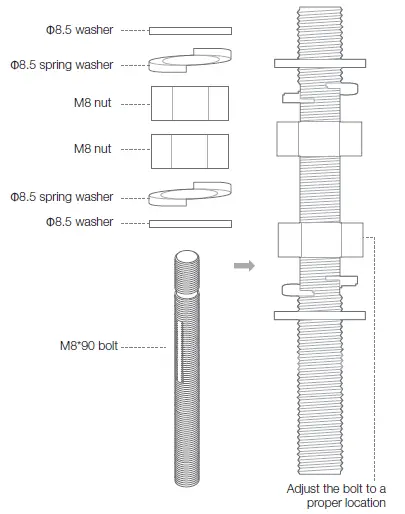

- Take the M8*90 bolt from Design for Harley Davidson 1200 custom PE bag and take M8 nut 3pcs, Φ8.5 washer 3pcs and Φ8.5 spring washer 3pcs from share part PE bag

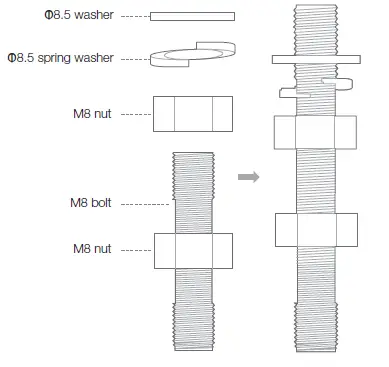

- Screw M8 nut, Φ8.5 washer and Φ8.5 spring washer onto M8*90 bolt
- Screw M8*60 bolt into the Left speaker holder

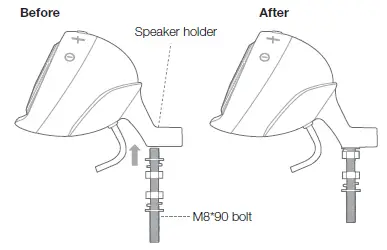

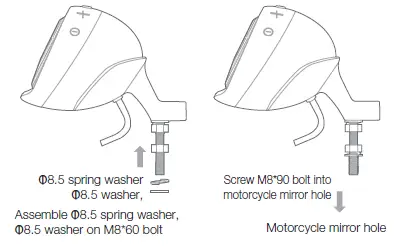

- Screw M8*90 bolt into left mirror hole after assembled Φ8.5 washer, Φ8.5 spring washer, M8 nut on it.

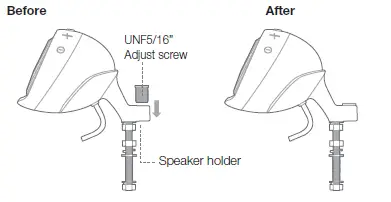

- Screw UNF5/16” Adjust screw into hole of the left speaker holder
- Screw UNF5/16” nut, Φ8.5 washer and Φ8.5 spring washer onto mirror bolt

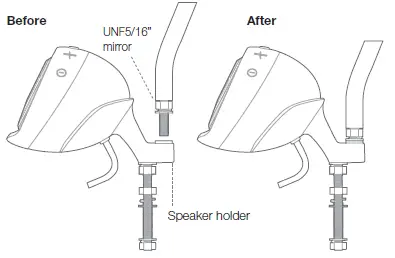

- Screw UNF5/16” Left mirror into speaker holder hole
Please follow the same installation process to install the right speaker.

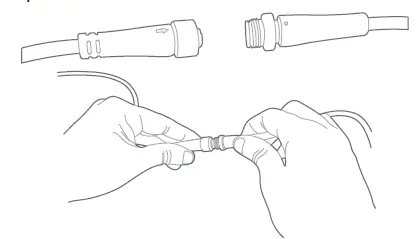

After Installing the left and right speakers please follow the sequence to connect the cable
- Step 1 – Audio Cable connection Connect Audio Cable from right speaker to left speaker.

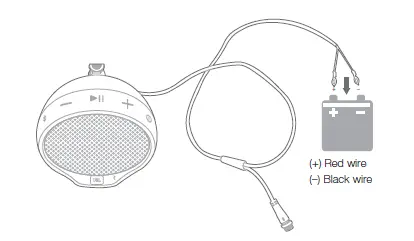

- Step 2 – Power cable connection Connect the power cable to the battery from the left speaker.

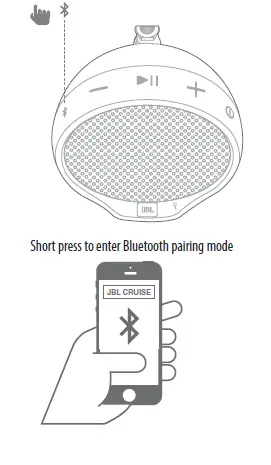

Bluetooth® pairing mode

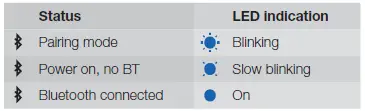

LED indication

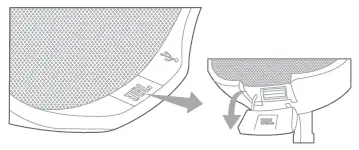

10 USB charging
5W output to charge smartphone.
Warning
Please keep the cable away from the high-temperature components.
Frequently Asked Questions
Press and hold the pairing button for three seconds. The blue LED ring at the base of the remote will flash to indicate pairing mode and you will hear an audible alarm. Select JBL Cruise X on your Bluetooth device once it is in pairing mode.
Press and hold the pairing button for three seconds. The blue LED ring at the base of the remote will flash to indicate pairing mode and you will hear an audible alarm. Select JBL Cruise X on your Bluetooth device once it is in pairing mode.
Make sure the battery in your JBL speaker is completely charged. Before attempting to pair it again if it is low, charge it. Ensure that “Discovery Mode” is enabled and that Bluetooth is switched on your JBL speaker. When in discovery mode, the power button on the majority of JBL speakers will flash blue.
100 of our speakers can be paired together. With paired speakers, you may enjoy the best sound with all of your friends, whether you prefer stereo sound or more loudness!
JBL Flip 3, JBL Charge 3, JBL Pulse 2, and JBL Clip 2 are additional speakers that support conventional JBL Connect pairing protocol and can be linked. While the PartyBoost feature on the JBL Flip 5 and JBL Pulse 4 enables them to be connected to one another.
The JBL can create a deeper and longer low-bass than the Bose because of its more well-balanced sound profile. With an IP67 designation for water and dust protection, it is also better constructed. The Bose, however, is more compact and portable than the JBL.
JBL is among the pioneers of speaker technology; the business has existed for many years. Wireless JBL speakers have established themselves as the indisputable leaders of Bluetooth speakers for the mass market because to their waterproofing, robust features, and dependable performance.
Your JBL Flip 4 may have a defective battery if it won’t charge or shuts off without warning. Make sure the speaker hasn’t been exposed to unusual temperatures, like being close to a stove or fireplace, before changing the battery.
Android. Launch Settings and activate Bluetooth. Click “Pair new device” in Bluetooth. Your JBL gadget should be associated with your phone once you tap it when you see it appear in the list.
Aim for closer to 600 watts if you commute by bike on the highway. Your music will sound better when it is played louder if the wattage is higher.
At least 300 watts RMS are required for the best motorbike speakers. The quality of the sound that the speakers generate will increase with their power.
You will undoubtedly require a lot of electricity if you upgrade your current motorcycle speakers and add a few additional speakers. The only way to enhance your motorcycle with a high-power, high-efficiency amplifier is to make your music loud enough to drown out wind and exhaust noise.
The devices own Bluetooth is typically either off or not in pairing mode when this happens. To find out how to activate pairing mode and make it discoverable, consult the user handbook. Some headphones require you to hold down the power button for a longer period of time, whereas other devices include a separate Bluetooth button.
If your Bluetooth devices aren’t connecting, they probably aren’t in pairing mode or are out of range. Try rebooting your devices or having your phone or tablet “forget” the connection if you’re encountering persistent Bluetooth connection issues.
