DELL Inspiron 14 5410 Core i5 11th Generation 8GB Ram 256GB Laptop

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Set up your Inspiron 5410 2-in-1

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

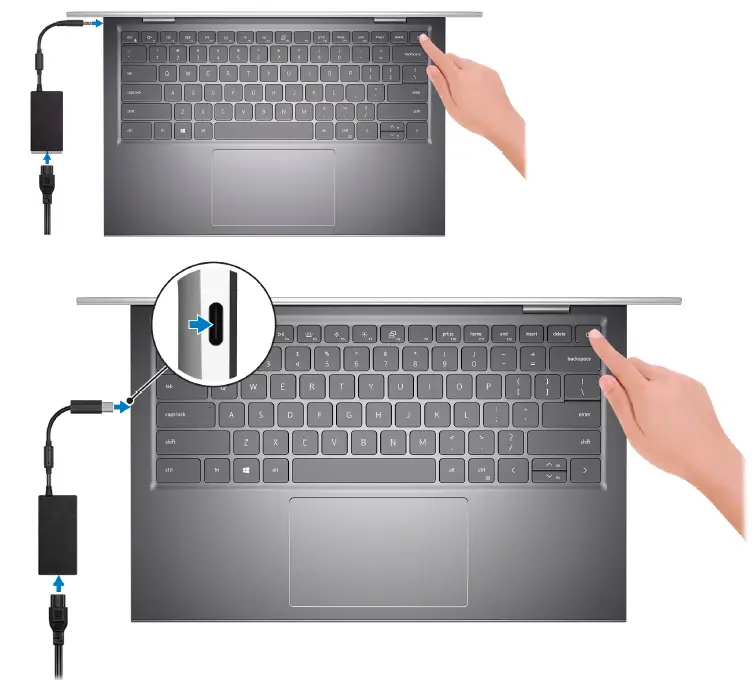

1. Connect the power adapter and press the power button.
   NOTE: Power source on Inspiron 5410 2-in-1 varies with the configuration ordered.
   NOTE: The battery may go into a power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.
2. Finish Windows setup.
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   • Connect to a network for Windows updates.
     NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   • If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
   • On the Support and Protection screen, enter your contact details.

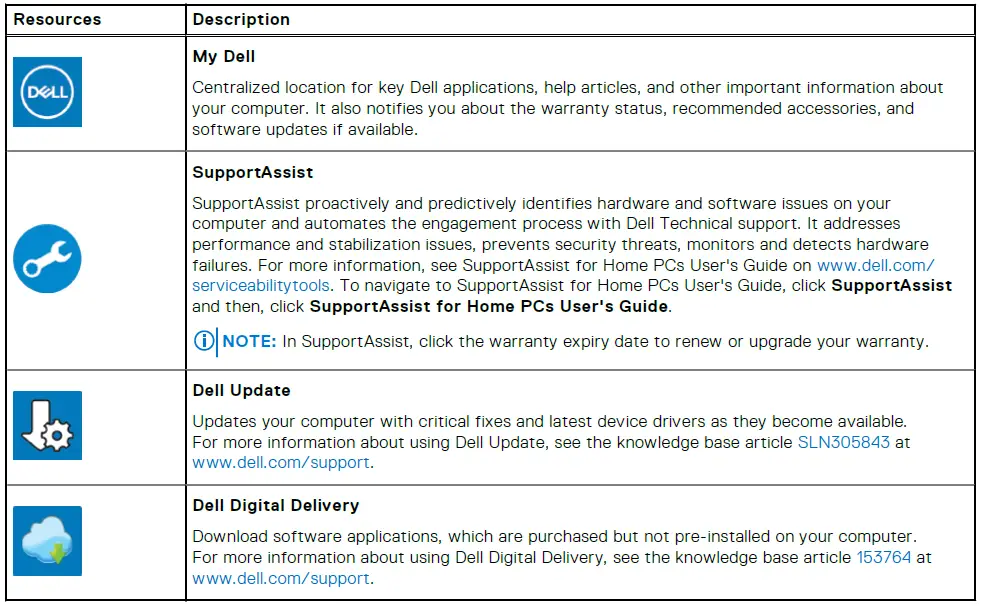

3. Locate and use Dell apps from the Windows Start menu—Recommended.

Table 1. Locate Dell apps

Views of Inspiron 5410 2-in-1

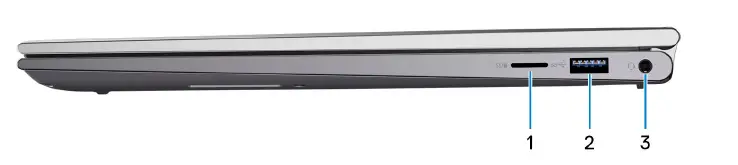

Right

1. microSD-card slot
   Reads from and writes to the MicroSD card. The computer supports the following card types:
   • micro secure Digital (microSD)
   • micro secure Digital High Capacity (microSDHC)
   • micro secure Digital Extended Capacity (microSDXC)
2. USB 3.2 Gen 1 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
3. Global headset jack
   Connect headphones or a headset (headphone and microphone combo).

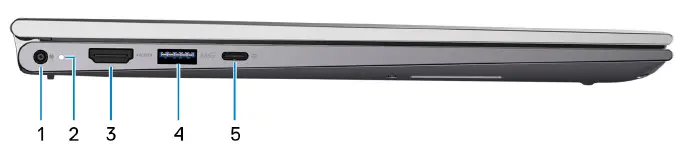

Left

1. Power-adapter port
   Connect a power adapter to provide power to your computer.
2. Power and battery-status light
   Indicates the power state and battery state of the computer.
   Solid white—Power adapter is connected and the battery is charging.
   Solid amber—Battery charge is low or critical.
   Off—Battery is fully charged.
3. HDMI port
   Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
4. USB 3.2 Gen 1 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
5. USB 3.2 Gen 2 (Type-C) port with Power Delivery/DisplayPort
   Connect peripherals such as external storage devices, printers, and external displays.
   Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/ 3 A power output that enables faster charging.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

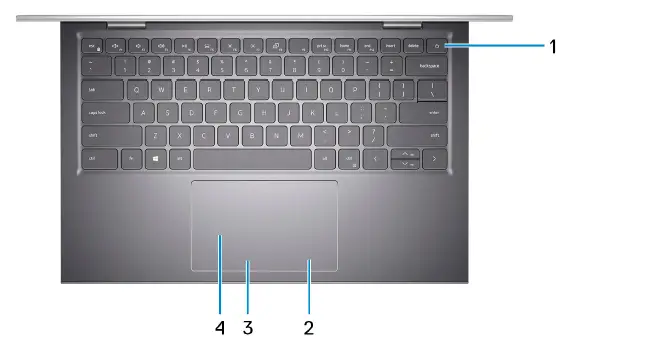

Top

1. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in a sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into a sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
   If the power button has a fingerprint reader, place your finger on the power button to log in.
   NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
   NOTE: The power-status light on the power button is available only on computers without a fingerprint readers. Computers that are shipped with the fingerprint reader that is integrated on the power button will not have the power-status light on the power button.
2. Right-click area
   Press to right-click.
3. Left-click area
   Press to left-click.
4. Touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.

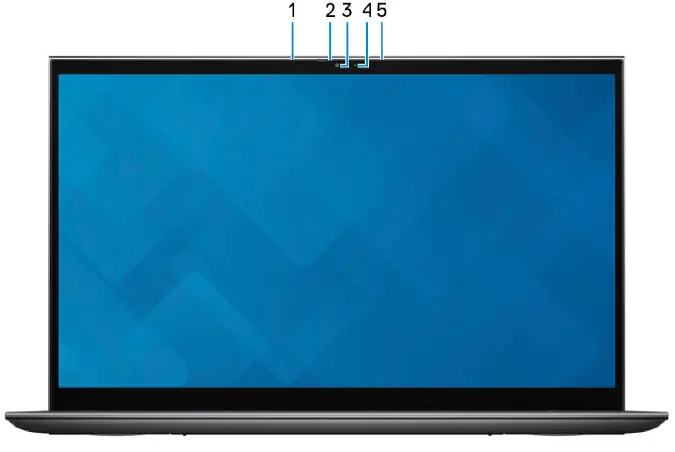

Front

1. Left microphone
   Provides digital sound input for audio recording and voice calls.
2. Privacy shutter
   Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use.
3. Camera
   Enables you to video chat, capture photos, and record videos.
4. Camera-status light
   Turns on when the camera is in use.
5. Right microphone
   Provides digital sound input for audio recording and voice calls.

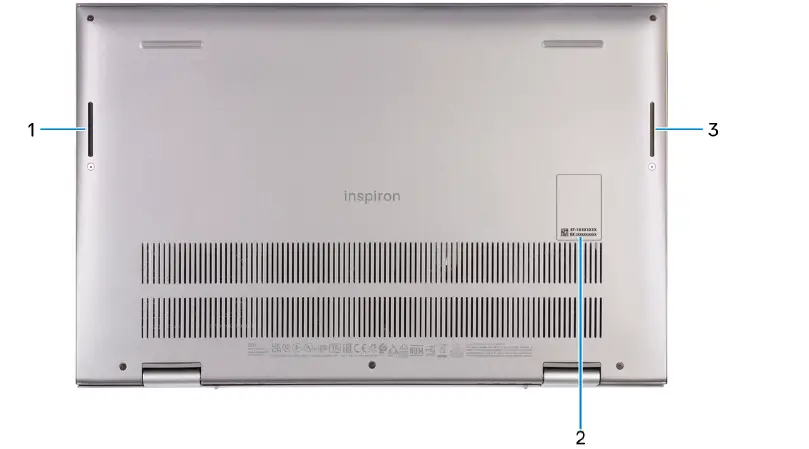

Bottom

1. Left speaker
   Provides audio output.
2. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
3. Right speaker
   Provides audio output.

Modes

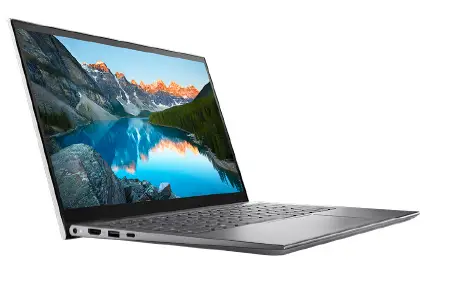

Notebook

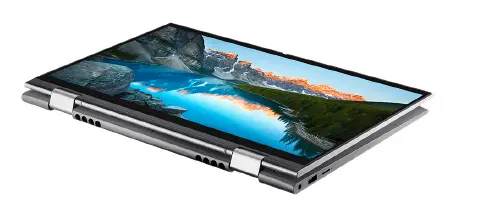

Tablet

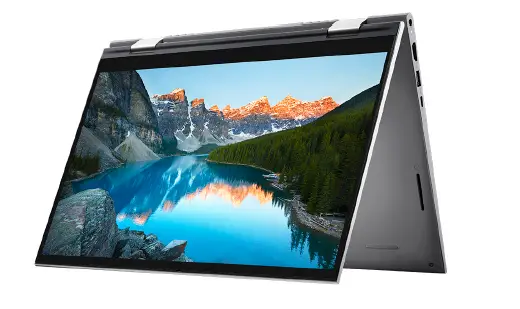

StandTent

Using the privacy shutter

1. Slide the privacy shutter to the left to access the camera lens.
2. Slide the privacy shutter to the right to cover the camera lens.

Specifications of Inspiron 5410 2-in-1

Dimensions and weight
The following table lists the height, width, depth, and weight of your Inspiron 5410 2-in-1.

Table 2. Dimensions and weight

Processor
The following table lists the details of the processors supported by your Inspiron 5410 2-in-1.

Table 3. Processor

Chipset
The following table lists the details of the chipset supported by your Inspiron 5410 2-in-1.

Table 4. Chipset

Operating system

Your Inspiron 5410 2-in-1 supports the following operating systems:

• Windows 10 Professional (64-bit)
• Windows 10 Home (S mode)

Memory

The following table lists the memory specifications of your Inspiron 5410 2-in-1.

Table 5. Memory specifications

External ports
The following table lists the external ports on your Inspiron 5410 2-in-1.

Table 6. External ports

Internal slots
The following table lists the internal slots of your Inspiron 5410 2-in-1.

Table 7. Internal slots

Wireless module
The following table lists the Wireless Local Area Network (WLAN) module specifications of your Inspiron 5410 2-in-1.

Table 8. Wireless module specifications

Audio
The following table lists the audio specifications of your Inspiron 5410 2-in-1.

Table 9. Audio specifications

Storage
This section lists the storage options on your Inspiron 5410 2-in-1.
Your Inspiron 5410 2-in-1 supports one of the following storage configurations:

• One M.2 2230/2280 solid-state drive
• One M.2 2280 solid-state drive/Intel Optane

Table 10. Storage specifications

Intel Optane Memory H10 with solid-state storage

Intel Optane Memory technology utilizes 3D XPoint memory technology and functions as a non-volatile storage cache/accelerator and/or storage device depending on the Intel Optane Memory installed in your computer.
Intel Optane Memory H10 with solid-state storage functions as both a non-volatile storage cache/accelerator (enabling enhanced read/write speeds for hard-drive storage) and a solid-state storage solution. It neither replaces nor adds to the memory (RAM) installed on your computer.

Table 11. Intel Optane Memory H10 with solid-state storage specifications

NOTE: Intel Optane Memory H10 with solid-state storage is supported on computers that meet the following requirements:

• 9th Generation or higher Intel Core i3/i5/i7 processors
• Windows 10 64-bit version or higher (Anniversary Update)
• Intel Rapid Storage Technology driver version 15.9.1.1018 or higher

Media-card reader

The following table lists the media cards supported by your Inspiron 5410 2-in-1.

Table 12. Media-card reader specifications

Keyboard
The following table lists the keyboard specifications of your Inspiron 5410 2-in-1.

Table 13. Keyboard specifications (continued)

Camera
The following table lists the camera specifications of your Inspiron 5410 2-in-1.

Table 14. Camera specifications

Touchpad
The following table lists the touchpad specifications of your Inspiron 5410 2-in-1.

Table 15. Touchpad specifications

Power adapter
The following table lists the power adapter specifications of your Inspiron 5410 2-in-1.

Table 16. Power adapter specifications

Battery
The following table lists the battery specifications of your Inspiron 5410 2-in-1.

Table 17. Battery specifications

Display
The following table lists the display specifications of your Inspiron 5410 2-in-1.

Table 18. Display specifications

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Inspiron 5410 2-in-1.

Table 19. GPU—Integrated

Operating and storage environment
This table lists the operating and storage specifications of your Inspiron 5410 2-in-1. Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 21. Computer environment

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2,
2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled
by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.

NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 22. List of keyboard shortcuts

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 23. List of keyboard shortcuts

Table 23. List of keyboard shortcuts

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:

Table 24. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	1.      Go to www.dell.com/support. 2.      On the menu bar at the top of the Support page, select Support > Knowledge Base. 3.      In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
