Dell P143g Inspiron 14 5410 Laptop User Guide

Dell P143G Inspiron 14 5410 Laptop User Guide

Inspiron5 14 5410

Setup and Specifications

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you  make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem
WARNING: A WARNING indicates a potential for property damage, personal injury, or death
© 2021-2022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Set up your Inspiron 14 5410

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

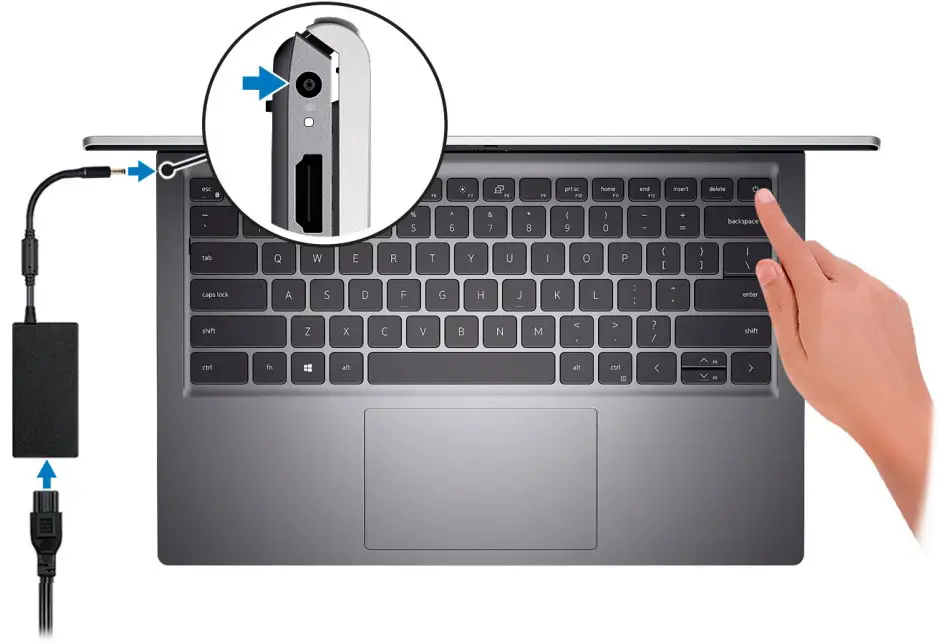

Connect the power adapter and press the power button.
NOTE: To conserve battery power, the battery might enter power-saving mode. Connect the power adapter and press the power button to turn on the computer.

1. Finish operating system setup. For Ubuntu: Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, search in the Knowledge Base Resource at www.dell.com/support. For Windows: Follow the on-screen instructions to complete the setup. When setting up, Dell  recommends that you:
   •  Connect to a network for Windows updates.
     NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   • If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
   • On the Support and Protection screen, enter your contact details.
2. Locate and use Dell apps from the Windows Start menu—Recommended.
3. Set up your Inspiron 14 5410

Table 1. Locate Dell apps in Windows in S Mode

Resources	Description
	Dell Product Registration Register your computer with Dell.
	Dell Help & Support Access help and support for your computer.
	Support Assist Support Assist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures.     For more information, see Support Assist for Home PCs User‘s Guide at www.dell.com/  serviceabilitytools. Click Support Assist and then, click Support Assist for Home PCs. NOTE: In Support Assist, click the warranty expiry date to  renew or upgrade your warranty.

Table 2. Locate Dell apps in Windows Resources Description

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/ support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support.
	Support Assist Support Assist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see Support Assist for Home PCs User‘s Guide at www.dell.com/ serviceabilitytools. Click Support Assist and then, click Support Assist for Home PCs. NOTE: In Support Assist, click the warranty expiry date to renew or upgrade your warranty.

Views of Inspiron 14 5410

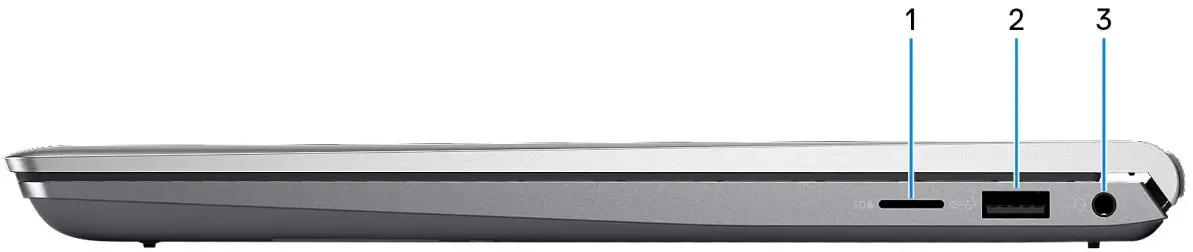

Right

1. micro SD-card slot
   Reads from and writes to the micro SD-card. The computer supports the following card types:
   • micro-Secure Digital (mSD)
   • micro-Secure Digital High Capacity (mS DHC)
   • micro-Secure Digital Extended Capacity (mS DXC)
2. USB 3.2 Gen 1 port
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
3. Global headset jack Connect headphones or a headset (headphone and microphone combo).

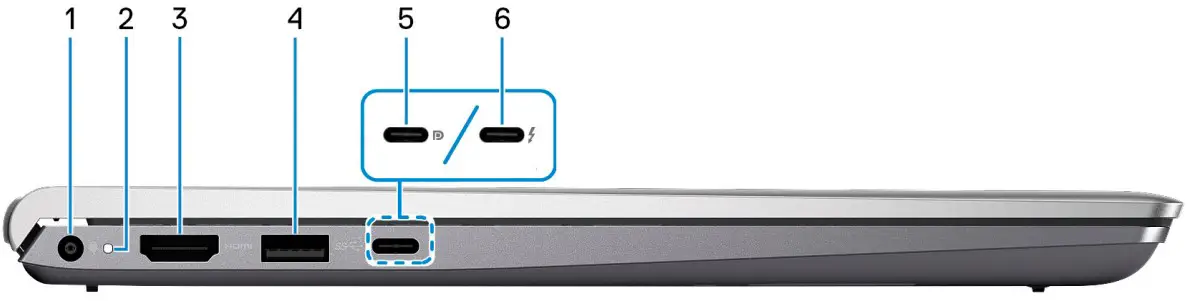

Left

1. Power-adapter port
   Connect a power adapter to provide power to your computer and charge the battery.
2. Power and battery-status light
   Indicates the power state and battery state of the computer. Solid white—Power adapter is connected and the battery is charging. Solid amber—Battery charge is low or critical. Off—Battery is fully charged.
   NOTE: On certain computer models, the power and battery-status light are also used for diagnostics. For more information, see the Troubleshooting section in your computer’s Service Manual.
3. HDMI 1.4 port
   Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
4. USB 3.2 Gen 1 port
   Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
5. USB 3.2 Gen 2 Type C port with DisplayPort 1.4 and Power Delivery
   Connect devices such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps. Supports Power Delivery that enables two-way power supply between devices. Provides up to 15 W power output that enables faster charging.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
6. Thunderbolt 4.0 port with Power Delivery
   Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gb ps for USB4 and Thunderbolt 4.
   NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, search in the Knowledge Base Resource at www.dell.com/support.
   NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
   NOTE: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.
   NOTE: Thunderbolt 4 supports two 4K displays or one 8K display.

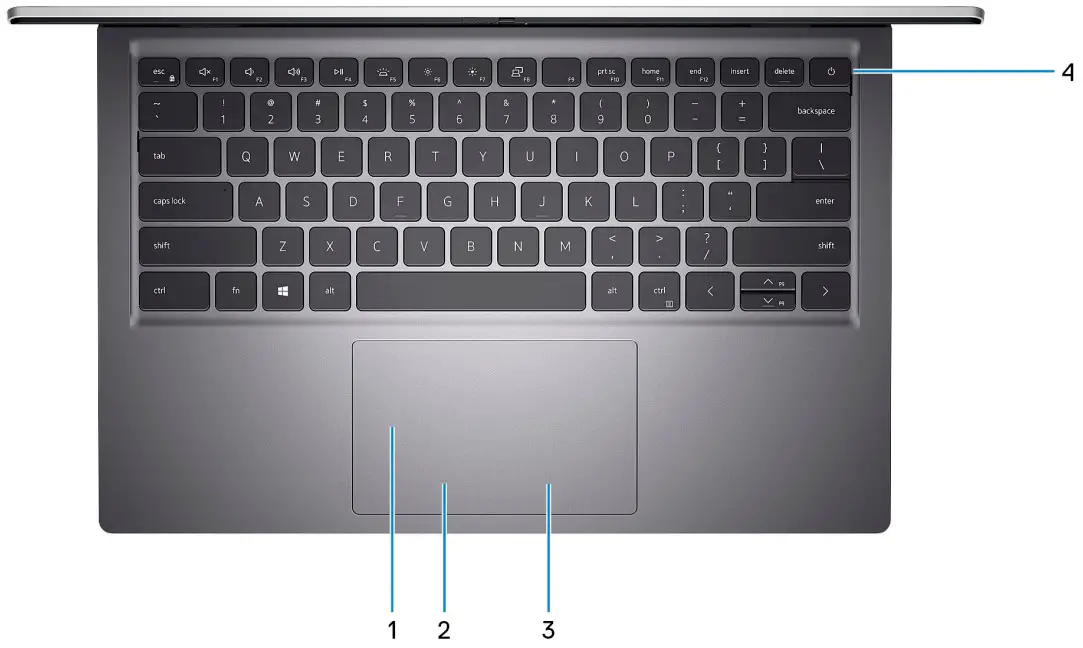

Top

1. Left-click area
   Press to left-click.
2. Precision touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.
3. Right-click area Press to right-click.
4. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for four seconds to force shut-down the computer. If the power button has a fingerprint reader, place your finger on the power button to log in.
   NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.

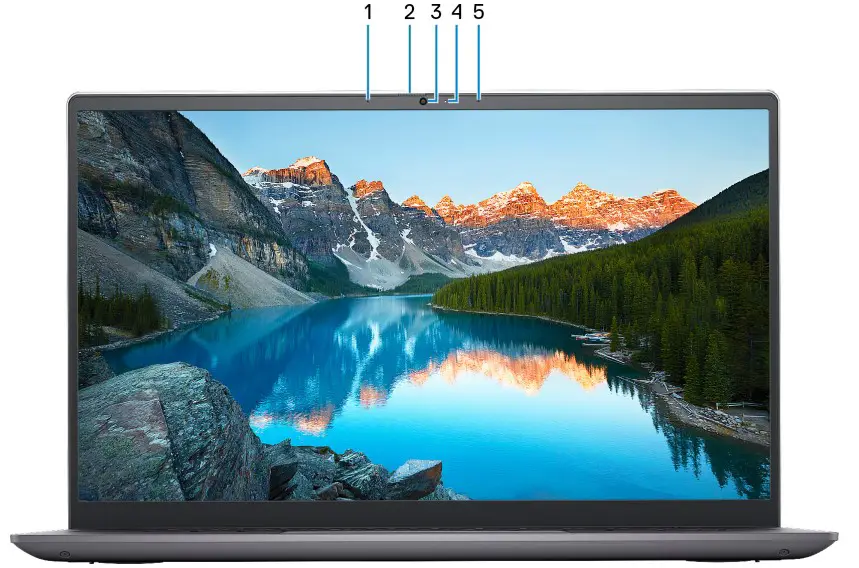

Display

1. Left microphone
   Provides digital sound input for audio recording and voice calls.
2. Privacy shutter
   Slide the privacy shutter to cover the camera lens and protect your privacy when the  camera is not in use.
3. Camera
   Enables you to video chat, capture photos, and record videos.
4. Camera-status light
   Turns on when the camera is in use.
5. Right microphone
   Provides digital sound input for audio recording and voice calls

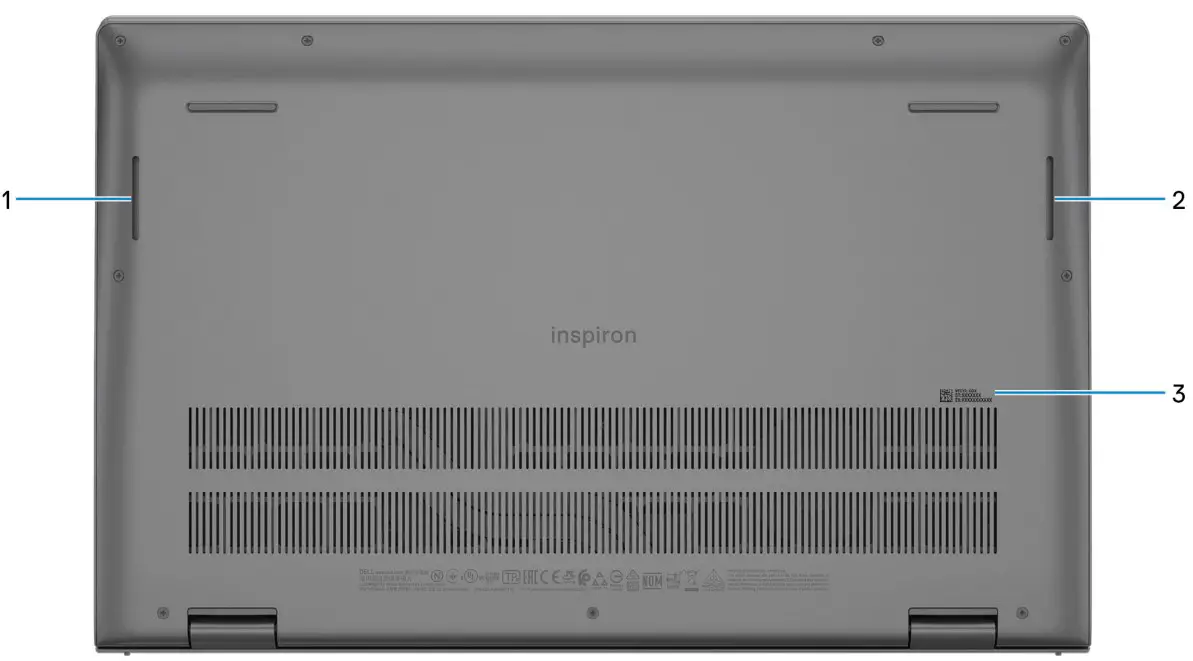

Bottom

1. Left speaker
   Provides audio output.
2. Right speaker
   Provides audio output.
3. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service  technicians to identify the hardware components in your computer and access warranty information.

Specifications of Inspiron 14 5410

Dimensions and weight

The following table lists the height, width, depth, and weight of your Inspiron 14 5410.
Table 3. Dimensions and weight

Description		Values
Height:
	Front height	17.02 mm (0.67 in.)
	Rear height	17.99 mm (0.71 in.)
Width		321.27 mm (12.65 in.)
Depth		212.80 mm (8.38 in.)
Weight (maximum)		1.44 kg (3.17 lbs) NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.

Processor

The following table lists the details of the processors supported by your Inspiron 14 5410.
Table 4. Processor

Chipset

The following table lists the details of the chipset supported by your Inspiron 14 5410.
Table 5. Chipset

Operating system

Your Inspiron 14 5410 supports the following operating systems:

• Windows 10 Home, 64-bit
• Windows 10 Pro, 64-bit
• Windows 10 Home in S-mode, 64-bit
• Windows 11 Home, 64-bit
• Windows 11 Home in S-mode, 64-bit
• Windows 11 Pro, 64-bit
• Windows 11 Pro National Academic, 64-bit
• Ubuntu 20.04, 64-bit

Memory

The following table lists the memory specifications of your Inspiron 14 5410.
Table 6. Memory specifications

External ports

The following table lists the external ports on your Inspiron 14 5410.
Table 7. External ports

Internal slots

The following table lists the internal slots of your Inspiron 14 5410.
Table 8. Internal slots

Description	Values
M.2	One M.2 2230 slot for WiFi and Bluetooth combo card One M.2 slot for 2230/2280 solid-state drive/M.2 2280 Intel Optane H20 NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module specifications of your Inspiron 14 5410.
Table 9. Wireless module specifications

Table 9. Wireless module specifications (continued)

Audio

The following table lists the audio specifications of your Inspiron 14 5410.
Table 10. Audio specifications

Storage

This section lists the storage options on your Inspiron 14 5410.
Your Inspiron 14 5410 supports one of the following storage configurations:

• One M.2 2230 solid-state drive
• One M.2 2280 solid-state drive
  The primary drive of your Inspiron 14 5410 is the M.2 solid-state drive where the operating system is installed.

Table 11. Storage specifications

Intel Optane Memory H20 with Solid-State Storage
(optional)

Intel Optane Memory technology uses 3D XPoint memory technology and functions as a nonvolatile storage cache/accelerator and/or storage device depending on the Intel Optane Memory that is installed in your system. Intel Optane Memory H20 with Solid-State Storage functions as both a nonvolatile storage cache/accelerator (enabling enhanced read/write speeds for hard drive storage) and a solid-state storage solution. It  neither replaces nor adds to the memory (RAM) installed on your system

Table 12. Intel Optane Memory H20 with Solid-State Storage specifications

NOTE: Intel Optane Memory H20 with Solid-State Storage is supported on systems that meet the following requirements:

• 11th Generation or higher Intel Core i3/i5/i7 processors
• Windows 10 64-bit version or higher
• Intel Rapid Storage Technology driver version 18.1.0.1027 or higher

Keyboard

The following table lists the keyboard specifications of your Inspiron 14 5410. Table 13. Keyboard specifications

Table 13. Keyboard specifications

Table 13. Keyboard specifications (continued)

Description	Values
	perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts.

Camera

The following table lists the camera specifications of your Inspiron 14 5410.
Table 14. Camera specifications

Touchpad

The following table lists the touchpad specifications of your Inspiron 14 5410.
Table 15. Touchpad specifications

Power adapter

The following table lists the power adapter specifications of your Inspiron 14 5410.
Table 16. Power adapter specifications

Description		Values
Type		65 W E4 DC-in
Connector dimensions:
	External diameter	4.50 mm
	Internal diameter	2.90 mm
Input voltage		110 VAC–240 VAC
Input frequency		50 Hz–60 Hz
Input current (maximum)		1.70 A
Output current (continuous)		3.34 A
Rated output voltage		19.50 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your Inspiron 14 5410.
Table 17. Battery specifications

Table 17. Battery specifications (continued)

Description		Option one	Option two
	Storage	-20°C to 65°C (-4°F to 149°F)	-20°C to 65°C (-4°F to 149°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Managerapplication. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com.		4 hours (when the computer is off)	4 hours (when the computer is off)
Coin-cell battery		CR2032	CR2032
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Display

The following table lists the display specifications of your Inspiron 14 5410.
Table 18. Display specifications

Table 18. Display specifications (continued)

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Inspiron 14 5410.
Table 19. Fingerprint reader specifications

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Inspiron 14 5410.
Table 20. GPU—Integrated

Operating and storage environment

This table lists the operating and storage specifications of your Inspiron 14 5410.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 22. Computer environment

Measured using a random vibration spectrum that simulates user environment. † Measured using a 2 ms half-sine pulse.

Dell Comfort ViewR

• Prolonged exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the white light spectrum which has a short wavelength and high frequency. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and change our body’s Circadian rhythm. Using the computer for an extended period may also cause fatigue in other body parts such as the neck, arm, back, and shoulder.  Dell low blue light displays optimize eye comfort with a flicker-free screen. The Comfort View feature reduces the amount of blue light emitted from the monitor to optimize eye comfort. Comfort View mode can be enabled and configured using the Dell Cinema Color (DCC) application. Dell Comfort View is certified by TÜV. Dell Cinema Color Dell Cinema Color (DCC) combines the hardware and software to deliver clear visuals that appear every bit as vibrant as the world around you. The DCC has four color profiles that optimize these settings depending on the content and your surroundings. When you open DCC, you can choose Movie (default), Comfort View, Sports, or Animation from the list. The Comfort View Profile optimizes eye comfort with a Low Blue Light software solution that meets TÜV standards to reduce harmful blue light emissions to make extended screen time easy on your eyes compared to standard digital panels while still retaining the vibrant colors. Comfort View mode is certified by TÜV for the effective reduction of hazardous blue light by adjusting display parameters. You can adjust the Saturation, Temperature, and Contrast values to create your custom setting in the Comfort View mode.
    NOTE: For more information on Dell Cinema components see KB article 000178241 at https://www.dell.com/support.ComfortView Plus Comfort View Plus is a built-in, always-on, and virtually unnoticeable low blue light solution for Dell displays. Comfort View Plus employs a hardware-based design that allows for a wider blue spectrum, with a much lower peak and reduced intensity. Dell Comfort View Plus is certified by TÜV certified – low blue light hardware solution.
  NOTE: Comfort View Plus is an optional hardware feature to be configured at the point of sale. To reduce the risk of eye strain, it is also recommended that you:
• Position the display at a comfortable viewing distance between 20 in. to 28 in. (50 cm and 70 cm) from your eyes.
• Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
• Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
• Take an extended break for 20 minutes every two hours

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out. The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below). However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.
Table 23. List of keyboard shortcuts

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Table 24. List of keyboard shortcuts

Table 24. List of keyboard shortcuts (continued)

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 25. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windowswww.dell.com/support/linux
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support.For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	Go to www.dell.com/support. On the menu bar at the top of the Support page, selectSupport > Knowledge Base. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOT Contacting Dell To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice,
packing slip, bill, or Dell product catalog. E: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
