INSTALLATION INSTRUCTIONS
ELECTRICAL GAUGES
W/WARNING & PEAK
52mm LCD EVO SERIES
WHITE / RED / GREEN / BLUE LED DISPLAY
Fuel Level Gauge
OPENING CEREMONY
 |  |

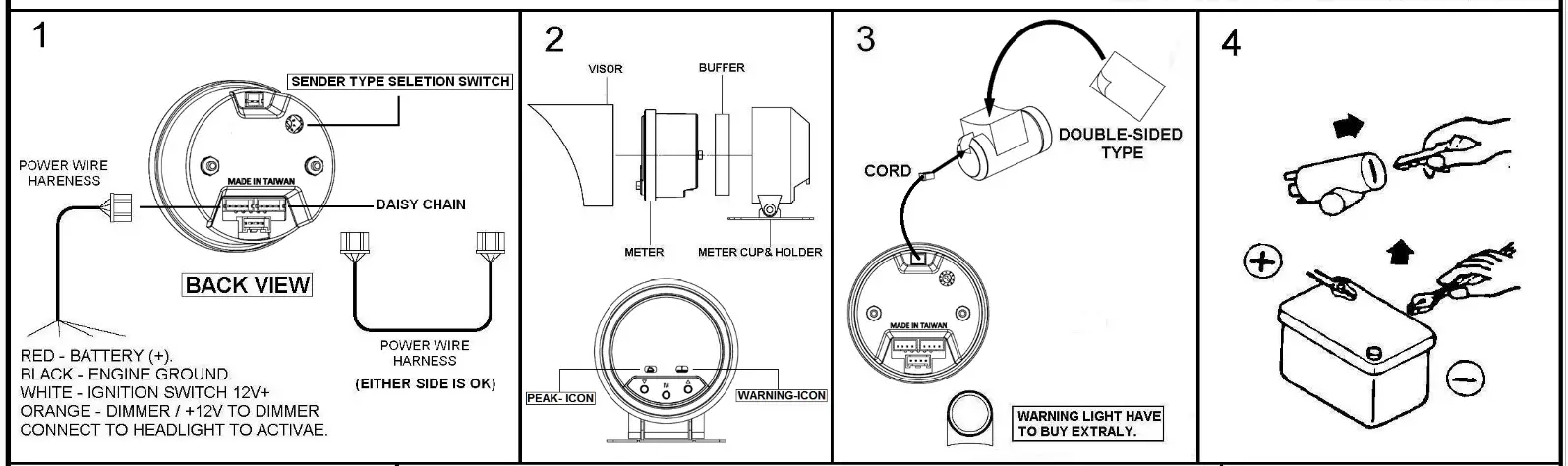

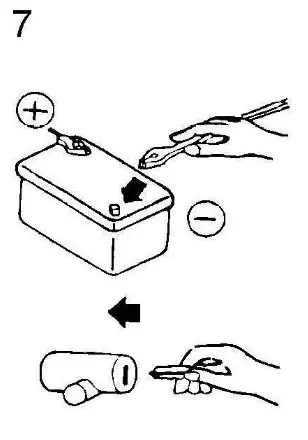

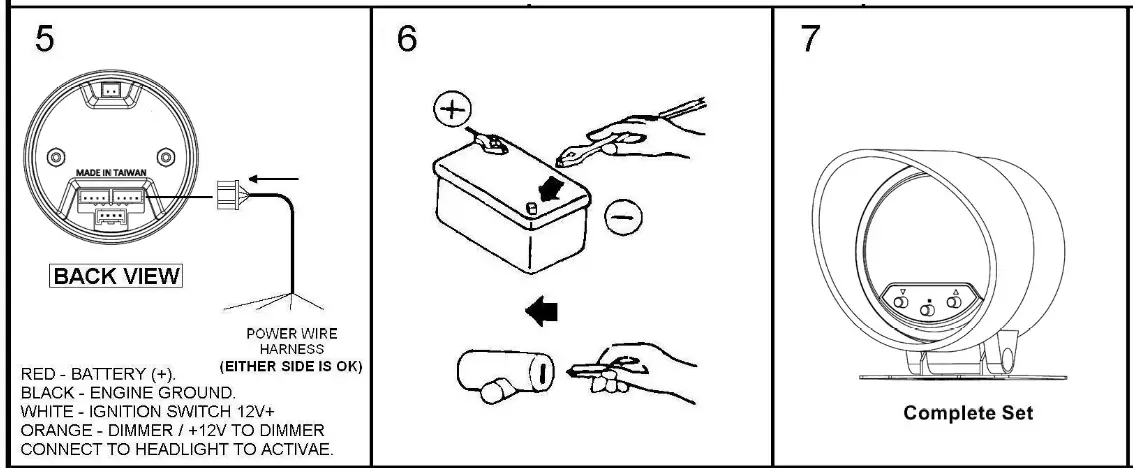

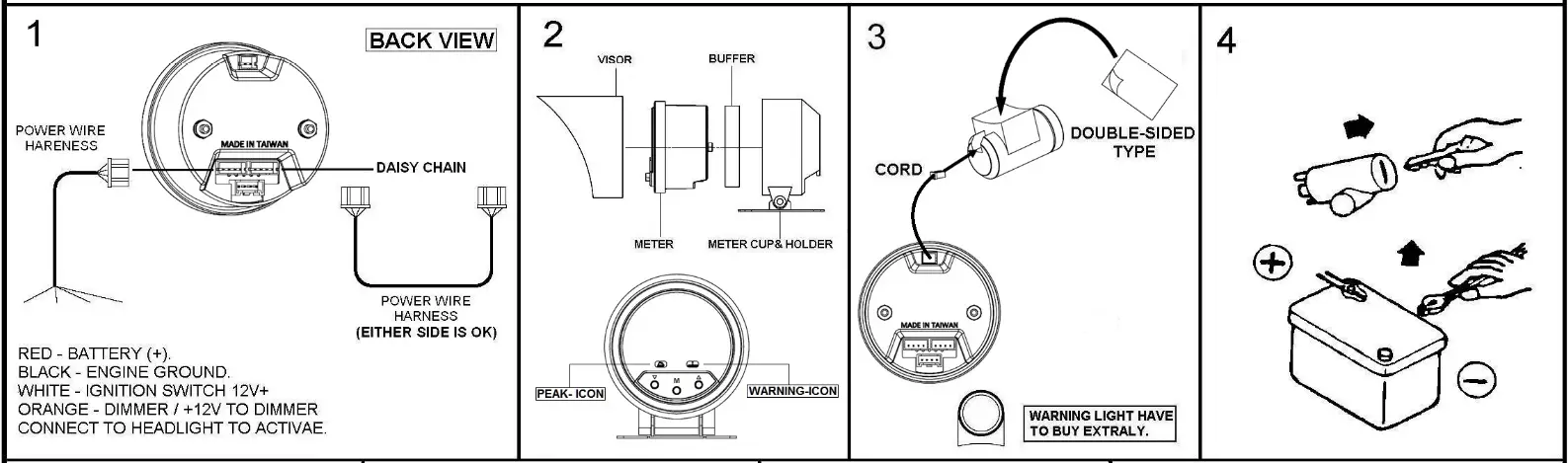

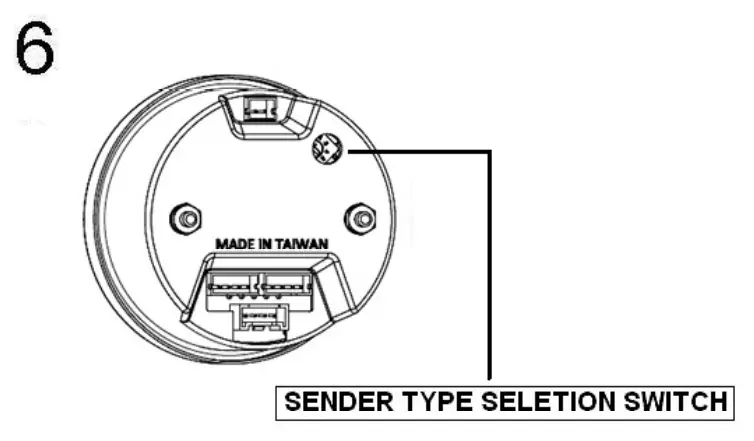

Sender Select Chart
| Sender Type | Switch | |
| Ford Pre-’89. Chrysler | 73 – 10 ohms | -1- |
| Ford ’89 – Present | 16 – 158 ohms | -2- |
| GM Pre-’65 | 0 – 30 ohms | -3- |
| GM ’65 – Present’ | 0 – 90 ohms | -4- |
| Auto Meter Sender | 240 – 33 ohms | -5- |
| Eclipse ’90 – ’02. Civic ’88 – ’00 | 107.5 – 7 ohms | -6- |
| Civic ’01 – Present | 131 -12 ohms | -7- |
| Japan sender | 0 – 120 ohms | -8- |
| Tank sender | 10 – 180 ohms | -9- |
- Stating In ’98. some GM models began using a different sender type.

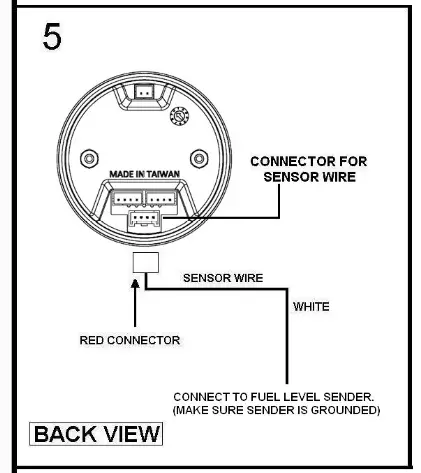

- Selecting a number of Fuel Level sender types: Setting the sender type for 1-9 type operation is achieved simply by sliding the switch. locater on back of the gauge body.to coincide with the appropriate number of fuel senders of the car.
- switch position: See the sender and select chart
- The red or black wire MUST be removed before adjustment to the sender setting is made from the sender selector switch.
