TRIPP LITE AHS-002-LED USB Gaming Headset with Built-In Microphone
Quick Start Guide
USB Gaming Headset with Built-In Microphone, Audio Control and LEDs
- Model: AHS-002-LED
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing! tripplite.com/warranty
Product Features
- Provides immersive, true-to-life audio and microphone functions for gaming, work-from-home and multimedia applications
- Integrated USB-A cable compatible with PCs, Macs, PlayStation®3 (PS3™) and PlayStation®4 (PS4™) consoles
- Adjustable headband and padded ear cushions ensure comfort, even during extended use
- Integrated control pad includes volume, mute and microphone functions
- Retractable microphone allows easy hands-free communication
- Vibrant, color-changing LEDs provide ambience and enhance gaming atmosphere
- Plug-and-play operation with no software required for easy, immediate installation
System Requirements
- PC, Mac, PS3 or PS4 with USB-A port (not compatible with Xbox gaming systems)
- Windows XP/Vista/7/8.1/10/11 or macOS 9 or above
- Supports live chat and background sound on PS4; live chat only on PS3
Package Contents
- AHS-002-LED USB Gaming Headset
- Quick Start Guide

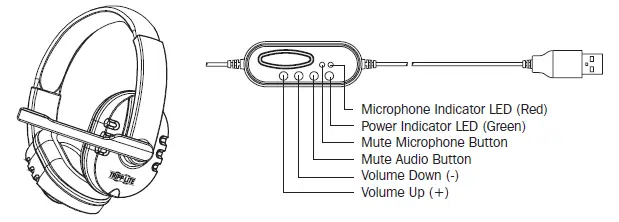

Product Diagram
Specifications
| Connectors | |
| Input | USB-A (Male) |
| Audio Specifications | |
| Horn Sensitivity | 112 +/-3 dB |
| Frequency Response | 20 Hz – 20 kHz |
| Sound Principle | Moving coil |
| Microphone Sensitivity | -38 dB +/- 2 dB |
| Microphone SNR | 60 dB +/- 3 dB |
| Microphone Pickup Direction | One-way |
| Volume Control | Yes |
| Volume Mute | Yes |
| Microphone Mute | Yes |
| Dimensions | |
| Microphone | 2.36 x 1.97 in. / 60 x 50 mm |
| Speaker Diameter | 1.57 in. / 40 mm |
| Headset (H x W x D) | 7.82 x 6.97 x 0.41 in. / 199 x 177 x 10 mm |
| Cable Length | 5.9 ft. / 1.8 m |
| LEDs | |
| LED Color | Red/Blue/Green/Cyan (strobe effect) |
| LED Control | No |
| Environment Specifications | |
| Operating Temperature | 32° to 104°F / 0° to 40°C |
| Storage Temperature | -4° to 140°F / -20° to 60°C |
| Relative Humidity | 0 to 96% Non-Condensing |
Warranty and Product Registration
3-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of three (3) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite, they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
