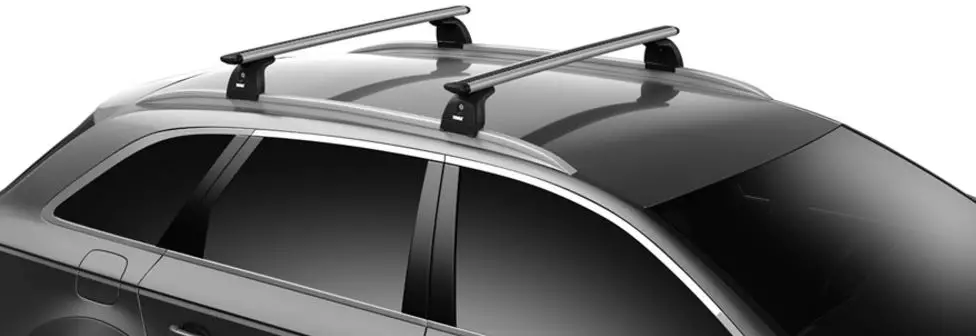

THULE 187034 MERCEDES Citan Roof Rack Kit
Product Information
| Product Name | Kit 187034 |
|---|---|
| Compatible Vehicles | MERCEDES Citan (Mk. II), 4-dr Van, 22- NISSAN Townstar, 4-dr Van, 22- RENAULT Kangoo (Mk. III), 4-dr Van, 21- |

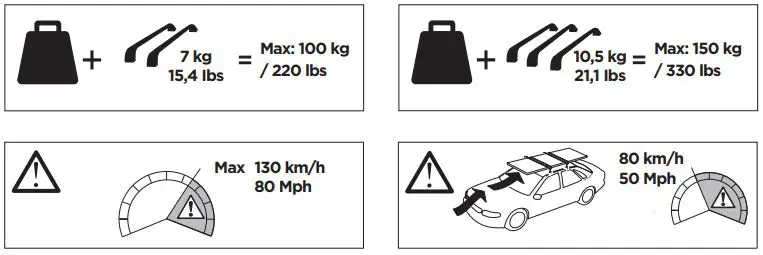

| Weight Capacity | Max: 100 kg / 220 lbs |
| Speed Limit | Max 130 km/h / 80 Mph |
Product Usage Instructions
- This kit is only compatible with vehicles that have fixpoint mounting.

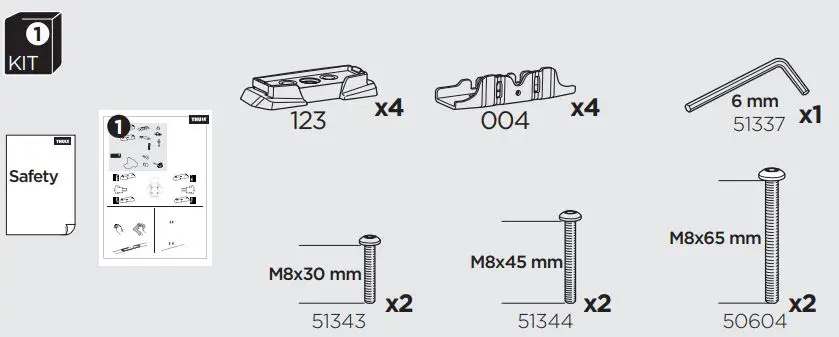

- Ensure that the kit is securely attached to the vehicle using the provided components:
- Safety bolts: 123 x4, 004 x4
- M8x30 mm bolts: x2
- M8x45 mm bolts: x2
- M8x65 mm bolts: x2
- 6 mm bolts: 51337 x1
- Tighten the bolts to the specified torque:
- M8x30 mm bolts: 8 Nm
- M8x45 mm bolts: 8 Nm
- M8x65 mm bolts: 8 Nm
- Refer to the provided instructions for further installation details.
Precautions

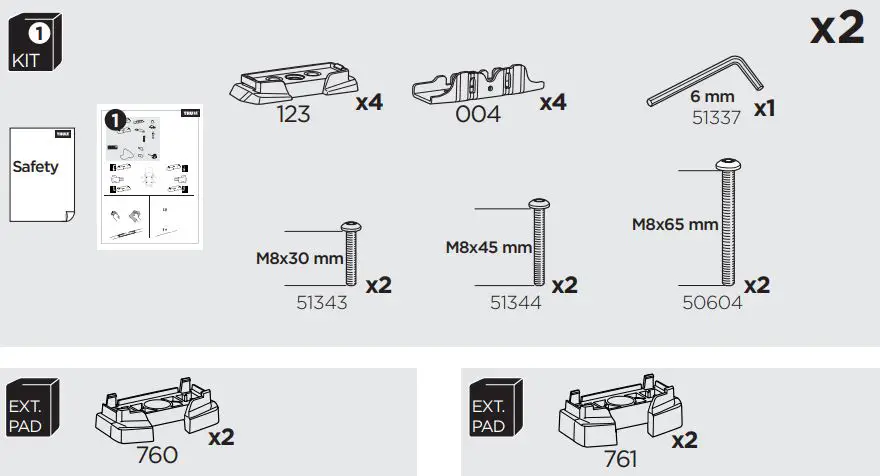

What In The Box
2 Roof Rack Kit
3 Roof Rack Kit
- This kit is only for vehicles with fixpoint mounting.

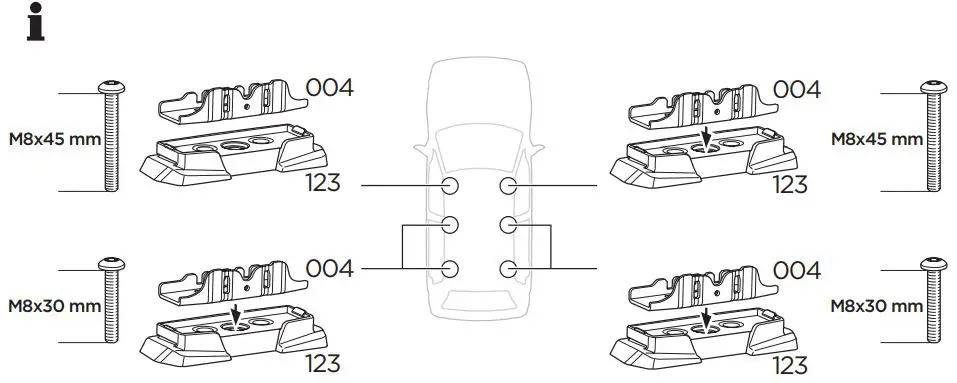

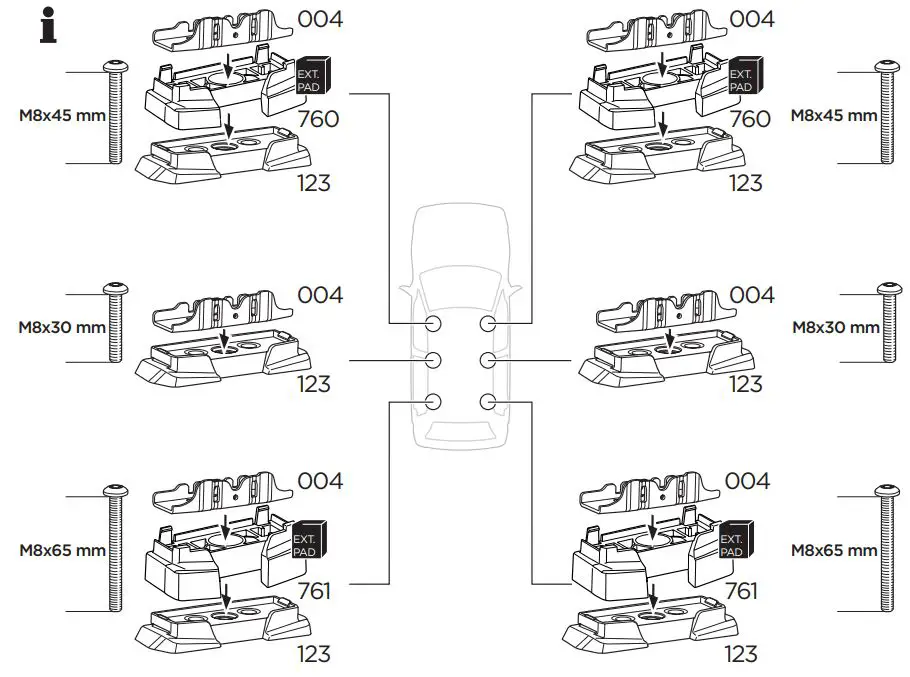

Parts Fixing
2 Roof Rack Kit
3 Roof Rack Kit

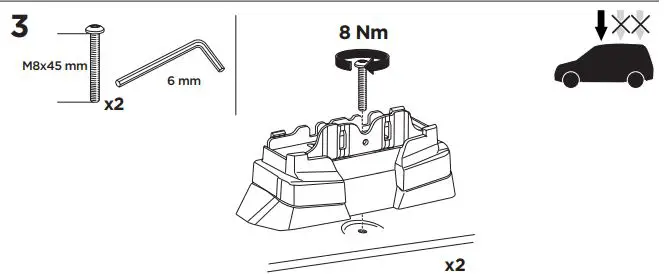

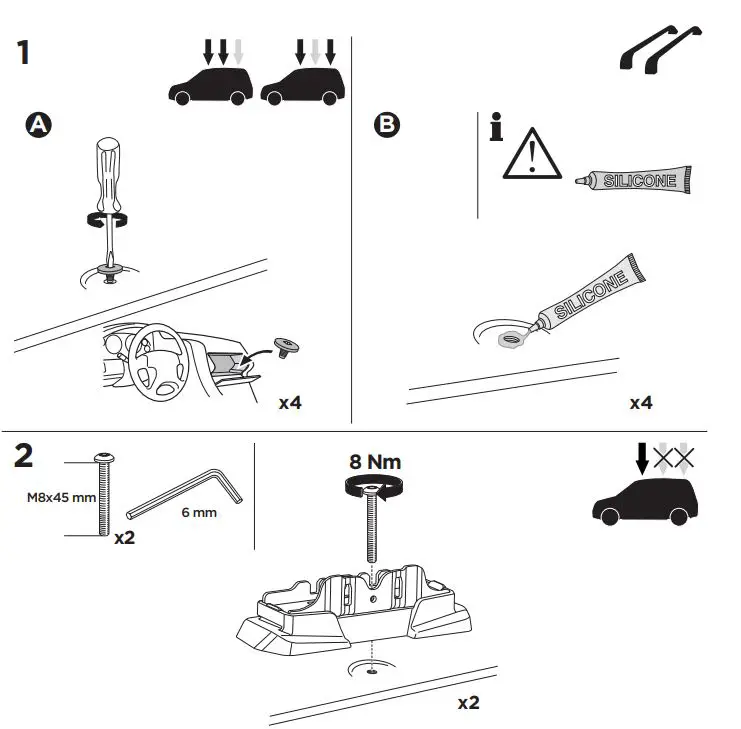

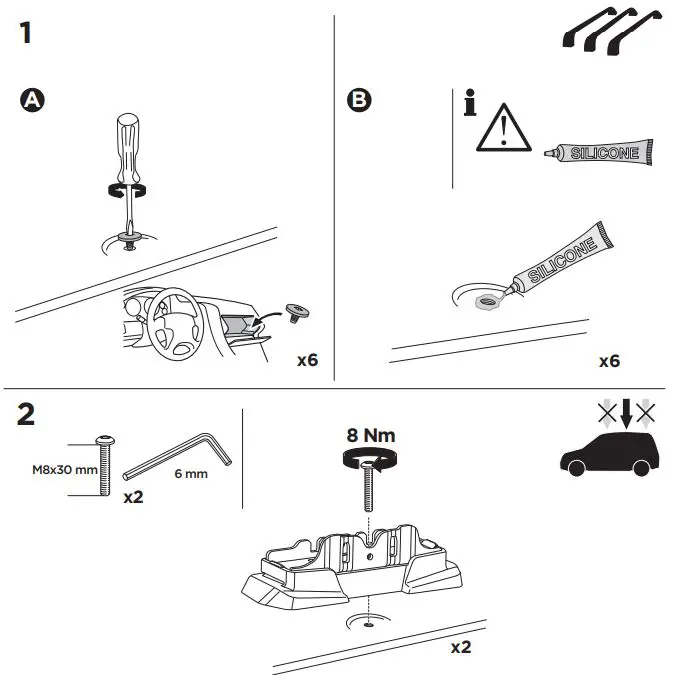

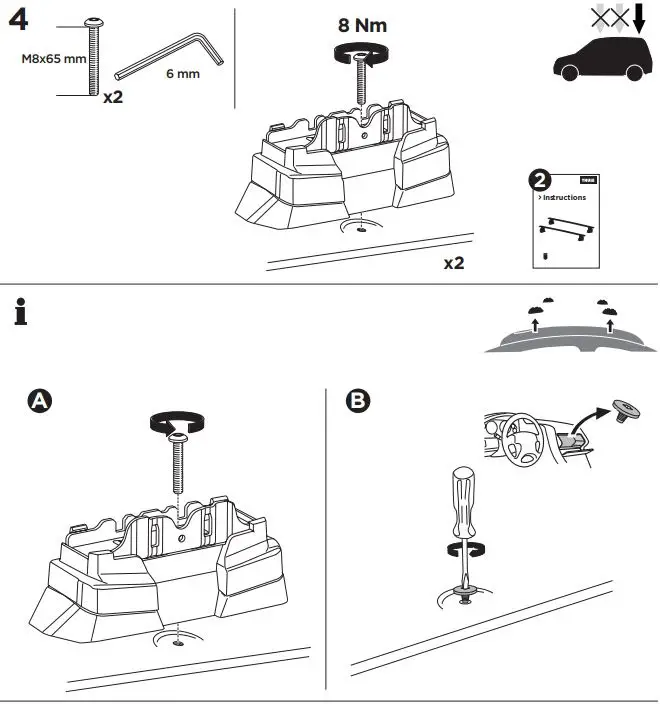

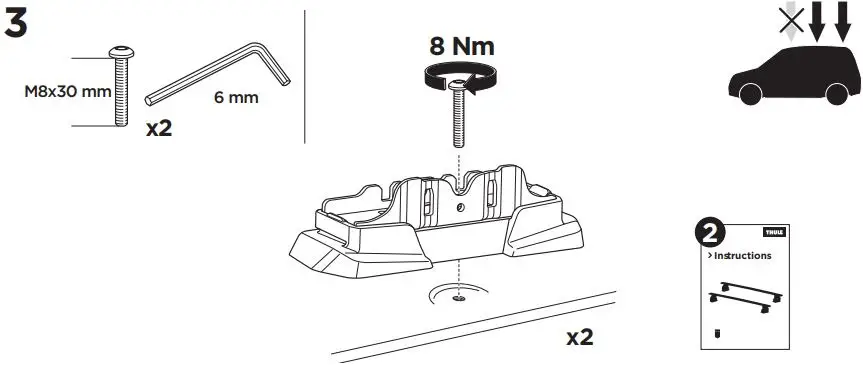

Installation Instructions
2 Roof Rack Kit
3 Roof Rack Kit
Thule Sweden AB
- Borggatan 5 335 73 Hillerstorp, SWEDEN
- [email protected]
- www.thule.com
Bring your life
© Thule Group 2022. All rights reserved.
