BONECO Air Shower Fan Instruction Manual
Instructions for use
BONECO F220/F230

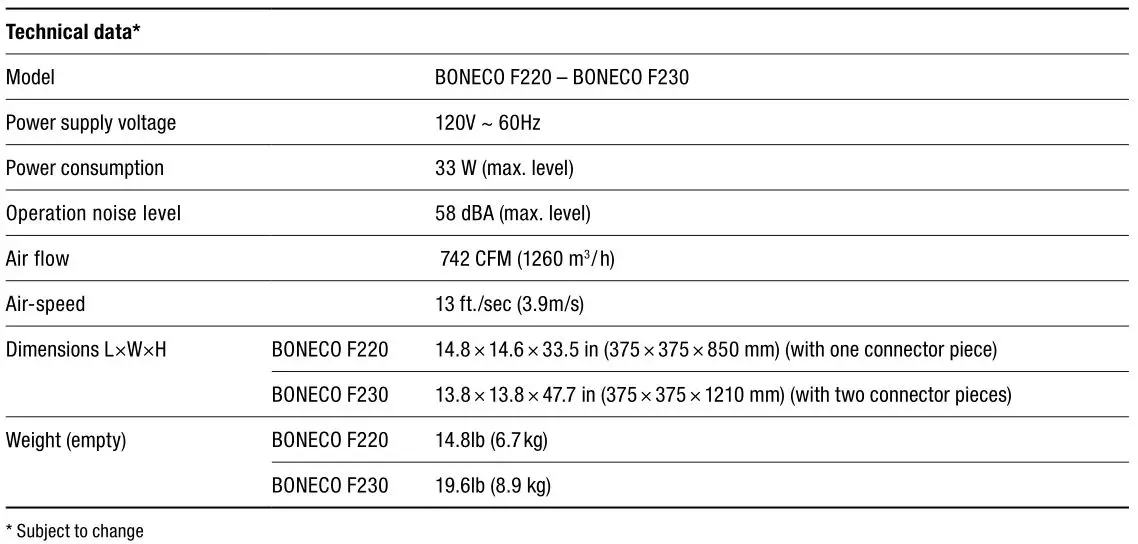

TECHNICAL DATA
INTRODUCTION
DEAR CUSTOMER,
Congratulations on your purchase of the BONECO Air Shower Fan. These high-performance units seamlessly adapt to your needs. When set to the lower output levels, they provide a pleasant breeze in your home on hot days. On the other hand, if you use an air-conditioning system, the unit’s powerful fan distributes the air throughout the room ensuring a uniform temperature. In developing the BONECO Air Shower Fan, low maintenance and durability were of primary importance. The fan blade’s one-of-a-kind shape creates a uniform air flow using minimal energy, which is also good for the environment. The elegant design harmonizes with any decorative style so that you can use your BONECO Air Shower Fan throughout the entire year.
We hope you enjoy your new BONECO Air Shower Fan!

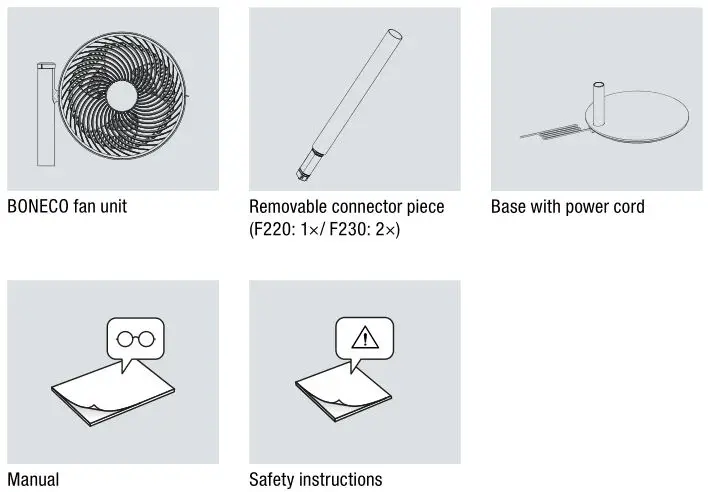

ITEMS INCLUDED

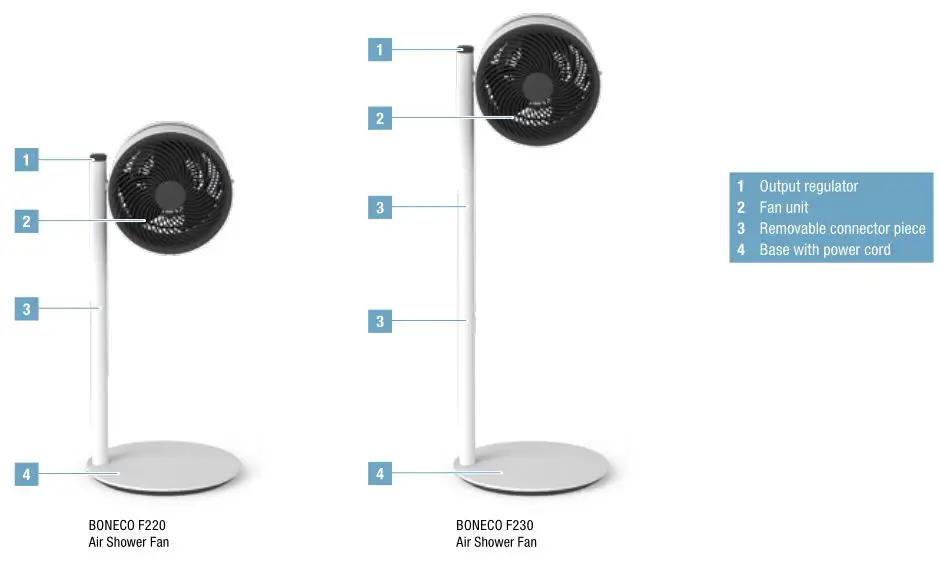

OVERVIEW AND PART NAMES

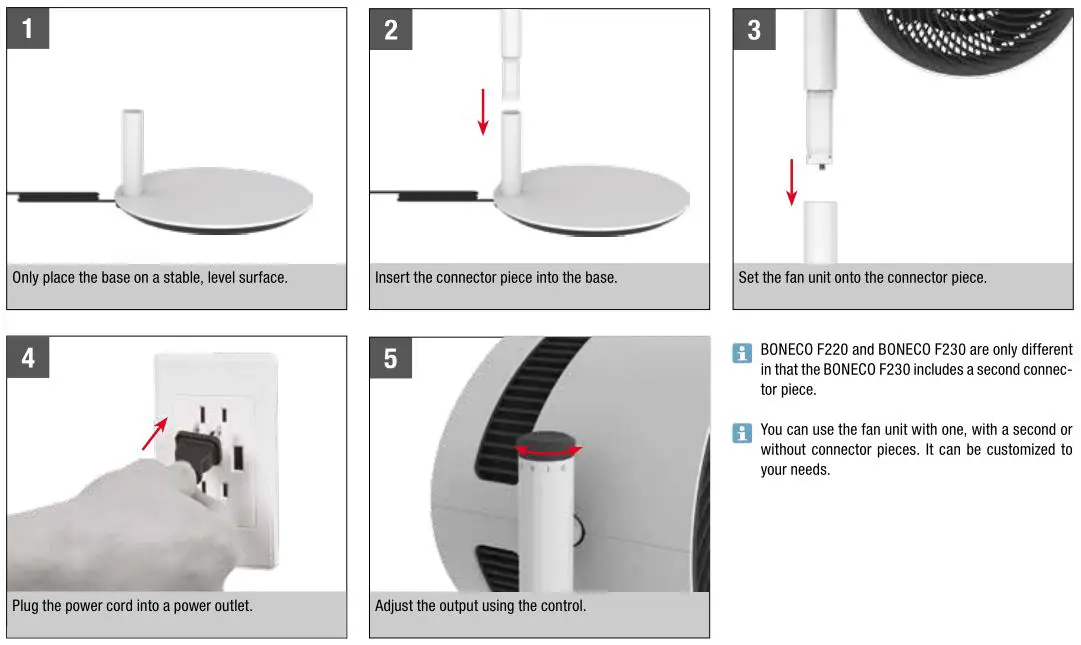

START-UP

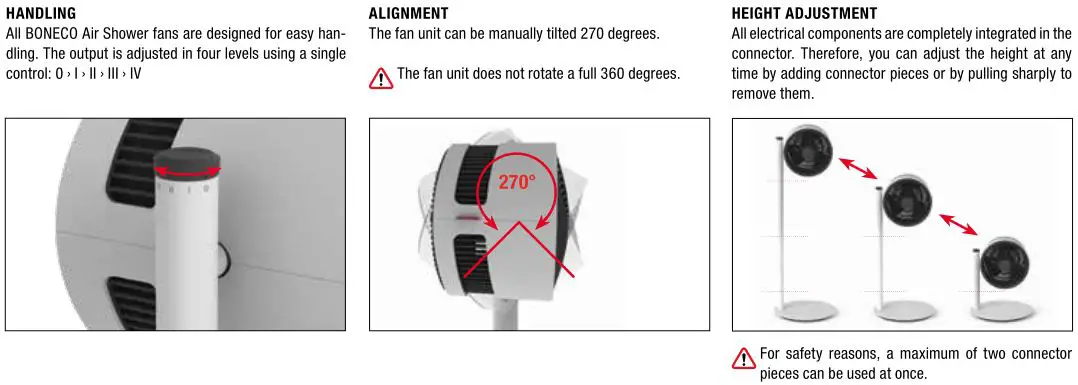

HANDLING
POSITIONING TIPS
NOTES ON OUTPUT
All BONECO Air Shower fans are equipped with a high- performance fan that can move large amounts of air.
Making use of this feature: Guide the air in a specific direction to achieve an uniform room climate. The following examples illustrate how to do this.
AIR-CONDITIONING SYSTEM (AC)
An air conditioner distributes temperature in various ways. Use the BONECO Air Shower Fan to move the warm air towards the air-conditioning system. This can be done directly or indirectly via air circulation, as shown in this image.
MULTIPLE FLOORS
In the summer, it can become hot and muggy on the upper floors. The powerful BONECO Air Shower Fan directs the cool air from the ground floor to multiple floors achieving a uniform temperature.
FRESH AIR
The BONECO Air Shower Fan helps you achieve better ventilation indoors. If cross-ventilation is not created, guide fresh air directly from the window into the desired room.
ROOMS WITH HIGH CEILINGS
In air-conditioned rooms with high ceilings, the cold air sinks to the floor while the warm air rises to the ceiling. Turn the BONECO Fan straight up for an air-shower sensation.
CLEANING
SAFETY INSTRUCTIONS
Always unplug the BONECO Air Shower Fan before you begin cleaning! Failure to do so can result in electric shock and fatal injury!Do not use alcohol or corrosive cleaning agents for cleaning.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
CLEANING THE HOUSING
All BONECO Air Shower fans are designed for low-maintenance operation, even after years of use. In most cases, a dry cloth can be used for cleaning. If stubborn dirt is present, clean the housing using a damp cloth. Add a small amount of dishwashing detergent to the water.
CLEANING THE FAN BLADES
1. Tilt the fan unit upwards and loosen the safety screw.
2. Remove the front grill by turning it counterclockwise slightly.
3. Loosen the safety screw in the middle clockwise.
4. Remove the fan blades and clean them with a damp cloth.
5. Put the unit back together by following the steps in reverse order.
6. Attach the front grill with the safety screw. When doing so, pay attention to the position of the screw on the front grill.

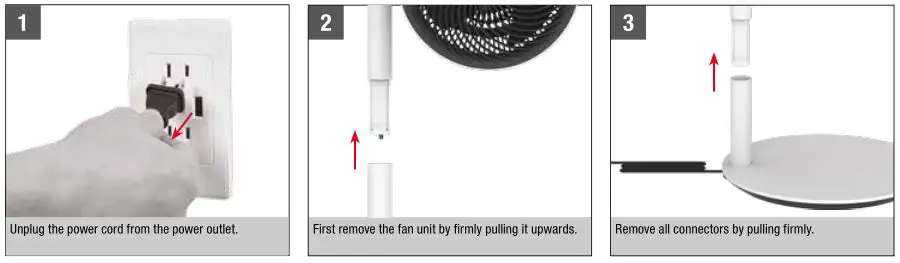

DISASSEMBLY AND STORAGE
Please note that the removable connector pieces are detachable. When moving the unit to a new location, disassemble the unit into the detachable parts, transport the individual parts to the desired location, and then reassemble.
Storage is easiest and most efficient when you use the original packaging. Store the BONECO Air Shower Fan in a dry place.
BONECO is a registered trademark of BONECO AG, Switzerland
