NAVITEL Auto Cup Holder User Manual

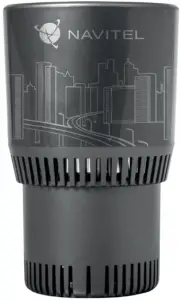

Device layout
- Heating
- Cooling
- Bowl
- Power connector
- Indicator
- Side holes for air circulation
- Lower holes for air circulation
- Stand
Package Contents
- Auto cup holder
- Stand
- Car charger
- User manual
- Warranty card
Specifications
Model | TC500 |
Weight | 378 g |
Rated voltage | 12 V |
Heating temperature | < 36 °C |
Storage temperature | -20~60 °C |
Package size | 135×105×230 mm |
Noise level | < 40 dB |
| Rated current | < 3 A |
Rated power | < 36 W |
Materials | Environmental friendly ABS and aluminum |
Using Device
Note:
- Do not use the device near flammable objects or liquids.
- Do not pour drinks into the bowl of the device. The device powers from 12 V. T
- he surface of the bowl of device is made of different materials (metal and plastic). If a bottle with drink contacts only with plastic, heating and cooling occur slowly, if it contacts with the metal, heating and cooling occur faster.
- The device has side and lower holes for air circulation. For proper functioning, do not close them completely. If necessary, use a stand that does not cover the lower holes.
- In heating mode the temperature of the heating element can reach 50-60 °C. To avoid injury do not touch the heating element when the device is on.
- Place a bottle with a drink in the device. Connect the cable to the power connector of the device and insert the adapter into the cigarette lighter.
- Press button Cooling to turn on the cooling mode. The fan will turn on and the indicator will turn blue.
- Press button Heating to turn on the heating mode. The fan will turn on and the indicator.
