IG RL5340NBPWCG Hailee Small Sculpted Chandelier
Installation Guide

ASSEMBLY INSTRUCTIONS

NOTICE:
This light fixture should be installed in accordance with all applicable, local installation codes, and by a person familiar with the construction and operation of it, as well as the hazards involved. Inspect items and contents carefully. If any damage or defect is found, do not install it.
Retain all packaging material until installation is complete and approved.

1. Carefully remove all parts from the box.
2. Remove the mounting plate (B) from the canopy (F) by loosening side screws (E).
3. Install the mounting plate (B) to the outlet box and secure with mounting screws (C).
4. Connect the fixture ground (bare) wire with the ground wire from the outlet box using wire nut (A) . If your house does not have ground wire, then attach this wire to the green grounding screw inside of the outlet box.
   IT IS IMPERATIVE THAT THIS FIXTURE BE GROUNDED.
5. Connect the fixture Neutral (ribbed, no markings) wire with the neutral wire from the outlet box using wire nut (A).
6. Connect the fixture Hot (smooth edge, markings) wire with the hot wire from the outlet box using wire nut (A).
   DO NOT REVERSE THE HOT AND NEUTRAL CONNECTIONS OR SAFETY WILL BE COMPROMISED.
7. Tuck these wire connections neatly into the outlet box to secure them.
8. Attach canopy (F) to the mounting plate (B) and secure with side screws (E).

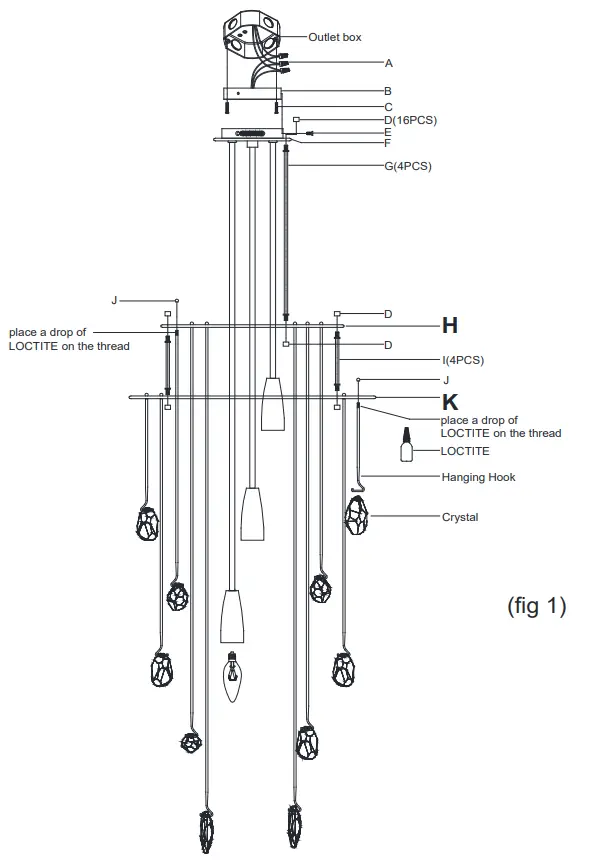

9. Assembly of the metal ring (H) to the canopy (F) by using rods (G) and securing with nuts (D) (See fig 1).
10. Assembly of the metal ring (K) to the metal ring (H) by using rods (I) and securing with nuts (D) (See fig 1).
    Hanging Hook


    A (5PCS) L=7. 25″ (184mm)	B (3PCS) L=8. 75″ (222mm)	C(1PC) L=8. 5″ (216mm)	D (6PCS) L=12. 75″ (324mm)
    E (IPC) L=9″ (229mm)	F (2PCS) L=19″ (483mm)	G (4PCS) L=16. 75″ (425mm)	H (3PCS) L=17. 5″ (495mm)
    I (3PCS) L=30. 75″ (781mm)	J (IPC) L=14. 75″ (375mm)	K (2PCS) L=15. 25″ (387mm)	L (1PC) L=19. 25″ (489mm)
    M (5PCS) L=24. 5″ (622mm)	N (1PC) L=16. 5″ (419mm)	0 (1PC) L=36. 5″ (927mm)	P (1PC) L=36. 25″ (921mm)
    Q (1PC) L=30. 25″ (768mm)	R (1PC) L=33. 25″ (845mm)

    Crystal


    1 6PCS	2 10PCS	3 12PCS	4 6PCS	5 8PCS

    NOTICE:
    This light fixture should be installed in accordance with all applicable, local installation codes, and by a person familiar with the construction and operation of it, as well as the hazards involved. Inspect items and contents carefully. If any damage or defect is found, do not install it.
    Retain all packaging material until installation is complete and approved.

11. When attaching the hanging hooks to the metal ring (H and K), following locations for hooks (fig 2 and fig 3).
    NOTE: To further secure the hanging hooks, place a drop of Loctite on the top thread, then firmly tighten the nuts (J).
12. Hang the crystal (from 1 to 5, a total of 5 kinds, 42pcs) to the hanging hook, no specific location, just put it on the desired hanging hooks.
13. Insert bulbs (not included) into the sockets.
14. Installation is complete, turn on the power at the fuse or circuit breaker.

Care Instructions: Clean only with a soft dry cloth or feather duster. Do not use abrasive or chemical agents.
